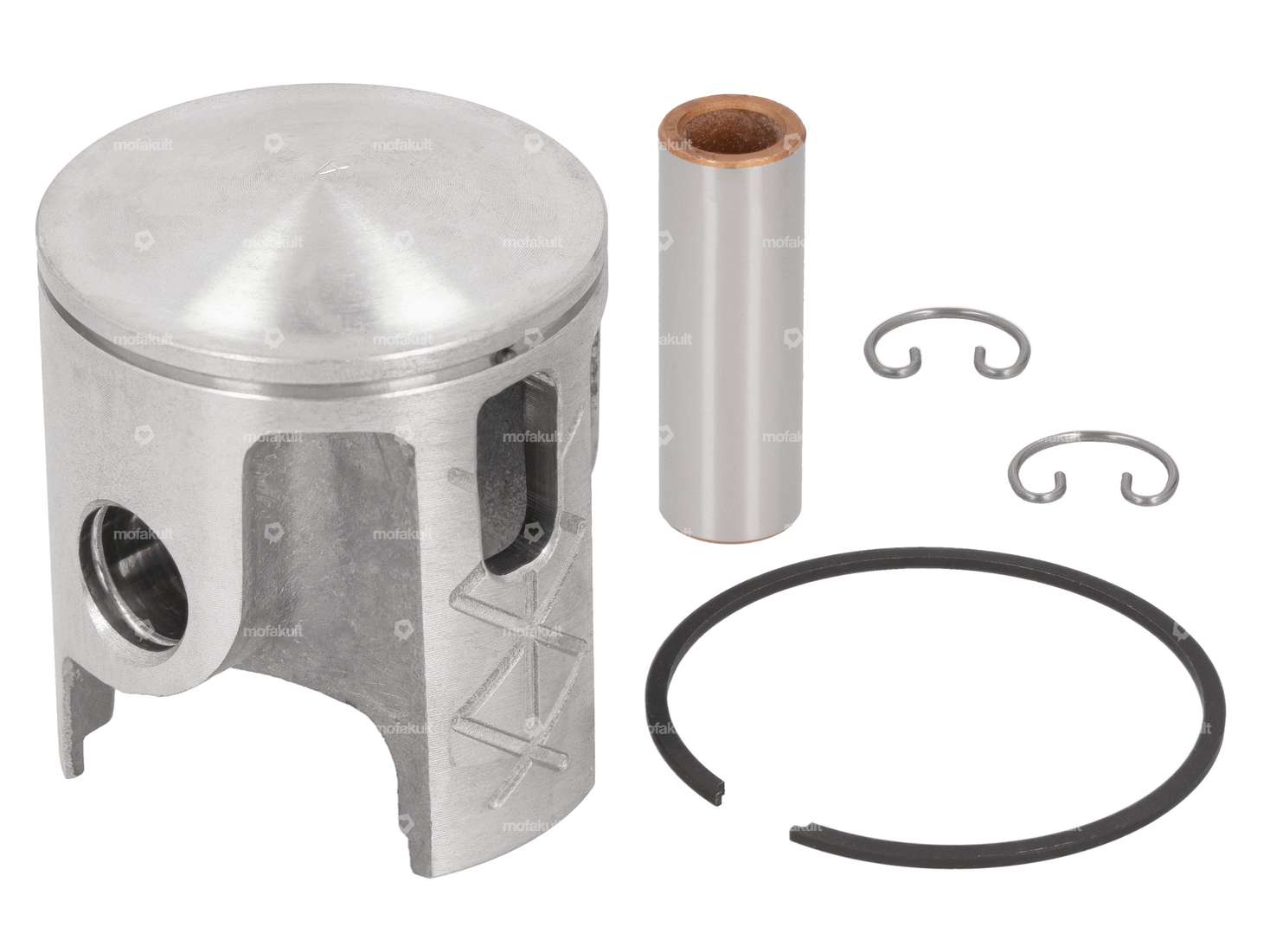

Polini piston 43.5 mm #B | Puch

Polini 43.5 mm cylinder kit reed | Puch

Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Nominal diameter: 43.5 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Area of application: Racing · Area of application: Tuning · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red

Polini piston 43.5 mm #C | Puch

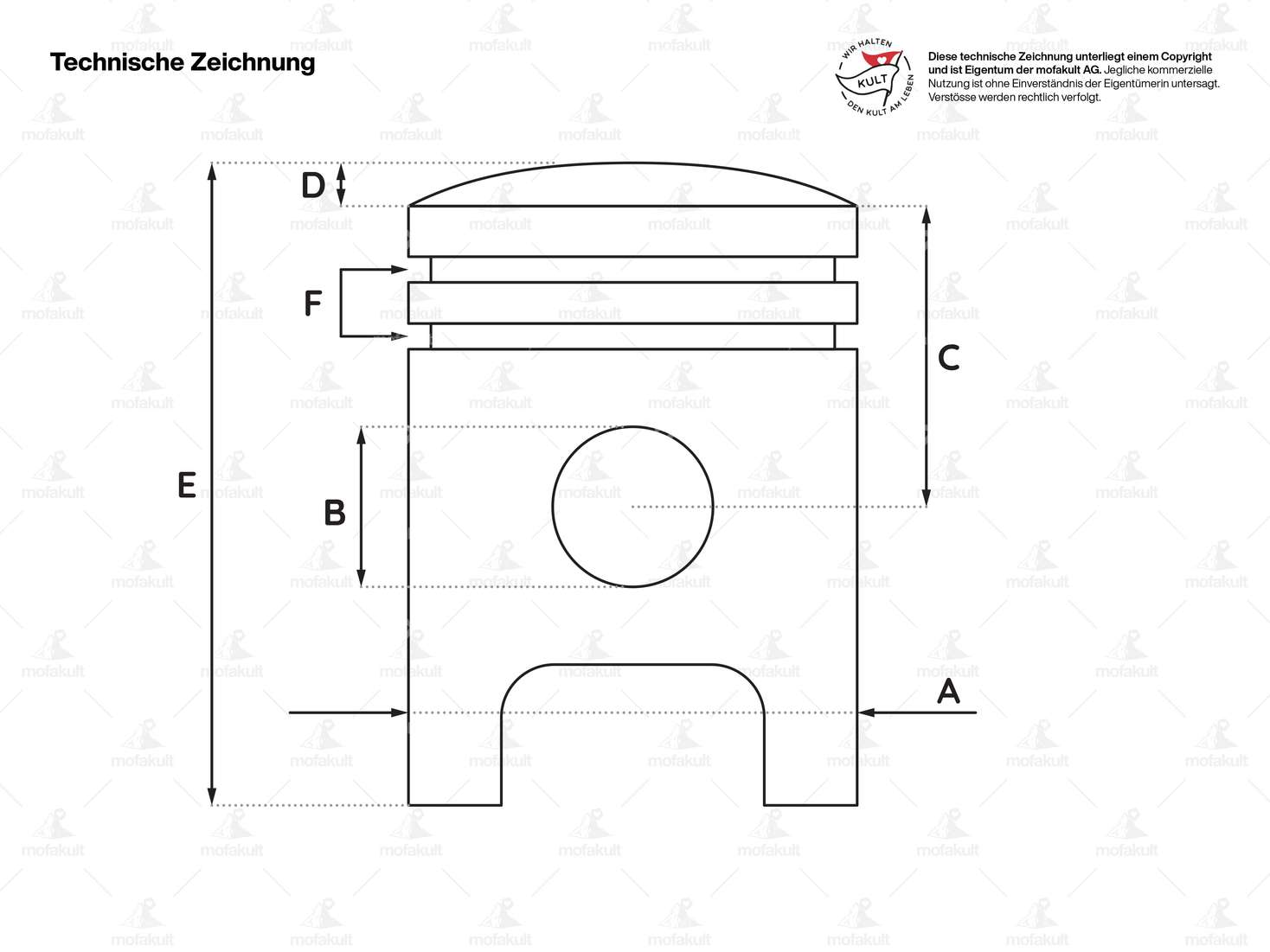

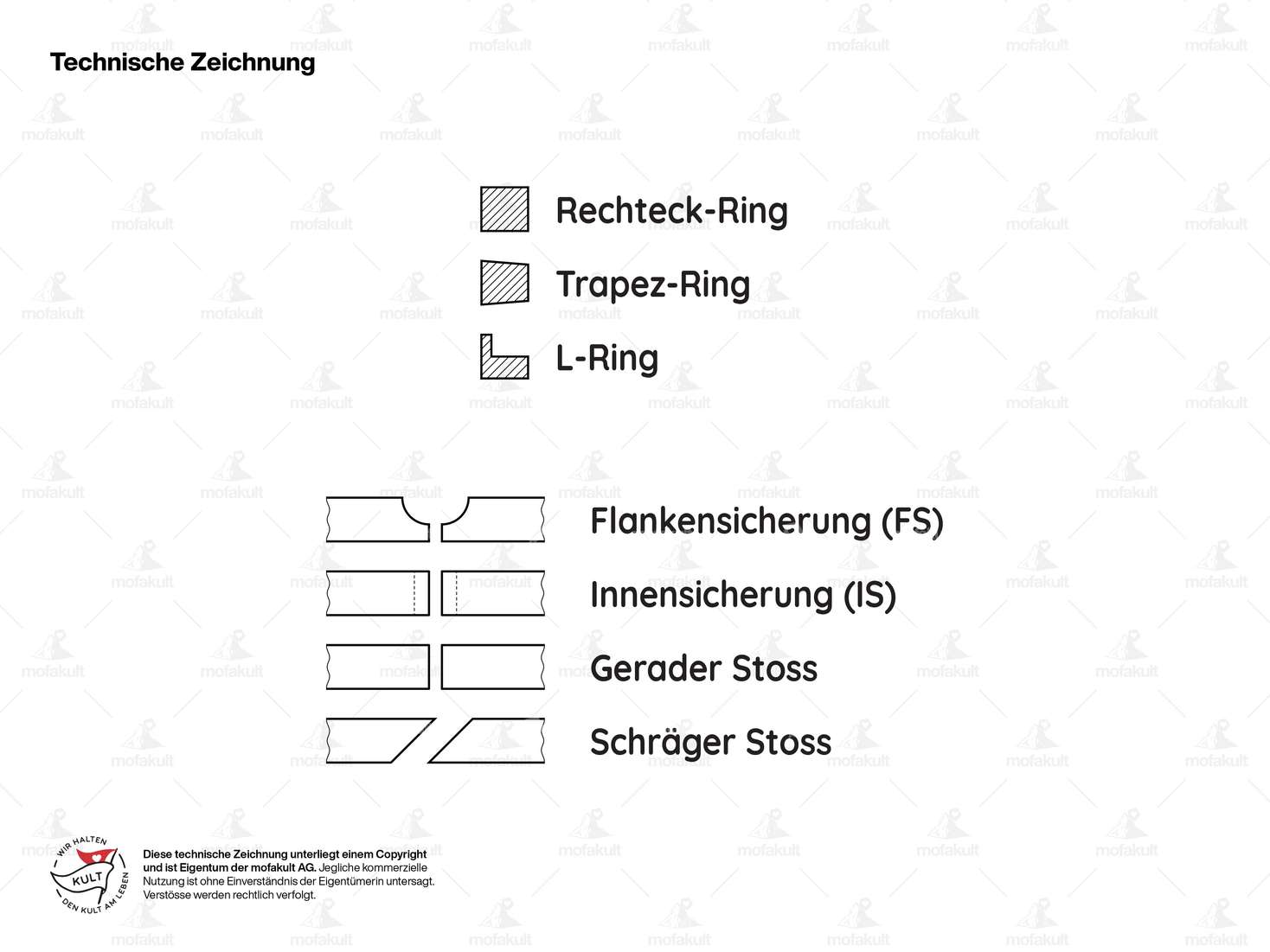

Manufacturer: Polini · Ø outside piston (A): 43.47 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 43.5 mm · Piston ring impact: Internal fuse (IS) · Piston ring mold: Rectangular ring · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Piston weight: 92 g

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool

Polini piston 43.5 mm type A | Puch

Manufacturer: Polini · Ø outside piston (A): 43.45 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 43.5 mm · Ø piston pin (B): 12 mm · Piston ring height: 1.2 mm · Tolerance group: A · Piston weight: 93 g

Polini piston 43.5 mm type D | Puch

Manufacturer: Polini · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.48 mm · Ø piston pin (B): 12 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Tolerance group: D · Piston weight: 93 g

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Polini gasket set 43.5 mm

Manufacturer: Polini · Ø cylinder: 43.5 mm · Number of components: 5 pcs · Area of application: Tuning · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Area of application: Standard · Cable length: 1650 mm

Cylinder head gasket 40 - 43.5 mm | Puch

Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 40 - 43.5 mm · Thickness: 0.4 mm · Ø screw holder: 8 mm

Leonelli 6V voltage regulator (1A quality)

Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Tension: 6 V · Performance: 50 W · Type of current: Alternating current (AC) · Total length: 50 mm · Width: 27 mm · Height: 15 mm · Ø mounting hole: 6 mm · Mounting type: Screws

GPO 43.5 mm cylinder head tuning Polini new version | Puch

Total length: 135 mm · Width: 140 mm · Manufacturer: GPO · Height: 55 mm · Material: Aluminum · Ø cylinder: 43.5 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Decompressor: No

GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Width: 135 mm · Number of fixing points: 4 pcs · Ø cylinder: 43.5 mm · Area of application: Tuning · Candle thread: short · Total length: 140 mm · Hole pattern [mm]: 44 x 44 · Decompressor: No · Height: 55 mm

Clutch cable / brake cable Ø 1.5 mm x 225 cm (pear-shaped nipple)

Ø Stranded wire: 1.5 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 2250 mm · Number of components: 1 pcs · Area of application: Standard · Piaggio OEM number: 270460

Polini gasket cylinder head Ø 43.5 mm | Puch

Manufacturer: Polini · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.4 mm · Nominal diameter: 43.5 mm · Ø cylinder: 43.5 mm · Ø outlet inside: 43.5 mm

Polini 20 mm intake manifold 2-folding diaphragm Puch

Manufacturer: Polini · Material: Aluminum · Ø inside: 20 mm · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Total height: 46 mm · Area of application: Tuning
