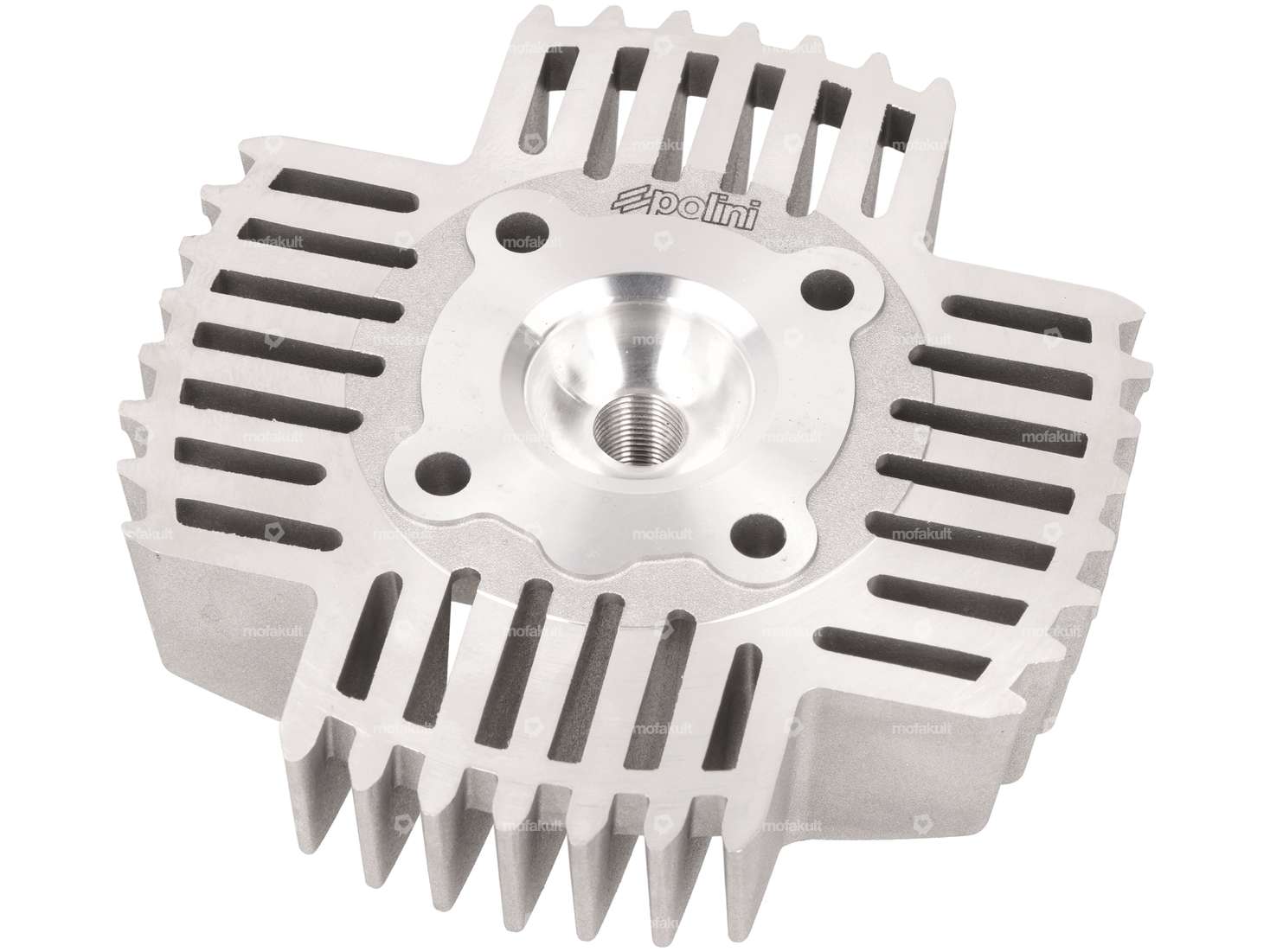

Polini 43.5 mm cylinder head | Puch

Polini 43.5 mm cylinder kit reed | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Racing · Area of application: Tuning

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Drive: External hexagon · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO 43.5 mm cylinder head tuning Polini new version | Puch

Manufacturer: GPO · Material: Aluminum · Ø cylinder: 43.5 mm · Total length: 135 mm · Width: 140 mm · Height: 55 mm · Number of fixing points: 4 pcs · Decompressor: No · Area of application: Tuning

GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 43.5 mm · Total length: 140 mm · Width: 135 mm · Height: 55 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Area of application: Tuning

NGK B7ES spark plug long thread

Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

NGK BR8EIX Spark plug long thread interference-suppressed Iridium

Manufacturer: NGK · Candle designation: BR8EIX · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Electrode material: Iridium · Suppressed: Yes · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning

Polini 43.5 mm cylinder kit reed valve with head | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø inside: 28.6 mm · Ø outside: 24 mm · Manufacturer: Polini · Material: Aluminum · Material: Plastic · Area of application: Racing · Area of application: Tuning · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.2 mm · Camouflaged: No

Polini exhaust "for race" | Puch Maxi

Manufacturer: Polini · Material: Steel · Surface: blank · Total length: 900 mm · Ø Silencer: 60 mm · Number of fixing points: 2 pcs · Exhaust type: Cone / double cone · Flame tube attachment: Flange · Flame tube attachment: suspended

Polini 43.5 mm cylinder kit reed | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Racing · Area of application: Tuning

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

Dell'Orto 19 mm PHBG CS carburetor hand choke

Nominal diameter: 19 mm · Width: 70 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG CS · Total length: 82 mm · Height: 124 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Mounting type: Plug connection clamped · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 75 · Size of secondary nozzle: 45

Magura cable holder

Manufacturer: Magura · Area of application: Standard · Color: silver · Material: Brass · Surface: nickel-plated · Ø Cable bushing: 4 mm · Ø outside: 8 mm · Ø Bundle: 10 mm · Total length: 14.5 mm · Ø Nipple hole: 6.2 mm

Metrakit gasket set 43.5 mm

Manufacturer: Metracite · Area of application: Tuning · Ø cylinder: 43.5 mm · Number of components: 5 pcs · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm

Cylinder head gasket 40 - 43.5 mm | Puch

Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 40 - 43.5 mm · Thickness: 0.4 mm · Ø screw holder: 8 mm

Barikit piston 43.5 mm MetraKit | Puch

Nominal diameter: 43.5 mm · Manufacturer: Barikite · Thick piston ring: 0.97 mm · Ø outside piston (A): 43.44 mm · Compression height (C): 22.5 mm · Curvature (D): 2 mm · Total piston height (E): 51.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Weight piston kit: 98 g

Polini gasket cylinder head Ø 43.5 mm | Puch

Manufacturer: Polini · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.4 mm · Nominal diameter: 43.5 mm · Ø cylinder: 43.5 mm · Ø outlet inside: 43.5 mm

Metrakit 43.5 mm cylinder kit (65 cc - camouflaged) | Puch

Nominal diameter: 43.5 mm · Manufacturer: Barikite · Manufacturer: Metracite · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes · Area of application: Tuning
