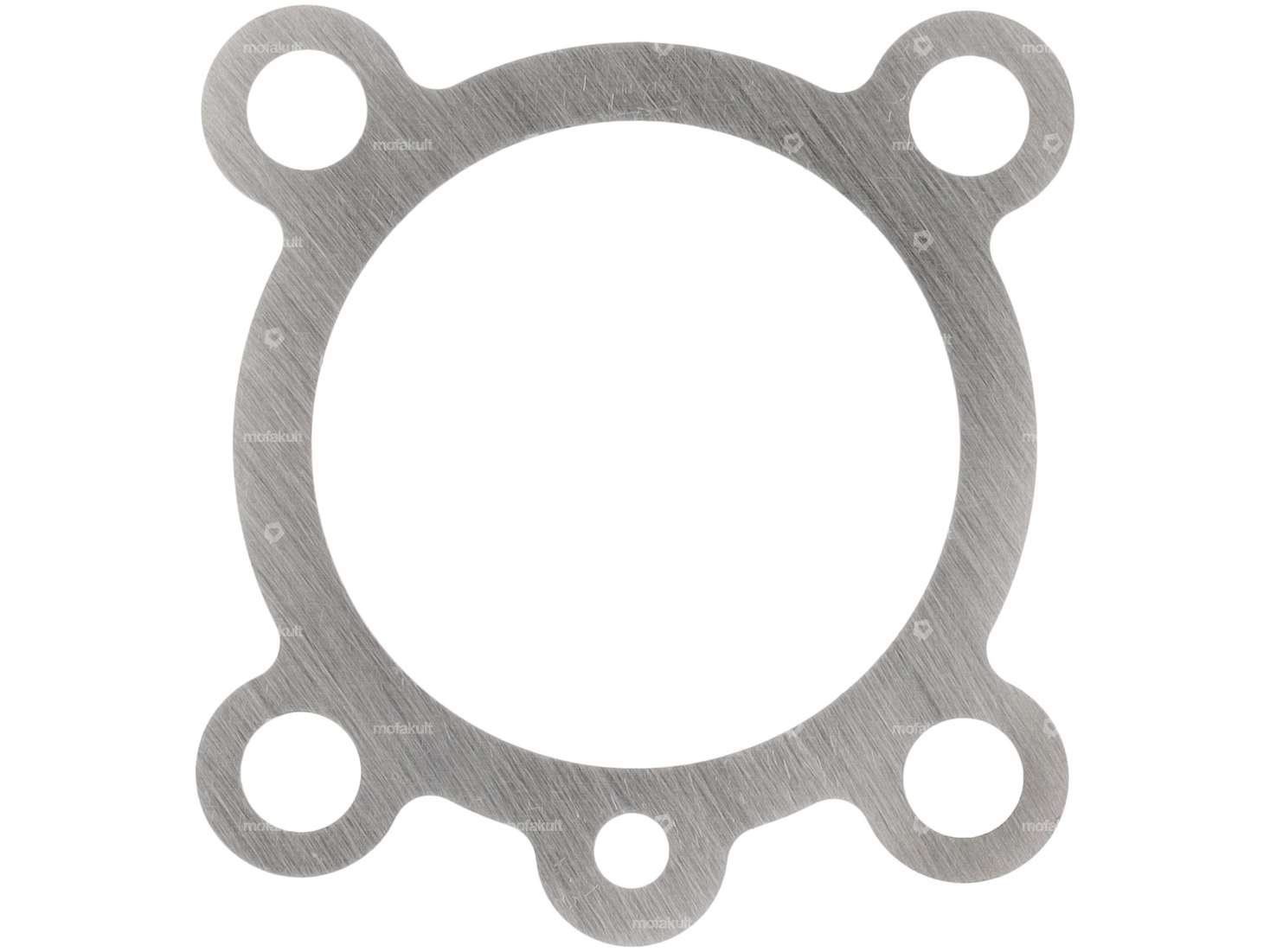

Polini gasket cylinder head Ø 43.5 mm | Puch

Polini 43.5 mm cylinder kit reed | Puch

Manufacturer: Polini · Camouflaged: No · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Material: Aluminum · Crankshaft stroke: 43 mm · Nominal diameter: 43.5 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Inlet window: 26 x 21 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning · Outlet type: straight · Thread outlet: M6x1 (standard thread)

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Surface: galvanized (blue) · Nipple length: 5 mm · Area of application: Standard

GPO gasket cylinder base 0.35 mm original | Puch

Nominal diameter: 47 mm · Manufacturer: GPO · Place of use: Cylinder base · Material: Oiled paper · Ø inside: 47 mm · Thickness: 0.3 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard · Puch OEM number: 349.3.10.013.1

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Polini gasket set 43.5 mm | Puch

Manufacturer: Polini · Number of components: 5 pcs · Ø cylinder: 43.5 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Hole spacing outlet: 42 mm · Area of application: Tuning

Cylinder Head Gasket 43.5 mm | Puch

Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 40 - 43.5 mm · Thickness: 0.4 mm · Ø screw holder: 8 mm

Outlet gasket 18 - 22 mm metal ring

Manufacturer: GPO · Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.7 mm · Thickness: 2 mm · Hole spacing: 38 - 42.5 mm

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO Special Cylinder Stud Bolt Set M6x106, Galvanized | Puch

Manufacturer: GPO · Material: Steel · Diameter: 7 mm · Nominal diameter (thread): 6 mm · Drive: External hexagon · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 15 mm · Thread length: 19 mm · Width across flats: 10 mm · Strength class: 10 · Strength class: 10.9 · Alternative version of the Puch OEM number: 360.1.10.034.1
