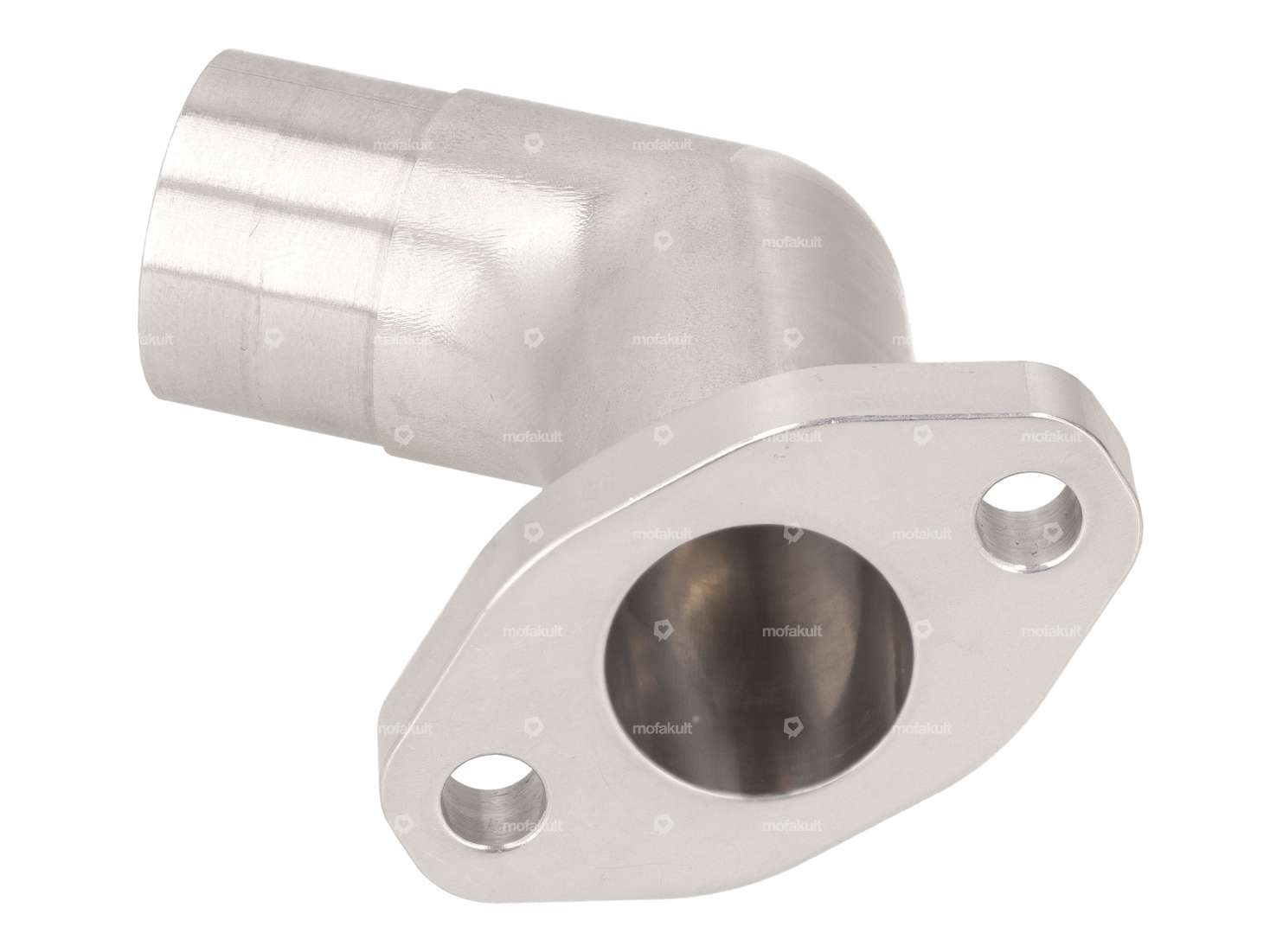

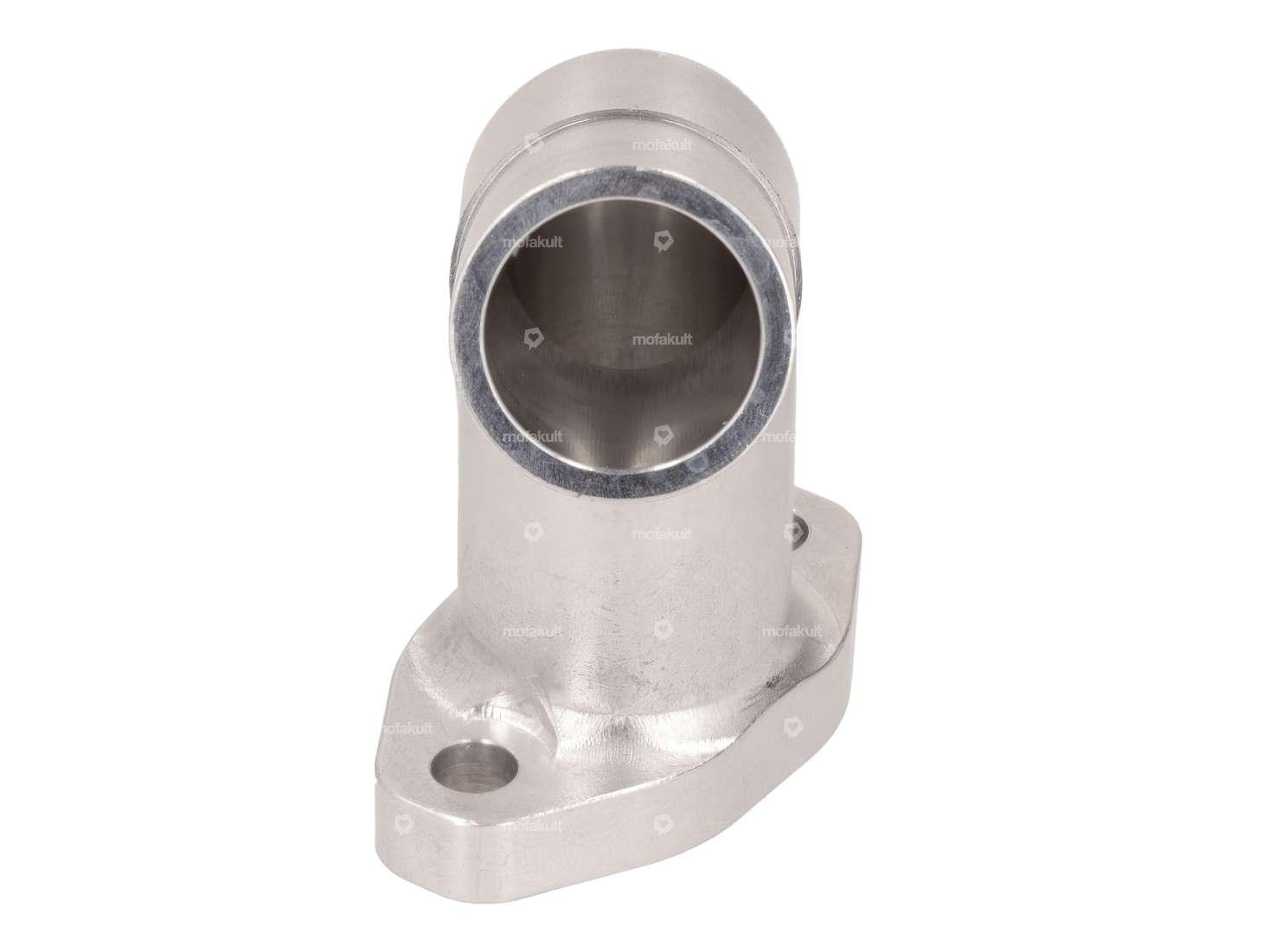

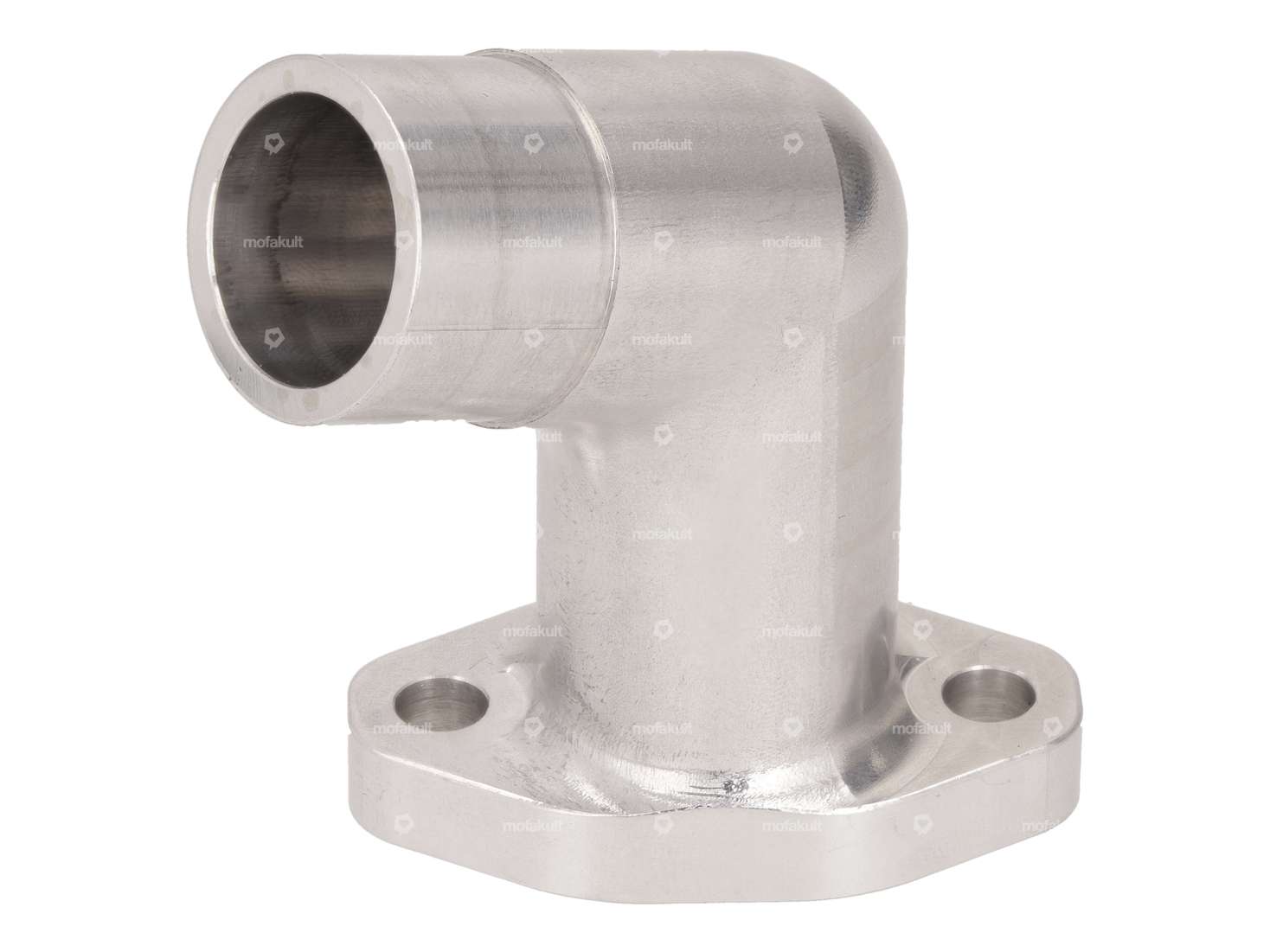

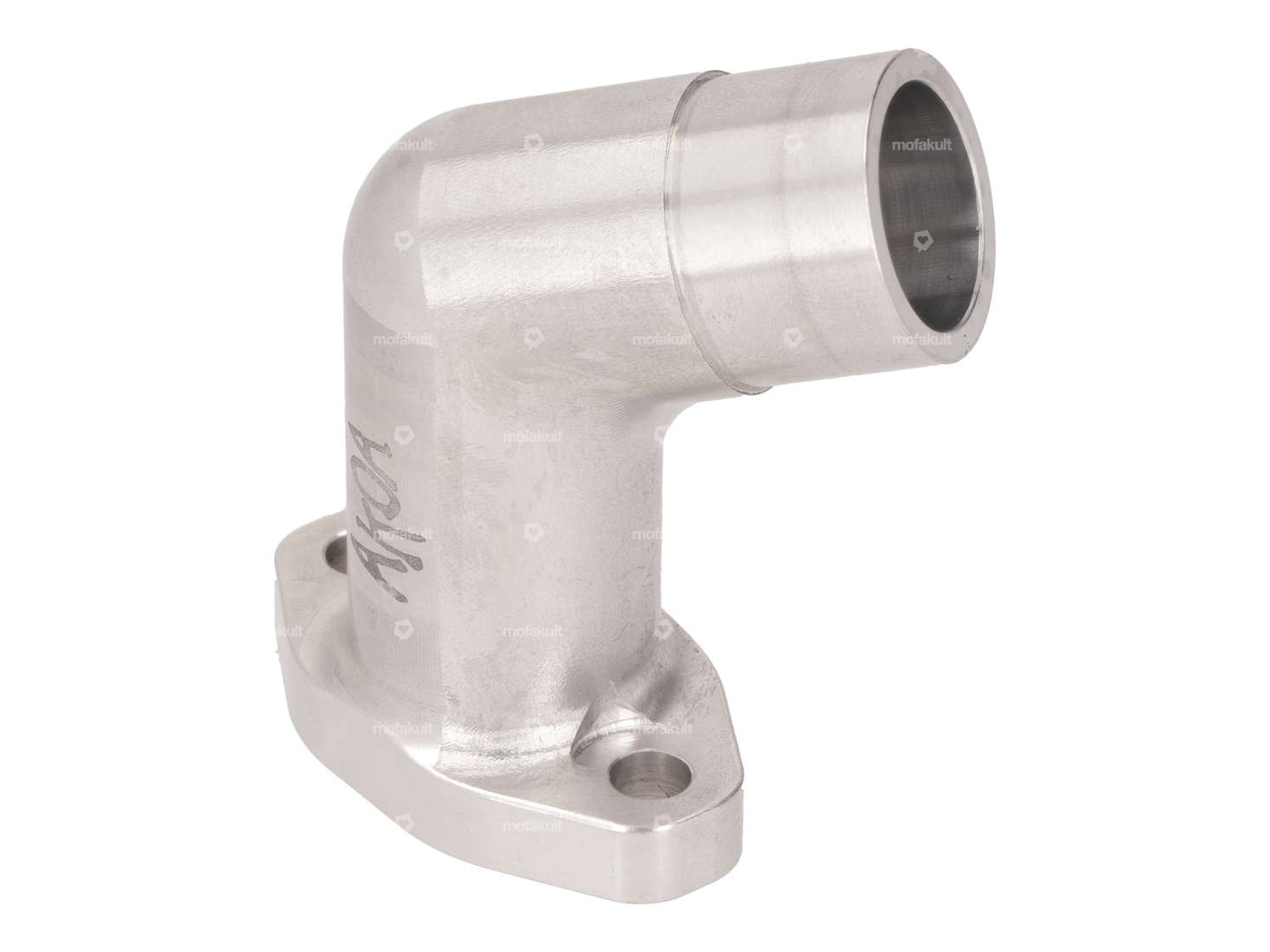

19 mm tuning intake manifold for Puch X30 Sport mopeds / mopeds with Z50 engine and Puch Maxi models which have an E50 engine installed.
The CNC-milled intake manifold is designed for Dell'Orto PHBG carburettors and has a round opening on the cylinder side.
On the Puch X30 it is still possible to fit the original side skirts, but it is not possible to operate the hand choke or fit an air filter. Cable chokes and replicas of the carburetor with service hatch at the bottom cannot be fitted.
| Manufacturer | AKOA |
| Camouflaged | No |
| Material | Aluminum |
| Area of application | Tuning |
| Ø inside | 19 mm |
| Mounting type | Nuts |
| Total height | 68 mm |
| Number of fixing points | 2 pcs |
| Height flange center hole | 57 mm |
| Ø External connection | 24 mm |
| Hole spacing inlet | 38 mm |
| Puch | E50 Z50 (X30 Sport) |
