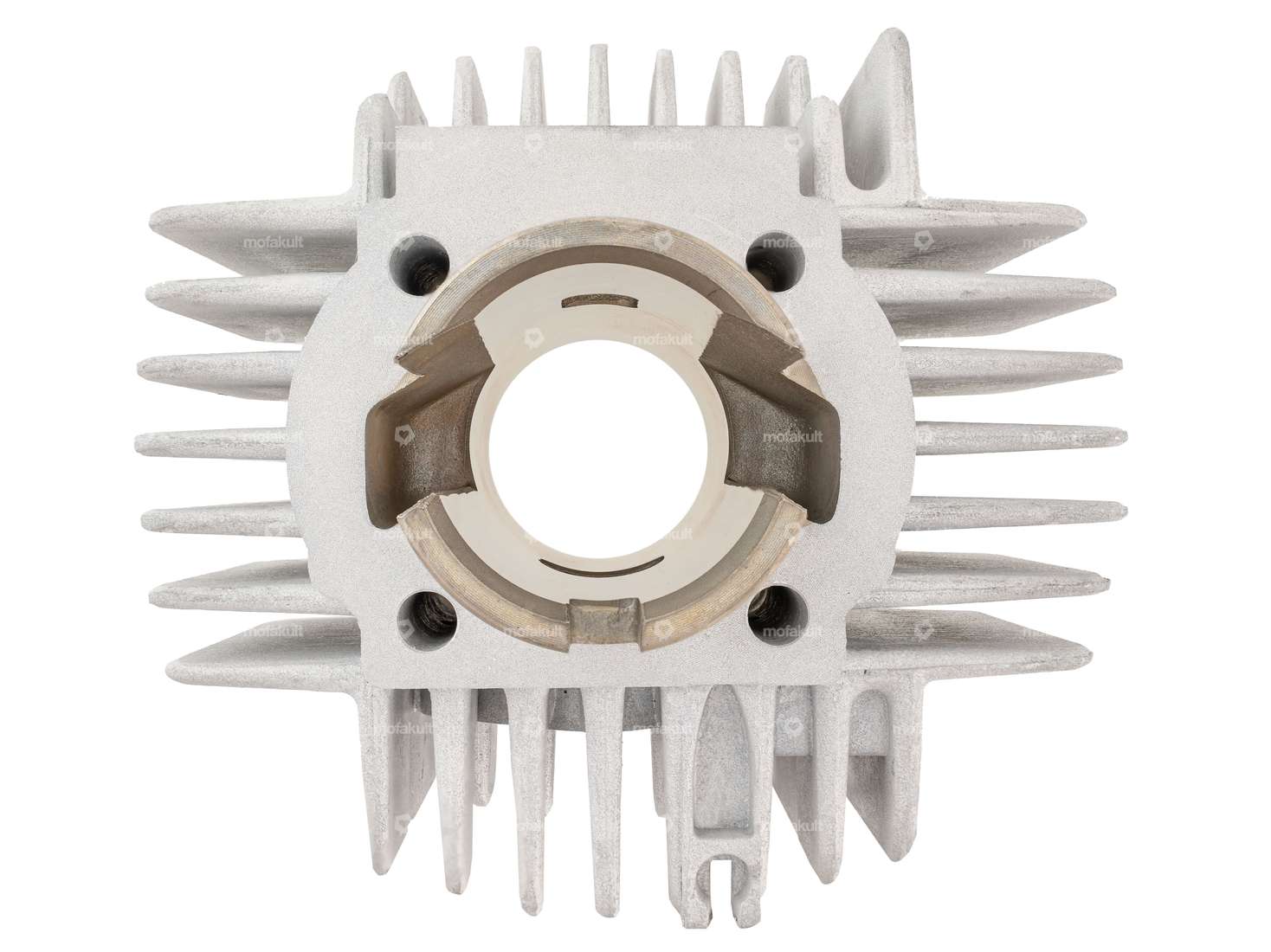

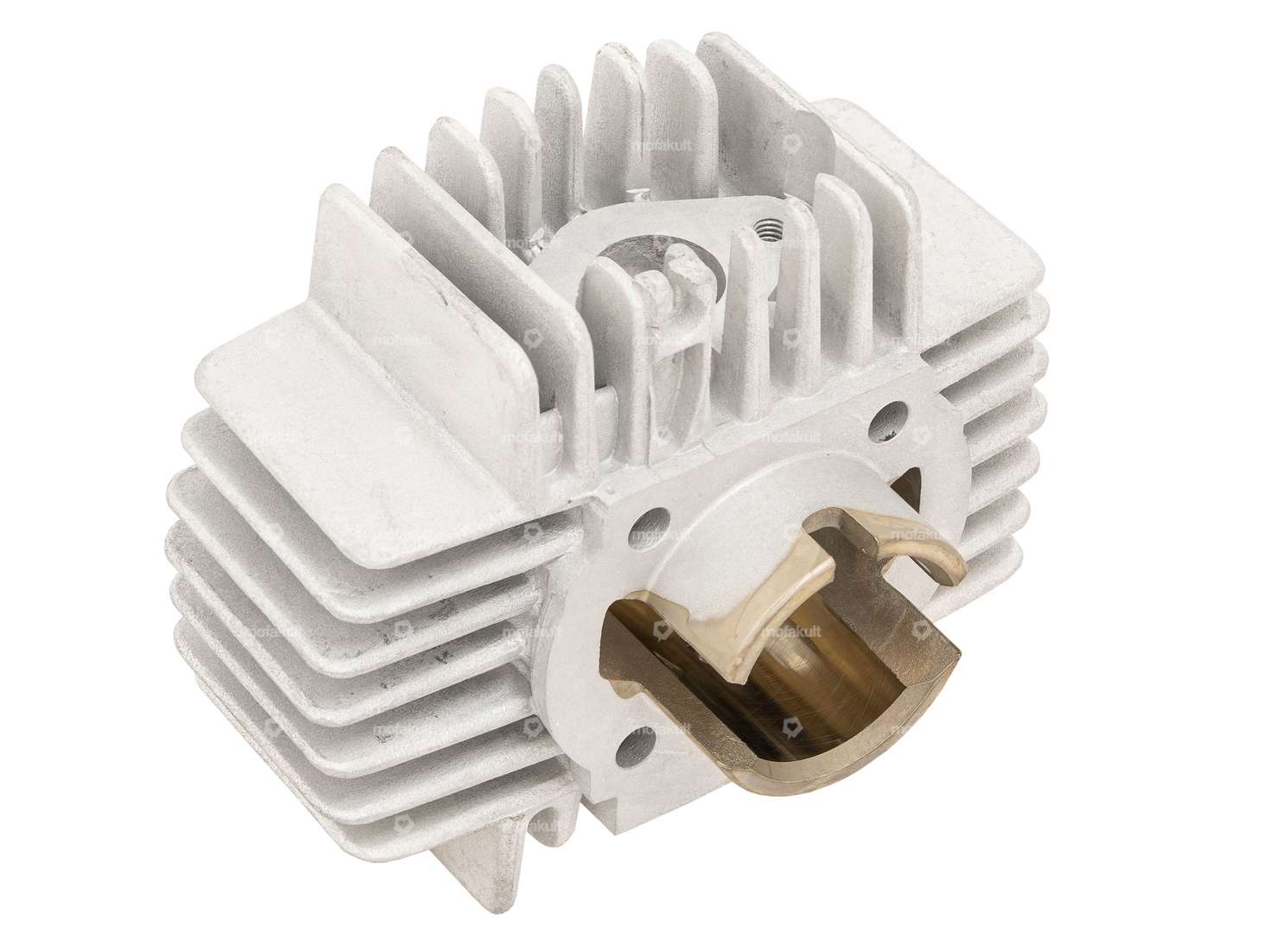

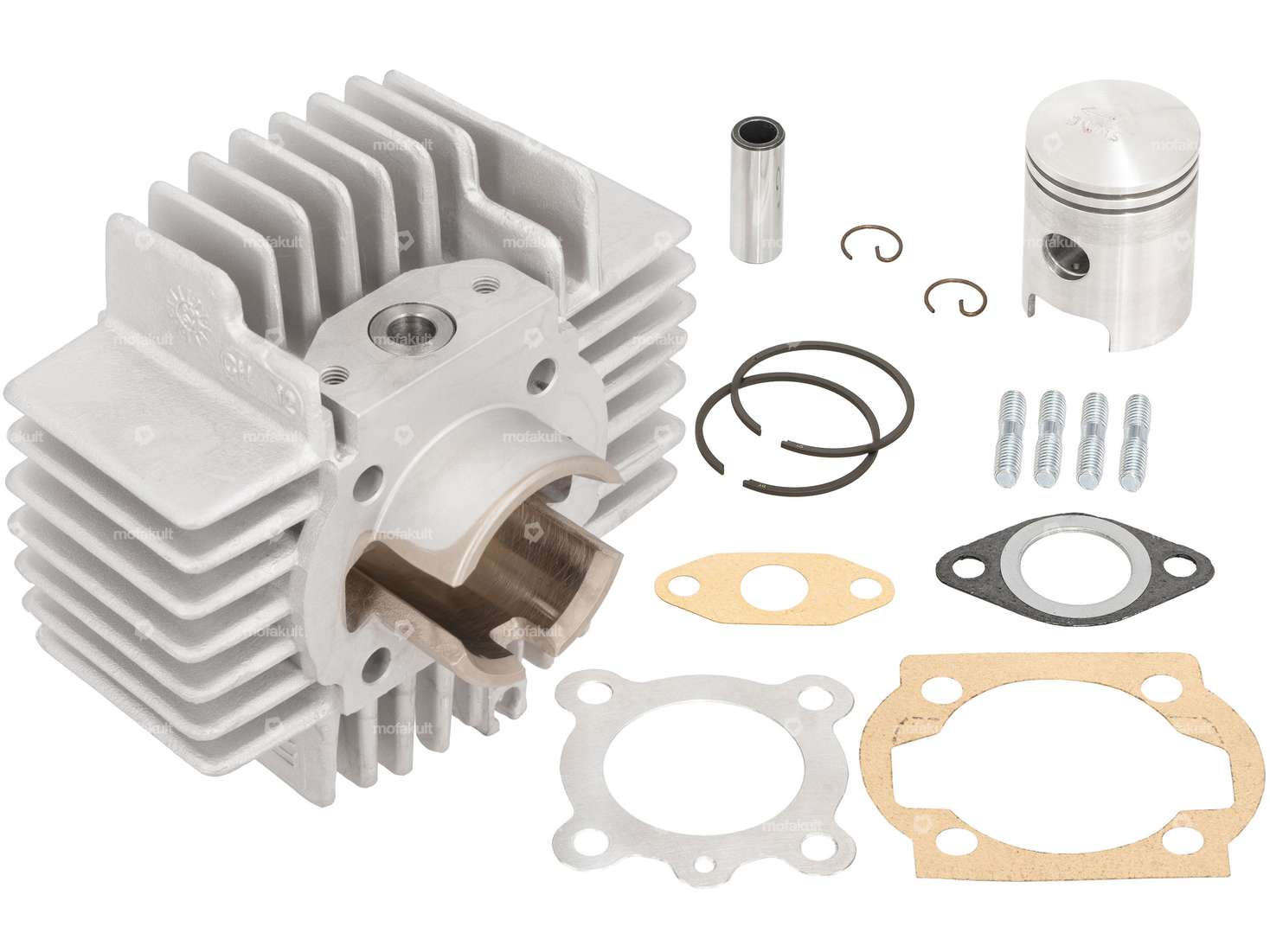

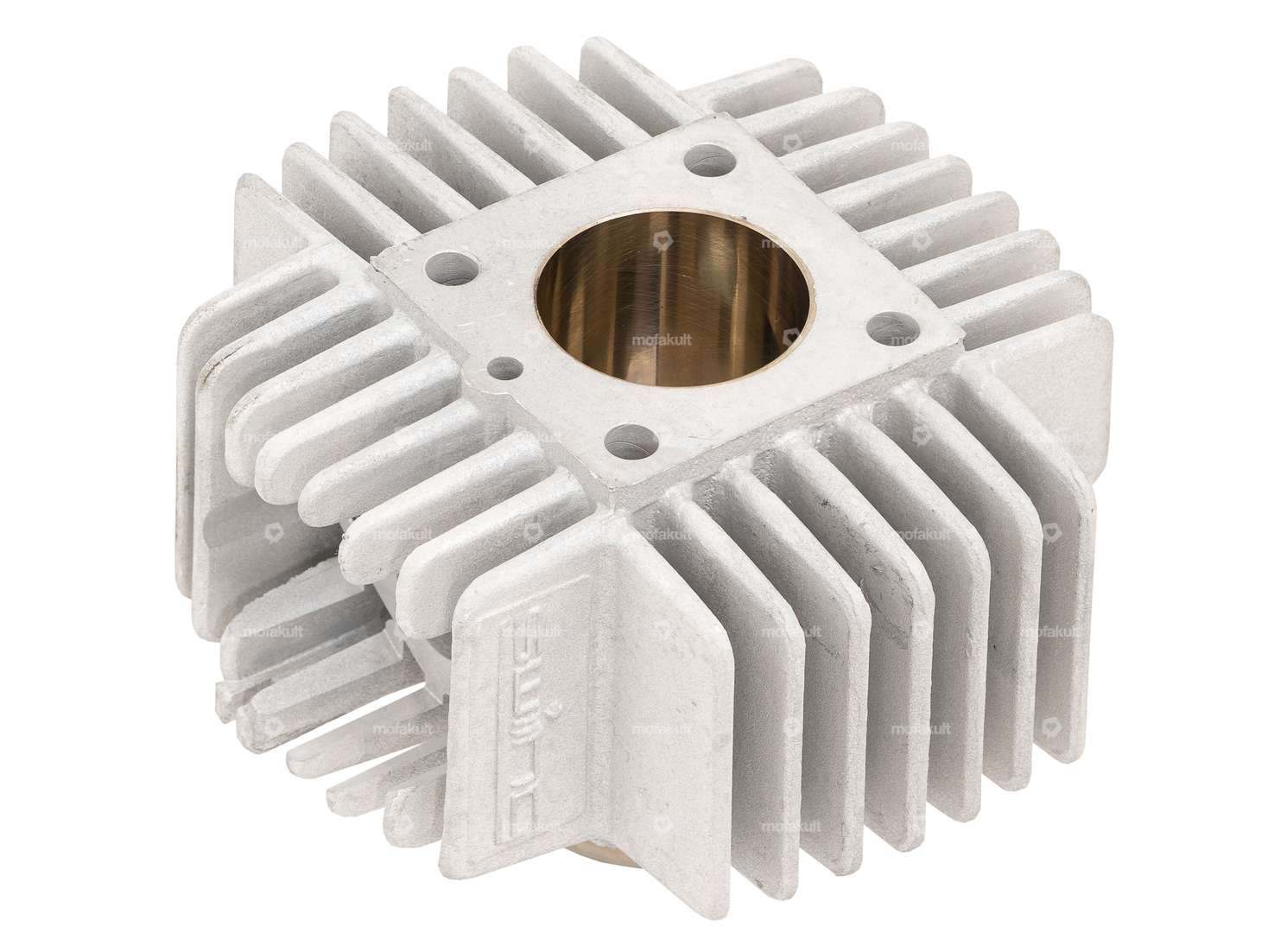

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "original" | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 154.10

Incl. 21% VAT.

Description

Lightly optimized, high-quality 38 mm original cylinder suitable for various Puch mopeds / mopeds such as Maxi S / N and Puch X30 NS / NL.

With this cylinder, you can reach your destination quickly and powerfully

.
  • The intake window has been moved slightly downwards to achieve better timing
  • Lubrication holes on the piston to the piston pin.
  • The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
  • The piston skirt has been optimized
  • The inlet angles of the transfer ports have been adjusted
  • Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)

With these optimizations, the 38 mm cylinder kit delivers a whopping 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

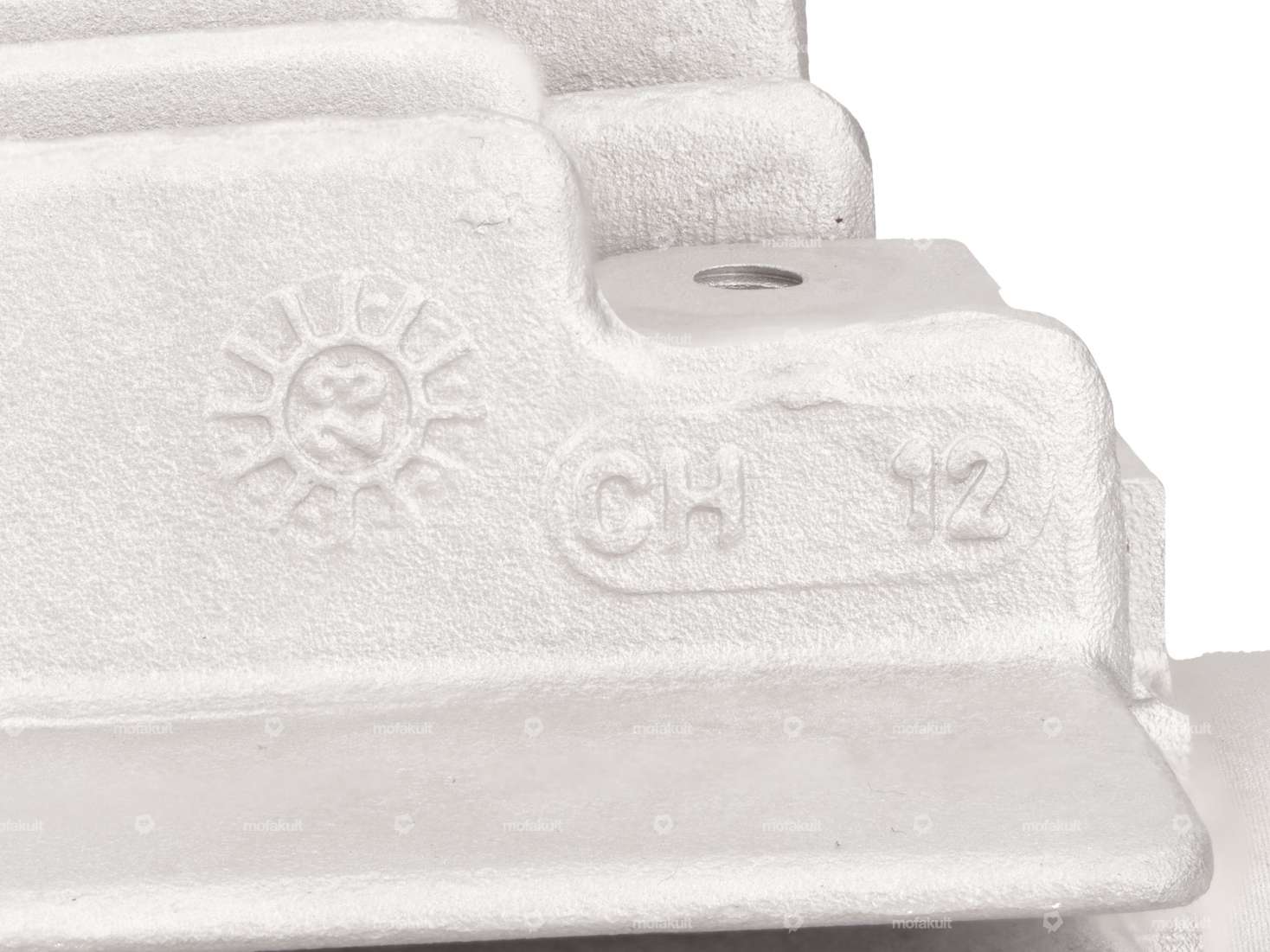

Of course, the original «CH12» is also cast in.

You can find detailed installation instructions in the video below.

Download Montageanleitung
Nominal diameter38 mm
Manufacturerswiing® revival parts
MaterialAluminum
Surfacesandblasted
Displacement50 ccm
Crankshaft stroke43 mm
Ø cylinder neck48 mm
Ø outlet inside19 mm
Ø Inlet inside9 mm
Thread inletM6x1 (standard thread)
Hole spacing inlet38 mm
Number of fixing points4 pcs
Ø piston pin (B)12 mm
Outlet typestraight
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
Area of applicationStandard
Hole pattern [mm]44 x 44
DecompressorYes
CamouflagedYes
Alternative version of the Puch OEM number349.7.10.105.0
Puch

E50

Z50 (X30 Sport)

Accessories & related products

Hot Hot
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

10096

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Number of fixing points: 4 pcs · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Area of application: Standard · Decompressor: No

EUR 39.00

swiing® revival stud bolts M6 x 106 (10.9 strength)
undefined

For: Puch · Sachs

10382

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread length: 20 mm · Total length: 106 mm · Puch OEM number: 360.1.10.034.1

EUR 2.15

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)
undefined

Universal

15357

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

EUR 23.60

EUR 23.60/l

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
undefined

For: Puch

18209

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 - 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Standard · Decompressor: Yes

EUR 8.80

Not in stock

swiing® revival 12 mm carburetor set "original" | Puch E50
undefined

For: Puch

19137

swiing® revival 12 mm carburetor set "original" | Puch E50

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Mounting type: Flange · Mounting type: Plug connection clamped · Camouflaged: No · Component group Carburetor: Carburetor complete · Choke control: Hand choke · Carburetor type: SRE · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Hole spacing inlet: 38 mm · Nozzle size: 52 · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Area of application: Standard · Clamping screw torque (max.): 4 N/m

EUR 112.60

Set

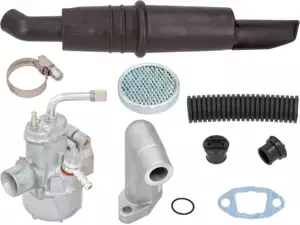

swiing® revival carburetor set 12 mm "original" | Puch X30 NS, NL
undefined

For: Puch

20143

swiing® revival carburetor set 12 mm "original" | Puch X30 NS, NL

Manufacturer: swiing® revival parts · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 12 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Nozzle size: 52 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Area of application: Standard

EUR 213.50

swiing® revival piston 38 mm Vertex | Puch
undefined

For: Puch

22205

swiing® revival piston 38 mm Vertex | Puch

Nominal diameter: 38 mm · Manufacturer: Vertex · Manufacturer: swiing® revival parts · Ø outside piston (A): 37.96 mm · Compression height (C): 22.45 mm · Curvature (D): 3.5 mm · Total piston height (E): 50.45 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 71 g

EUR 71.10

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Monark · Peugeot · Victoria · Yamaha

22386

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Width: 14.2 mm · Ø outside: 15 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

EUR 14.10

swiing® revival 38 mm gasket set original cylinder | Puch
undefined

For: Puch

23689

swiing® revival 38 mm gasket set original cylinder | Puch

Manufacturer: swiing® revival parts · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Standard · Decompressor: Yes

EUR 11.80

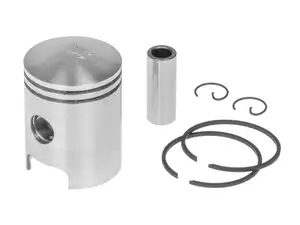

swiing® revival piston 38 mm 1.6 hp | Puch
