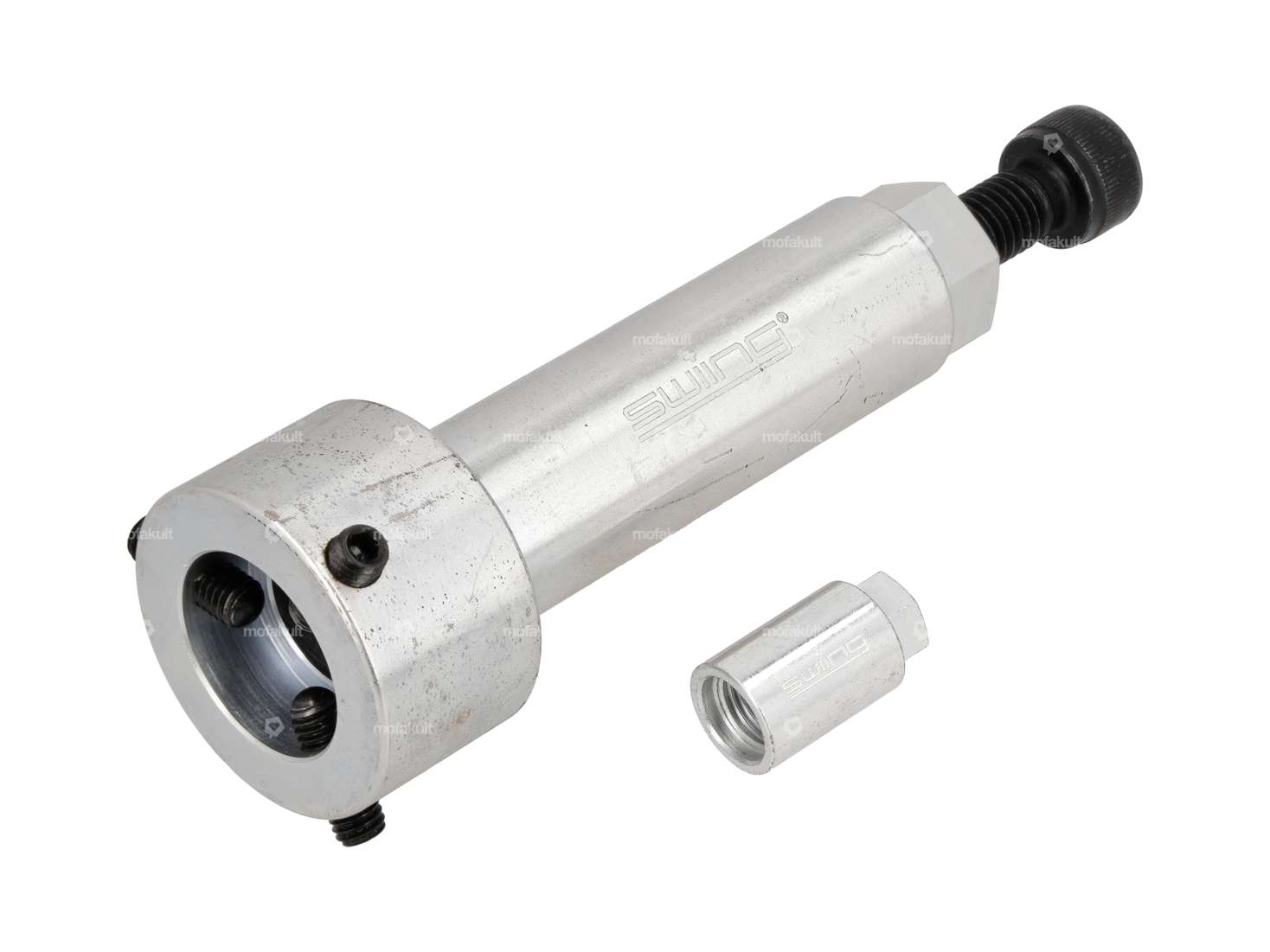

Bearing puller for BO15, L17 and E15 shoulder ball bearings.
These shoulder bearings were used on mopeds, mokicks and mopeds from the manufacturers Kreidler, Sachs, Hercules and Puch.

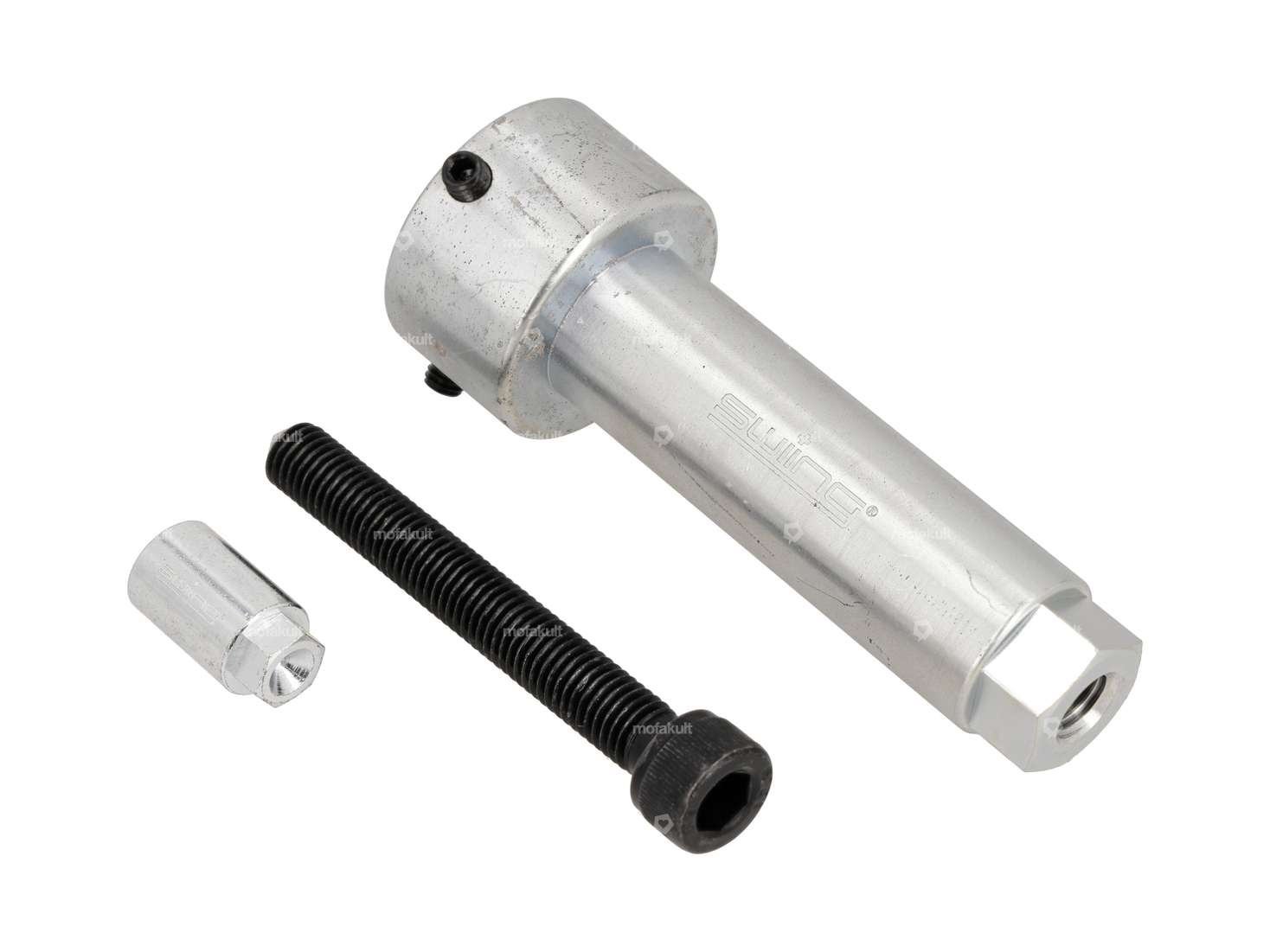

The inner ring is fixed with the three grub screws and pulled off the crankshaft using the screw at the top.
To protect the crankshaft, the enclosed pin is screwed onto the crankshaft.
High-quality & precisely fitting processing of the puller L17.
Exceptional product for the highest demands of the quality brand swiing®.
| Width across flats (trigger) | 8 mm, 19 mm |
| Span | 24 mm |
| Manufacturer | swiing® ingenious parts |
| Clamping depth | 10 mm |
| Peel-off tray | L17, BO15, E15 |
| Surface | galvanized (blue) |
| Number of components | 1 pcs |
| Diameter | 40.3 mm, 24 mm |
| Thread type | M6x1 (standard thread), M8x1.25 (standard thread) |
| Total length | 120 mm |
| Area of application | (Dis)assembly tool |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB |
