Montageanleitung
Set
Hot

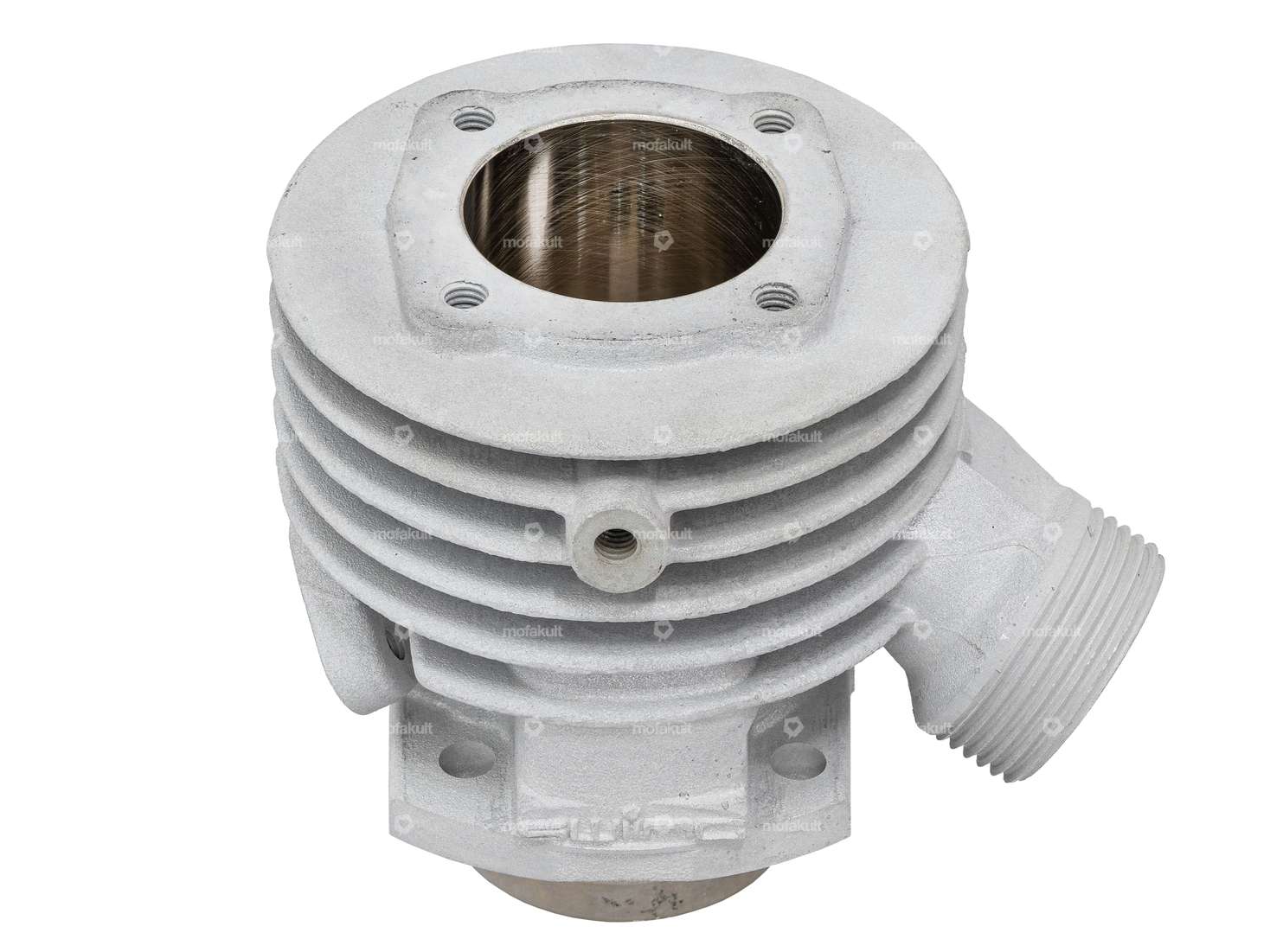

Market innovation: first 38 mm racing cylinder made of aluminum with round slotted intake for Sachs 2-, 3- and 4-speed engines with blower clutch, which were installed on Hercules 50/ALS, 50/2 S, 50/KS, 50/2 DK, 50/3 LS, 50/4 LKS, Gritzner etc.
The tuned aluminum cylinder has been developed and tested for many years in Switzerland.
The tuned aluminum cylinder was developed and tested for years in Switzerland and is now finally available exclusively from us.

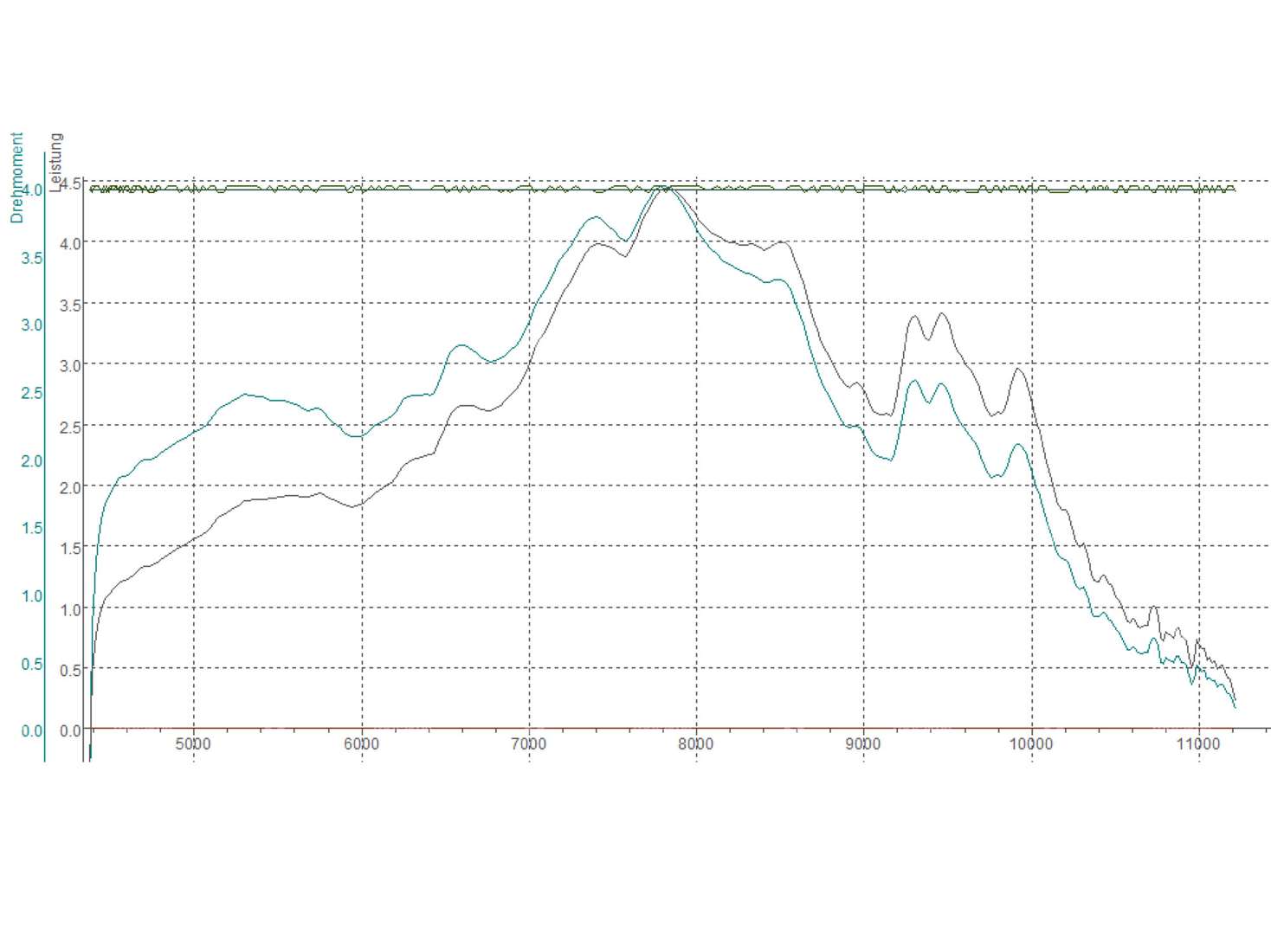

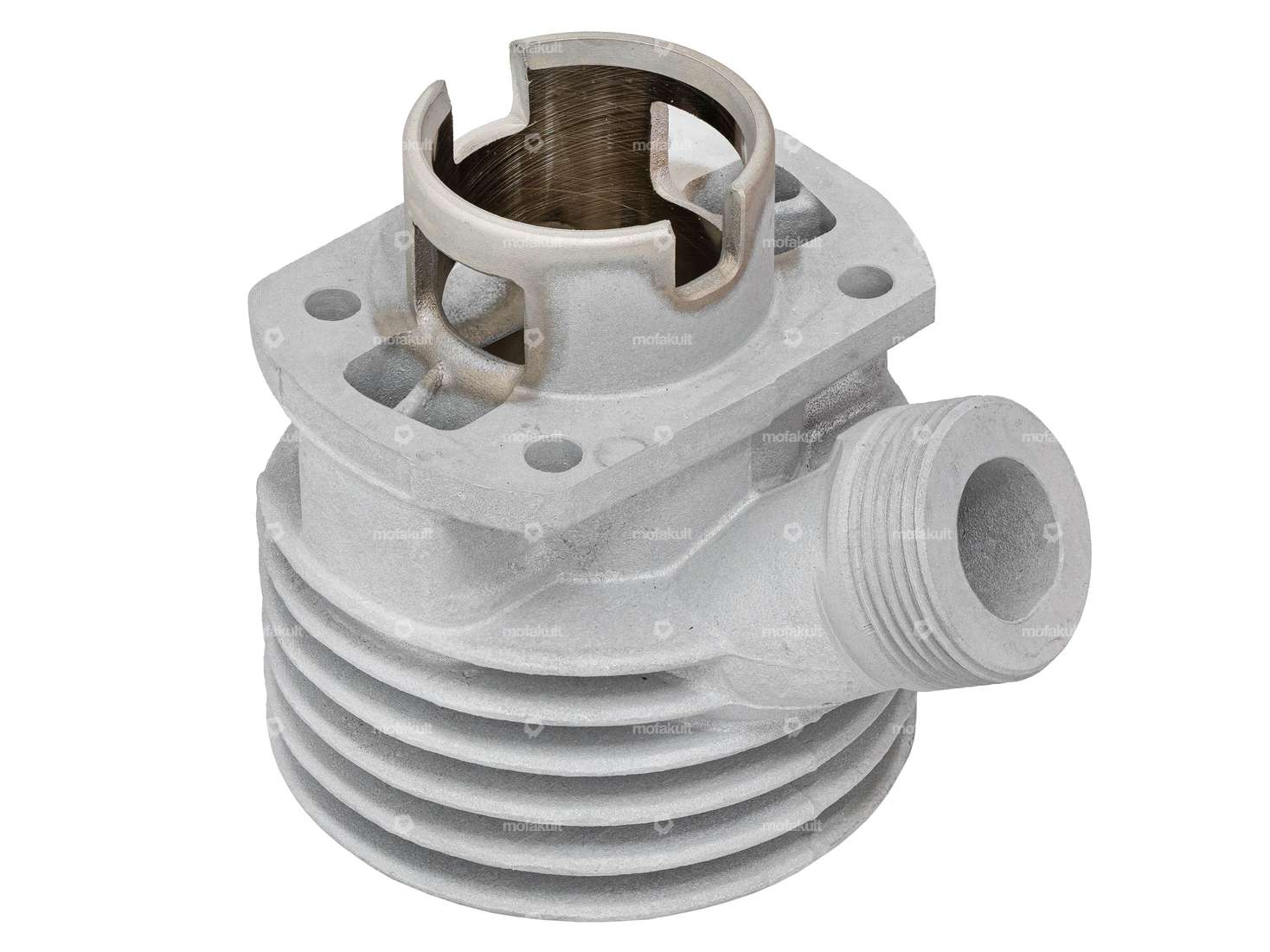

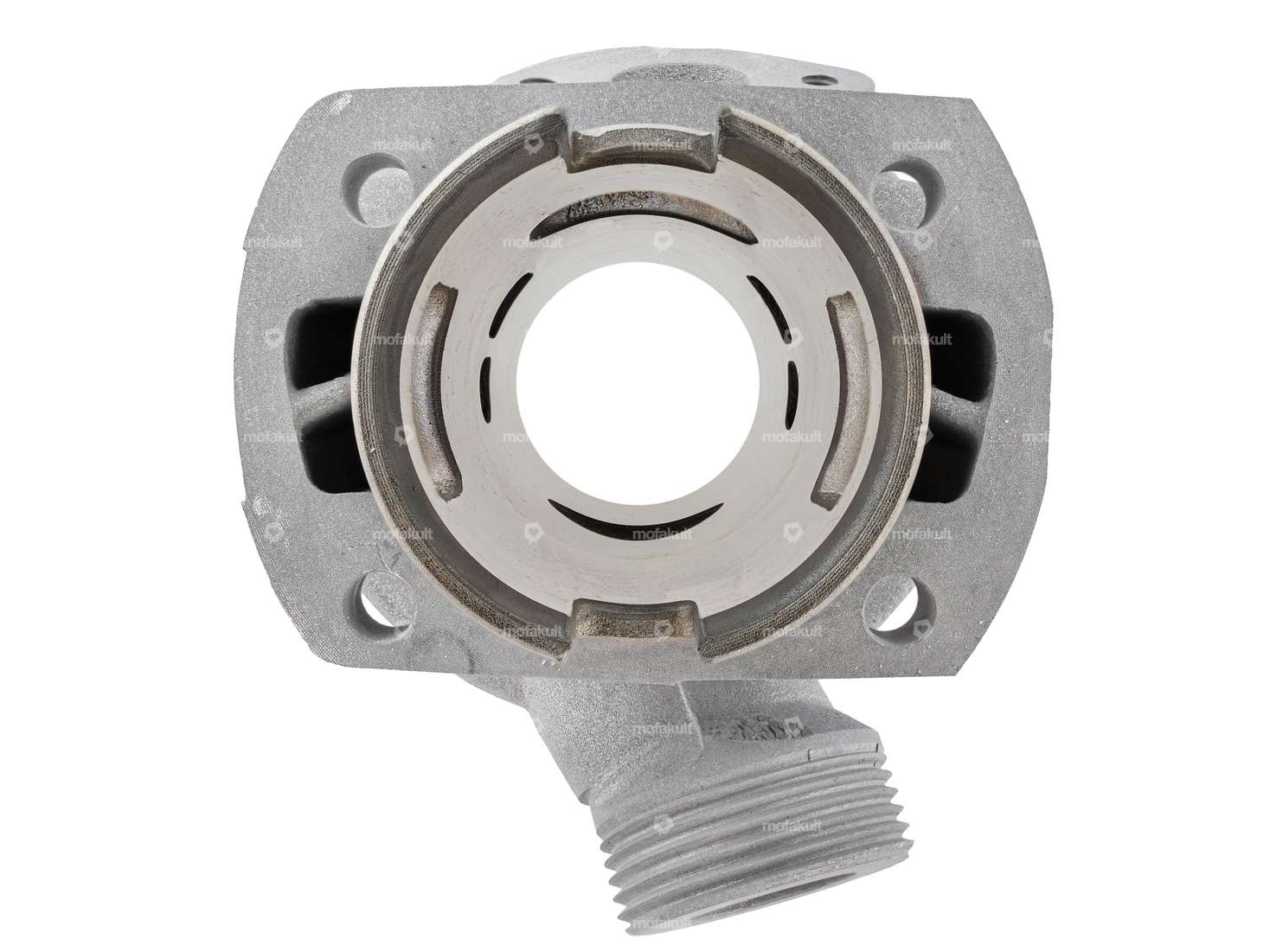

Despite the original displacement, this tuning kit turns your oldie into a powerhouse with 4.01 Nm and 4.5 hp at the rear wheel thanks to optimized timing, larger intake and exhaust as well as enlarged overflow channels.
In conjunction with the corresponding 13 mm SSB or 16 mm SHA carburettor with intake flange and resonance exhaust, a moderate increase in performance can be expected compared to the original cylinder.
A selection of performance-enhancing and supplementary add-on parts can be found in the accessories section.

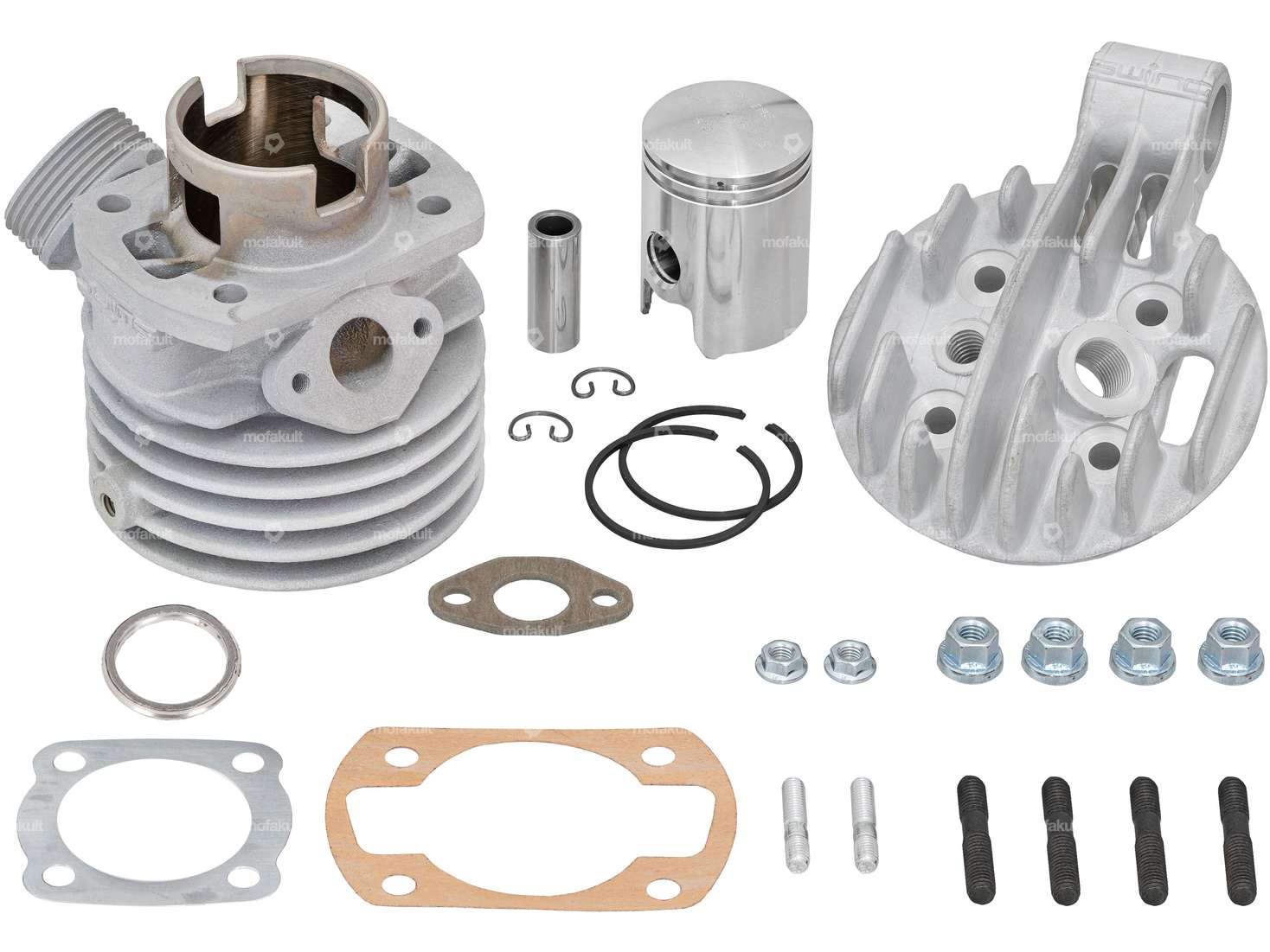

The scope of delivery includes cylinder, piston kit, cylinder head, gasket set, intake studs and cylinder studs including special nuts.

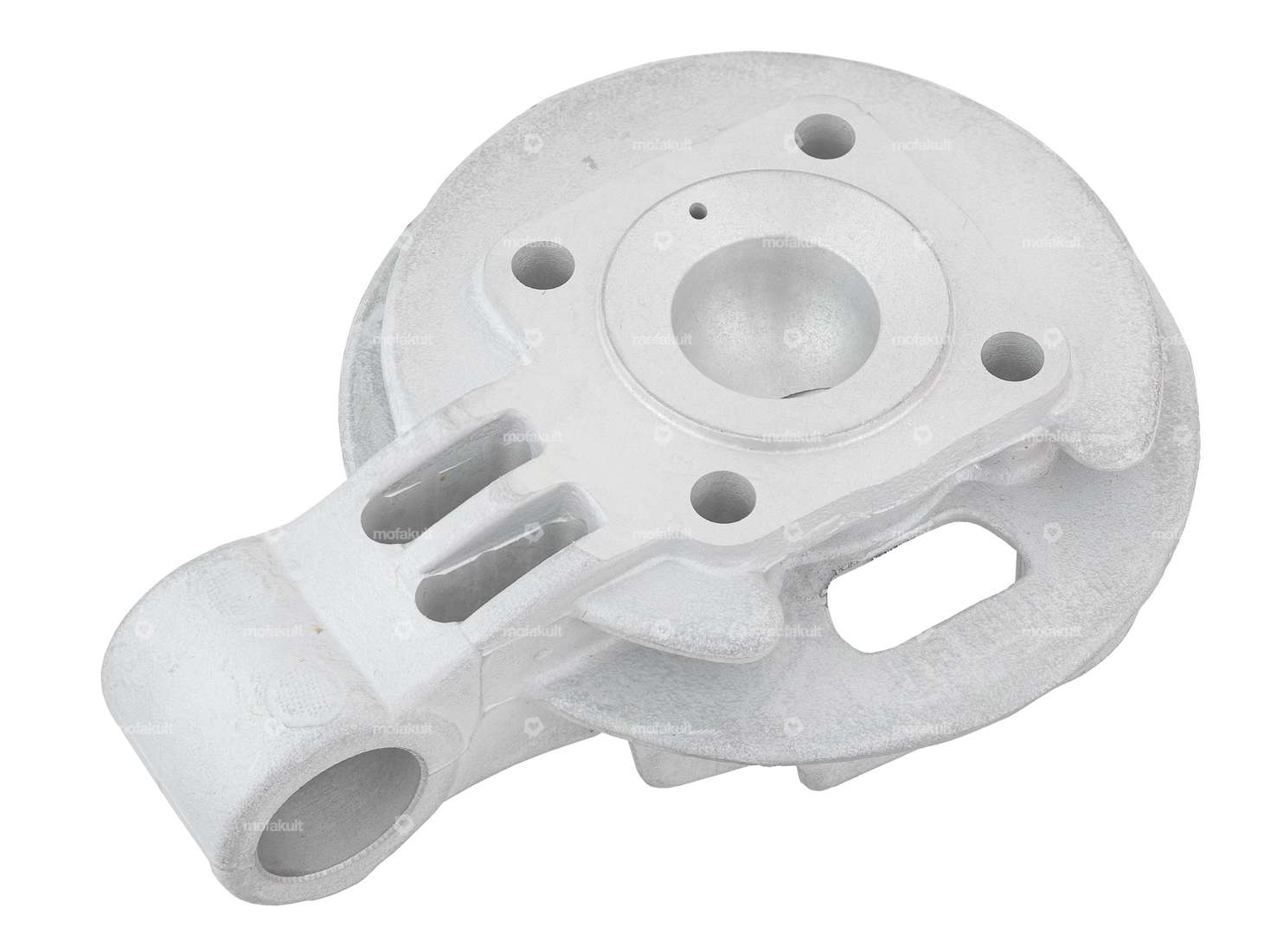

The cylinder head, which can only be used for cylinders in this series, is equipped with a raceway centering system. This ensures that the combustion chamber is perfectly aligned and the piston is not at TDC.
Hole pattern [mm]: 60 x 40 / 37 x 37 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Nominal diameter: 38 mm · Ø cylinder neck: 44.9 mm · Ø outlet inside: 19.6 mm · Ø Inlet inside: 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Thread outlet: M35x2 (standard thread) · Number of fixing points: 8 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
Hole pattern [mm]: 37 x 37 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 - 41 mm · Ø outside: 95 mm · Camouflaged: No · Number of fixing points: 5 pcs · Ø screw holder: 6.7 mm · Candle thread: short · Decompressor: M10x1.5 · Total length: 125.6 mm · Height: 46.7 mm · Area of application: Tuning
| Nominal diameter | 38 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Area of application | Racing |
| Crankshaft stroke | 42 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing inlet | 31 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | M35x2 (standard thread) |
| Hole pattern [mm] | 51 x 40 |
| Camouflaged | No |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
