For: Puch

30782

Spare parts catalog | Puch Maxi Plus (CH)

EUR 47.20

Incl. 21% VAT.

Product description

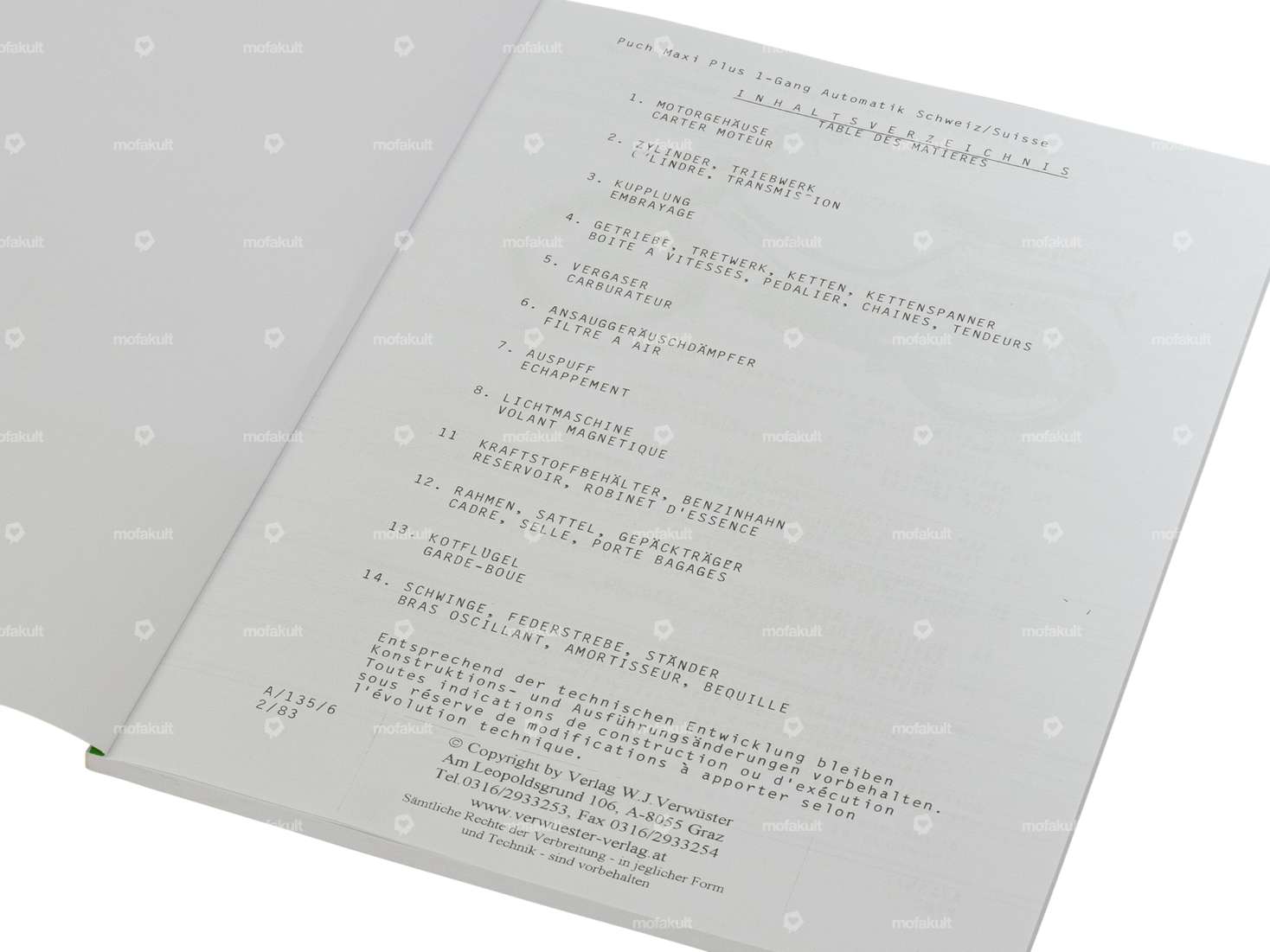

Spare parts catalog (Switzerland) for the Puch Maxi Plus 1-speed automatic moped / moped.

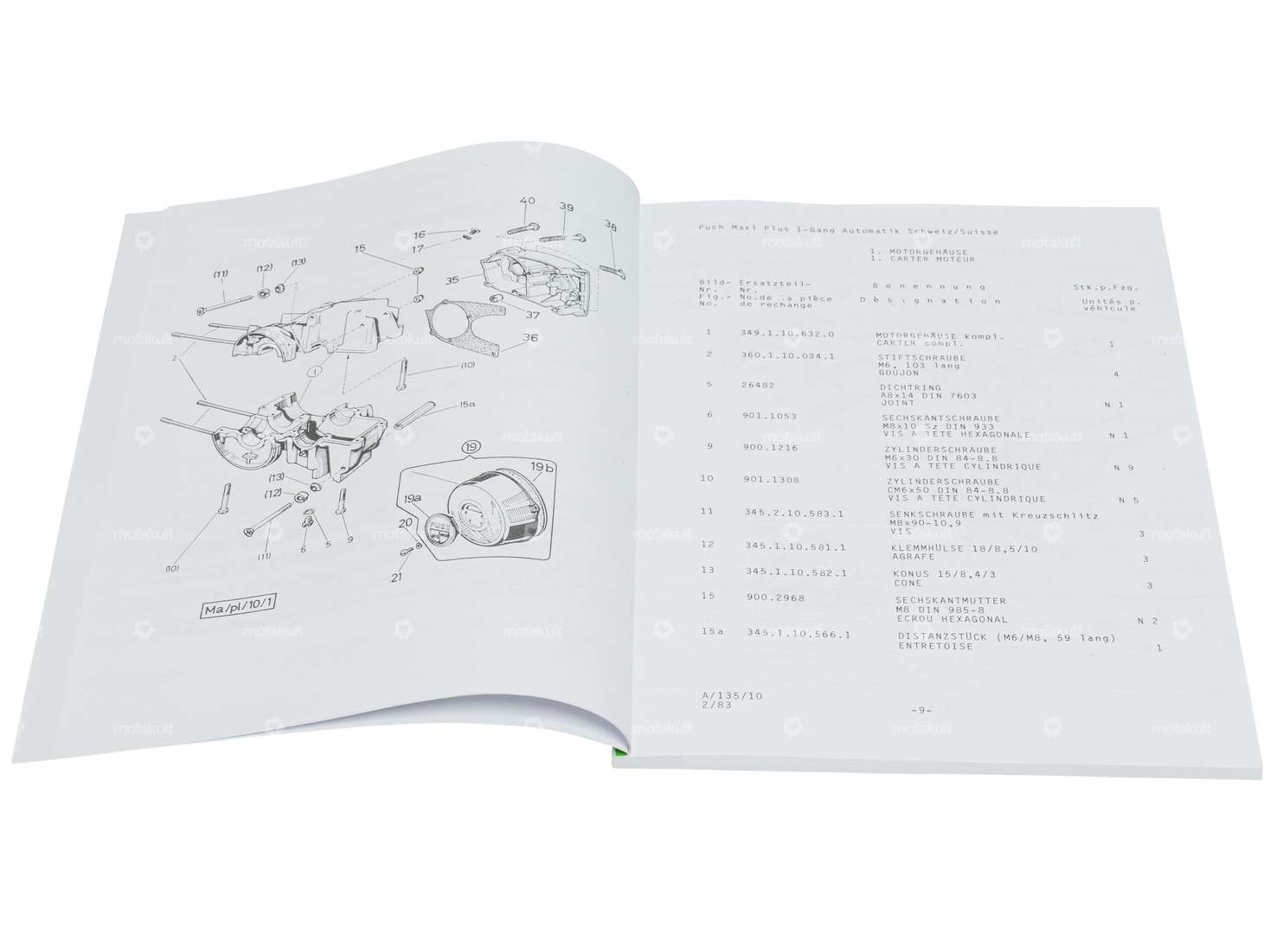

Each individual component is shown with the appropriate spare part number and the correct mounting location on the basis of many exploded drawings.

Format: A4 (210 x 297 mm)
Pages: 98
Language: German

High-quality facsimile (reproduction) of the original edition.

You can find more workshop manuals, operating and repair instructions in the accessories section.

MaterialPaper
Height297 mm
DIN formatA4
Width210 mm
Number of pages50 pcs
LanguageGerman
Puch

E50
