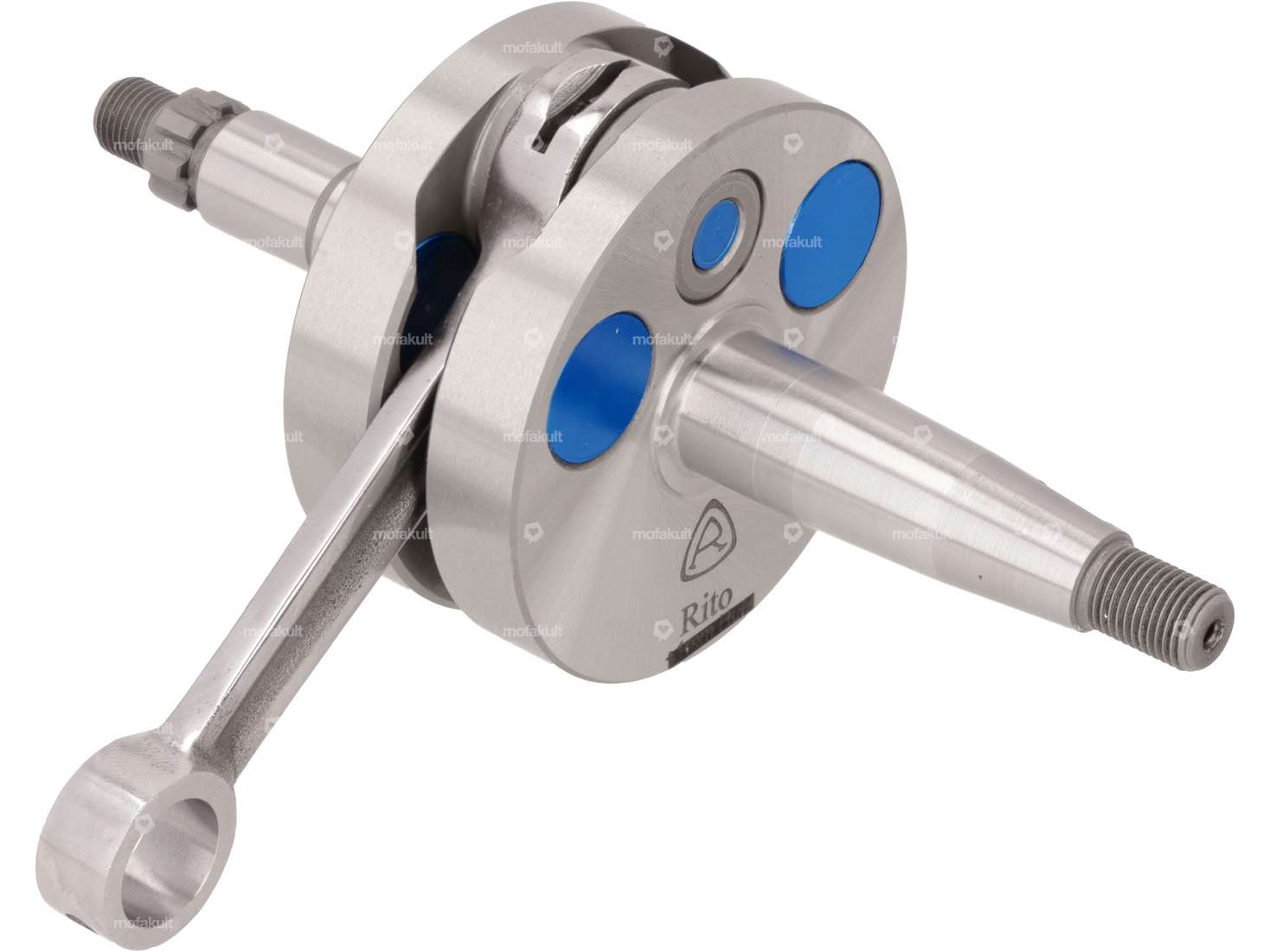

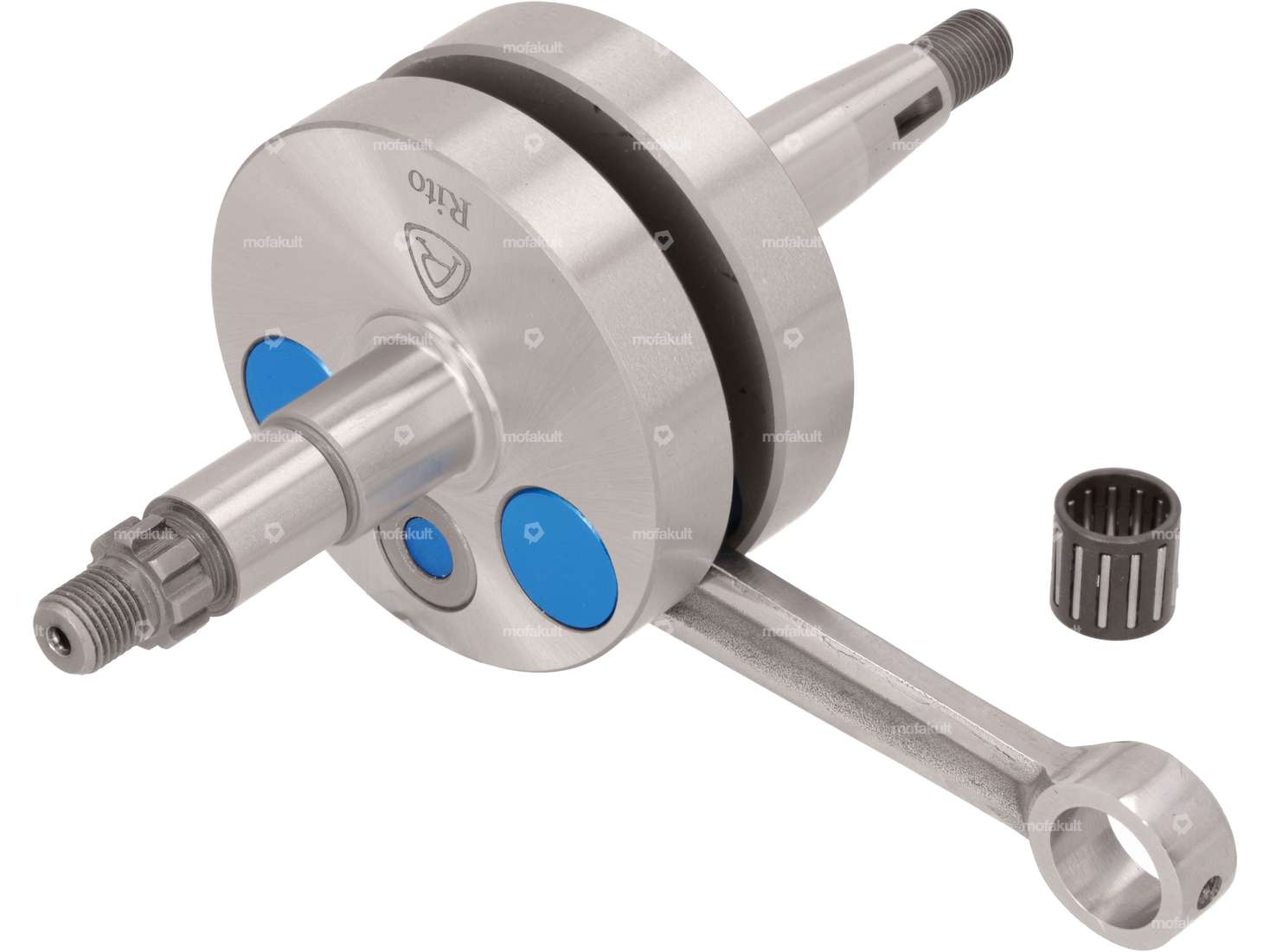

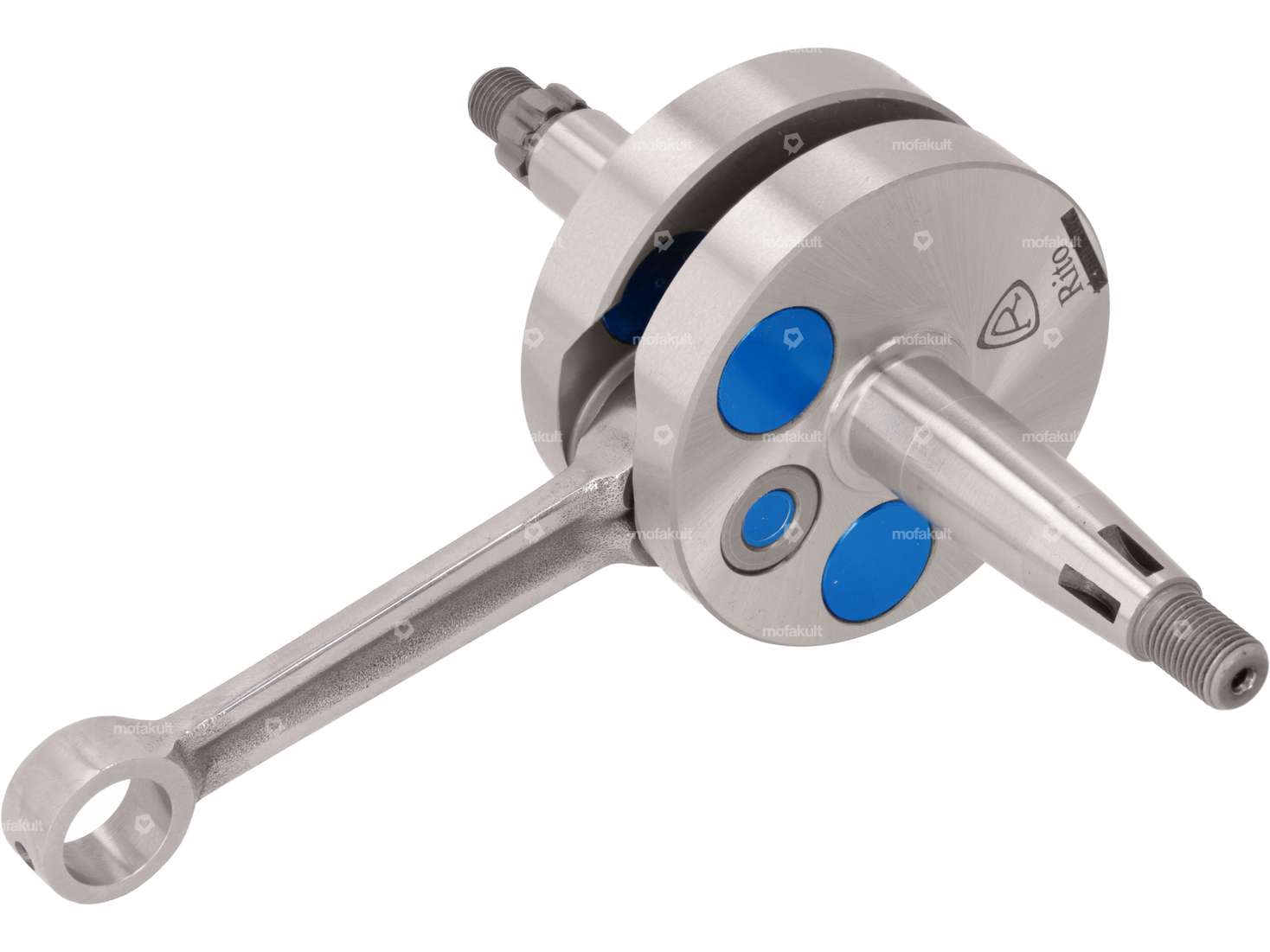

Optimized and lightened full cheek racing crankshaft.
Thanks to the two splines, this crankshaft is suitable for manual Puch X30 NS and NL, Velux, MV50, MKII, Maxi HP2 and custom mopeds / mopeds with Z50 engines.
In the new 2023 version, in addition to the balancing holes in the cheeks, the lower connecting rod bolt has also been sealed with an aluminum insert for maximum pre-compression. The solid connecting rod with the stable Ø 16 mm connecting rod bolt was also sealed with an aluminum insert. In addition, the polished connecting rod ensures optimum flow characteristics of the air/petrol mixture and the additional lubrication slots guarantee clean running even at high engine speeds. The lightened cheeks on the inside ensure even better balancing and therefore smoother running.
| Manufacturer | Rito |
| Material | Steel, Aluminum |
| Cheek type | Full cheeks |
| Crankshaft stroke | 43 mm |
| Weight | 913 g |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 58 mm |
| Total length crankpin ignition side | 67.5 mm |
| Ø crank webs | 69.8 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Area of application | Tuning, Racing |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 8.5 mm, 12 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 19 mm |
| Length 2nd paragraph | 18.5 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 18 mm |
| Number of gears | 2 pcs |
| Puch OEM number | 350.7.10.015.0, 349.1.10.215.0 |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 |
