For: Solex

16522

Piston 39.4 mm | Solex

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 52.10

Incl. 21% VAT.

Description

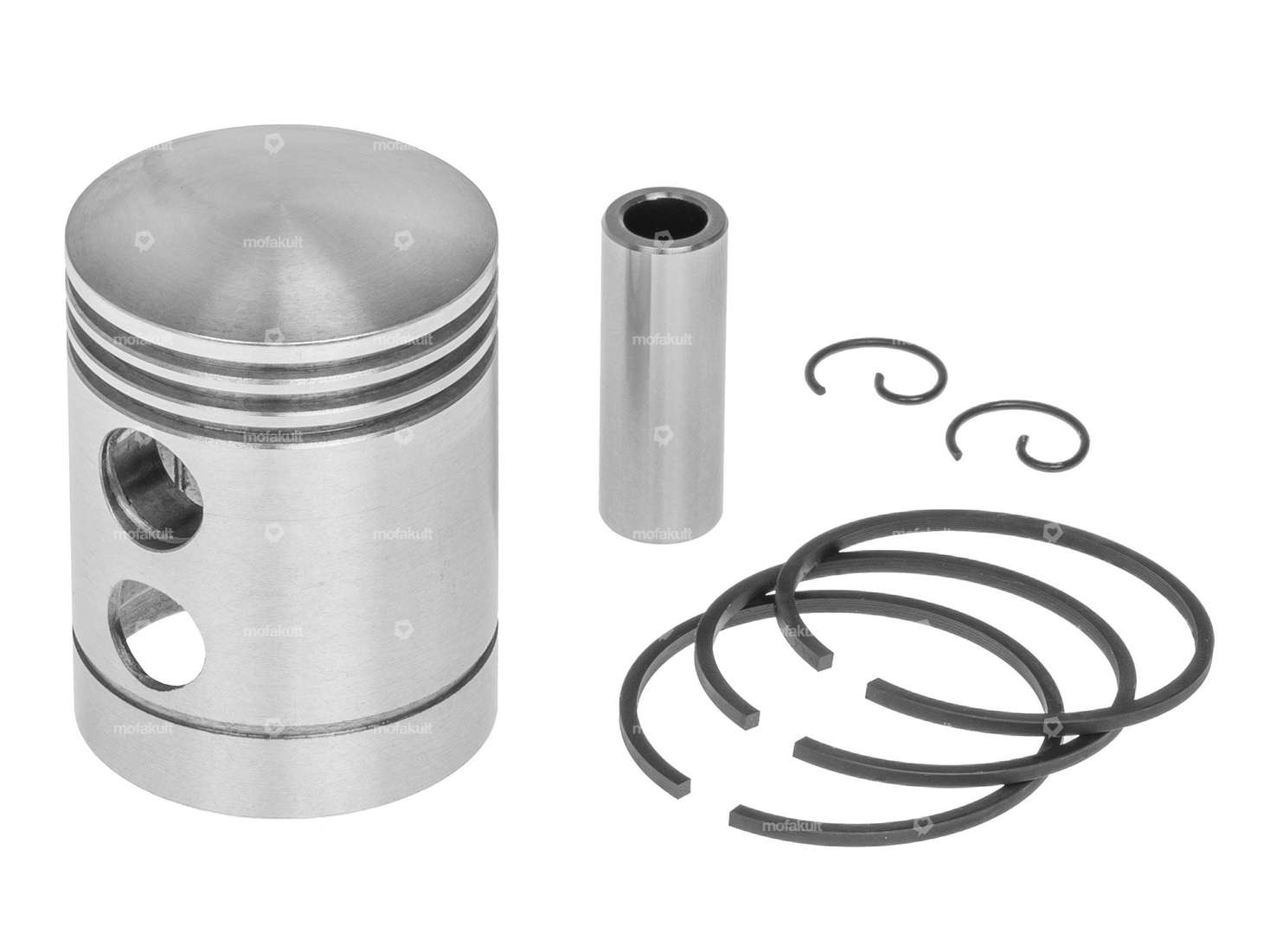

39.40 mm replacement piston with three pieces of 1.7 mm rectangular piston rings with a straight joint to fit the original cylinder on your Solex moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

The piston kit contains piston pins, piston clips and piston rings.

Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.

ManufacturerMade in France
Nominal diameter39.4 mm
Ø outside piston (A)39.44 mm
Ø piston pin (B)12 mm
Compression height (C)17.9 mm
Curvature (D)3.05 mm
Total piston height (E)53.95 mm
Number of piston rings (F)3 pcs
Piston ring moldRectangular ring
Piston ring impactStraight joint
Piston ring height1.7 mm
Weight piston kit76 g
