For: Solex

16488

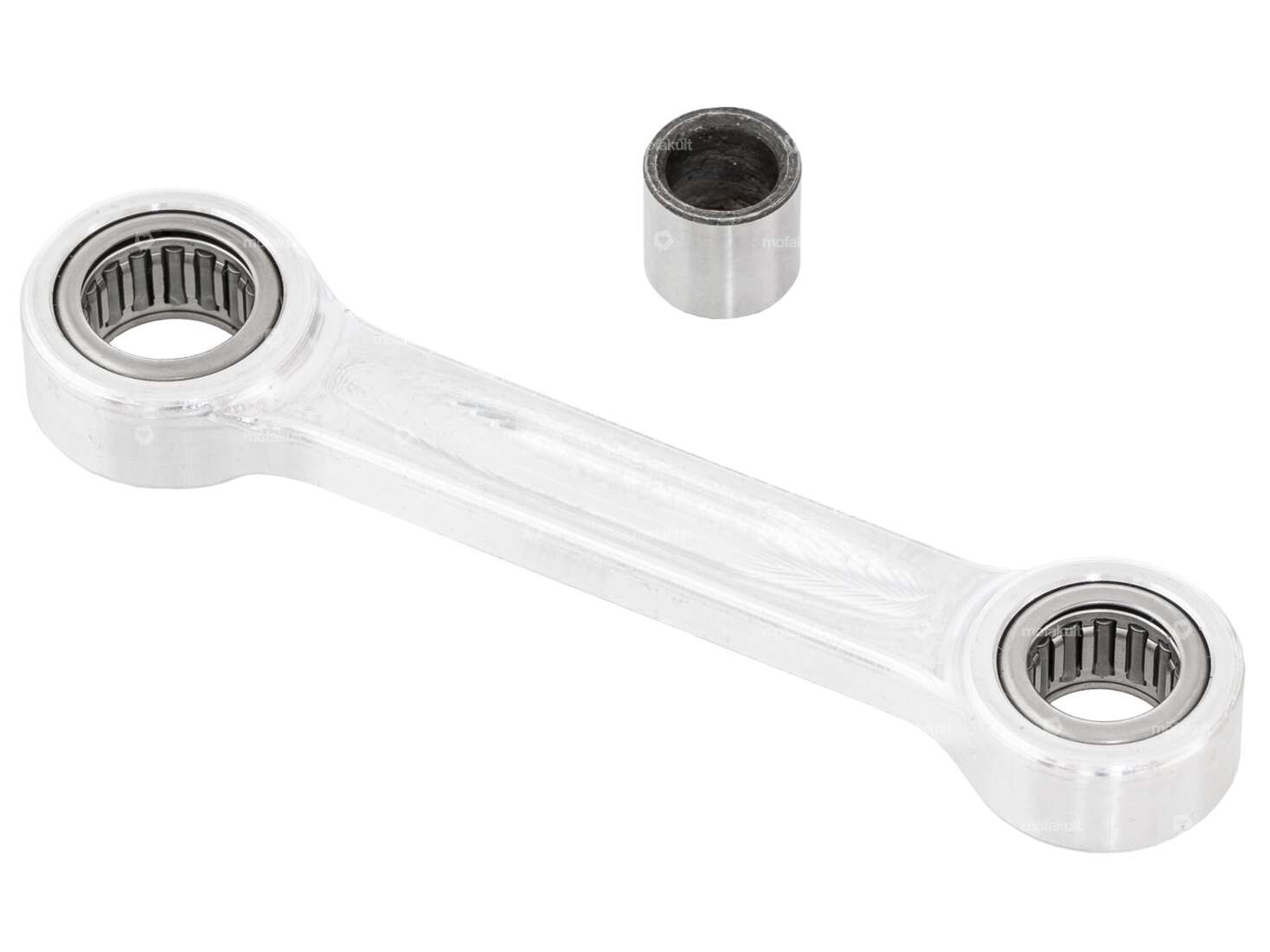

Connecting rod set "Racing" CNC aluminum | Solex

EUR 92.10

Incl. 21% VAT.

Product description

Complete CNC-machined connecting rod made of aluminum suitable for crankshafts of various Solex engines.

The two needle sleeves, which serve as connecting rod bearings, are firmly pressed in.

  • Dimension connecting rod bolt 1: Ø14 x 13.4 mm
  • Connecting rod length (center - center): 90 mm
  • Total connecting rod length: 115 mm
  • Thickness: 10 mm
  • Outer diameter of lower connecting rod eye: 25.9 mm
  • Outer diameter of upper connecting rod eye: 24 mm
  • Ø inner lower bearing: 14 mm
  • Ø inner upper bearing: 12 mm

A quality product made in the Netherlands.

MaterialAluminum
Surfacepolished
Thickness10 mm
ManufacturerMade in Netherlands
Connecting rod length center-center90 mm
Ø Connecting rod bolt14 mm
Ø lower connecting rod eye outside25.9 mm
Area of applicationStandard, Tuning
Ø upper connecting rod eye outside24 mm
Total length115 mm
Ø piston pin (B)12 mm
Ø lower bearing inside14 mm
Ø inside upper bearing12 mm
Connecting rod pin length13.4 mm
