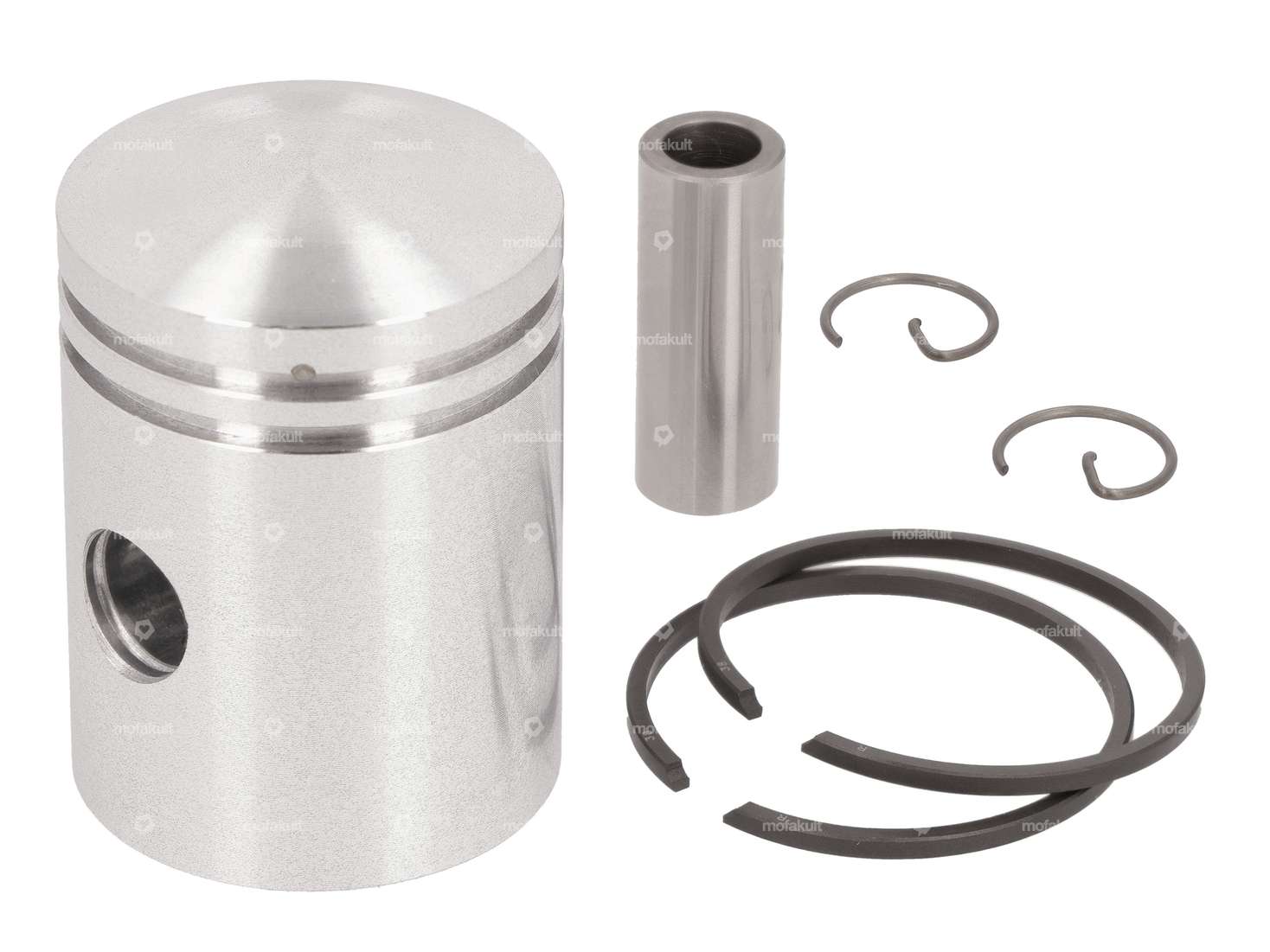

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) for mopeds, mopeds and small motorcycles with Sachs 502/1 A, 502/1 B, 502/1 AX, 502/1 AX, 502/1 A CH, 502/1 A DK, 502/1 A NL, 502/1 A S and 502/1 A SF engine (colloquially often called torpedo or rocket engine).
The piston set fits the following models, among others:
- Hercules CB1 City Bike, L50, MF1, MF2, MP1
- Rex Miniped, Miniped MK2
- Sparta Happy
- Motograziella
- Pony City
- KTM Hobby 1968 - 1972
The piston pin is closed on one side, as on the original, so that no exhaust gases are forced back through the pin into the intake tract.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 38 mm |
| Thick piston ring | 1.6 mm |
| Ø outside piston (A) | 37.94 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 87 g |
| Sachs | 502 1A / 1B (torpedo) |
| Hercules | |
| KTM | |
| Motograziella |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs · Area of application: (Dis)assembly tool
EUR 23.70
Cylinder base and intake gasket | Sachs 502/1B
Manufacturer: Made in Germany · Material: Oiled paper · Thickness: 0.35 mm · Thickness: 0.55 mm · Hole spacing inlet: 30 mm · Number of components: 2 pcs · Hole pattern [mm]: 40 x 41 mm · Sachs OEM no.: 0250 139 000 · Sachs OEM no.: 0250 140 000
EUR 11.70
Not in stock
Piston 38 mm | Sachs 50/2 1A, 1B
Nominal diameter: 38 mm · Thick piston ring: 1.6 mm · Ø outside piston (A): 37.94 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 87 g
EUR 71.40
Piston 38.6 mm | Sachs 50/2 1A, 1B
Nominal diameter: 38.6 mm · Thick piston ring: 1.6 mm · Ø outside piston (A): 38.54 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 92 g
EUR 71.40

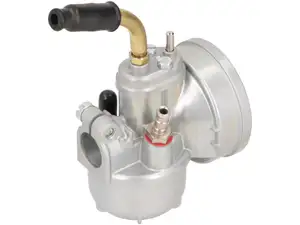

Carburetor Bing 1/10/99 (replica) | Sachs 50/2 1A, 1B
