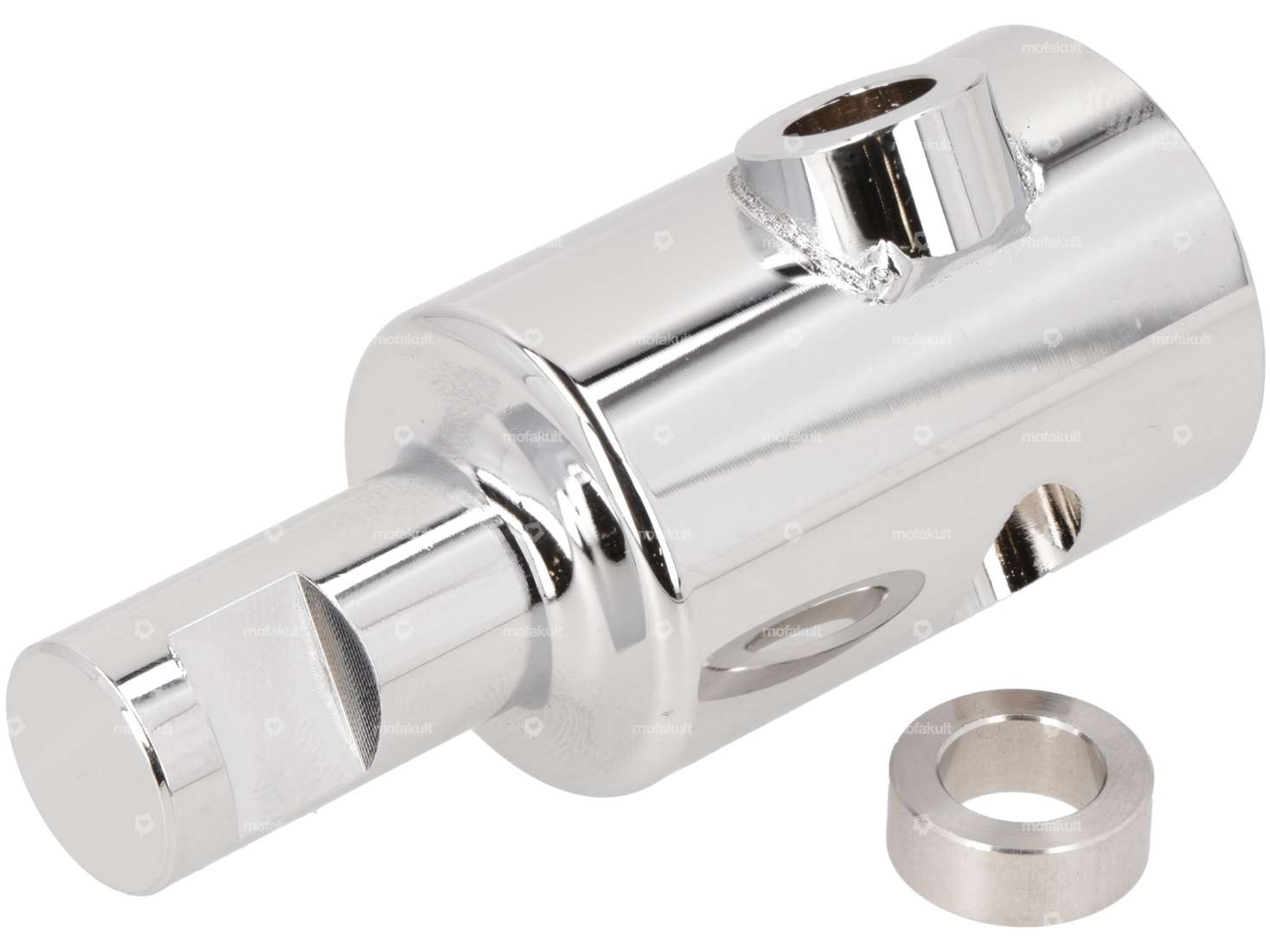

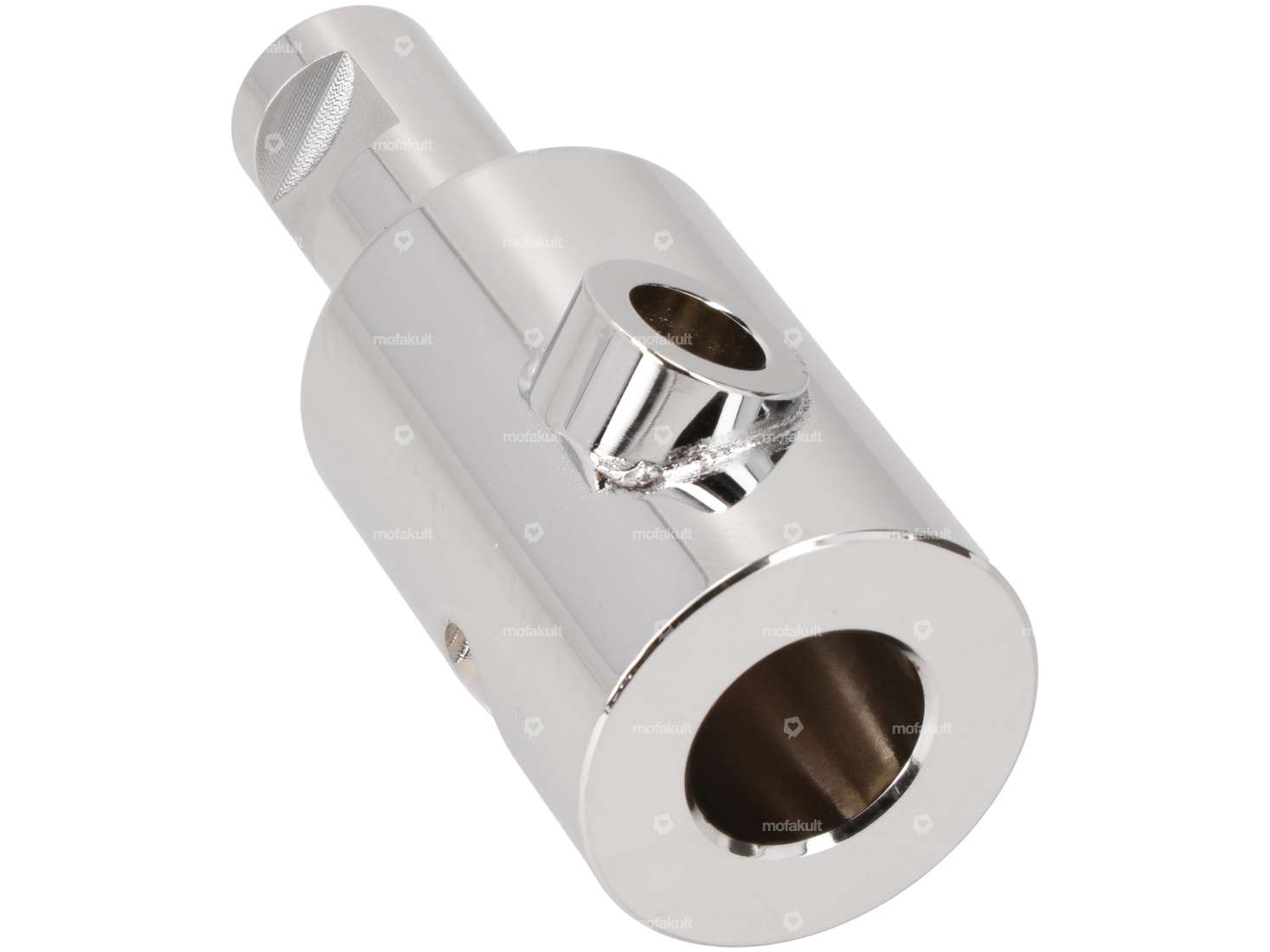

Extension bushes made of stainless steel to lengthen your pedal axle on your moped / moped.
The pedal axle extension (also known as pedal extension, axle extension) is used, for example, when using a kick starter or cable starter in order to still be able to operate the pedals.It is used, for example, when using a kick starter or cable starter in order to still be able to operate the pedals.
The pedal axle extension is designed for 9.5 mm wedges.
- Total length: 78 mm
- Pin length: 30 mm
- Inner hole length: 35 mm
- Ø äouter mount: 15.8 mm
- Ø inner hole: 16.1 mm
Note: Depending on the wedge and the pedal axle used, there may be differences in how far the wedge slides through the hole. To compensate for these differences, a suitable washer is also included, which can be placed under the nut if required. This allows the wedge to be pulled further and the axle extension to be fixed properly.
Ideally, use wedges with a pitch of 3.5° and a diameter of 9.5 mm.
You can find cranks, pedals and, of course, wedges in the accessories section.
| Total length | 78 mm |
| Material | Chrome steel (colloquially known as stainless steel) |
| Ø outside | 32 mm |
| Ø bore | 16.1 mm |
| Ø Pedal arm holder | 15.8 mm |
| Depth | 35 mm |
