logo_meteor-piston-mk

For: Puch

11875

Meteor piston 38 mm #3 | Puch Supermaxi Cat.

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 65.20

Incl. 21% VAT.

Description

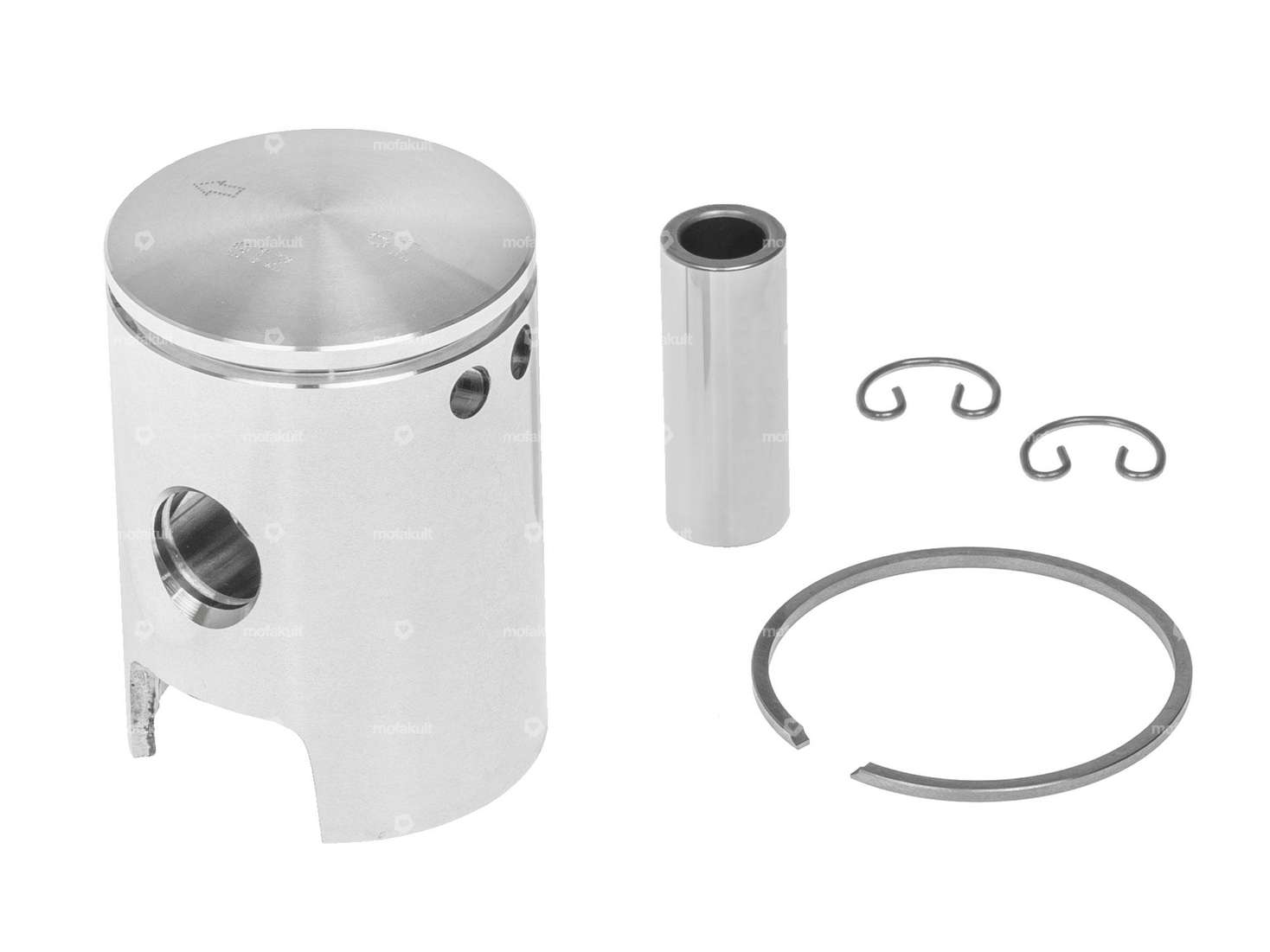

38.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Puch Supermaxi LG1 & LG2 mopeds / mopeds with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)37.965 mm
Compression height (C)24 mm
Curvature (D)2.3 mm
Total piston height (E)55.3 mm
Number of piston rings (F)1 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Tolerance group3
Weight piston kit78 g
Puch

E50

ZA50 (air-cooled)
