Sachs engine & gearbox

swiing® ingenious cylinder clamping tool

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Height: 22 mm · Ø inside: 51.6 mm · Ø outside: 99 mm · Number of components: 23 pcs

AKOA wide wall 38 mm cylinder kit Sport | Sachs 503 AB, AC, ADV (A2868)

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Surface: varnished · Nominal diameter: 38 mm · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 36 mm · Ø cylinder neck: 50.5 mm · Ø cylinder neck: 52 mm · Ø outlet inside: 29 mm · Ø Inlet inside: 23.5 mm · Hole spacing outlet: 50.5 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 x 56 · Decompressor: MF12x1.25 · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Area of application: Performance · Alternative version of the Pony OEM number: A2868

AKOA cylinder head 38 mm | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Ø cylinder: 38 mm · Ø outside: 84 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Candle thread: short · Decompressor: No · Height: 30 mm · Area of application: Standard

AKOA wide wall 38 mm cylinder kit original | Sachs 503 AB, AC, ADV (A2868)

Material: Aluminum · Manufacturer: AKOA · Surface: Nickel silicon carbide (known as Nikasil®) · Surface: varnished · Nominal diameter: 38 mm · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 50.5 mm · Ø cylinder neck: 52 mm · Ø Outlet outside: 23 mm · Ø outlet inside: 11 mm · Ø outlet inside: 19.5 mm · Inlet window: 18x7 mm · Thread inlet: M6x1 (standard thread) · Decompressor: MF12x1.25 · Outlet type: slanted · Hole spacing outlet: 50.5 mm · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 36 mm · Area of application: Standard · Pony OEM number: A2868

AKOA 38 mm cylinder kit | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Nominal diameter: 38 mm · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Ø cylinder neck: 45.5 mm · Ø outlet inside: 18.5 mm · Ø Outlet outside: 25.8 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 14 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 40 x 60 / 37 x 37 · Decompressor: No · Outlet type: clamped · Area of application: Standard

AKOA 40 mm cylinder kit | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Nominal diameter: 40 mm · Displacement: 54 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Ø cylinder neck: 45.5 mm · Ø outlet inside: 18.5 mm · Ø Outlet outside: 25.8 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 14 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 40 x 60 / 37 x 37 · Decompressor: No · Outlet type: clamped · Area of application: Tuning

AKOA 41 mm cylinder kit | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Nominal diameter: 41 mm · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Ø cylinder neck: 45.5 mm · Ø outlet inside: 18.5 mm · Ø Outlet outside: 25.8 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 14 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 40 x 60 / 37 x 37 · Decompressor: No · Outlet type: clamped · Area of application: Tuning

GPO cylinder gasket set BAD ASS Diablo 41 mm | Sachs 502, 50/2 (CH)

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Number of components: 4 pcs · Ø cylinder: 41 mm · Area of application: Tuning · Hole spacing inlet: 31 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 2.6 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

GPO cylinder gasket set BAD ASS Pandora 41 & 43 mm | Sachs 503, 50/2, 502

Manufacturer: GPO · Material: Oiled paper · Number of components: 2 pcs · Ø cylinder: 41 mm · Ø cylinder: 43 mm · Area of application: Tuning · Hole spacing inlet: 32 mm · Thickness: 0.3 mm · Thickness: 1 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

GPO cylinder base gasket BAD ASS Diablo 41 mm | Sachs 50, 50/3, 50/4 (CH)

Place of use: Cylinder base · Manufacturer: GPO · Material: Oiled paper · Ø cylinder: 41 mm · Area of application: Tuning · Thickness: 0.45 mm · Hole pattern [mm]: 60 x 40

GPO inlet gasket BAD ASS Pandora & GPO Pomodoro 41 & 43 mm | Sachs 503, 50/2

Place of use: Admission · Manufacturer: GPO · Material: Oiled paper · Ø inside: 19 mm · Hole spacing inlet: 32 mm · Thickness: 1 mm · Ø screw holder: 6.5 mm

GPO cylinder base gasket BAD ASS Diablo 41 mm | Sachs 50, 50/3, 50/4 (DE)

Place of use: Cylinder base · Manufacturer: GPO · Material: Oiled paper · Ø cylinder: 41 mm · Area of application: Tuning · Thickness: 0.45 mm · Hole pattern [mm]: 51 x 40

GPO cylinder gasket set BAD ASS Diablo 41 mm | Sachs 50, 50/3, 50/4 (DE)

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Number of components: 4 pcs · Ø cylinder: 41 mm · Area of application: Tuning · Hole spacing inlet: 31 mm · Thickness: 0.3 mm · Thickness: 0.45 mm · Hole pattern [mm]: 51 x 40 mm / 37 x 37 mm

Suspension rubber (1A quality) | Sachs 503, 504, 505, 535

Width: 23 mm · Ø inside: 8.4 mm · Ø outside: 21.7 mm · Total length: 48 mm · Manufacturer: Made in Germany · Color: black · Color: silver · Material: Rubber · Material: Steel · Surface: galvanized (blue) · Ø Bundle: 28 mm · Pony OEM number: A4271 · Pony OEM number: A4286 · Sachs OEM no.: 0247 144 100 · Sachs OEM no.: 0251 121 000

Cylinder base and intake gasket | Sachs 502/1B

Manufacturer: Made in Germany · Number of components: 2 pcs · Material: Oiled paper · Thickness: 0.35 mm · Thickness: 0.55 mm · Hole spacing inlet: 30 mm · Hole pattern [mm]: 40 x 41 mm · Sachs OEM no.: 0250 139 000 · Sachs OEM no.: 0250 140 000

Spring washer M12 countershaft | Sachs 503, 50/2, 50/3, 50/4 (A3746)

Material: Steel · Surface: blank · Ø inside: 13 mm · Ø outside: 24 mm · Height: 1.2 mm · Pony OEM number: A3746

swiing® ingenious Silentblock Ø 19.2 x 19 mm Racing original Zylinderkopf | Sachs 50/2, 50/3

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: NBR · Area of application: Racing · Surface: anodized · Ø inside: 8.5 mm · Ø outside: 19.2 mm · Total length: 19 mm · Alternative version of the Pony OEM number: A1940 · Alternative version of the Sachs OEM number: 0260 101 000

swiing® ingenious Silentblock Ø 19.2 x 15 mm Racing original Zylinderkopf | Sachs 50/2, 50/3

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: NBR · Area of application: Racing · Surface: anodized · Ø inside: 8.5 mm · Ø outside: 19.2 mm · Total length: 15 mm · Thread length: 15 mm · Alternative version of the Sachs OEM number: 0260 021 008

swiing® ingenious Silentblock 19 mm aluminum (swiing head) | Sachs 50/2, 50/3

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: NBR · Area of application: Racing · Surface: anodized · Ø inside: 8.5 mm · Ø outside: 19 mm · Total length: 19 mm

swiing® ingenious silent block 15 mm (swiing head) aluminum | Sachs 50/2, 50/3

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: NBR · Area of application: Racing · Surface: anodized · Ø inside: 8.5 mm · Ø outside: 19 mm · Total length: 15 mm

Surflex clutch plate set 3.3 mm | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A3887 / A1908)

Manufacturer: Surflex · Material: Steel · Recording type: Interlocking · Ø outside: 94.2 mm · Ø outside: 101 mm · Number of slats: 2 pcs · Ø inside: 29.7 mm · Ø inside: 36 mm · Ø inside: 46 mm · Area of application: Original · Thickness: 3.3 mm · Pony OEM number: A1908 · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

Surflex clutch plates 3.3 mm | Sachs 50/2, 503 2AL/2BL (A3887)

Manufacturer: Surflex · Material: Steel · Recording type: Interlocking · Ø outside: 94.2 mm · Number of slats: 2 pcs · Ø inside: 29.7 mm · Ø inside: 36 mm · Area of application: Original · Thickness: 3.3 mm · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

GPO piston 43 mm | Sachs 50/2, 50/3, 50/4

Manufacturer: GPO · Ø outside piston (A): 42.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.7 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.2 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm

ADDY clutch plate (4-plate clutch) gray paper lining (stage 1) | Sachs 503

Manufacturer: ADDY · Thickness: 3.5 mm · Material: Paper · Area of application: Tuning · Recording type: Interlocking · Number of slats: 4 pcs · Ø inside: 63.5 mm · Ø inside: 68.5 mm · Ø outside: 94 mm

ADDY clutch plate (4-plate clutch) red cork-rubber (stage 2) | Sachs 503

Manufacturer: ADDY · Thickness: 3.5 mm · Material: Cork · Material: Rubber · Area of application: Tuning · Recording type: Interlocking · Number of slats: 4 pcs · Ø inside: 63.5 mm · Ø inside: 68.5 mm · Ø outside: 94 mm

ADDY clutch plate (4-plate clutch) green sintered technology (stage 3) | Sachs 503

Manufacturer: ADDY · Thickness: 3.5 mm · Material: Composite materials · Area of application: Tuning · Recording type: Interlocking · Number of slats: 4 pcs · Ø inside: 63.5 mm · Ø inside: 68.5 mm · Ø outside: 94 mm

ADDY circlip 4 plate clutch

Manufacturer: ADDY · Thickness: 3 mm · Material: Spring steel · Ø outside: 104.3 mm

ADDY 4-disc clutch assembly tool

Manufacturer: ADDY · Thickness: 3 mm · Area of application: (Dis)assembly tool · Material: Steel · Ø inside: 63 - 68.3 mm · Ø outside: 96 mm · Total length: 147 mm · Number of components: 1 pcs

swiing® revival flame tube 28 mm black | Sachs 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: varnished · Color: black · Ø External connection: 32.25 mm · Mounting type: Union nut · Ø inside: 25.7 mm · Ø outside: 28 mm · Total length: 368 mm · Sachs OEM no.: P5005

GPO 41 mm tuning set "Pomodoro" | Sachs 503

Nominal diameter: 43 mm · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Displacement: 55 ccm

swiing® ingenious 41 mm everyday tuning set diaphragm | Sachs 50/2 (CH)

Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Displacement: 55 ccm

38 mm cylinder kit 30 km/h version | Sachs 504, 505, (508)

Nominal diameter: 38 mm · Material: Aluminum · Displacement: 50 ccm · Ø cylinder neck: 49.4 mm · Ø cylinder neck: 51.9 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 22.5 mm · Inlet window: 18 x 13.4 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Number of fixing points: 4 pcs · Hole pattern [mm]: 55 x 55 · Decompressor: M10x1.5

Power1 38 mm cylinder kit aluminum (square intake) | Sachs 50/3, 50/4 fan-cooled

Nominal diameter: 38 mm · Manufacturer: Power1 · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 44 mm · Inlet window: 16 x 18 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning

Newfren clutch disk set Ø103.5/74.5 x 2.6 | Sachs Casal 50

Manufacturer: NewFren · Material: Composite materials · Recording type: Interlocking · Ø inside: 74.5 mm · Ø outside: 103.5 mm · Number of slats: 4 pcs · Thickness: 2.6 mm · Area of application: Standard

swiing® ingenious 4 mm inlet seal 15 mm | Puch Velux / Sachs 502, 50/2, 503

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Oiled paper · Material: Phenolic resin (known as Bakelite®) · Ø inside: 15 mm · Hole spacing inlet: 32 mm · Thickness: 4 mm

Piston 38 mm | Sachs 50/2 1A, 1B

Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Piston weight: 87 g

Piston 38.6 mm | Sachs 50/2 1A, 1B

Nominal diameter: 38.6 mm · Ø outside piston (A): 38.54 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Piston weight: 92 g

BAD ASS Ø 43 mm "Pandora" BigBore tuning cylinder | Sachs 503, 50/2, 502

Nominal diameter: 43 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 23 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 40 x 60 / 37 x 37 · Camouflaged: No · Area of application: Tuning

BAD ASS Ø 41 mm "Pandora" tuning cylinder | Sachs 503, 50/2, 502

Nominal diameter: 41 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 23 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 40 x 60 / 37 x 37 · Camouflaged: No · Area of application: Tuning

O-ring pedal axle 19 x 2 mm | Sachs 505

Cord thickness: 2 mm · Hardness [Shore]: 70 Shore · Material: NBR · Ø inside: 19 mm · Ø outside: 23 mm · Sachs OEM no.: 0250 165 000

O-ring pedal axle 13 x 1.5 mm | Sachs 505

Cord thickness: 1.5 mm · Hardness [Shore]: 70 Shore · Material: NBR · Ø inside: 13 mm · Ø outside: 16 mm · Sachs OEM no.: 0250 164 000

O-ring guide bushing circuit 10.1 x 1.6 mm | Sachs 505/3

Cord thickness: 1.6 mm · Hardness [Shore]: 70 Shore · Material: NBR · Ø inside: 10.1 mm · Ø outside: 13.3 mm

O-ring clutch lever 6.75 x 1.78 mm | Sachs 504, 505, 535

Cord thickness: 1.78 mm · Hardness [Shore]: 70 Shore · Material: NBR · Ø inside: 6.75 mm · Ø outside: 10.31 mm · Pony OEM number: A1890 · Pony OEM number: U5186 · Sachs OEM no.: 1950 024 000

Clutch lever | Sachs 505, 535 (A4454)

Material: Steel · Total length: 73 mm · Width: 42 mm · Height: 11 mm · Sachs OEM no.: A4454

ADDY special gearwheel 1st gear 24 t. | Sachs 503, 50/2

Manufacturer: ADDY · Material: Steel · Surface: burnished · Toothing type: straight toothed · Number of teeth: 24 pcs · Total length: 14.1 mm · Thickness: 9.4 mm · Ø inside: 15.5 mm · Ø outside: 54.5 mm

ADDY special gearwheel 2nd gear 24 t. | Sachs 503, 50/2

Manufacturer: ADDY · Material: Steel · Surface: burnished · Toothing type: straight toothed · Number of teeth: 24 pcs · Total length: 72.7 mm · Thickness: 8 mm · Ø inside: 13 mm · Ø outside: 49.3 mm

swiing® ingenious 6201 Bearing dummy 12/32/10 Aluminum

Bearing type: Deep groove ball bearing · Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Area of application: Special tool · Area of application: Workshop accessories

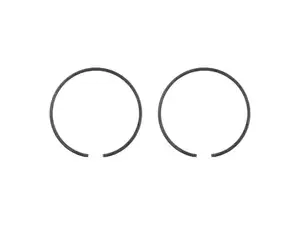

GPO piston rings 43 x 1.5 mm (IS) (pair) | Sachs 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 43 mm · Thick piston ring: 1.7 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm · Area of application: Tuning

Bearing bolt clutch | Sachs 505, 535 (A4455 / A2509)

Material: Steel · Ø outside: 6.7 mm · Ø outside: 10 mm · Total length: 110 mm · Area of application: Standard · Sachs OEM no.: A2509 · Sachs OEM no.: A4455

swiing® revival needle roller bearing 12/15/13 piston pin

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Width: 13 mm · Dimension needle bearing: 12/15 x 13 · Ø inside: 12 mm · Manufacturer: swiing® revival parts · Ø outside: 15 mm
