Piaggio gearbox

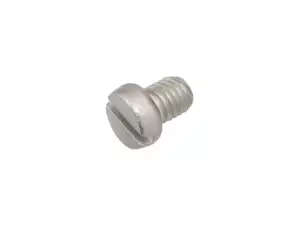

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Slot · Thread length: 10 mm · Piaggio OEM number: 030280

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Motor housing · Thickness: 1 mm · Manufacturer: Piaggio · Material: Fiber · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Piaggio OEM number: 000397, 485703

INA needle roller bearing 9/13/12 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Stock number: BK0912 · Dimension needle bearing: 9/13 x 12 · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: INA · Width: 12 mm

INA needle roller bearing 17/23/12 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103696

SKF Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Ø inside: 20 mm · Ø outside: 26 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 131509

SKF needle roller bearing 13/19/12 Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 103614

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103614

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10 mm · Height: 13 mm · Width across flats: 15 mm

swiing® revival seal kit splined gearbox Mono | Piaggio Ciao C9 / P

Manufacturer: swiing® revival parts · Gearbox type: Mono · Piaggio OEM number: S.17002 · Piaggio OEM number: S.8752 · Piaggio OEM number: 397 · Piaggio OEM number: 67233 · Piaggio OEM number: 103105

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 14 mm · Nominal diameter inside: 14 mm · Ø outside: 24 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Locking plate fastening splined gearbox | Piaggio Ciao C9, Porter

Width: 22 mm · Thickness: 0.8 mm · Manufacturer: Made in Italy · Hole spacing: 70 mm · Material: Steel · Surface: galvanized (blue) · Number of lobes: 2 pcs · Ø bolt circle: 8.5 mm · Total length: 76 mm · Piaggio OEM number: 130035

GPO oil seal set engine & gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 120 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm · Width: 3 mm · Width: 4 mm · Width: 5 mm · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Manufacturer: GPO · Material: NBR · Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Area of application: Original

Pin gearbox axle shaft original | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 6.98 mm · Manufacturer: Piaggio · Total length: 30 mm

swiing® revival screw set engine / gearbox galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

swiing® revival spacer set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

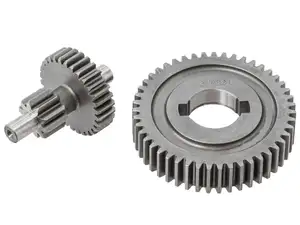

Malossi HTQ gearbox conversion kit reinforced version Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Material: Steel · Toothing type: straight toothed · Gearbox type: Vario · Area of application: Cross · Area of application: Performance · Area of application: Tuning

Spacer 16.4/24/0.6 clutch mono / gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 16.4 mm · Nominal diameter inside: 16 mm · Ø outside: 24 mm · Thickness: 0.6 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Oil seal NBR 17/25/4 A Gearbox Mono original | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Width: 4 mm · Ø outside: 25 mm · Manufacturer: Piaggio · Material: NBR

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 18 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Polini Vario 11.5:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Number of teeth: 11 pcs · Number of teeth: 30 pcs · Number of teeth: 46 pcs · Gearbox type: Vario

Spacer 20/33/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 20 mm · Nominal diameter inside: 20 mm · Ø outside: 33 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Piaggio OEM number: 131513

Polini shim set Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

swiing® revival spacer set MG2 & MG3 Mono transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 103058 · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514

CIF revision set gearbox Mono MG2 | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Area of application: Standard

LIQUI MOLY SAE 80W-90 Gearbox oil 1 L

Manufacturer: LIQUI MOLY · Oil type: GL4 · Viscosity (SAE): 80W-90 · Contents: 1000 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Area of application: Gearbox lubrication without clutch · Gearbox type: Manual gearshift · Gearbox type: Mono · Gearbox type: Vario

Spacer 23/34/0.5 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 23 mm · Nominal diameter inside: 23 mm · Ø outside: 34 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

CIF gear shaft 10 teeth variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Toothing type: helical toothed · Number of teeth: 10 pcs · Total length: 137 mm · Ø shaft: 13 mm

CIF gear wheel 37 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: straight toothed · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Number of teeth: 37 pcs · Gearbox type: Mono · Gearbox type: Vario

Malossi gearbox 8.92:1 (long ratio) Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Surface: Hardened · Toothing type: straight toothed · Translation: 8.92 / 1 · Gearbox type: Vario · Area of application: Tuning

CIF gearwheel 29/10 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.44 / 1 · Translation: 10.73 / 1 · Translation: 13.05 / 1 · Number of teeth: 10 pcs · Number of teeth: 29 pcs · Gearbox type: Mono · Gearbox type: Vario

swiing® revival gasket set engine, cylinder & gearbox | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Number of components: 3 pcs

Polini Vario 13:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 12.82 / 1 · Number of teeth: 10 pcs · Number of teeth: 30 pcs · Number of teeth: 47 pcs · Gearbox type: Vario

Polini gearbox housing EVO Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing · Area of application: Tuning

swiing® revival gasket set Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: NBR · Material: Oiled paper · Material: Sealing carton · Gearbox type: Vario

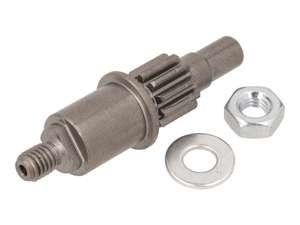

Input shaft mono gearbox (with two gears) | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: Hardened · Toothing type: straight toothed · Translation: 6.17 / 1 · Translation: 6.73 / 1 · Translation: 7.40 / 1 · Number of teeth: 11 pcs · Gearbox type: Mono · Piaggio OEM number: 102921 · Piaggio OEM number: 103970 · Piaggio OEM number: 114362 · Piaggio OEM number: 176534

Axle shaft keyway NOS | Piaggio Ciao, Boxer

Manufacturer: Piaggio · Material: Steel · Thread type: MF12x1.25 (fine pitch thread) · Total length: 130 mm · Ø shaft: 15 mm · Piaggio OEM number: 102896 · Piaggio OEM number: 121306 · Piaggio OEM number: 123204 · Piaggio OEM number: 131501

Polini gasket gearbox EVO | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.45 mm · Manufacturer: Polini · Material: Aluminum · Material: Composite materials · Material: Oiled paper · Place of use: Gearbox cover · Gearbox type: Vario

Evok Gear Sprocket, 37 Teeth, Mono/Vario Transmission | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 23.1 mm · Ø outside: 69.4 mm · Thickness: 10 mm · Manufacturer: EVOK · Material: Steel · Surface: Hardened · Toothing type: straight toothed · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Number of teeth: 37 pcs · Gearbox type: Mono · Gearbox type: Vario · Piaggio OEM number: 178697

CIF gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 32 mm · Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Number of teeth: 23 pcs · Gearbox type: Mono · Gearbox type: Vario

swiing® revival screw set engine / gearbox Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

CIF gear wheel 36 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: straight toothed · Translation: 8.92 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Number of teeth: 36 pcs · Gearbox type: Vario

Pinasco Variomatik "2.0 Offroad" Transmission Case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Material: Aluminum · Gearbox type: Vario · Area of application: Tuning

CIF transmission 11:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.73 / 1 · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 6 mm · Cord thickness: 1.7 mm · Ø outside: 9.4 mm · Manufacturer: Piaggio

Oil seal 13/22/4 A NBR gearbox Vario original | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 13 mm · Width: 4 mm · Ø outside: 22 mm · Manufacturer: Piaggio · Material: NBR · Piaggio OEM number: 240222

swiing® revival nut left-hand thread M12x1.25 splined gearbox | Piaggio Ciao C9, P

Height: 7.8 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Thread type: MF12x1.25 (fine pitch thread) · Nominal diameter (thread): 12 mm · Drive: External hexagon · Width across flats: 21 mm · Thread depth: 7.8 mm · Piaggio OEM number: 5.20110

Bolt M10x14 Gearbox frame mounting | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Nominal diameter (thread): 10 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 17 mm · Shank: No · Total length: 22.3 mm · Thread length: 14.5 mm · Strength class: 8.8 · Piaggio OEM number: 031150

Corteco oil seal NBR 17/25/4 A Gearbox Mono | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Width: 4 mm · Ø outside: 25 mm · Manufacturer: Corteco · Material: NBR · Place of use: Gearbox cover · Piaggio OEM number: 114469

swiing® revival screw set gearbox frame mounting galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Nominal diameter (thread): 10 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 17 mm · Shank: No · Thread length: 14 mm · Strength class: 8.8 · Number of components: 8 pcs · Piaggio OEM number: 016410 · Piaggio OEM number: 031150

Malossi gearbox HTQ 13:1 Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Material: Steel · Toothing type: straight toothed · Translation: 12.82 / 1 · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning
