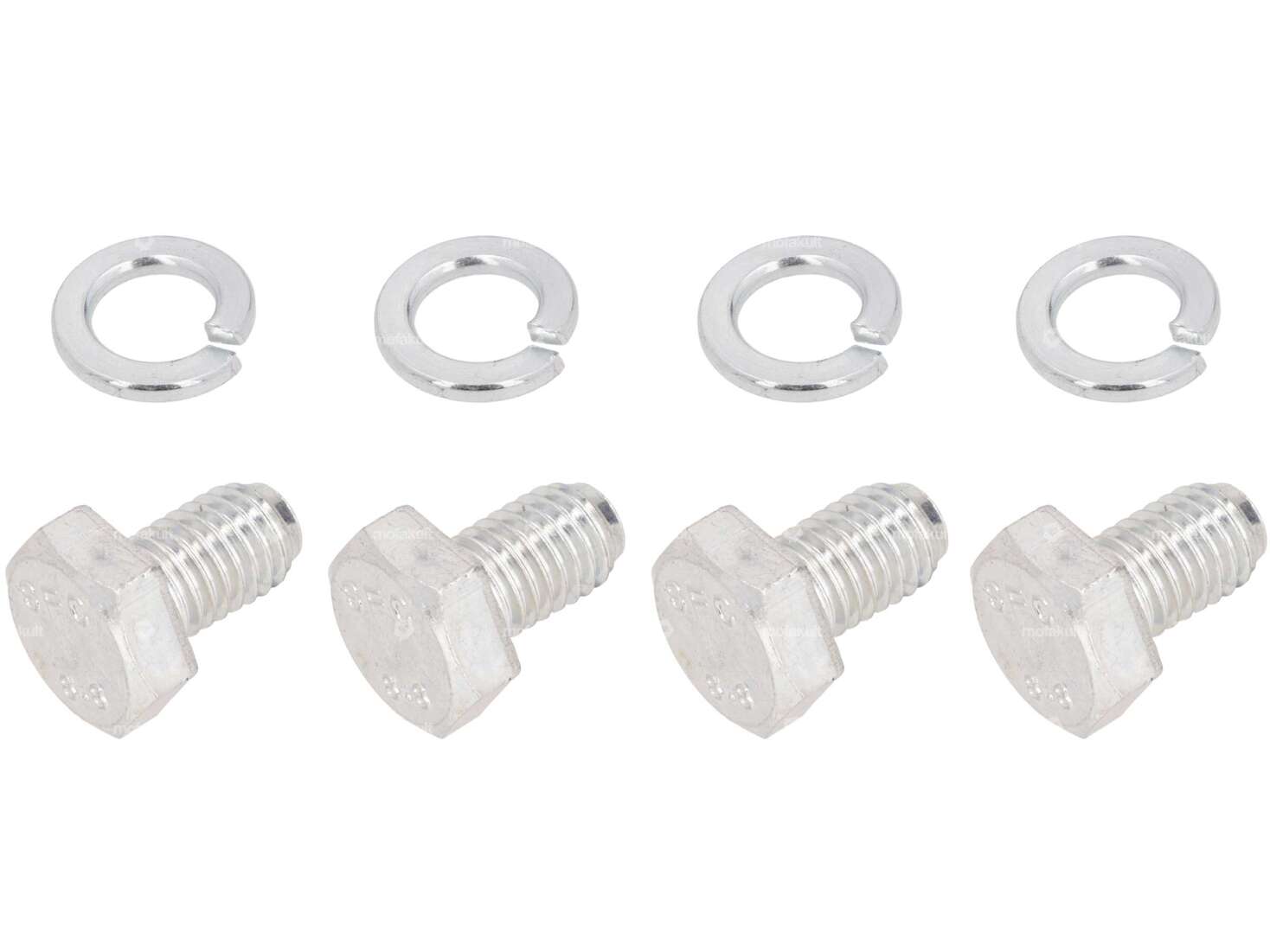

Screw set with M10 x 14 mm hexagon screws made of galvanized steel for fastening the rear wheel or freewheel triangle to the frame of your Piaggio Ciao, Si, Bravo and Boxer moped
.Thanks to the original dimensions, there is no risk of damaging the gearbox cover with a screw that is too long.
In addition to the four required bolts, the screw set also includes the matching four spring washers.
| Drive | External hexagon |
| Screw head | Hexagon |
| Manufacturer | swiing® revival parts |
| Thread length | 14 mm |
| Number of components | 8 pcs |
| Material | Steel |
| Surface | galvanized (blue) |
| Thread type | M10x1.5 (standard thread) |
| Width across flats | 17 mm |
| Shank | No |
| Strength class | 8.8 |
| Piaggio OEM number | 031150, 016410 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
