Universal

24530

Normio Locking Plate M8, 2 Tabs

EUR 2.25

Incl. 21% VAT.

Description

Galvanized locking plate with 2 tabs for securing screws and nuts.

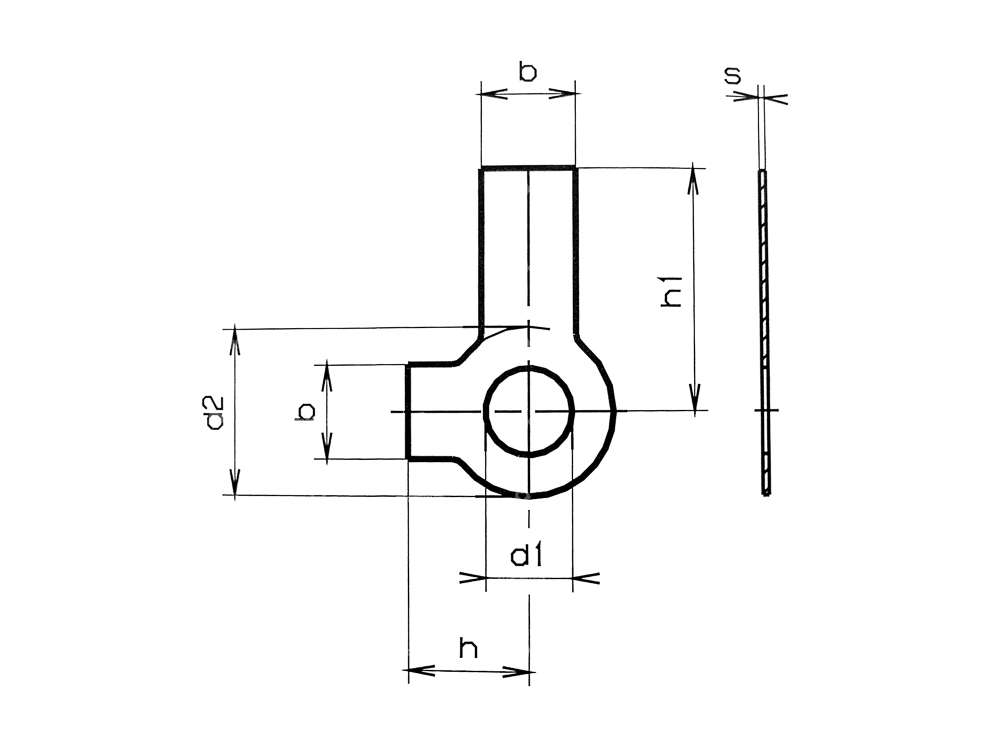

Take the following measurements from Figure 2:

  • d1: 8.4 mm
  • d2: 17 mm
  • b: 8 mm
  • h: 11 mm
  • h1: 20 mm
  • s: 0.75 mm

A high-quality product from the Normio brand for select industrial components with high standards for precision, durability, and manufacturing quality.

Width8 mm
Ø inside8.4 mm
Ø outside17 mm
ManufacturerNormio
Total length11 mm
MaterialSteel
Surfacegalvanized (blue)
Number of lobes2 pcs
Thickness0.75 mm
Nominal diameter (thread)8 mm
Thread sizeM8
Length 220 mm
Width 28 mm
