41 mm cast iron racing cylinder with Latin American temperament and 57 cc for your Puch M50, MS50, VS50, DS50, VZ50 small motorcycle.
The timing cam of the tuning cylinder was deliberately kept low, which results in particularly good torque in the lower engine speed range.
Thanks to the large sealing surface, no more pouring is required to close the slot on the housing compared to many other cylinder kits.
Compared to the Sombrero racing kit for Puch Velux X30 models, this version has a thinner cylinder neck so that it fits into the corresponding EX50 engine cases.
| Nominal diameter | 41 mm |
| Manufacturer | GPO |
| Material | Gray cast iron |
| Displacement | 57 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 43 mm |
| Ø outlet inside | 25 mm |
| Ø Inlet inside | 19 mm |
| Hole spacing inlet | 42 mm |
| Area of application | Tuning |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 10 mm, 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
| Camouflaged | No |
| Puch | 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C
Manufacturer: Elring · Temperature resistance (min.): -60 - 300 °C · Contents: 70 ml · Hazard warning: Causes serious eye irritation · Color: red · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Area of application: Chemistry
EUR 27.20
EUR 388.57/l
GPO cylinder gasket set BAD ASS Lucifer / GPO Sombrero 41 mm | Puch X30 Velux, M50, MS
Thickness: 0.4 mm · Thickness: 0.45 mm · Number of components: 4 pcs · Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Ø cylinder: 41 mm · Ø outlet inside: 27 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 32 mm · Decompressor: Yes · Area of application: Tuning · Hole spacing inlet: 32 mm
EUR 23.60
GPO 41 mm "Sombrero" cylinder kit | Puch X30 Velux, NG-2AH
Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 44.7 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 237.20
Explore categories from Cylinder
Moped fans also bought
Hot
GPO ignition plate 90 mm Bosch / DUCATI
Ø inside: 18.5 mm · Manufacturer: GPO · Material: Aluminum · Tension: 6 V · Ø outside: 90 mm · Ø bolt circle: 80 mm · Number of cables: 3 pcs · Area of application: Original · Area of application: Standard · Cable length: 400 mm · Cable length: 500 mm · Number of fixing points: 4 pcs
EUR 88.90
Hot
swiing® ingenious pull starter Bosch / Ducati | Puch E50
Material: Plastic · Material: Steel · Surface: chrome-plated · Manufacturer: swiing® ingenious parts · Ignition system: BOSCH · Ignition system: DUCATI · Color: Chrome · Color: black-matt · Ø outside: 130 mm · Hole spacing: 137.5 mm · Height: 88 mm · Total length: 160 mm · Width: 150 mm · Number of fixing points: 2 pcs
EUR 177.90

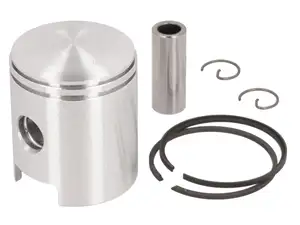

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50
