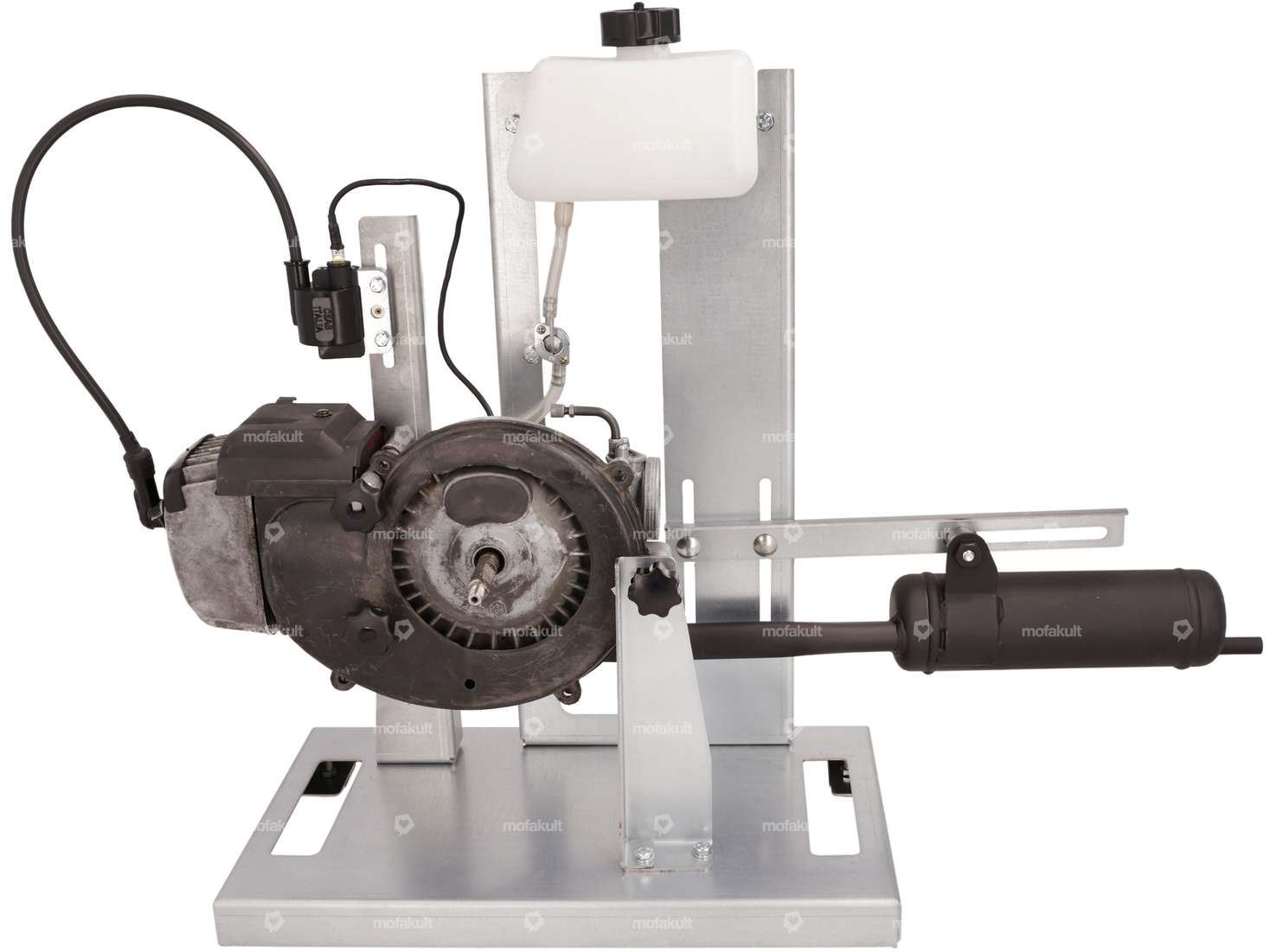

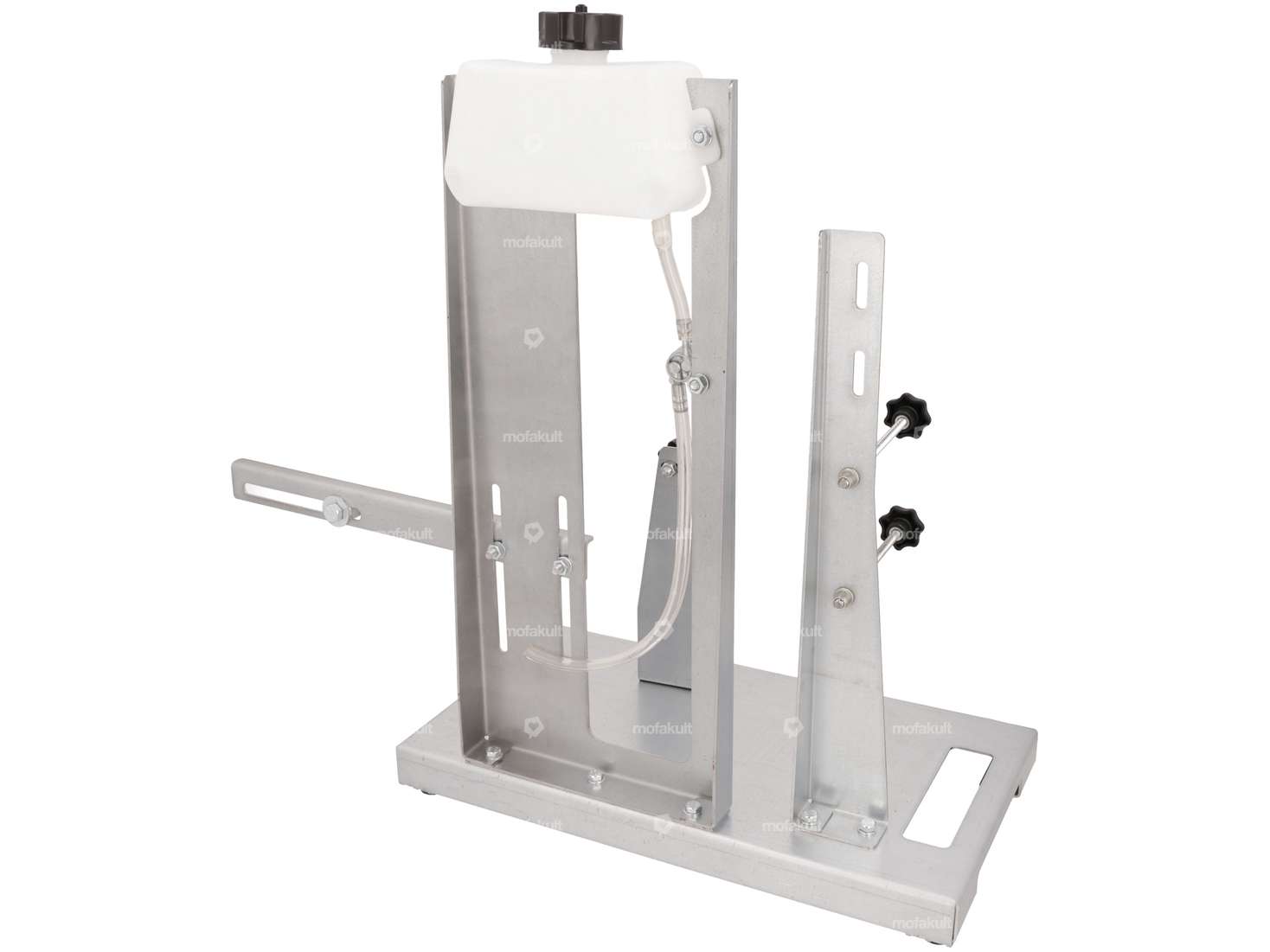

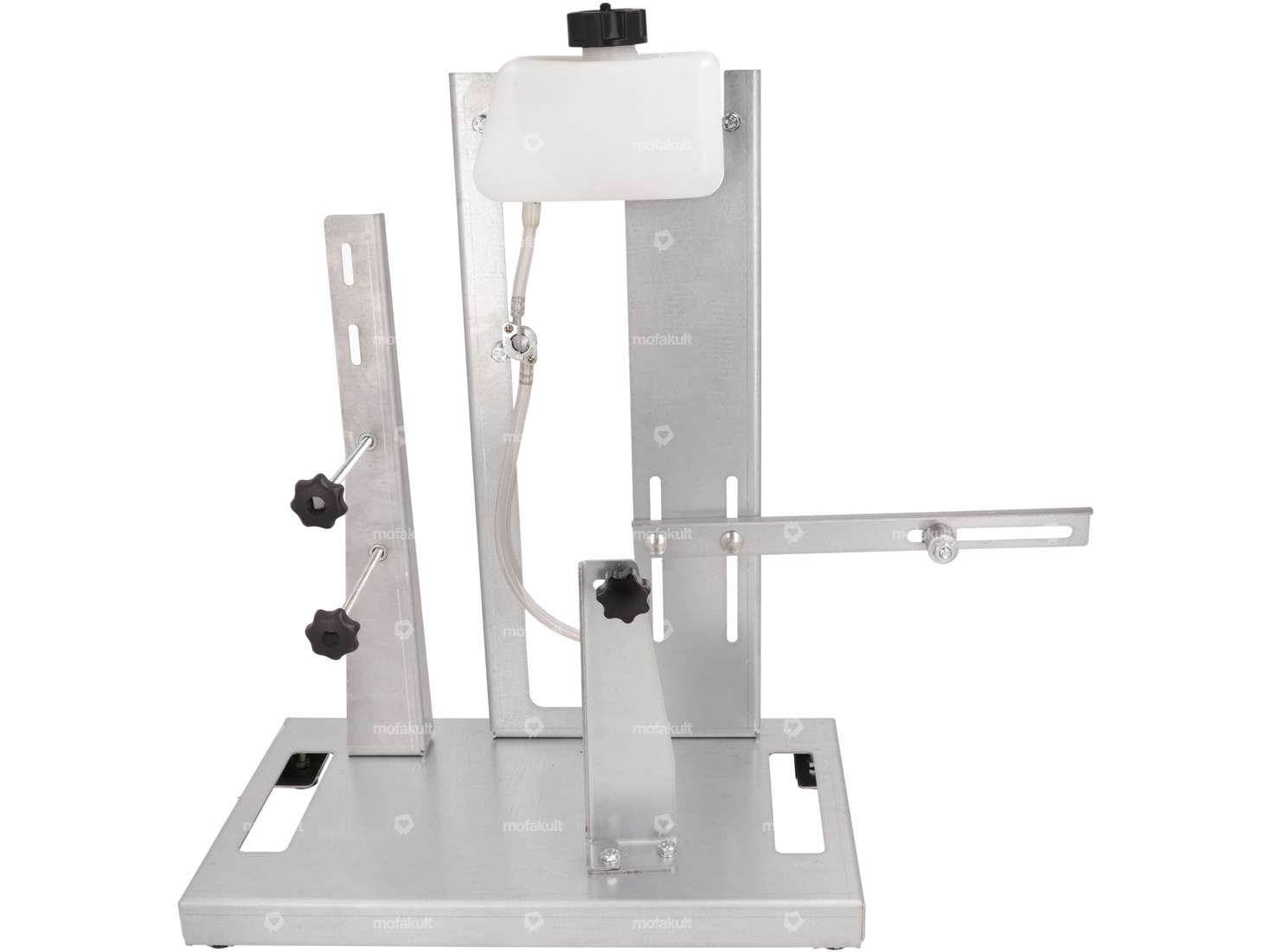

Primpression and adjustment stand for the engines of your Piaggio Ciao, Si, Bravo or Boxer mopeds / mopeds.
Made from 2 mm thick sheet steel, the engine support has been designed to allow quick and easy fixing of the engine. Tuning work on the carburetor or a functional check of the ignition are made considerably easier by the engine mount. In addition, all commercially available exhausts can be fitted, for example to measure the sound level.
The base plate is fitted with silent blocks to ensure safe and low-vibration operation. Fuel is supplied through a 250 ml tank, which is equipped with a fuel tap.
Dimensions assembled: 55 x 22 x 55 cm (L x W x H)
Base plate dimensions: 40 x 22 cm
Tank capacity: 2.5 dl
The engine mount is supplied with all the necessary screws.
You can find other essential tools such as an engine stand for assembly in the accessories section.
A quality product made in Germany.
Details
| Manufacturer | Made in Germany |
| Material | Steel, Plastic |
| Surface | galvanized (blue) |
| Width | 220 mm |
| Total length | 550 mm |
| Height | 550 mm |
| Material thickness | 2 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
GPO blade gauge set 0.05 - 1.00 mm 13 pcs.
Measuring range [mm]: 0.05 - 1 mm · Manufacturer: GPO · Material: Metal · Surface: blank / oiled · Number of components: 13 pcs · Total length: 105 mm · Width: 13 mm · Thickness: 0.05 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Area of application: Measuring tool
EUR 14.10
GPO bearing puller set inside
Width across flats Screw: 14 mm · Span: 8 mm · Span: 25 mm · Manufacturer: GPO · Clamping depth: 10 mm · Clamping depth: 20 mm · Total length: 140 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 11 pcs
EUR 201.10
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Diameter: 12 mm · Diameter: 24 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Total length: 100 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 2 pcs
EUR 21.20
Moped fans like you also bought:
Speedometer drive 16" left with grease nipple holder
Place of use: left · Thread type: MF10x1 (fine pitch thread) · Color: gray · Material: Aluminum · Wheel size [inch]: 16 " · Ø outside: 42 mm · 4-edge speedometer cable: 1.9 mm · Ø axle: 11 mm · Overall width outside: 48 mm · Ø mounting hole: 11.2 mm · Total height: 52 mm
EUR 25.90
CEAB ignition coil external red | Piaggio Ciao P, SC (1967 - 1971)
Place of use: External (outside the ignition) · Manufacturer: CEAB · Area of application: Original · Area of application: Standard · Color: red · Mounting type: Screws · Number of fixing points: 2 pcs · Piaggio OEM number: 114457
EUR 138.40

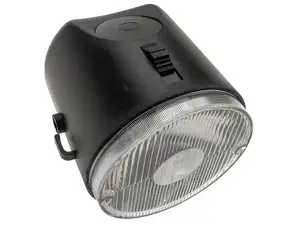

Headlight black (3 switch positions) | Piaggio SI FL 2
