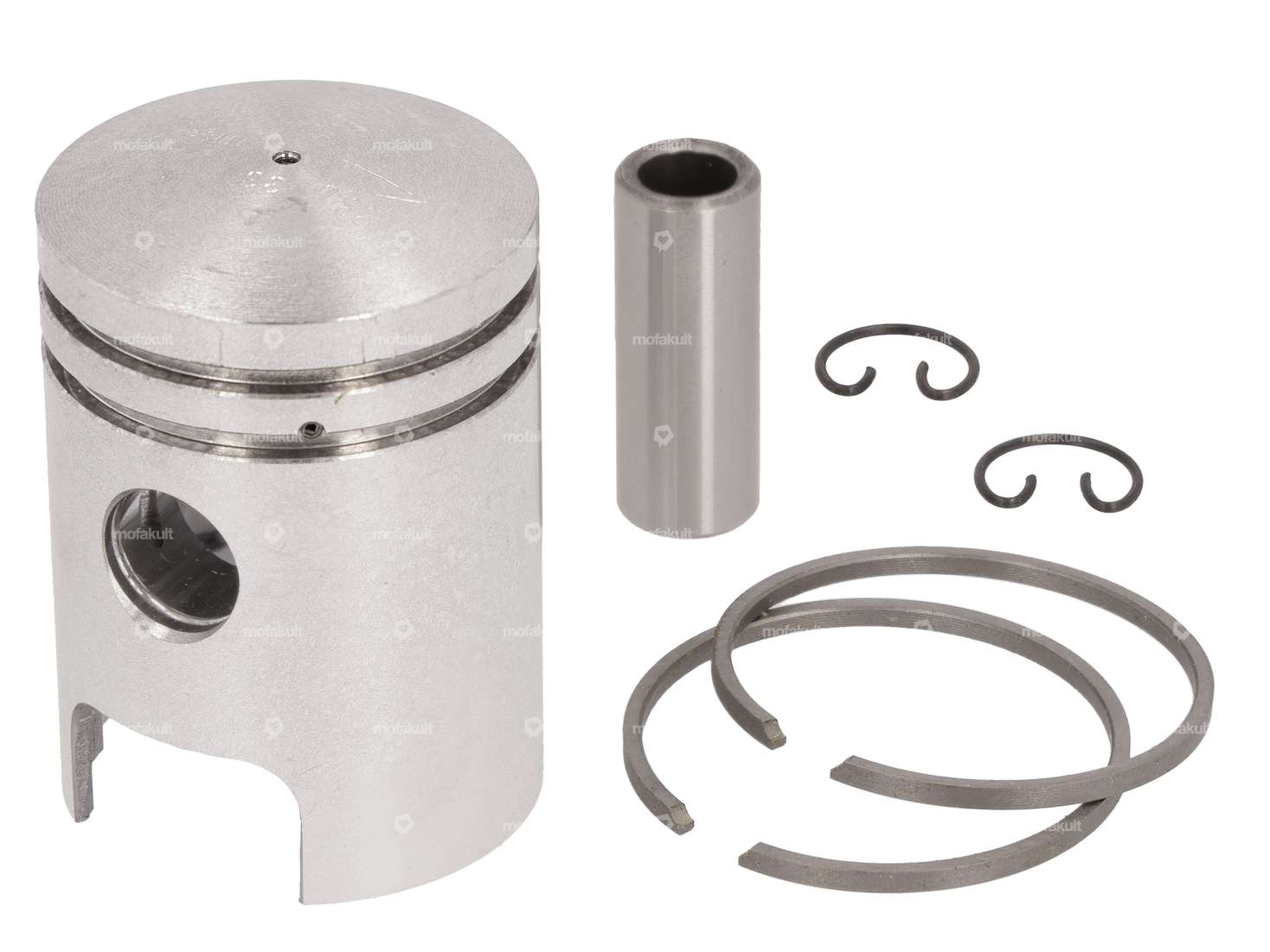

ELKO piston 37.98 mm No. 3 NOS | Puch

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Meteor piston 38 mm #2 | Puch

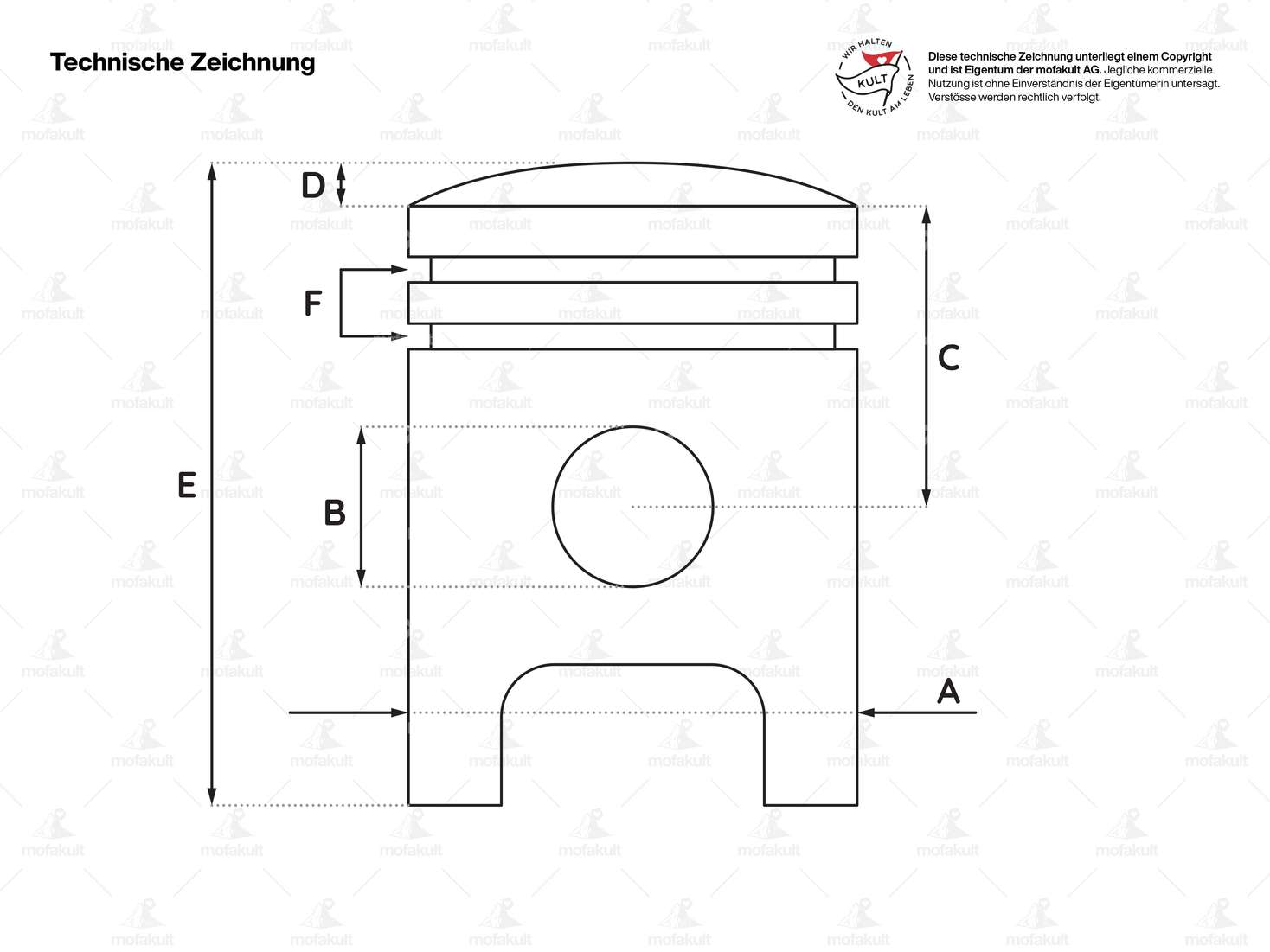

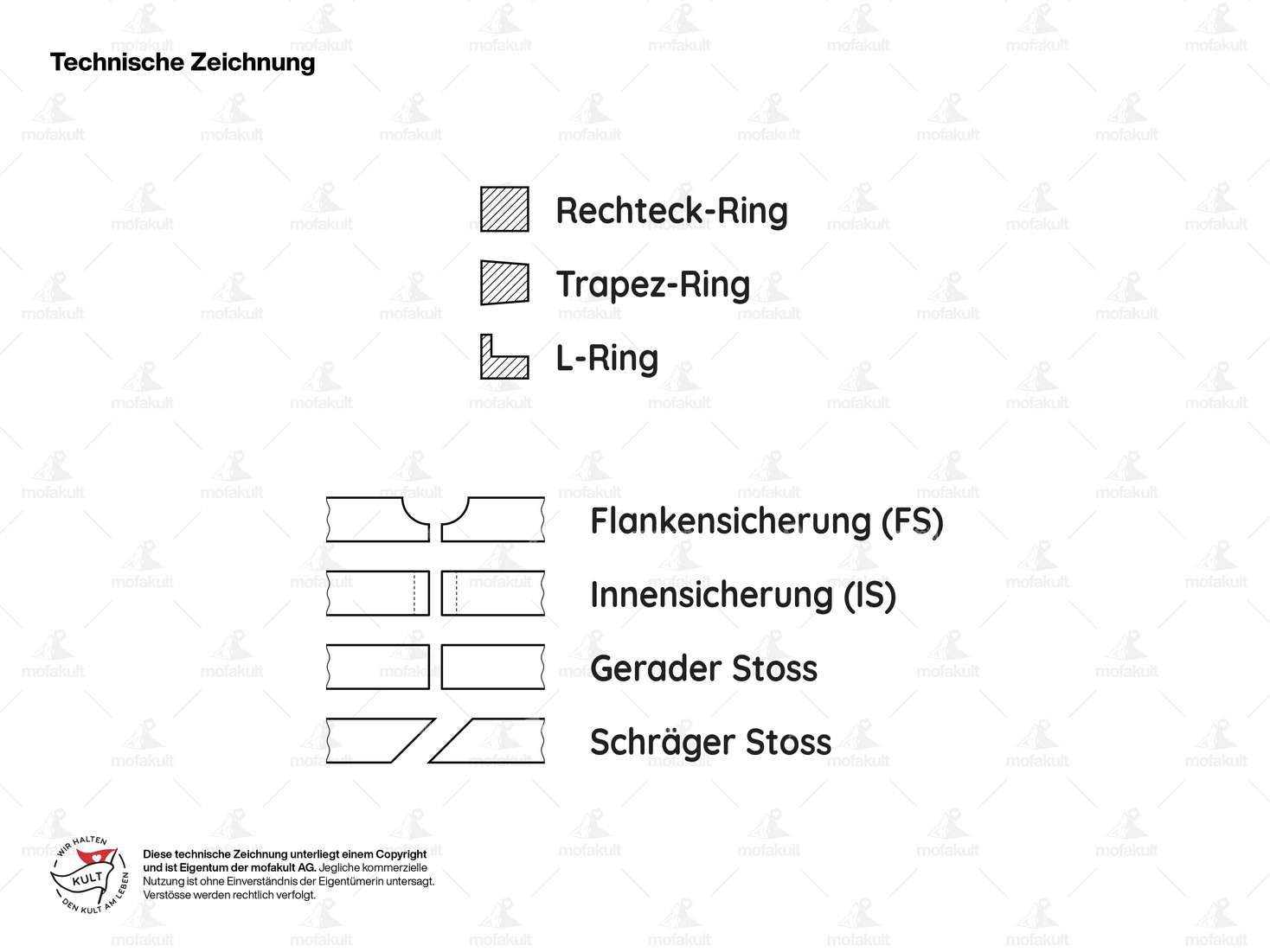

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2 · Weight piston kit: 79 g

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Hole spacing inlet: 32 - 38 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi

Nominal diameter: 38 mm · Manufacturer: Gilardoni italkit · Ø outside piston (A): 37.94 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 80 g

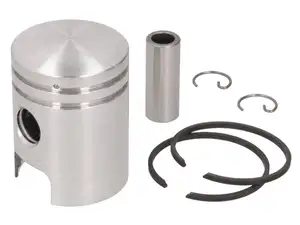

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi

Nominal diameter: 38 mm · Manufacturer: Gilardoni italkit · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 81 g

Karcoma fuel tap M12x1 vertical (with union nut) plastic connection

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Total length: 74 mm · Height: 12.5 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs · Hole spacing: 63 mm

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Nominal diameter (thread): 6 mm · Strength class: 10.9

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Nominal diameter (thread): 6 mm · Puch OEM number: 360.1.10.034.1

Type plate | Puch Maxi S Austria

Manufacturer: Puch · Color: black · Number of fixing points: 2 pcs

GPO air filter screen Ø 52 mm "Racing"

Manufacturer: GPO · Camouflaged: No · Material: Steel · Surface: galvanized (yellow) · Color: yellow · Ø outside: 52 mm · Height: 9.7 mm · Area of application: Tuning

swiing® ingenious 38 mm cylinder kit (CH12 Vertex-Edition) Tuning camouflaged | Puch

Nominal diameter: 38 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Inlet window: 24 / 21 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Alternative version of the Puch OEM number: 349.7.10.105.0

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Ø outside: 116 mm · Ø inside: 106 mm · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Nominal diameter inside: 15 mm · Manufacturer: swiing® ingenious parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

swiing® revival bulb 6V - 15W (P26s) 1-filament

Manufacturer: swiing® revival parts · Test mark: ECE S3 · Color: white · Total length: 45 mm · Bulb holder: P26s · Ø base: 15 mm · Ø base: 30 mm · Tension: 6 V · Performance: 15 W · Ø Lamp head: 25 mm · LED: No
