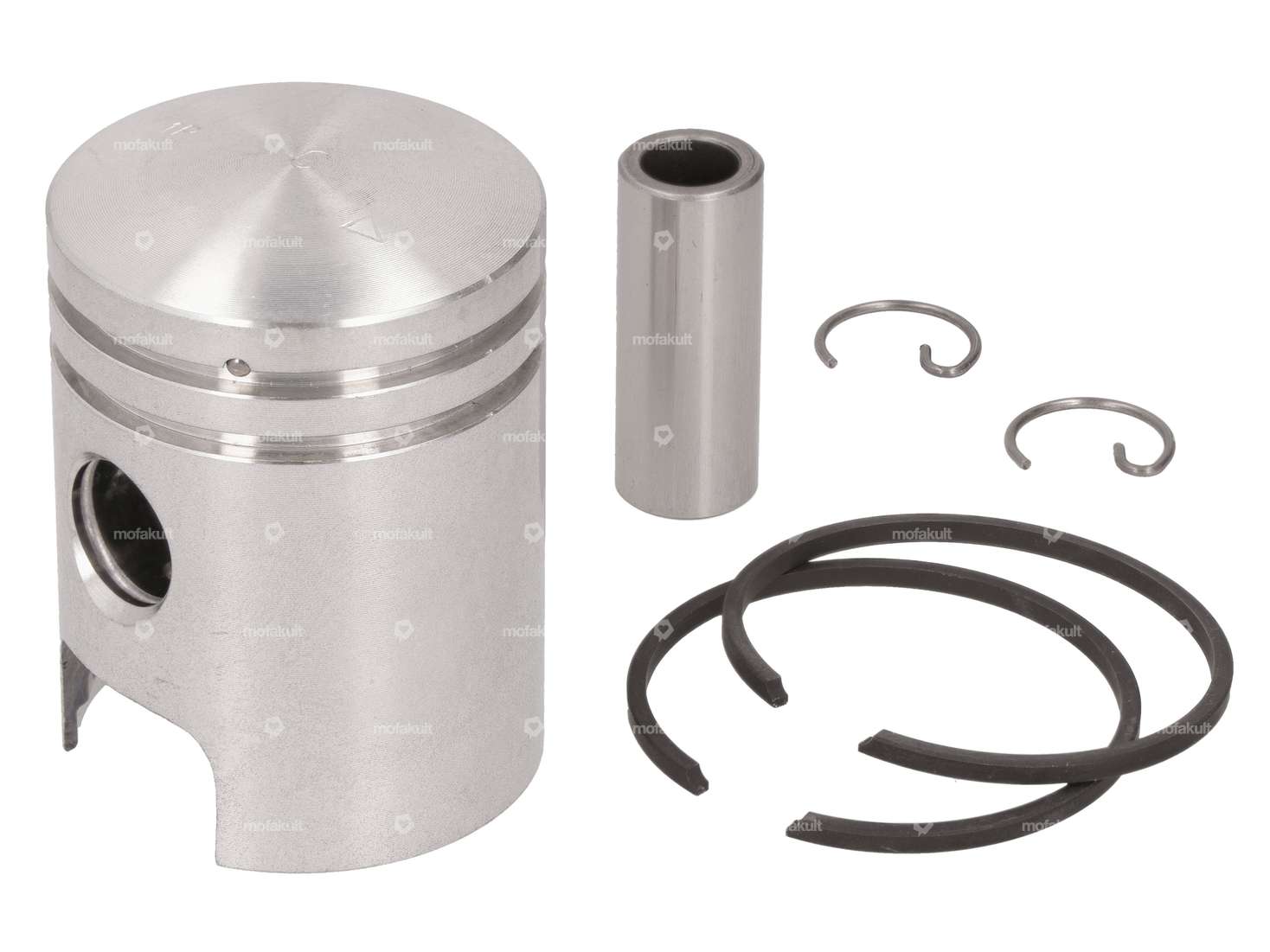

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch Maxi moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston pin locks and alternative pistons can be found in the accessories section.
Quality product from the Italian manufacturer Gilardoni under the italkit brand.
| Nominal diameter | 38 mm |
| Manufacturer | Gilardoni italkit |
| Ø outside piston (A) | 37.96 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.9 mm |
| Total piston height (E) | 52.6 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 81 g |
| Puch | E50 |
Accessories & related products
Meteor piston 38 mm #2 | Puch
Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: 2 · Piston weight: 79 g
EUR 59.20
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
EUR 23.60
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Number of components: 4 pcs · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard
EUR 7.70
EUR 8.80

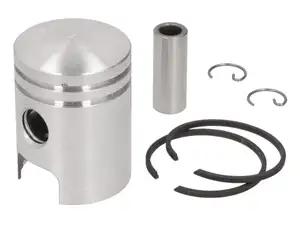

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
