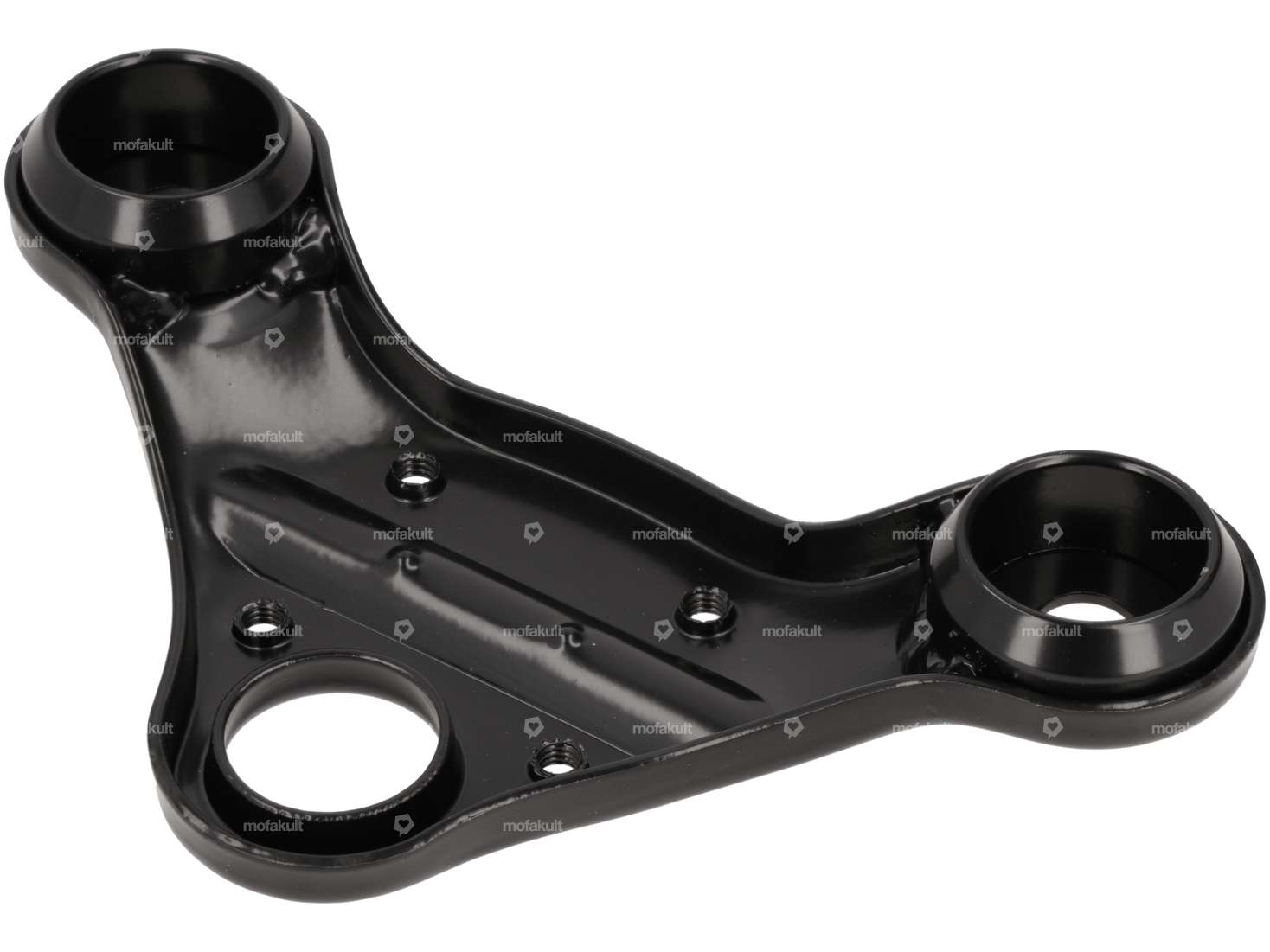

Black painted EBR fork plate to fit various EBR forks.
Two bushings are attached to the underside, which serve as guides for the fork legs. This provides additional stability.
Ø for head tube: 26 mm
Ø for fork leg mount: 28.3 mm
Hole pattern for mounting clamp bracket: 33 x 45 mm
Thread for clamp bracket: M6x1
You can find the matching clamp bracket in the accessories.
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished |
| Thread type | M7x1 (standard thread) |
| Color | black |
| Ø spars | 28 mm |
| Ø head tube inside | 26 mm |
| Hole pattern [mm] | 33 x 45 |
| Puch | |
| Sachs | |
| Piaggio | |
| Zündapp Belmondo |
