For: Sachs

38473

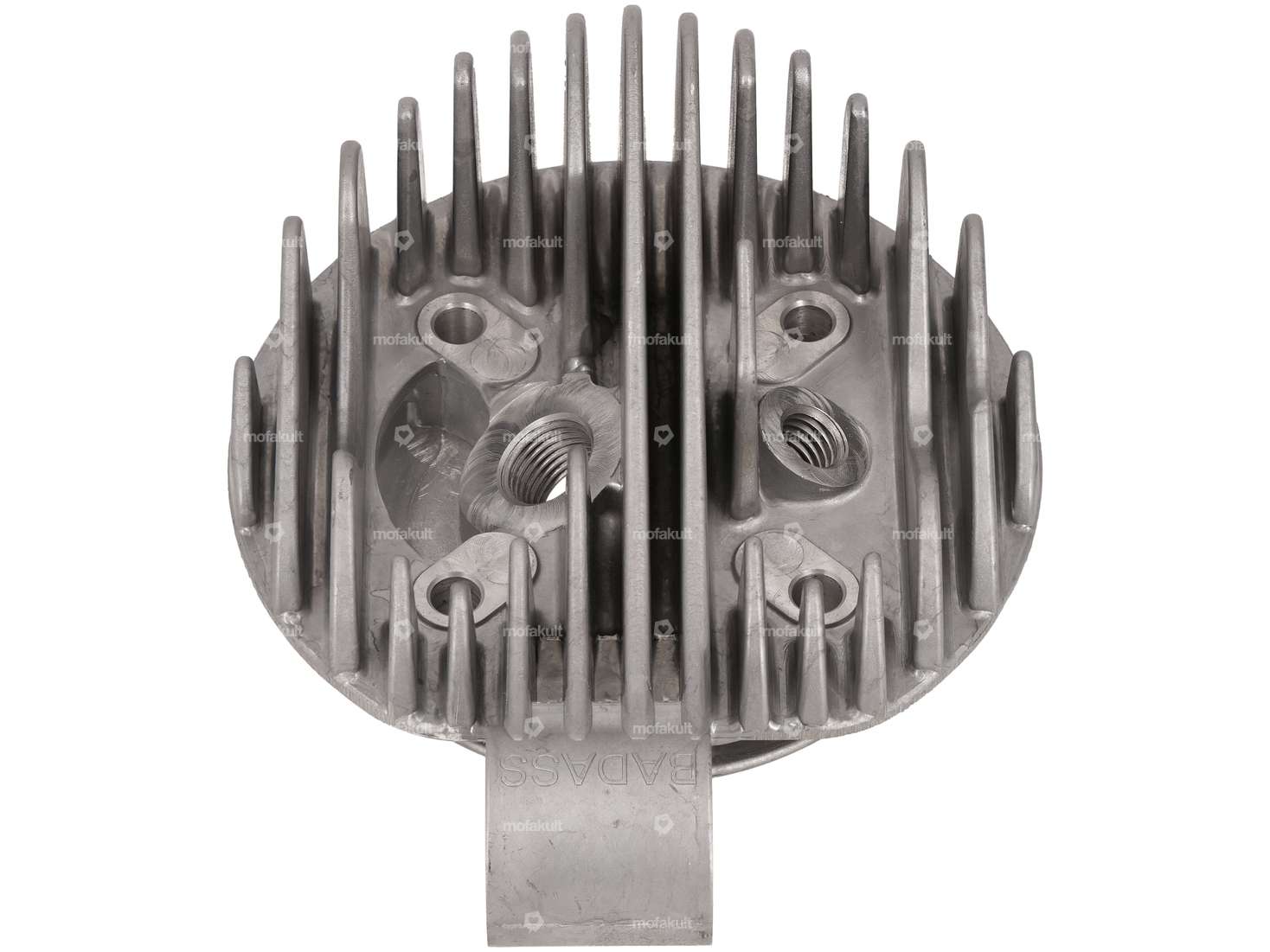

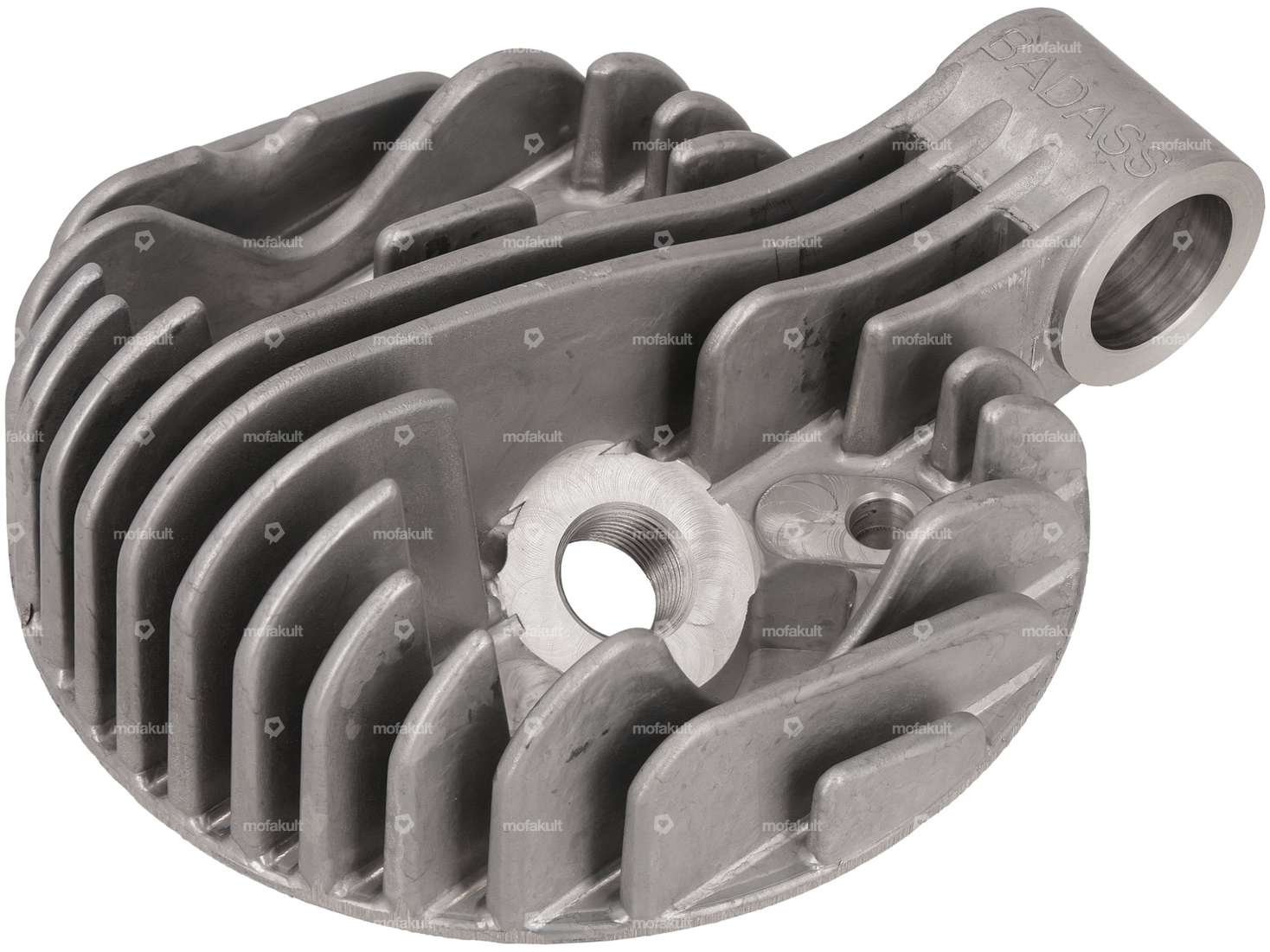

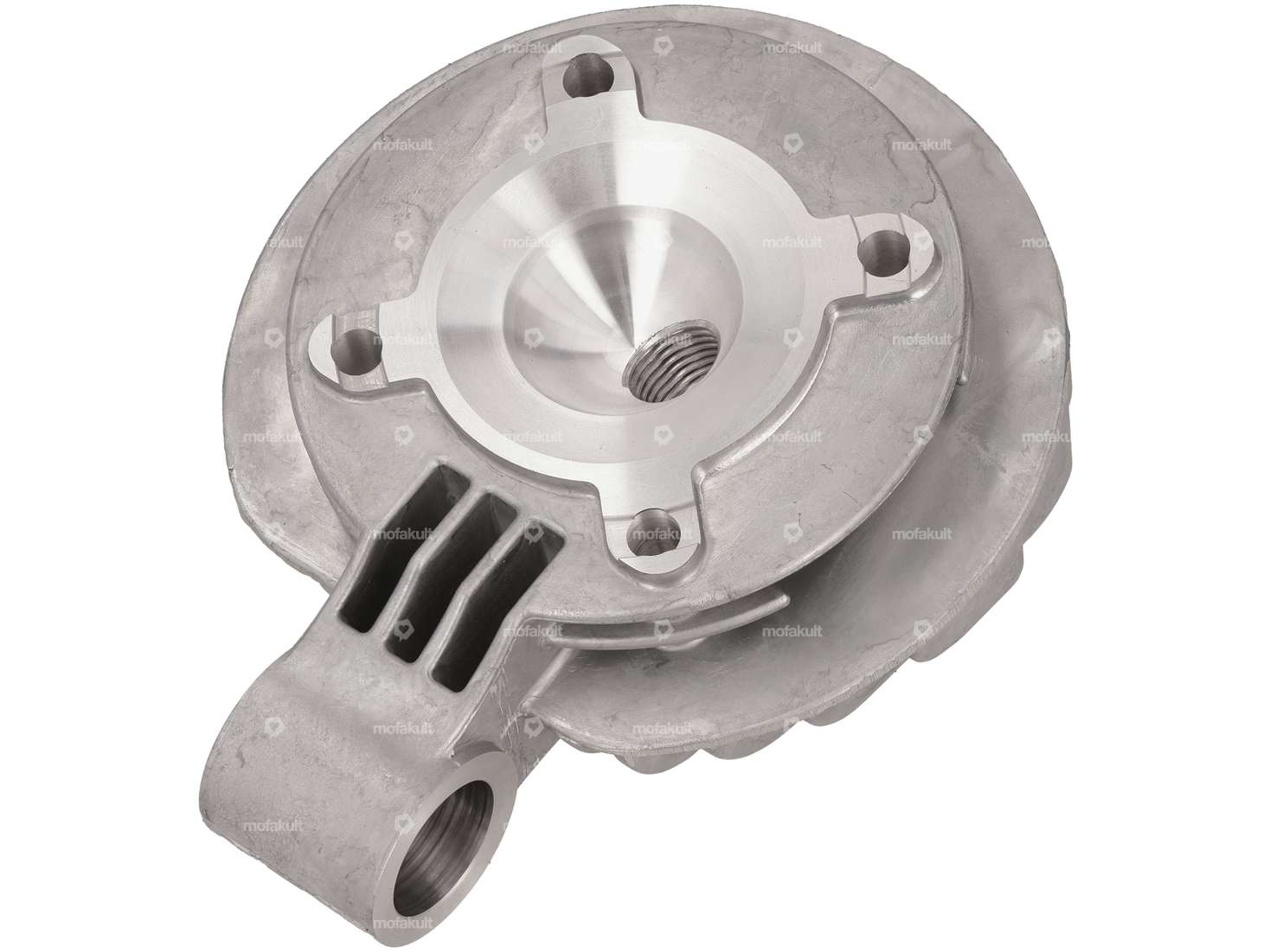

BAD ASS cylinder head XL Ø 45-47 mm | Sachs 502, 50/2, 50/3, 50/4

EUR 166.00

Incl. 21% VAT.

Description

Ø 45 - 47 mm XL cylinder head in original look with enlarged cooling fins, suitable for your moped / moped with Sachs 502, 50/2, 50/3, 50/4 engine.

This tuning head was specially developed for the BAD ASS Diablo Ø 45 mm racing cylinder. Thanks to the larger cooling fin design, the cylinder head can optimally dissipate heat even at high temperatures and when driving slowly uphill.

The hole for the decompressor is prepared and provided with a thread (M10 x 1.5 mm). If this is installed, it only needs to be drilled through with a 3 mm drill bit.

ManufacturerBAD ASS
MaterialAluminum
Ø outside108 mm, 85.5 mm
Area of applicationTuning, Racing
Ø cylinder45 - 47 mm
Height61 mm
Ø screw holder19.3 mm
Candle threadshort
Hole pattern [mm]47 x 47
DecompressorM10x1.5
Number of fixing points4 pcs
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)
