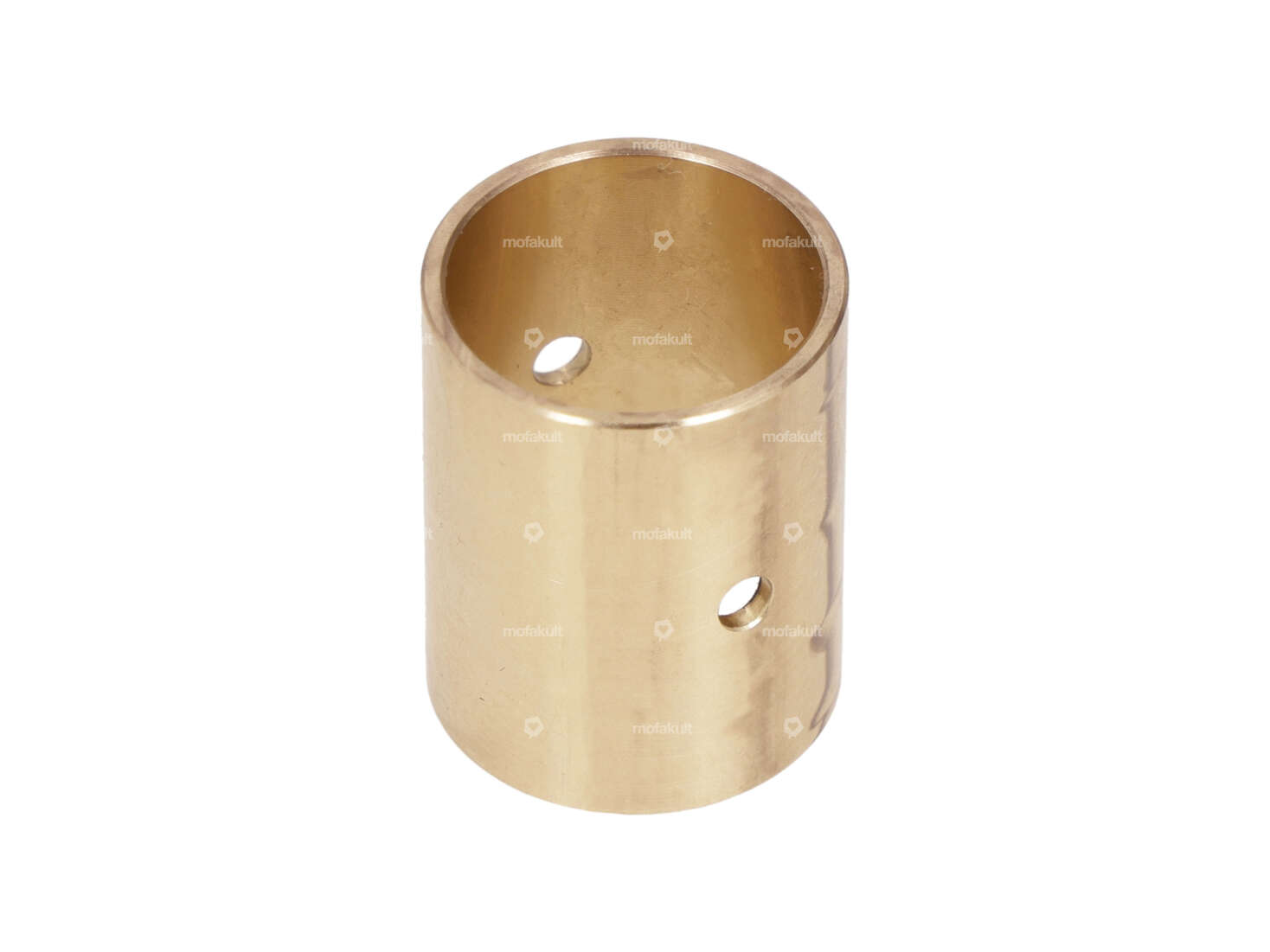

ASP plain bearing clutch basket | Puch E50

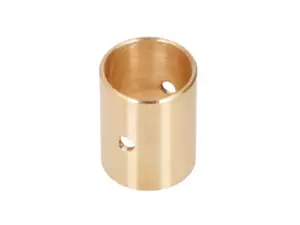

MBR plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: MBR · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.8 mm

swiing® ingenious plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: swiing® ingenious parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm

ASP clutch basket & spur gear set 19:94 teeth CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Area of application: Tuning

ASP clutch basket & spur gear set 19:94 teeth Kickstart CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Area of application: Racing · Area of application: Tuning

ASP clutch basket & spur gear set 19:94 teeth KTM SX50 CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Area of application: Racing · Area of application: Tuning

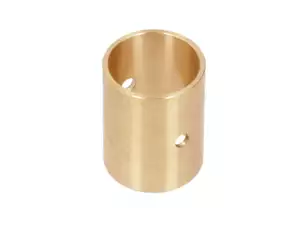

Plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Nominal diameter inside: 15 mm · Manufacturer: Made in Switzerland · Material: special bearing bronze · Ø outside: 17 mm · Ø inside: 15 mm · Total height: 21.75 mm · Area of application: Racing · Area of application: Tuning · Puch OEM number: 349.1.12.011.1 · Puch OEM number: 349.2.12.011.1

GPO Gasket Set for E50 Engine | Puch Maxi S, N

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Decompressor: Yes · Hole spacing outlet: 42 mm · Hole spacing inlet: 32 - 38 mm · Hole pattern [mm]: 44 x 44

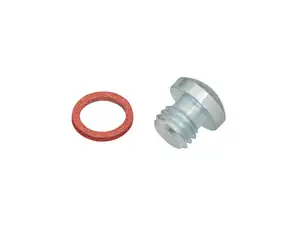

swiing® revival oil filler plug with sealing ring | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Slot · Total length: 14.6 mm · Screw head: Lens head · Ø External head: 14 mm · Thread type: M10x1.5 (standard thread) · Number of components: 2 pcs · Nominal diameter (thread): 10 mm · Thread length: 6 mm · Puch OEM number: 364.1.10.660.1

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Drive: External hexagon · Height: 8 mm · Thread type: MF10x1 (fine pitch thread) · Nominal diameter (thread): 10 mm · Width across flats: 17 mm

15 mm circlip clutch basket E50 engine

Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Place of use: Clutch · Thickness: 0.95 mm · Nominal diameter: 15 mm · Ø inside: 13.8 mm · Ø outside: 17 mm · Puch OEM number: 900.4619

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 0.5 mm · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 1 mm · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 968 g · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Thread length: 15 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Ø inside: 15 mm · Ø inside: 17 mm · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Area of application: Standard · Ø outside: 22 mm · Ø outside: 24 mm
