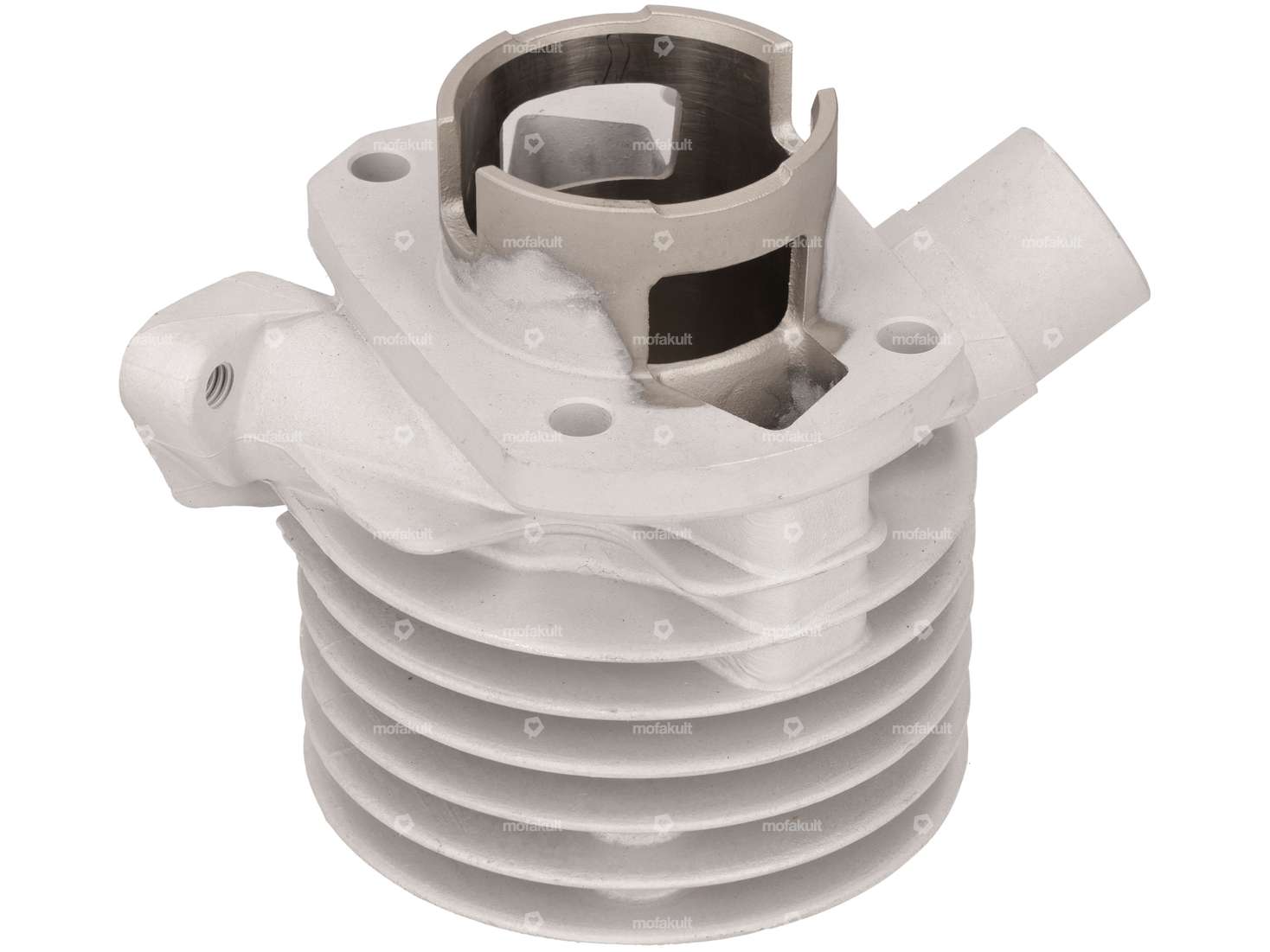

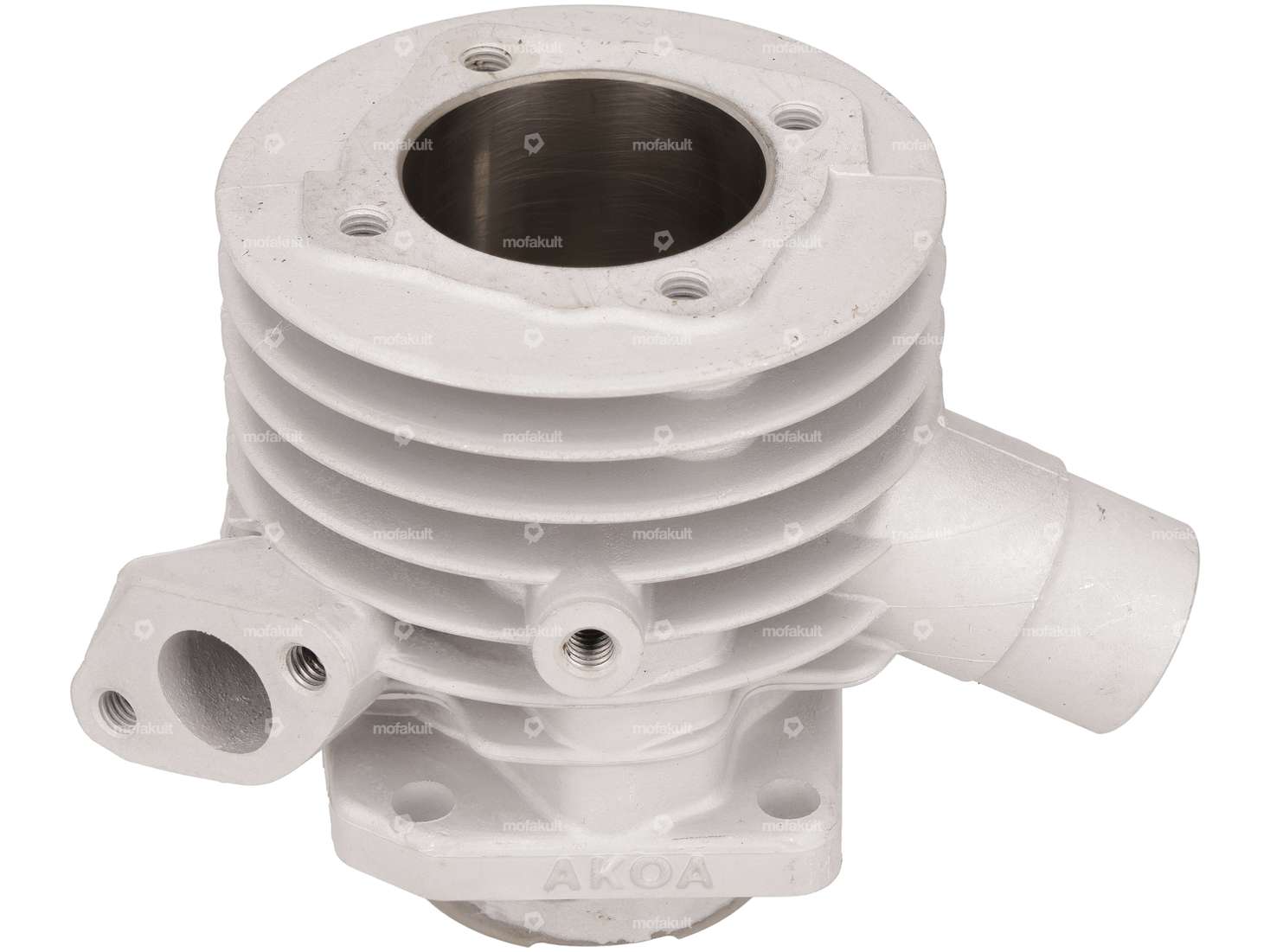

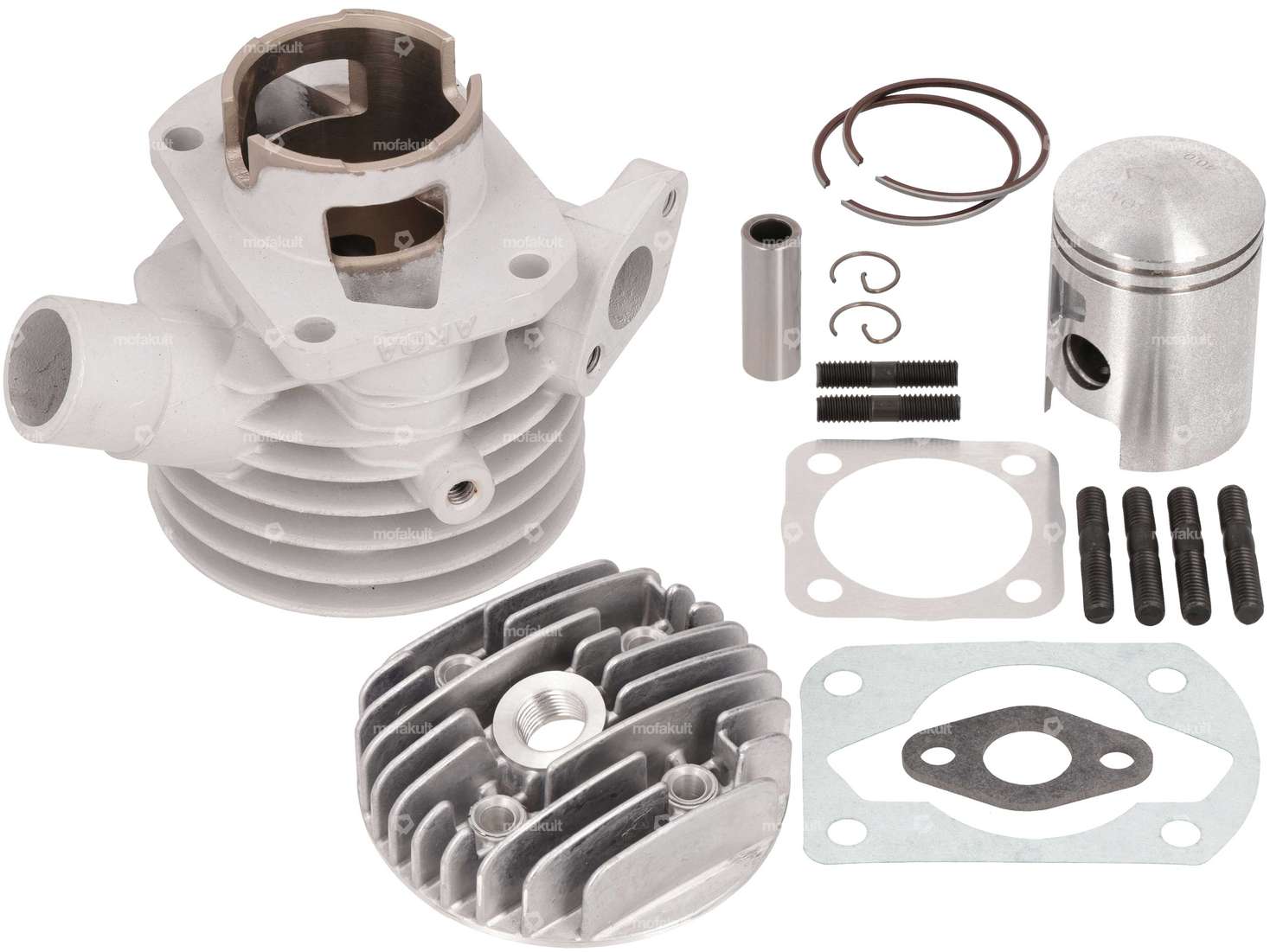

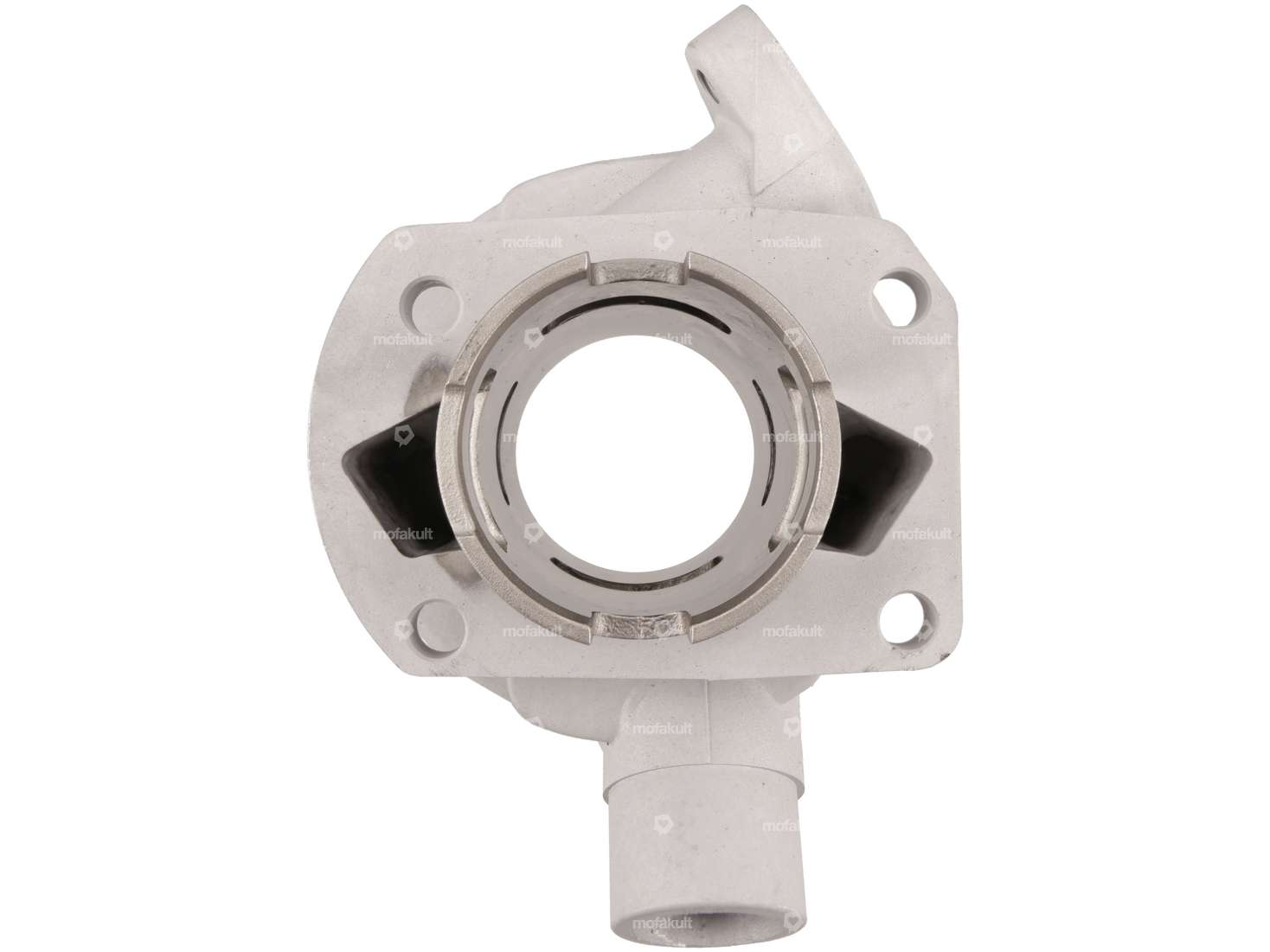

38 mm tuning cylinder in the "Power Edition" version made of aluminum including cylinder head with 50 cc displacement suitable for mopeds / mopeds with Sachs 503 2AL, AAL, 2BL, ABL CH engine.
The tuning kit made of cast aluminum with nickel-silicon carbide coating (colloquially known as Nikasil) offers a good increase in performance over the entire speed range, with a focus on low speeds and high torque. Compared to the original cylinder, the sealing has been removed on this tuning cylinder and the intake has been enlarged. The overflow channels as well as the exhaust and intake have been adapted to optimize the timing. In addition, the exhaust duct has been designed at a more favorable angle. All housing covers can still be fitted.
Manufacturer: AKOA · Material: Aluminum · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 45.5 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 20.5 mm · Ø Inlet inside: 15.8 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 40 x 60 / 37 x 37 · Decompressor: No · Camouflaged: No · Area of application: Tuning
| Nominal diameter | 38 mm |
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 45.5 mm |
| Ø Outlet outside | 25.9 mm |
| Ø outlet inside | 20.5 mm |
| Ø Inlet inside | 15.8 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 40 x 60 / 37 x 37 |
| Hole spacing inlet | 32 mm |
| Ø piston pin (B) | 12 mm |
| Area of application | Tuning |
| Outlet type | clamped |
| Camouflaged | No |
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Ratings
Accessories & related products
Hot
swiing® ingenious 15 mm carburetor camouflaged | Sachs 503
Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Width: 50 mm · Total length: 66 mm · Nozzle thread: M3.5x0.6 (standard thread) · Height: 95 mm · Mounting type: Plug connection clamped · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Area of application: Tuning · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle block: 2.17 · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m
EUR 92.10
GPO 41 mm "Pomodoro" cylinder kit | Sachs 503
Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 57 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37 · Area of application: Tuning
EUR 207.40
Not in stock
GPO 43 mm "Pomodoro" cylinder kit | Sachs 503 2AL, AAL, 2BL, ABL
Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37 · Area of application: Tuning · Alternative version of the Pony OEM number: A1087 · Alternative version of the Sachs OEM number: 0213 142 000
EUR 259.30
swiing® ingenious 15 mm intake manifold short version | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Material: Aluminum · Thread type: M6x1 (standard thread) · Ø inside: 15 mm · Number of fixing points: 2 pcs · Total length: 50 mm · Ø External connection: 20 mm · Area of application: Tuning · Hole spacing inlet: 32 mm · Alternative version of the Pony OEM number: A2177
EUR 57.50
swiing® ingenious decompressor set | Sachs 503
Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Chrome steel (colloquially known as stainless steel) · Material: Copper · Material: Steel · Thread type: M10x1.5 (standard thread) · Ø outside: 14 mm · Width across flats: 14 mm · Area of application: Standard · Total length: 21.5 mm · Thread length: 14 mm · Sachs OEM no.: 0291 013 300
EUR 65.60

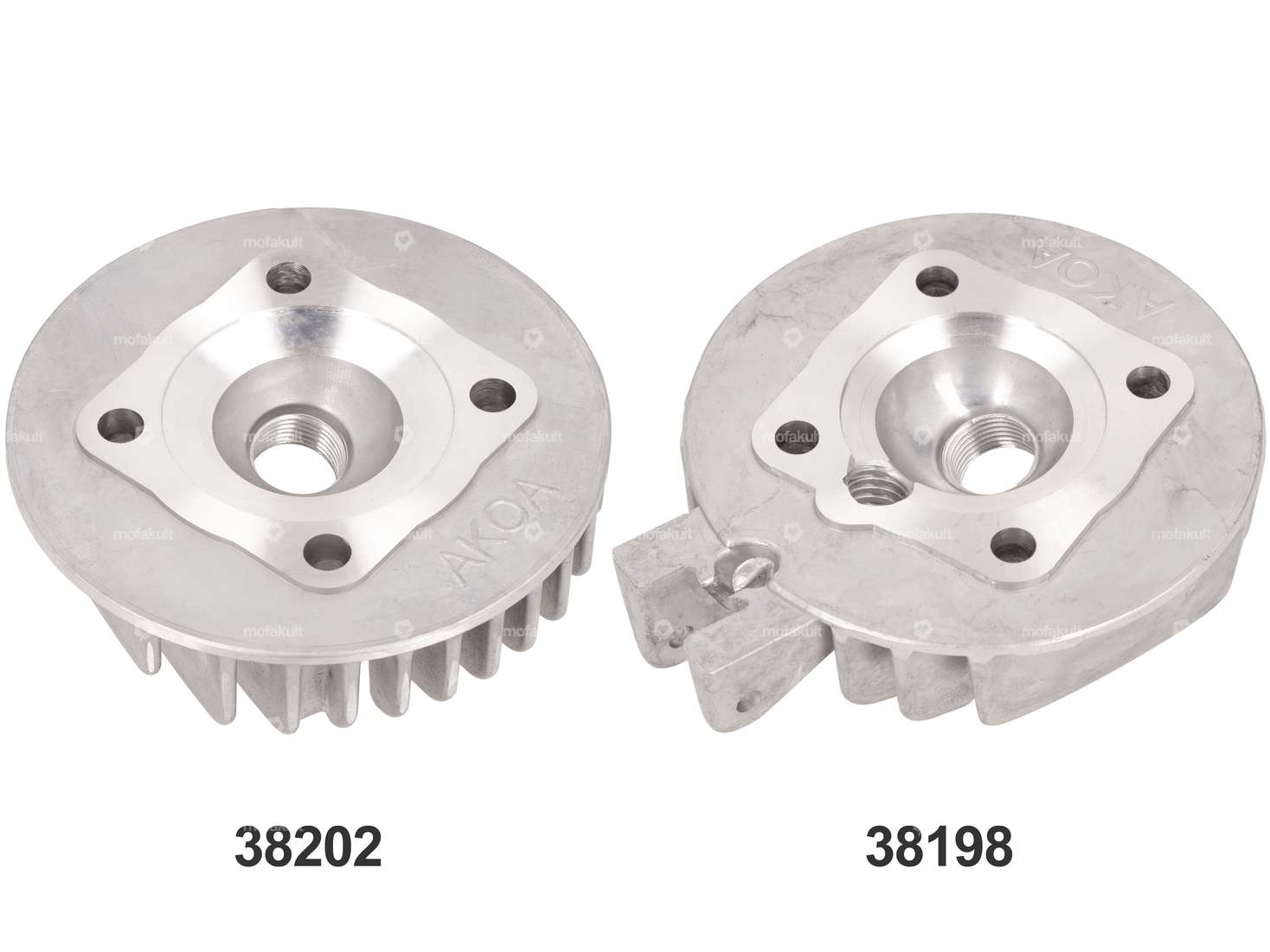

AKOA 38 mm cylinder head "Power-Edition" | Sachs 503 2AL, AAL, 2BL, ABL
