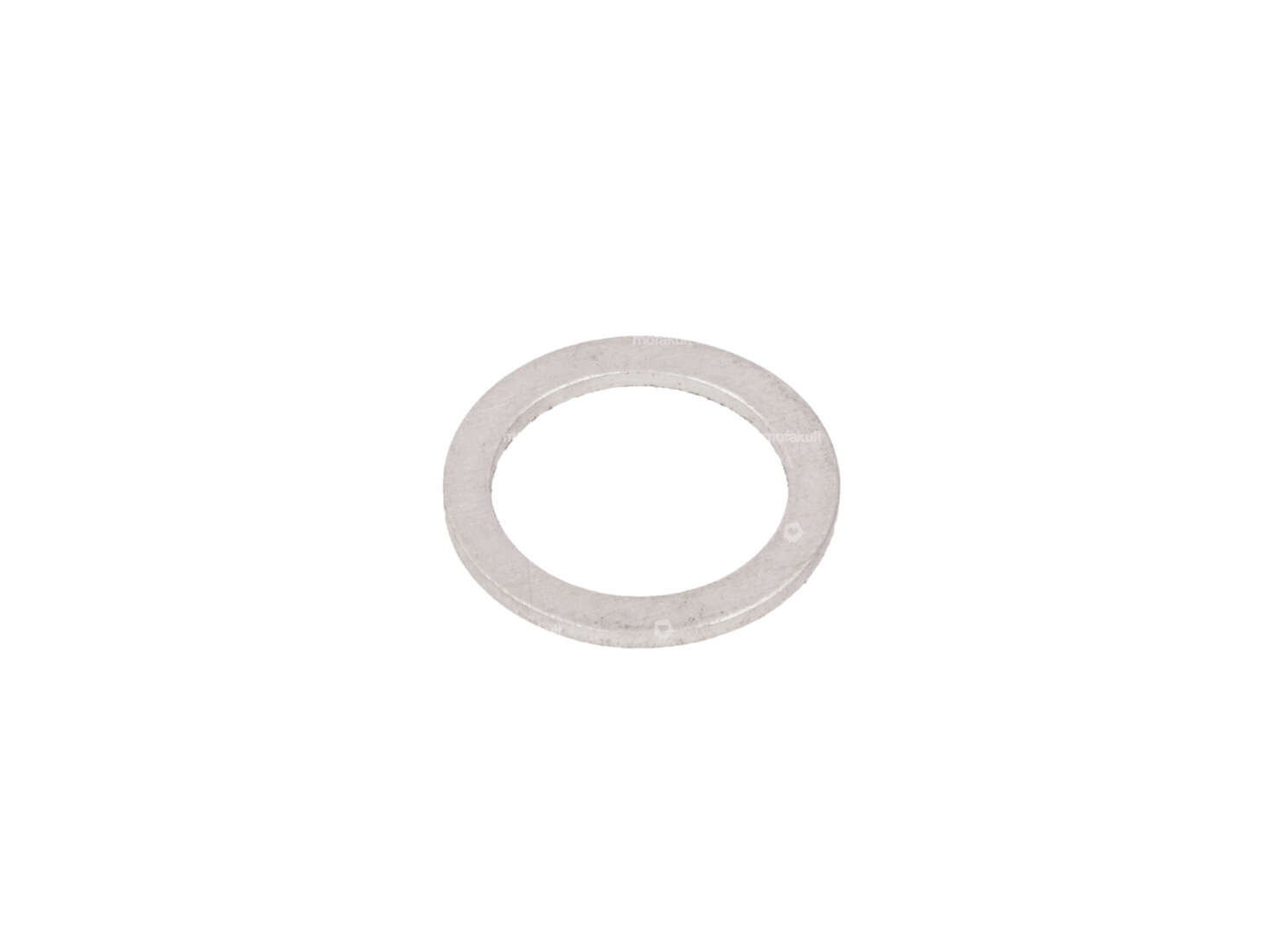

Washer M12 small 12.3/16/1 aluminum

Ripp-Lock washer M6 6.2/14/1.4 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Ø inside: 6.2 mm · Nominal diameter (thread): 6 mm · Ø outside: 14 mm · Thickness: 1.4 mm · Pony OEM number: A1542 · Alternative version of the Pony OEM number: A1644 · Sachs OEM no.: 0244 021 000 · Alternative version of the Sachs OEM number: 0245 023 002

Spring washer M6 (6.2x11.8x1.6) galvanized

Material: Spring steel · Surface: galvanized (blue) · Thickness: 1.8 mm · Ø inside: 6.4 mm · Nominal diameter (thread): 6 mm · Ø outside: 11.4 mm · Area of application: Standard · Thread size: M6

Nut M6 galvanized

Surface: galvanized (blue) · Height: 4.8 mm · Material: Steel · Nut type: Hexagon nut 0.8D · Drive: External hexagon · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm · Strength class: 8 · Area of application: Standard

Washer M6 6.1/10.4/1 aluminum

Material: Aluminum · Number of components: 1 pcs · Ø outside: 10.4 mm · Thickness: 1 mm · Ø inside: 6.1 mm · Thread size: M6 · Nominal diameter (thread): 6 mm

Washer M8 small 8.3/11.8/0.8 aluminum

Number of components: 1 pcs · Material: Aluminum · Ø outside: 11.8 mm · Ø inside: 8.3 mm · Thickness: 0.8 mm · Nominal diameter (thread): 8 mm

Washer M10 small 10.3/13.8/1 aluminum

Material: Aluminum · Number of components: 1 pcs · Thickness: 1 mm · Ø inside: 10.3 mm · Ø outside: 13.8 mm · Nominal diameter (thread): 10 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Color: silver · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521

Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Total length: 55 mm · Total length: 75 mm · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Number of components: 1 pcs · Area of application: (Dis)assembly tool · Strength class: 8.8

Clutch lever | Puch E50

Area of application: Standard

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Surface: Hardened · Material: Steel · Recording type: Interlocking · Number of teeth: 13 pcs · Total thickness: 4.6 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

GPO gasket set | Puch E50

Number of components: 7 pcs · Manufacturer: GPO · Ø outlet inside: 19.9 mm · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard · Hole spacing inlet: 32 - 38 mm

Nut M12x1 x 5 SW19 Wheel nut galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut 0.5D · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Height: 5.8 mm · Width across flats SW: 19 mm · Strength class: 8 · Pony OEM number: A4249 · Sachs OEM no.: 0242 124 000

Circlip Ø 6 mm external

Fuse type: Outside · Ø outside: 6 mm

swiing® revival spacer ring wheel axle Ø 12.3x19x6.6 mm

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 6.6 mm · Nominal diameter inside: 12 mm · Ø outside: 19 mm · Ø inside: 12.3 mm

swiing® revival spacer ring wheel axle 12.3x19x1.5 mm

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 1.5 mm · Nominal diameter inside: 12 mm · Ø outside: 19 mm · Ø inside: 12.3 mm
