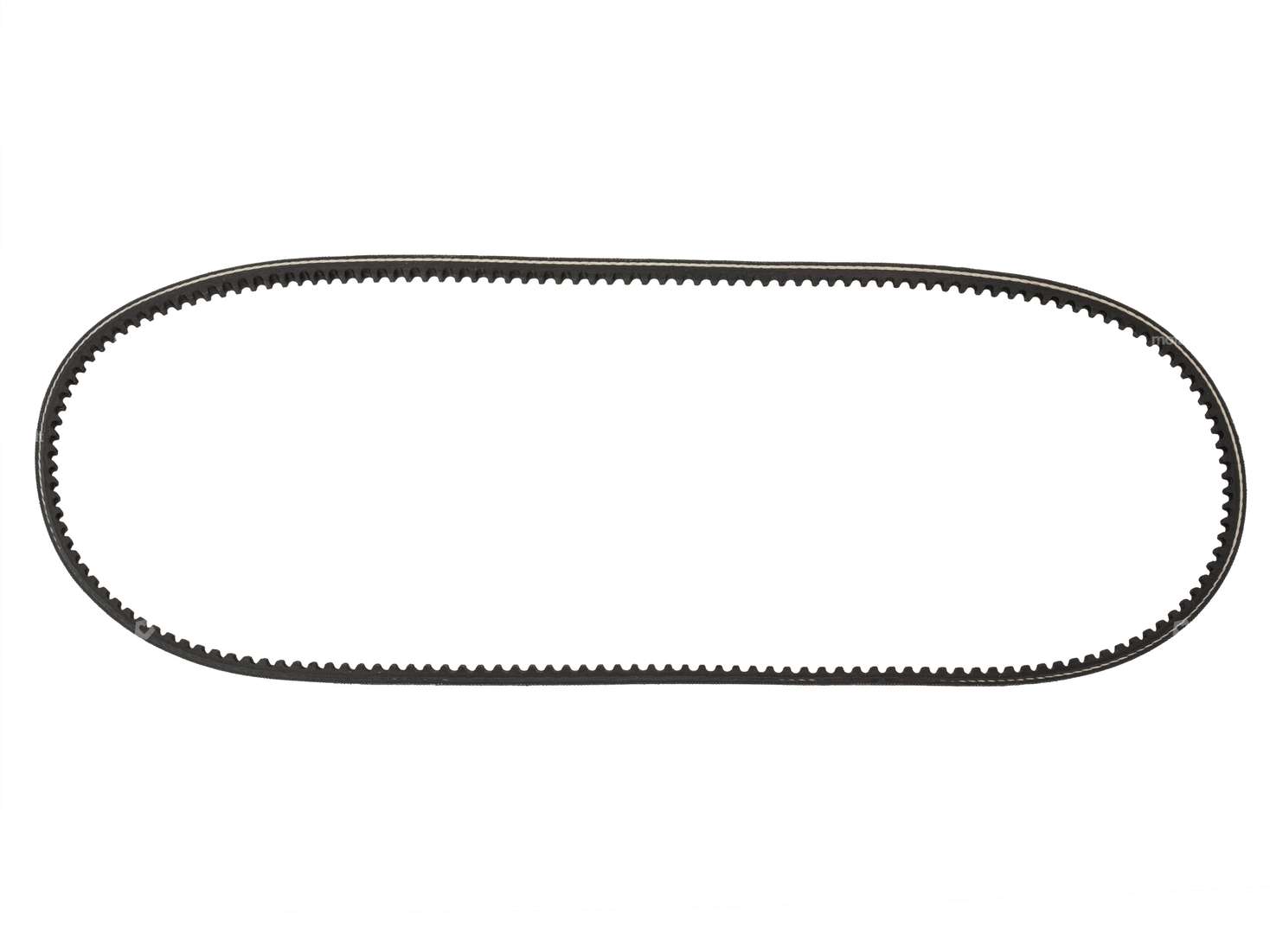

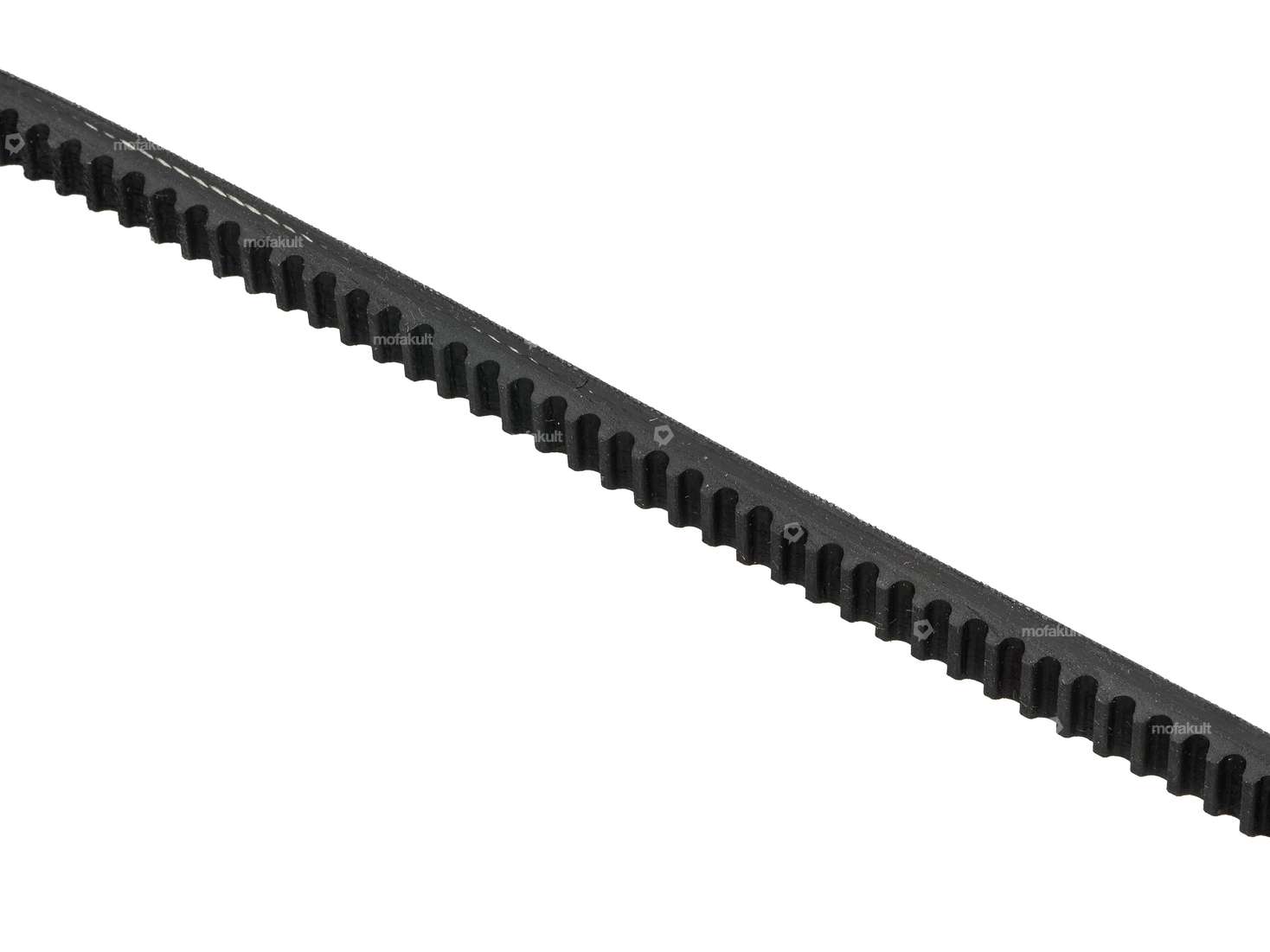

V-belt Vario 963 mm original | Piaggio Ciao

Malossi Multivar Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Gearbox type: Vario · Number of weights: 6 pcs · Weight Standard weights: 6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm

Pinasco Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Gearbox type: Vario · Number of weights: 6 pcs · Weight Standard weights: 6 g · Ø Weights: 16 mm · Length Weights: 13 mm

Polini Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Gearbox type: Vario · Number of weights: 6 pcs · Number of weights: 12 pcs · Weight Standard weights: 4.4 g · Weight Standard weights: 5.6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm

Olympia torque converter Vario Ø 100 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Weight: 1930 g · Material: Steel · Surface: burnished · Surface: galvanized (blue) · Gearbox type: Vario · Ø outside: 100 mm · Number of jaws: 3 pcs · Angle pulley: 17 ° · Number of springs: 3 pcs · Thickness: 74 mm · Hardness level Counter pressure spring: Standard (30 kg - steel-colored)

Malossi V-belt Vario 963 mm X-Belt 30° | Piaggio Ciao

Manufacturer: Malossi · Outer width: 13 mm · Gearbox type: Vario · Height: 6.4 mm · Rolling circumference: 963 mm · Belt profile: toothed / serrated

Malossi V-belt Vario 963 mm X-Belt 34° | Piaggio Ciao

Manufacturer: Malossi · Outer width: 12.7 mm · Gearbox type: Vario · Height: 6.4 mm · Rolling circumference: 963 mm · Belt profile: toothed / serrated

Pulley converter Ø 100 mm Vario CNC | Piaggio

Material: Steel · Ø Outer pulley: 100 mm · Surface: chrome-plated · Gearbox type: Vario

Malossi MHR grease Vario rollers 40 g

Manufacturer: Malossi · Contents: 40 g · Area of application: Chemistry · Area of application: Fat

Malossi clutch bell (torque converter) Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Weight: 535 g · Material: Steel · Gearbox type: Vario · Ø inside: 93 mm · Ø outside: 105 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 1650 mm · Area of application: Standard

Continental 2.00 - 2.50 x 16" tube

Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Wheel size: 16 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Valve type: TR6 car valve

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Mounting type: Tab for screwing · Ø outside: 18 mm · Height: 26 mm · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Total height: 31 mm · Area of application: Original · Area of application: Standard · Piaggio OEM number: 102939

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Color: black · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm

Side protectors Vario black | Piaggio Ciao

Manufacturer: Made in Italy · Material: Plastic · Color: black · Width: 70 mm · Height: 270 mm · Number of fixing points: 6 pcs · Total length: 760 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Width: 3 mm · Height: 4.9 mm · Total length: 12.5 mm

Nut M8 SW24 crankshaft / Variomat original | Piaggio Ciao, SI, Bravo, Boxer

Drive: External hexagon · Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: M8x1.25 (standard thread) · Height: 7 mm · Width across flats: 24 mm

swiing® revival locking plate nut Variomatic Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: blank · Ø inside: 8.15 mm · Ø outside: 33.5 mm · Number of lobes: 1 pcs · Area of application: Original · Area of application: Standard

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm · Material: Steel
