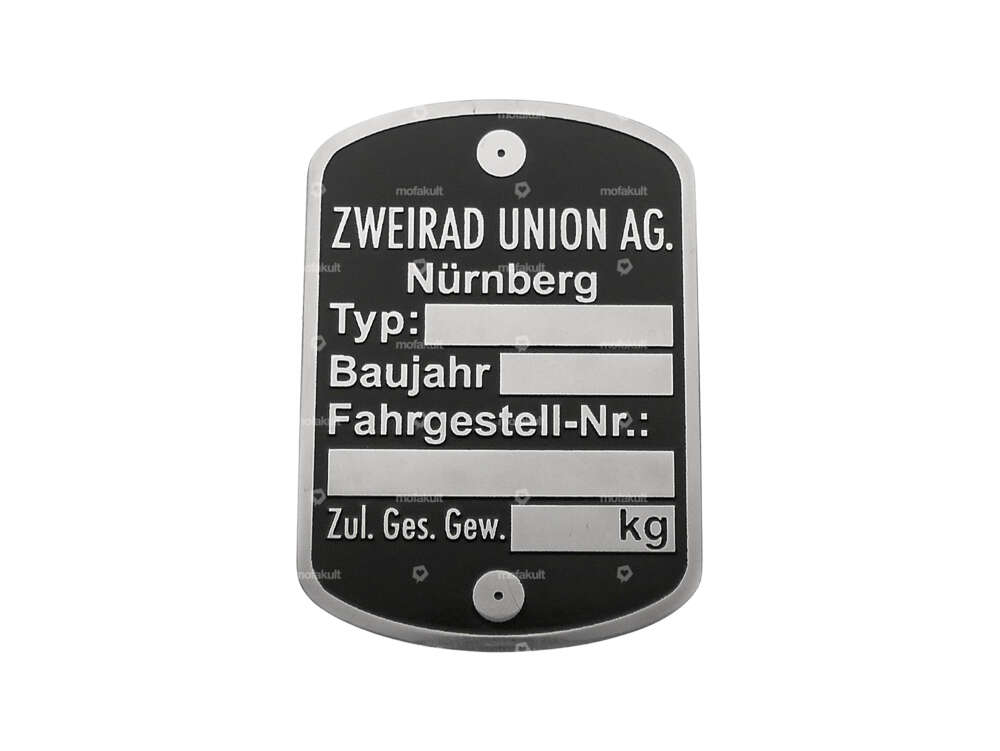

Type plate | Zweirad Union

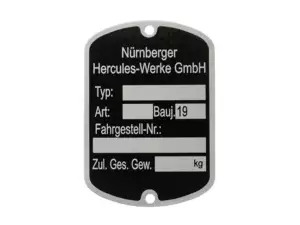

Nameplate small | Hercules

Manufacturer: Made in Germany · Color: black · Number of fixing points: 2 pcs · Ø mounting hole: 2.45 mm · Width: 35 mm · Height: 50 mm · Hercules OEM number: P09 504 947 00 01 000

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut

Chrome mirror

Surface: chrome-plated · Material: Steel · Color: Chrome · Thread type: M8x1.25 (standard thread) · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Mirror rod length: 230 mm · Total length: 285 mm · Thread size: M8 · Clamping diameter: 22 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Area of application: Standard · Number of components: 1 pcs

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Color: white · Material: Plastic · Total length: 30 mm · Ø inside: 23 mm · Ø outside: 27 mm · Puch OEM number: 349.1.30.126.1

Magura lever screw M5x18 mm

Manufacturer: Magura · Thread type: M5x0.8 (standard thread) · Thread length: 8.5 mm · Material: Steel · Surface: galvanized (blue) · Total length: 21.5 mm · Drive: External hexagon · Drive: Slot · Color: silver · Ø shaft: 5.9 mm · Ø External head: 8.8 mm · Shank length: 9 mm · Width across flats SW: 8 mm

Union pedals plastic standard

Manufacturer: Union · Material: Plastic · Material: Steel · Surface: rubberized · Thread type: FG14.3 (9/16" 20G) · Width: 77 mm · Color: black · Height: 29 mm · Total length: 129 mm · Drive: Hexagon socket · Drive: Outer edge · Width across flats SW: 15 mm · Reflectors: Yes

Bumm mirror round Inox

Manufacturer: Bumm · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Total length: 360 mm · Thread size: M8 · Thread type: M8x1.25 (standard thread) · Clamping diameter: 22 mm

Leonelli 6V voltage regulator (1A quality)

Material: Aluminum · Material: Plastic · Total length: 50 mm · Width: 27 mm · Height: 15 mm · Manufacturer: Leonelli · Mounting type: Screws · Tension: 6 V · Type of current: Alternating current (AC) · Performance: 50 W · Ø mounting hole: 6 mm

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Temperature resistance (min.): -30 - 100 °C · Material: NBR · Simmering type: B - With sheet metal outer casing / one sealing lip. · Width: 7 mm · Manufacturer: Sachs · Ø outside: 30 mm · Ø inside: 15 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

swiing® revival bulb 6V - 25/25W (BAX15d) 2-filament

Manufacturer: swiing® revival parts · Test mark: none · Bulb holder: BAX15d · Tension: 6 V · Performance: 25 W · Color: white · Total length: 51 mm · Ø base: 15 mm · Ø Lamp head: 28 mm · LED: No
