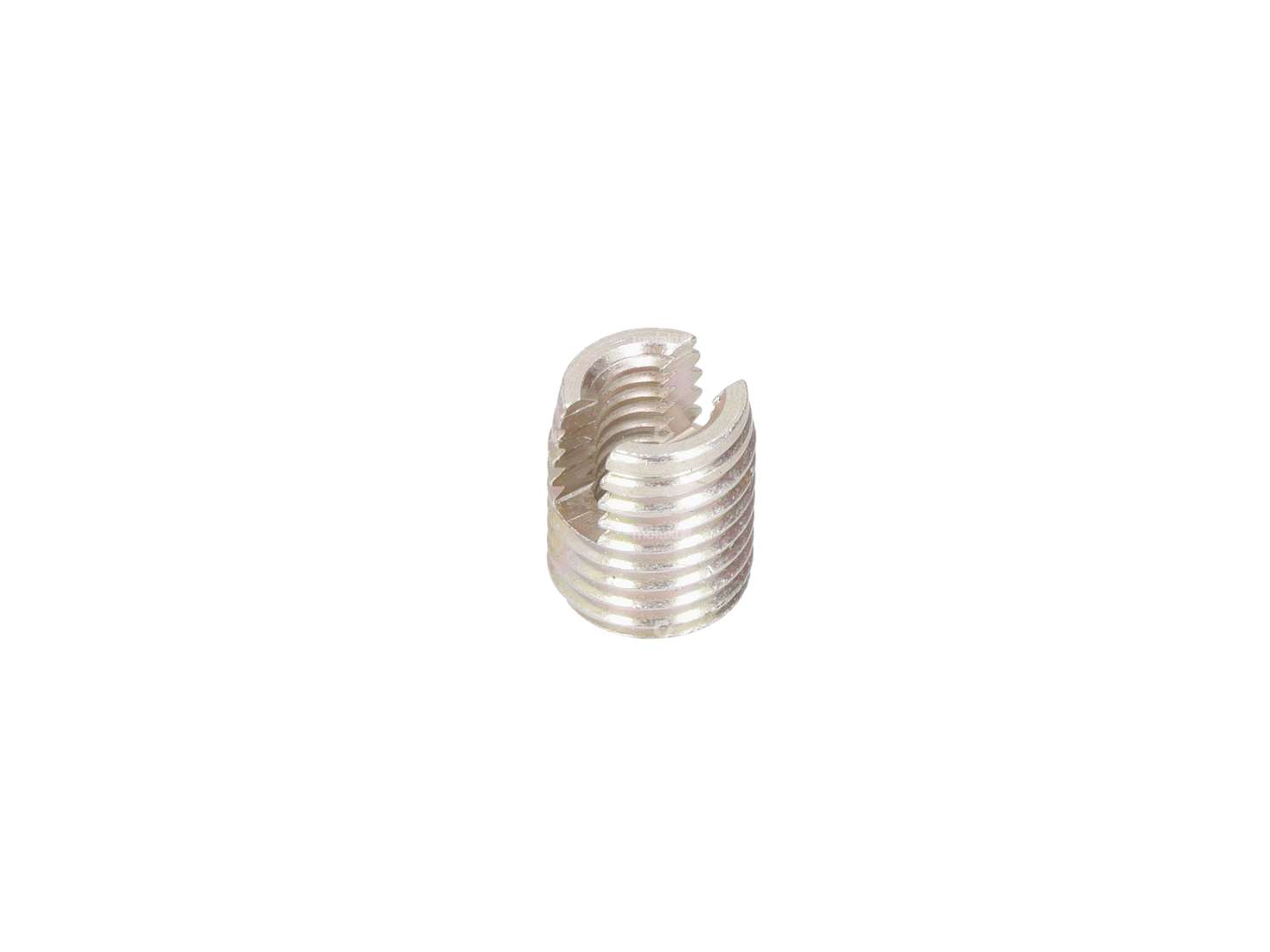

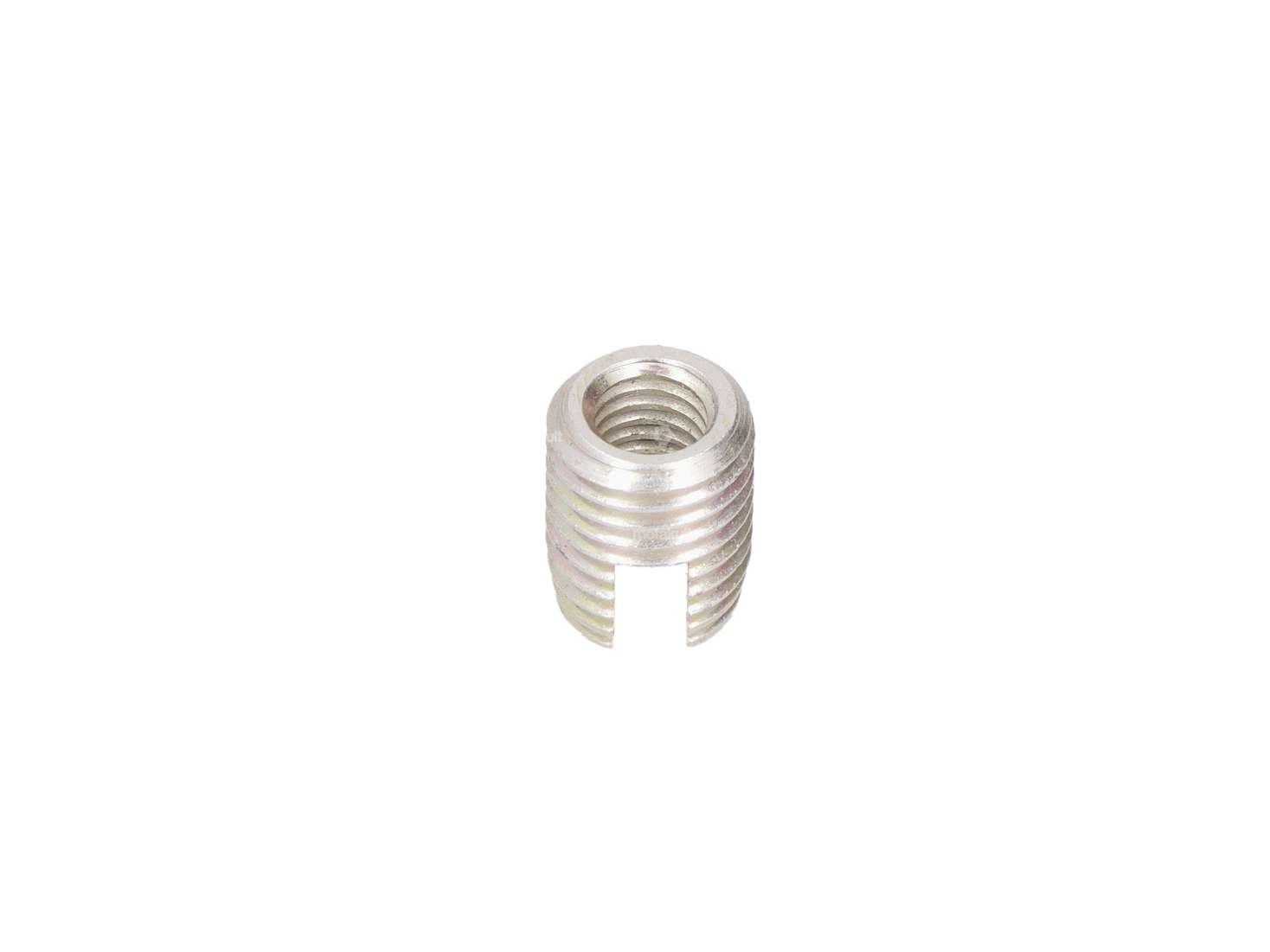

Self-tapping threaded insert for repairing damaged M5 threads.
The bushing works in aluminum.
The damaged thread must be drilled out to a diameter of 7 mm so that the threaded insert can be installed. As it is screwed into the aluminum, the external thread cuts a new, secure grip. Ideally, the bushing should also be secured with Loctite.
External thread: M8 x 1
Internal thread: M5
Total length: 10 mm
Center hole: Ø 7 mm
Price per piece.
You can find matching threadlocker and repair bushings in other diameters among the accessories.
| Total length | 10 mm |
| Ø bore | 7 mm |
| Internal thread | M5x0.8 (standard thread) |
| External thread | MF8x1 (fine pitch thread) |
