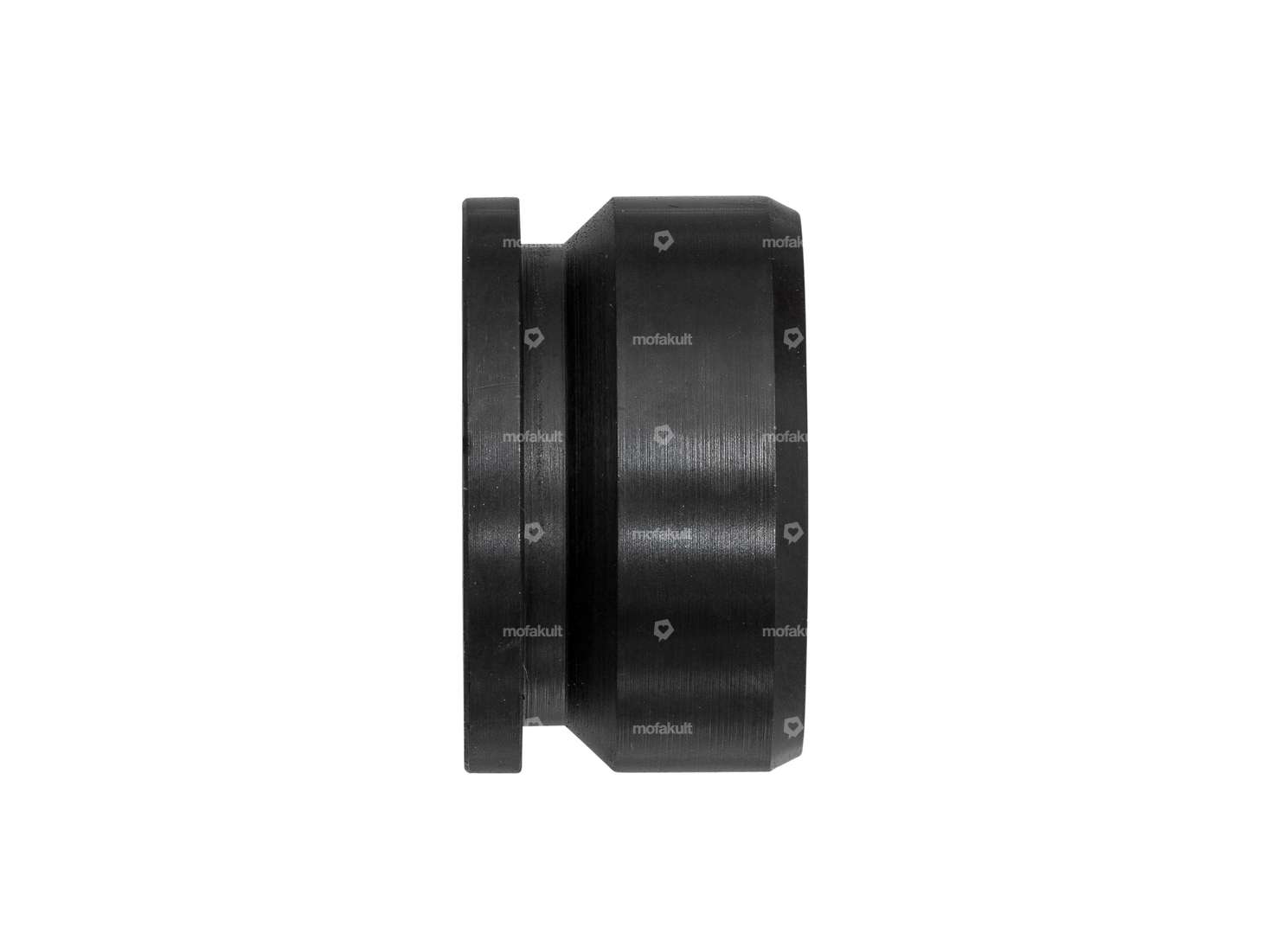

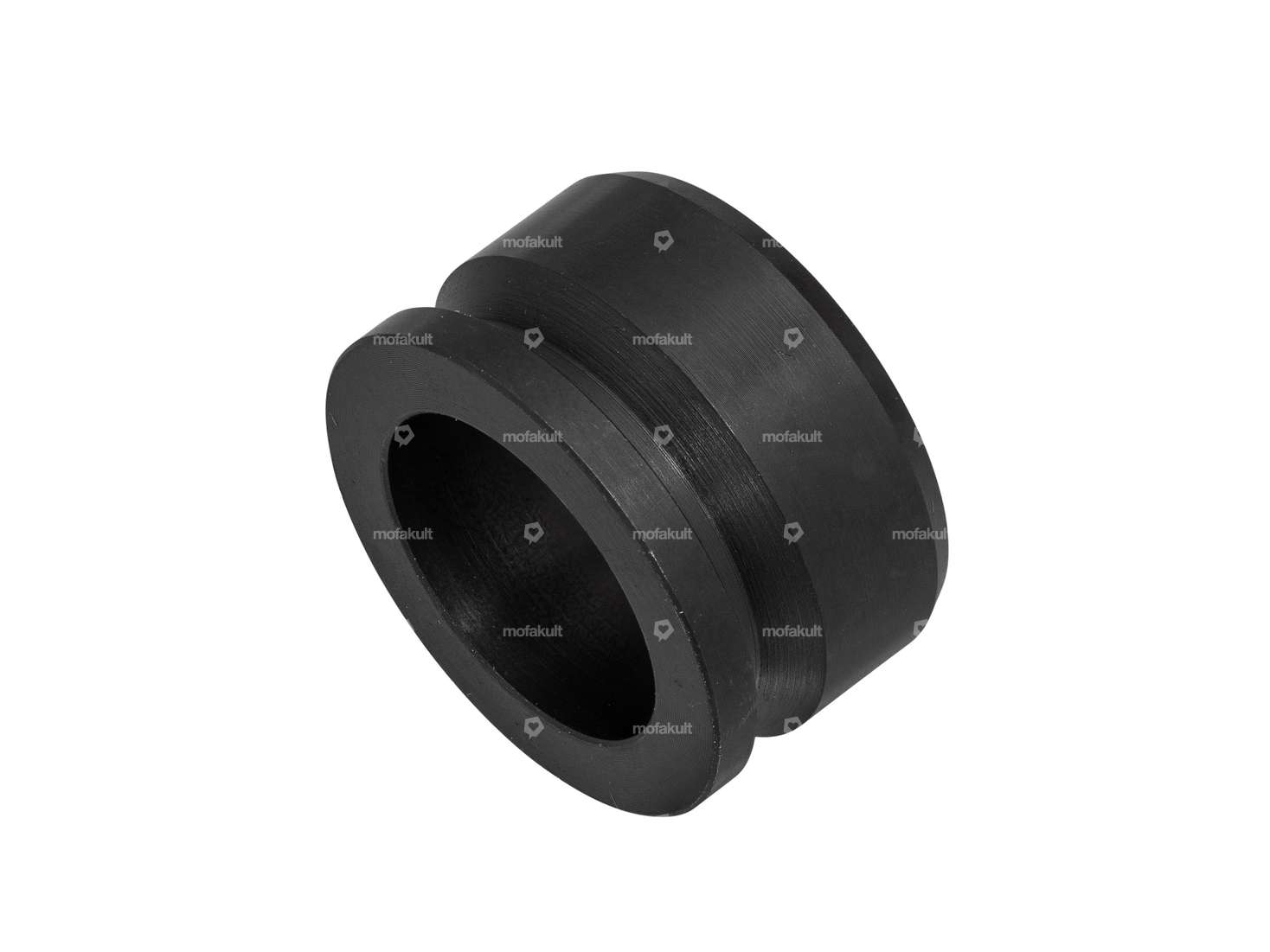

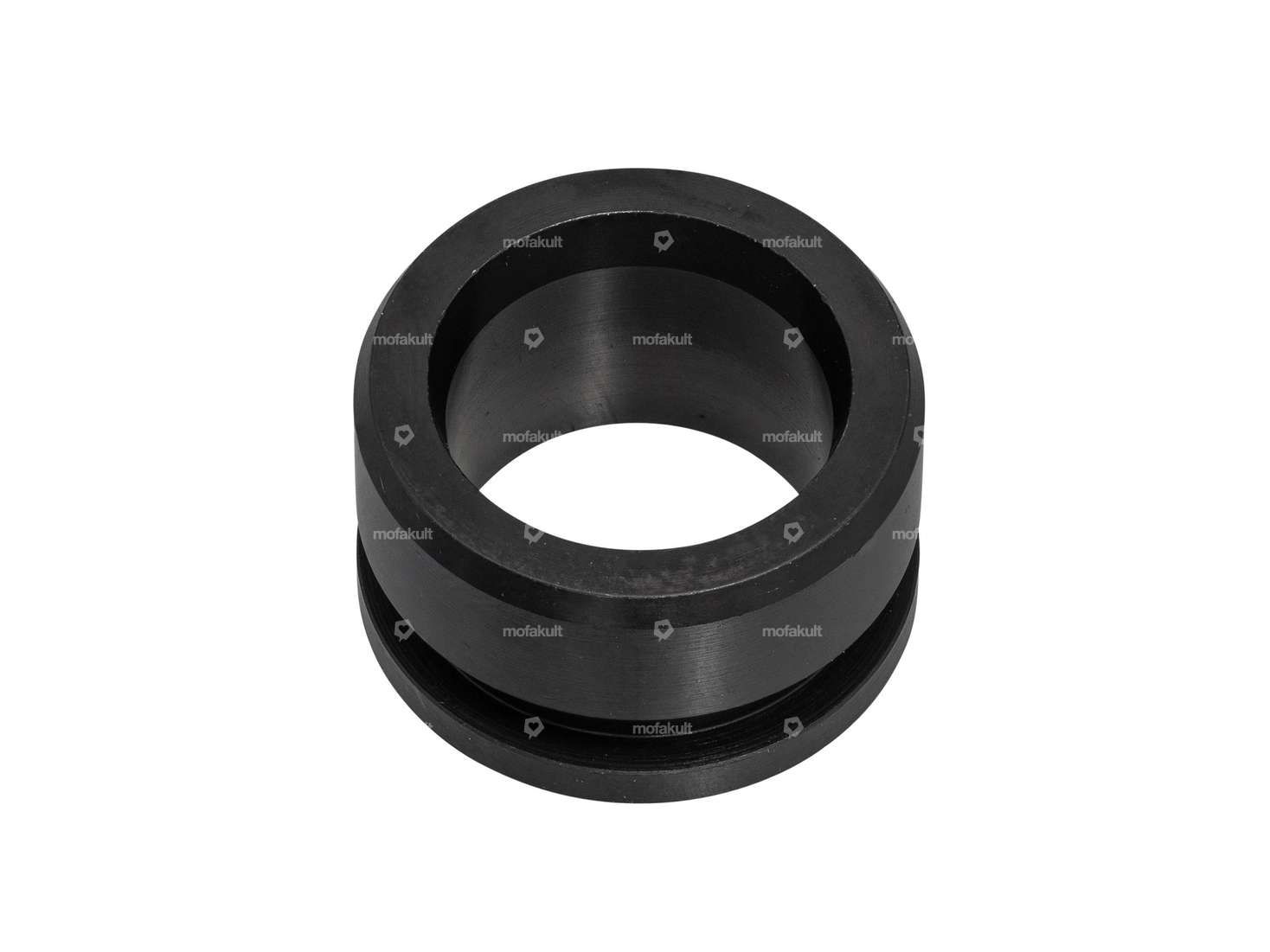

swiing® revival sleeve 25/17/14.6 mm | Puch ZA50

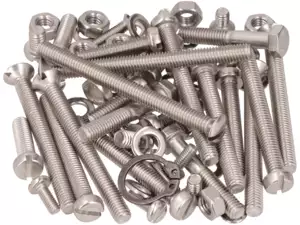

swiing® revival screw set Motor ZA50 Inox | Puch X30, Supermaxi

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

Repair instructions | Puch X30 2-speed automatic (ZA50)

Material: Paper · DIN format: A4 · Number of pages: 48 pcs · Language: German

swiing® revival engine revision set ZA50 | Puch Maxi S - 2A

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 20 pcs

swiing® ingenious special tool set engine ZA50 | Puch X30

Manufacturer: swiing® ingenious parts · Number of components: 10 pcs · Area of application: Special tool

swiing® revival gasket set ZA50 engine | Puch X30 NG - 2AH

Manufacturer: swiing® revival parts · Number of components: 9 pcs · Ø outlet inside: 22 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Area of application: Standard

swiing® revival gasket set ZA50 engine | Puch Maxi S LG2

Manufacturer: swiing® revival parts · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 38 - 42 mm · Number of components: 9 pcs · Area of application: Standard · Hole pattern [mm]: 44 x 44

swiing® revival engine revision set ZA50 engine | Puch Maxi S LG2

Manufacturer: swiing® revival parts · Number of components: 19 pcs · Area of application: Standard

swiing® revival engine revision set ZA50 engine | Puch X30 NG - 2AH

Manufacturer: swiing® revival parts · Number of components: 21 pcs · Area of application: Standard

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Area of application: Standard · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm

swiing® revival fitting sleeve engine housing | Puch Z50, ZA50

Manufacturer: swiing® revival parts · Material: Steel · Total length: 20 mm · Ø outside: 10 mm · Surface: galvanized (blue)

Oil seal NBR 25/35/7 A Transmission shaft | Puch ZA50

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Material: NBR · Ø inside: 25 mm · Width: 7 mm · Ø outside: 35 mm · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C

Koyo 12.7/17.46/15.8 pinion shaft | Puch ZA50

Bearing type: Needle box · Ø inside: 12.7 mm · Ø outside: 17.5 mm · Width: 15.7 mm · Manufacturer: Koyo · Dimension needle bearing: 12.7/17.5 x 15.7

swiing® revival screw set Motor ZA50 Inox | Puch X30, Supermaxi

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

NTN 6203 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Material: Steel · Surface: blank · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm · Ball bearing closed: No

swiing® revival engine gasket | Puch ZA50 engine

Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.4 mm · Number of components: 1 pcs · Number of fixing points: 11 pcs · Puch OEM number: 321.1.10.631.1

swiing® revival bearing & shaft seal set | Puch ZA50

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 11 pcs

swiing® revival thrust washer 17/24/1 clutch | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Ø inside: 17 mm · Ø outside: 24 mm · Surface: hardened & ground · Thickness: 1 mm

swiing® revival shim set crankshaft | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled
