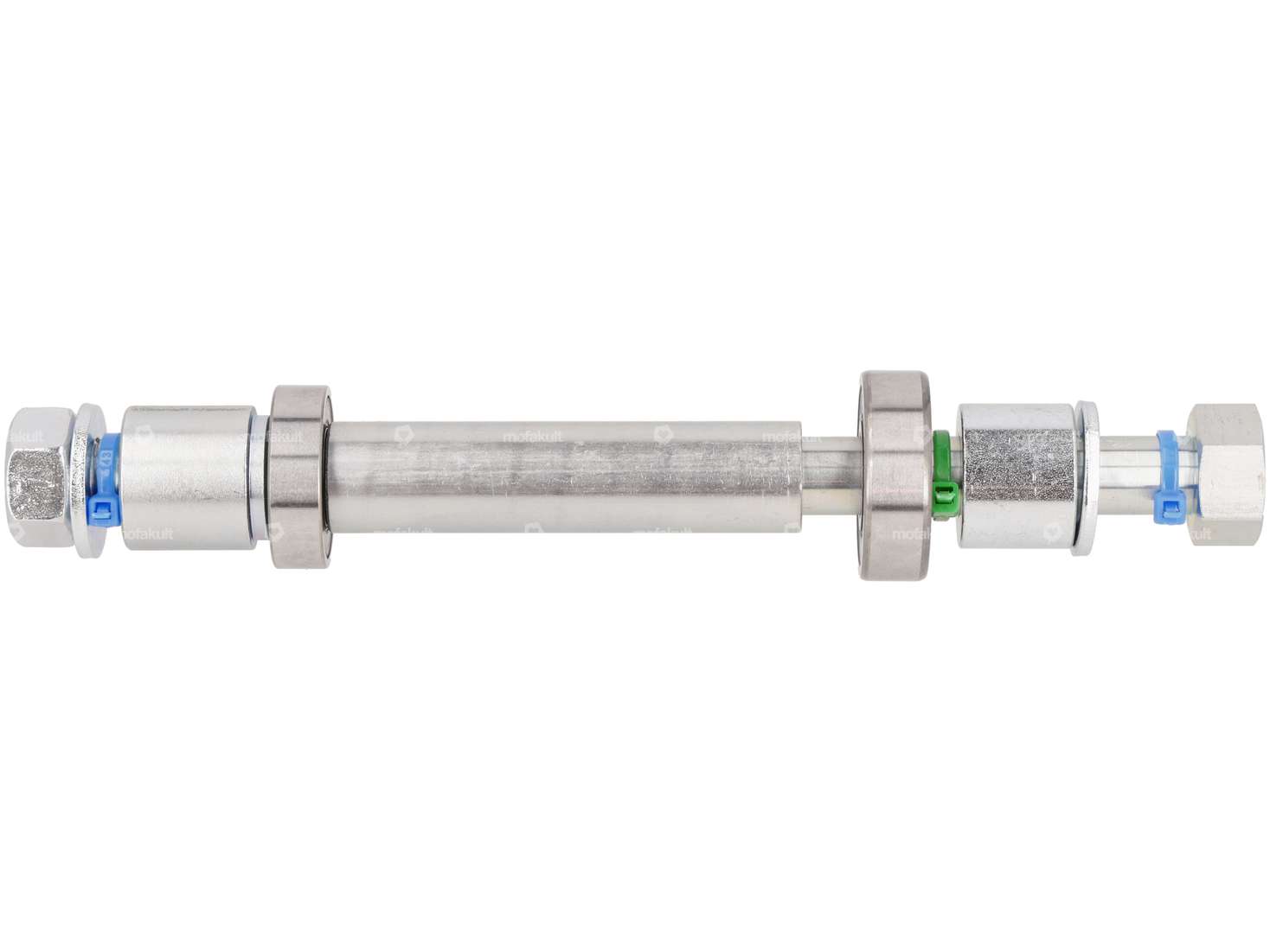

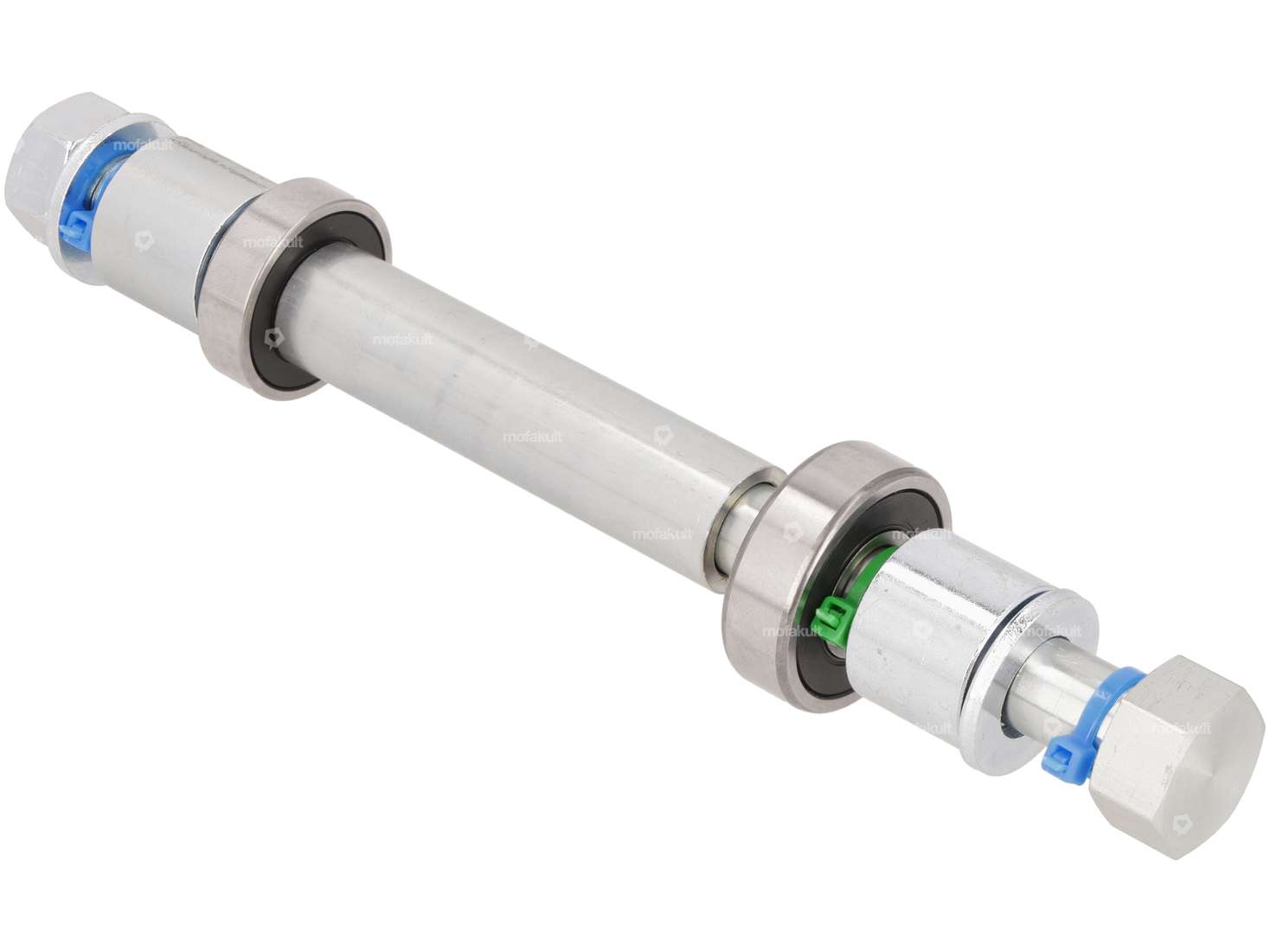

swiing® revival rear wheel axle set | Pony Cross 521

Washer M12 small galvanized

Surface: galvanized (blue) · Material: Steel · Ø outside: 24 mm · Thread size: M12 · Thickness: 2.5 mm · Nominal diameter (thread): 12 mm · Ø inside: 13 mm

Brake anchor plate rear wheel Grimeca | Pony Cross (P8359)

Manufacturer: Pony · Ø External brake pads: 90 mm

Bearing cup rear wheel Grimeca | Pony GTX 521, Cross 521 / Cilo 521

Manufacturer: Pony · Material: Steel · Ø outside: 30 mm · Height: 13.05 mm · Ø inside: 27.85 mm

GPO wheel clamp 12 mm cranked reinforced (per piece)

Thread type: M6x1 (standard thread) · Manufacturer: GPO · Total length: 75 mm · Material: Steel · Surface: galvanized (blue) · Ø inside: 13.1 mm · Cranking (offset): 6 mm · Ø outside: 23.7 mm · Thread length: 35 mm

swiing® revival spacer sleeve 12.2/22/17 rear wheel axle | Pony Cross Beta 521 (P8380)

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Ø outside: 22 mm · Nominal diameter inside: 12 mm · Total length: 17 mm · Ø inside: 12.2 mm

swiing® revival spacer sleeve rear wheel axle 12.2/22(19)/22 mm | Pony Cross Beta 521 (P8379)

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Ø outside: 22 mm · Nominal diameter inside: 12 mm · Ø Bundle: 19 mm · Total length: 22 mm · Ø inside: 12.2 mm

swiing® revival spacer sleeve 12.2/17/71.6 rear wheel axle | Pony Cross Beta 521 (P8381)

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Ø outside: 17 mm · Nominal diameter inside: 12 mm · Total length: 71.6 mm · Ø inside: 12.2 mm

Wheel axle M12x1.25 x 190 rear wheel | Pony Cross Beta 521 (P8358)

Surface: galvanized (blue) · Manufacturer: Pony · Material: Steel · Total length: 188 mm · Ø shaft: 11.95 mm · Thread type: MF12x1.25 (fine pitch thread) · Shank length: 160 mm · Width across flats SW: 19 mm · Thread length: 18 mm

Nut M12x1.25 fine thread galvanized

Surface: galvanized (blue) · Strength class: 8 · Material: Steel · Nut type: Hexagon nut · Height: 10 mm · Thread type: MF12x1.25 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 19 mm

SKF 6001 2RSH Ball bearing 12/28/8

Bearing cage: "-" Sheet steel cage ball-guided · Width: 8 mm · Stock number: 6001 · Inner ring width: 8 mm · Manufacturer: SKF · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Ø inside: 12 mm · Ø outside: 28 mm · Ball bearing closed: Yes

SKF 6201 2RSH ball bearing 12/32/10

Bearing cage: "-" Sheet steel cage ball-guided · Width: 10 mm · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: SKF · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Ø inside: 12 mm · Ø outside: 32 mm · Ball bearing closed: Yes

swiing® revival front wheel axle set | Pony Cross 521

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Material: Steel · Total length: 154 mm · Ø shaft: 10.25 mm · Thread type: MF11x1 (fine pitch thread) · Shank length: 27 mm · Ball bearing closed: No · Ø ball [inch] / [mm]: 1/4" (6.35 mm) · Thread length: 63 mm

KMC drive chain 415H (reinforced) 128L

Chain type: 415H · Chain pitch: 1/2" x 3/16" · Manufacturer: KMC · Material: Steel · Color: gray · Surface: blank / oiled · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

Black bench seat

Width: 215 mm · Height: 80 mm · Height: 115 mm · Manufacturer: Made in Portugal · Total length: 300 mm · Ø Saddle tube holder: 22 mm · Material: Imitation leather · Color: black · Spring-loaded: No · Lettering: No · Number of fixing points: 1 pcs

Clutch cable / brake cable Ø 1.5 mm x 225 cm (pear-shaped nipple)

Ø Stranded wire: 1.5 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 2250 mm · Piaggio OEM number: 270460

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Thread type: MF10x1 (fine pitch thread) · Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: below · Mounting type: screw in (thread) · Spare tube shape: straight · Reserve level: 65 mm

ESJOT sprocket 42 teeth (4/5/6 hole) Ø 98 mm cranked black

Chain type: 415H · Chain pitch: 1/2" x 3/16" · Manufacturer: ESJOT · Thickness: 4.3 mm · Material: Steel · Color: black · Surface: powder-coated · Number of teeth: 42 pcs · Ø mounting hole: 6.5 mm · Ø inside: 98 mm · Cranking (offset): 12 mm · Ø bolt circle: 115 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs

ESJOT freewheel 20 teeth (1A quality) | Pony Cross 521

Chain pitch: 1/2" x 1/8" · Manufacturer: ESJOT · Material: Steel · Surface: Hardened · Color: silver · Thread type: FG34.8 (1.37" 24G) · Number of teeth: 20 pcs

swiing® ingenious bearing conversion kit front wheel | Pony GTX 521, Cross 521

Surface: anodized · Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 11.25 mm · Ball bearing closed: Yes

swiing® ingenious wheel axle for bearing conversion kit front wheel 16" | Pony Cross 521

Surface: galvanized (blue) · Manufacturer: swiing® ingenious parts · Material: Chrome steel (known as Nirosta®) · Material: Steel · Total length: 154 mm · Thread type: MF11x1 (fine pitch thread)

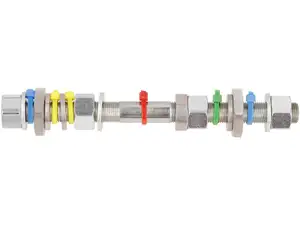

swiing® ingenious wheel axle with bearing conversion kit front wheel 16" | Pony Cross 521

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Thread type: MF11x1 (fine pitch thread) · Total length: 154 mm · Ball bearing closed: Yes
