logo_swiing revival parts

For: Cilo

17839

swiing® revival piston 38 mm | Cilo 502

EUR 76.70

Incl. 21% VAT.

Product description

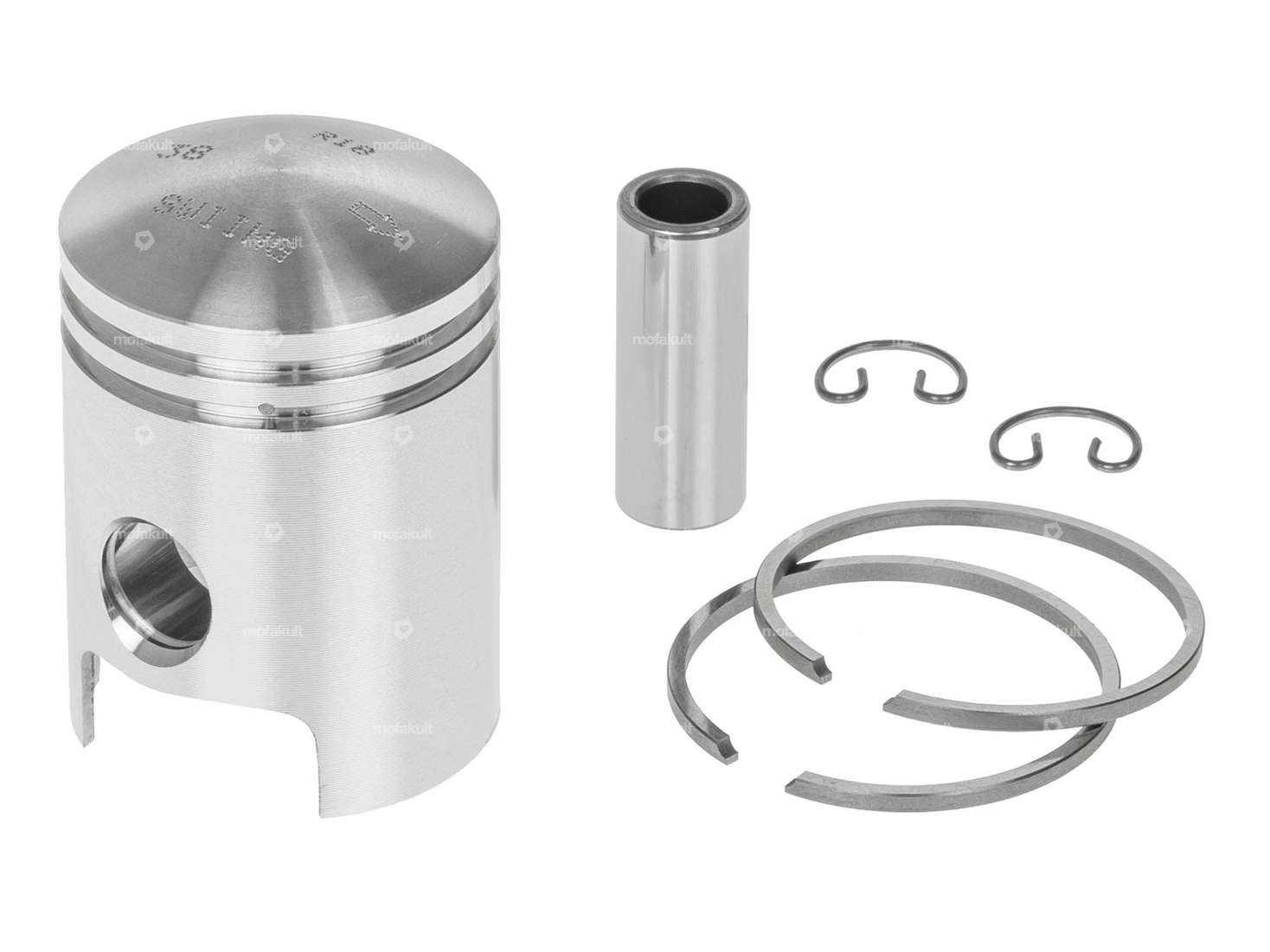

38 mm piston with 2 pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for the old Cilo 502 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.

Nostalgic product for the highest demands of the quality brand swiing®.

Nominal diameter38 mm
Manufacturerswiing® revival parts
Ø outside piston (A)37.94 mm
Compression height (C)27.9 mm
Curvature (D)5.1 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Piston weight78 g
Cilo

502 / 502t
