swiing® revival bottom bracket bushing nylon | Zündapp Belmondo

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

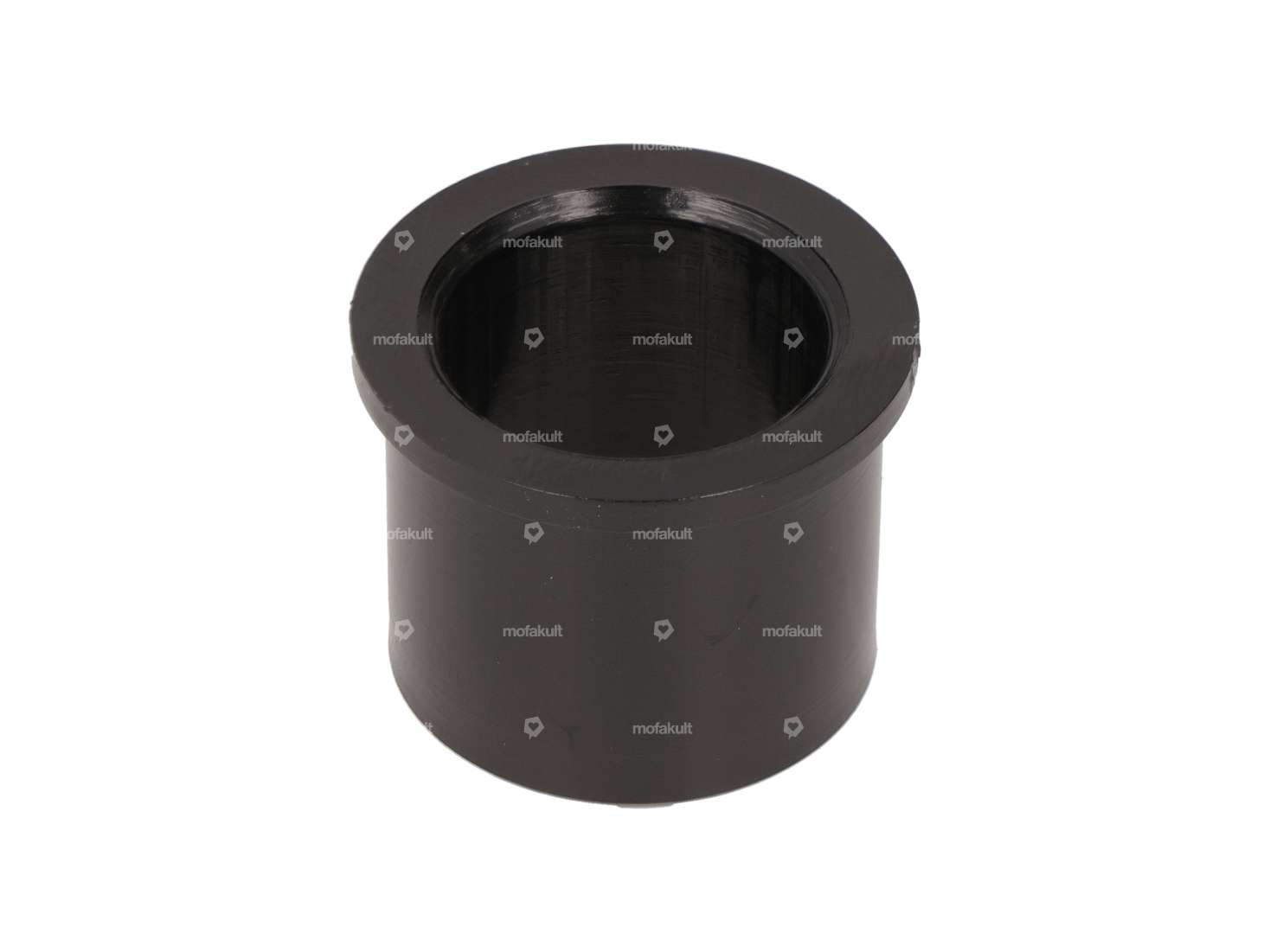

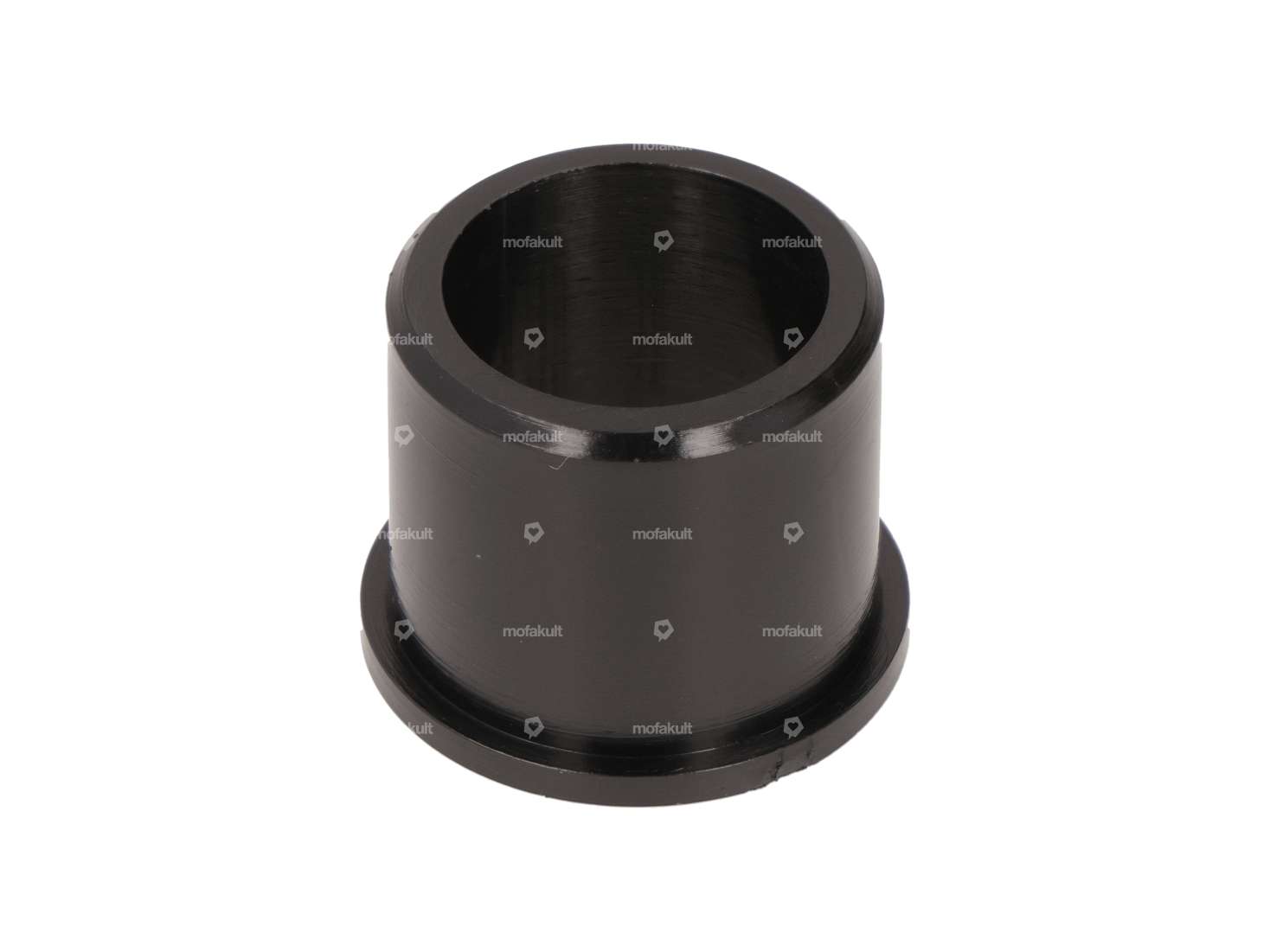

swiing® revival bottom bracket bushing Ø 16 / 21 mm nylon

Bearing type: Plain bearing · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Total length: 19 mm · Ø inside: 16 mm · Ø outside: 21 mm · Ø outside: 24 mm

swiing® revival Pedal Crank Set, Chrome | Puch

Manufacturer: swiing® revival parts · Wide intake: 28 mm · Material: Steel · Color: Chrome · Crank length (center-center): 156 mm · Total length: 180 mm · Surface: chrome-plated · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm · Thread type: FG14.3 (9/16" 20G)

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Thread type: MF10x1 (fine pitch thread) · Material lever: Metal · Mounting type: screw in (thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: below · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 65 mm

swiing® revival pedal axle with chrome rim | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 15.9 mm · Wavelength from wreath: 50 mm · Wavelength from wreath: 170 mm · Ø Outer sprocket: 121 mm · Total length: 225 mm

swiing® revival Ø 9.5 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Color: silver · Total length: 43 mm · Surface: galvanized (blue) · Angle crank wedge: 4.5° · Ø outside: 9.5 mm · Thread type: M7x1 (standard thread)

swiing® ingenious pinion shaft reinforced | Zündapp Belmondo, Bergsteiger / Alpa

Manufacturer: swiing® ingenious parts · Material: Copper · Material: Steel · Surface: blank · Surface: coated · Thread type: MF12x1 (fine pitch thread) · Recording type: Ø15 x SW12 · Ø inside: 12 mm · Ø outside: 22 mm · Ø outside: 23.8 mm · Total length: 82.6 mm

swiing® revival pinion attachment M12x1 swiing pinion shaft | Zündapp (Type 247)

Manufacturer: swiing® revival parts · Nut type: Hexagon nut · Thread type: MF12x1 (fine pitch thread) · Nominal diameter (thread): 12 mm · Drive: External hexagon · Width across flats: 19 mm

swiing® revival rear mudguard strut chrome | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Nuts & bolts · Number of fixing points: 3 pcs · Distance mudguard - center hole: 318 mm · Ø mounting hole: 6.5 mm · Total length: 345 mm

Workshop card Premium Partner

Material: Paper · Color: white · Height: 280 mm · Width: 100 mm
