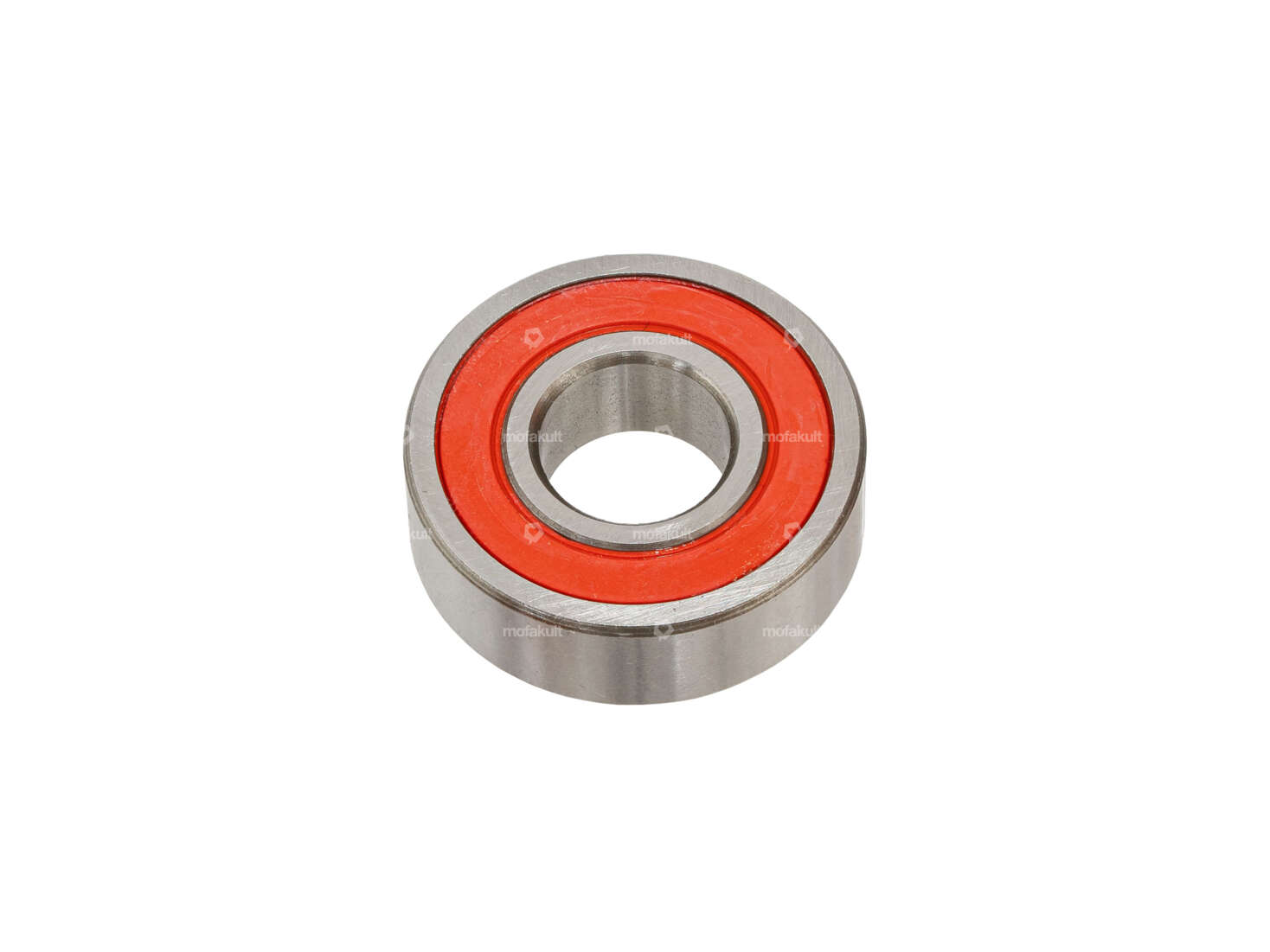

Special wheel bearings (innovation bearings) suitable for the original front cast and spoke rims, as well as rear spoke and cast rims with 29 mm wheel bearing seat of Puch mopeds & mopeds.
The ball bearings are fitted with a dust cover on both sides.
They replace the originally installed, individual bearing balls, which are very difficult to install during each revision.
Ø inner: 12 mm
Ø outer: 29.02 mm
Width: 9 mm
&br />Revised version of the previously offered ball bearings with an outer diameter of 29.02 mm, which ensures a better hold in the bearing seat of the wheel hub.
Only available exclusively from us.
You can find the complete wheel axle in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
| Bearing cage | "-" Sheet steel cage ball-guided |
| Inner ring width | 9 mm |
| Manufacturer | swiing® ingenious parts |
| Dust protection type | 2RS - NBR contact seal on both sides |
| Bearing clearance | CN (standard) |
| Material | Steel, Plastic |
| Surface | blank |
| Bearing type | Deep groove ball bearing |
| Width | 9 mm |
| Ø inside | 12 mm |
| Ø outside | 29.02 mm |
| Ball bearing closed | Yes |
| Universal | |
| Puch |
