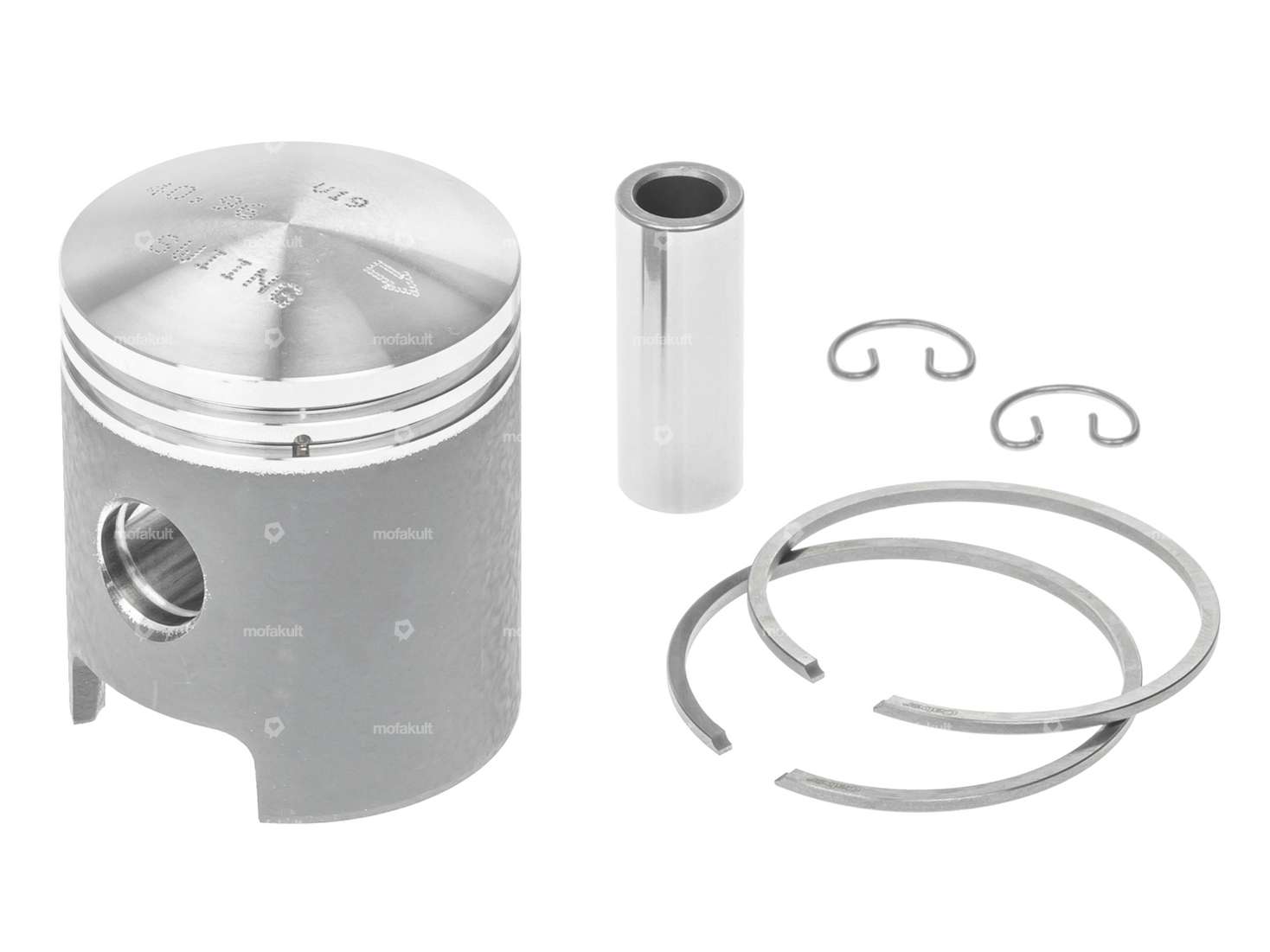

swiing® ingenious piston 41 mm (10 mm KoBo) "Racing" | Puch X30 Velux fan-cooled

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

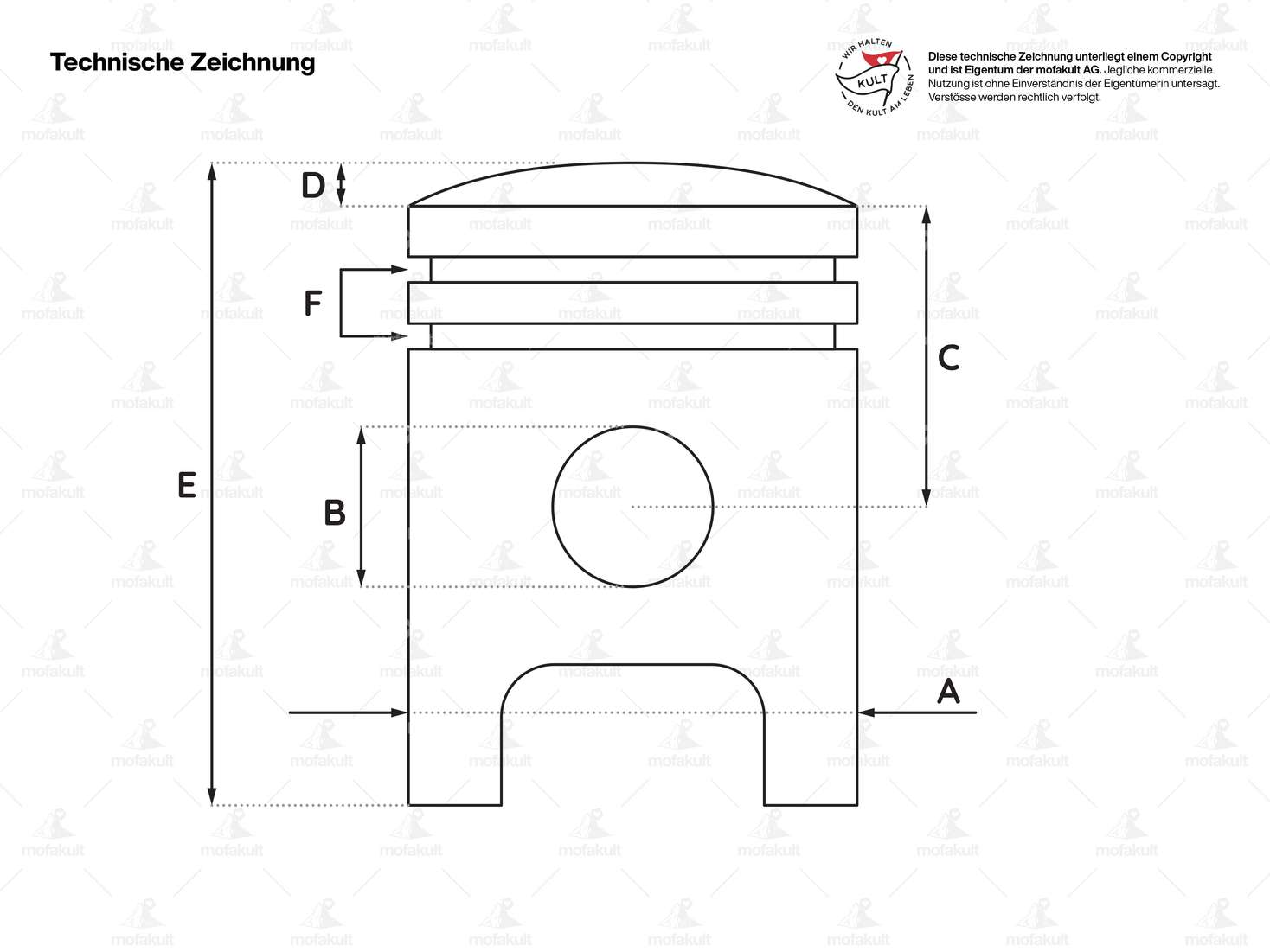

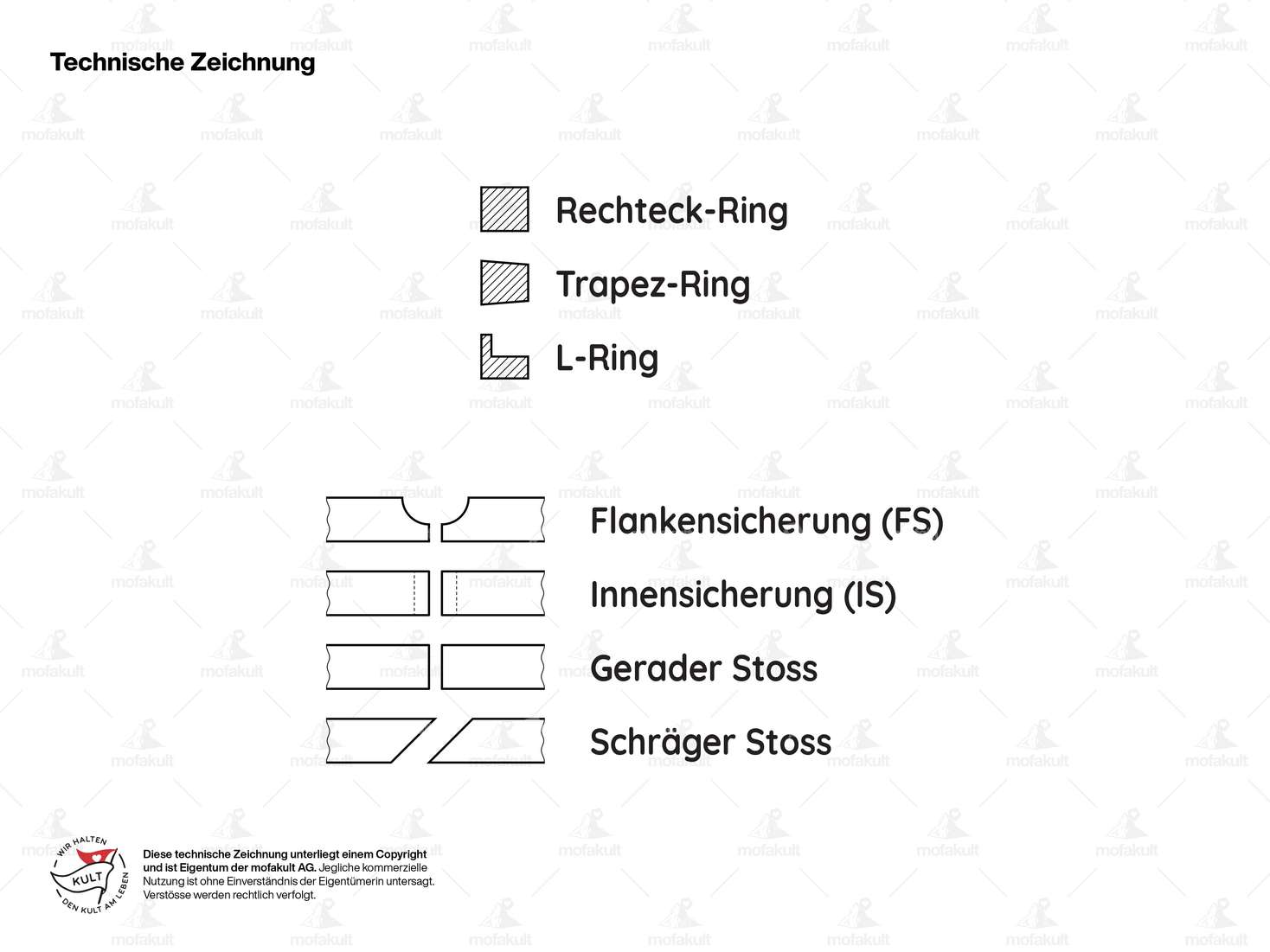

Nominal diameter: 41 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston weight: 85 g

Piston 41 mm (10 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 23.25 mm · Curvature (D): 3.65 mm · Total piston height (E): 49.35 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Piston weight: 85 g

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Piston rings 41 mm cylinder fan-cooled (pair) | Puch Velux, NG-2AH

Nominal diameter: 41 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Manufacturer: GPO · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

swiing® revival cylinder base gasket 40/41 mm cyl. fan-cooled | Velux X30 NG-2AH

Manufacturer: swiing® revival parts · Ø cylinder: 40 - 41 mm · Place of use: Cylinder base

GPO lifting plate 1 - 4 mm tuning | Puch X30 Velux, X30 NG-2AH

Manufacturer: GPO · Material: Aluminum · Ø cylinder: 40 - 41 mm · Thickness: 1 mm · Thickness: 1.5 mm · Thickness: 2 mm · Thickness: 2.5 mm · Thickness: 3 mm · Thickness: 4 mm · Place of use: Cylinder base

swiing® ingenious piston 41 mm (12 mm KoBo) "Racing" | Puch X30 Velux fan-cooled

Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Ø outside piston (A): 40.95 mm · Compression height (C): 22.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Surface: molybdenum-coated · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 94 g

Meteor piston ring 41 x 1.5 mm (FS)

Nominal diameter: 41 mm · Manufacturer: Meteor · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.7 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Strength class: 10.9 · Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch

Continental 2.00 - 2.50 x 17" tube

Valve type: TR6 car valve · Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Wheel size [inch]: 17 " · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Manufacturer: GPO · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

swiing® revival bearing & shaft seals | Puch Z50

Manufacturer: NTN · Manufacturer: SKF · Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Number of components: 6 pcs · Area of application: Standard

swiing® ingenious centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Material: Aluminum · Nominal diameter inside: 7 mm · Ø inside: 7.1 mm · Ø outside: 8 mm · Total length: 17 mm

GPO 41 mm cylinder kit fan-cooled 10 mm KoBo | Puch X30 Velux, N-2AH

Manufacturer: GPO · Manufacturer: Meteor Racing · Material: Gray cast iron · Surface: sandblasted · Nominal diameter: 41 mm · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Hole spacing inlet: 32 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Camouflaged: No
