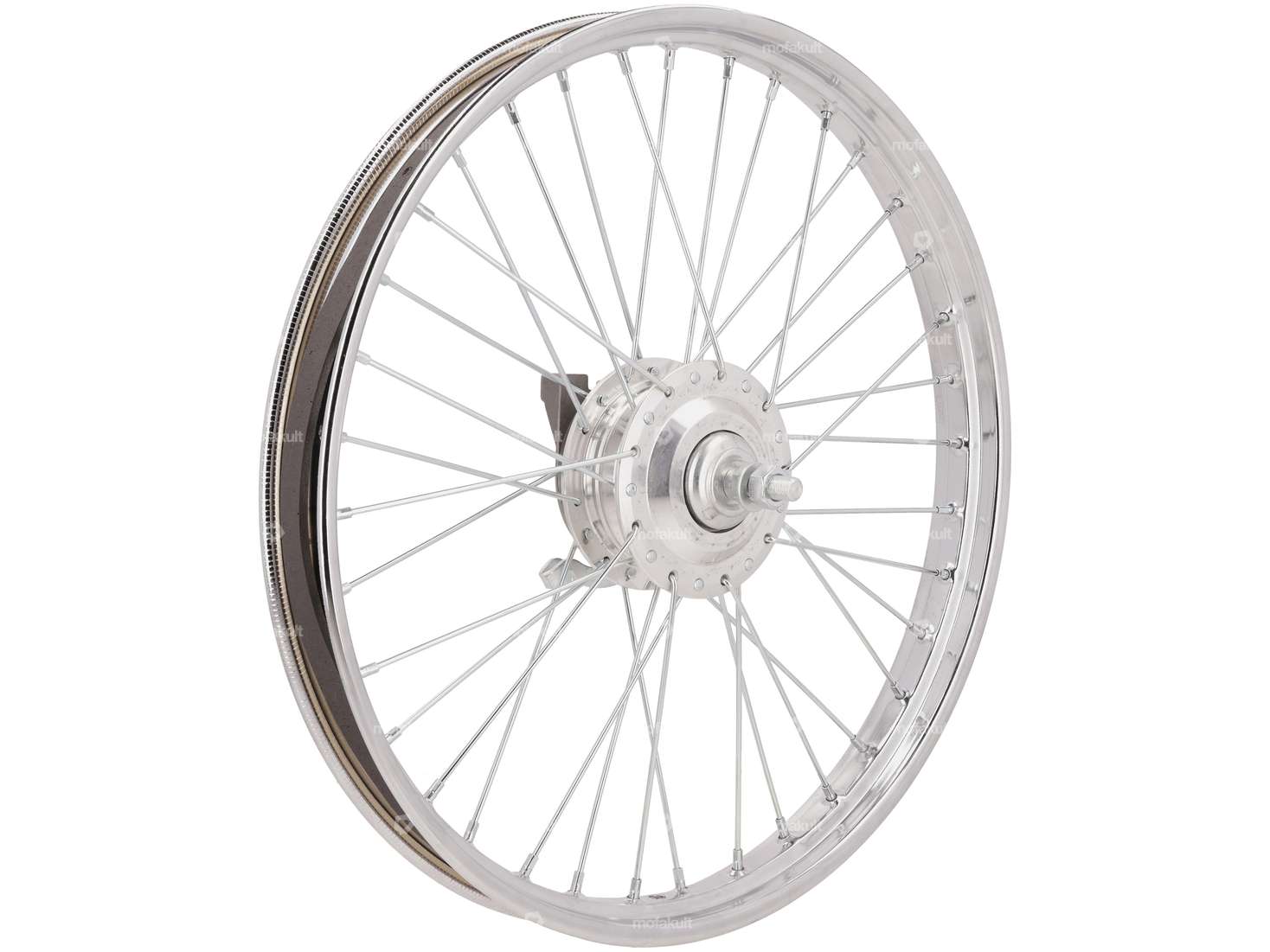

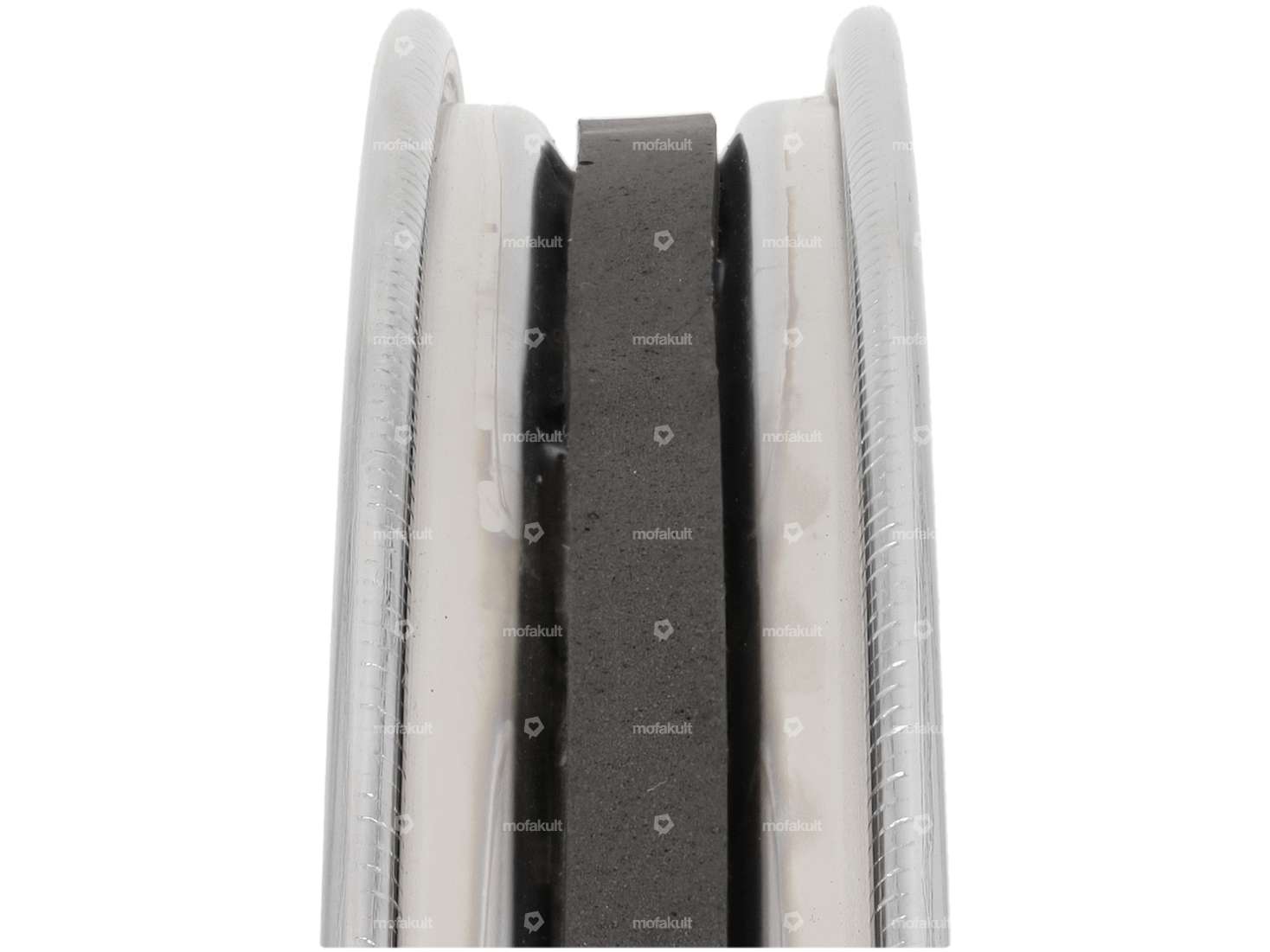

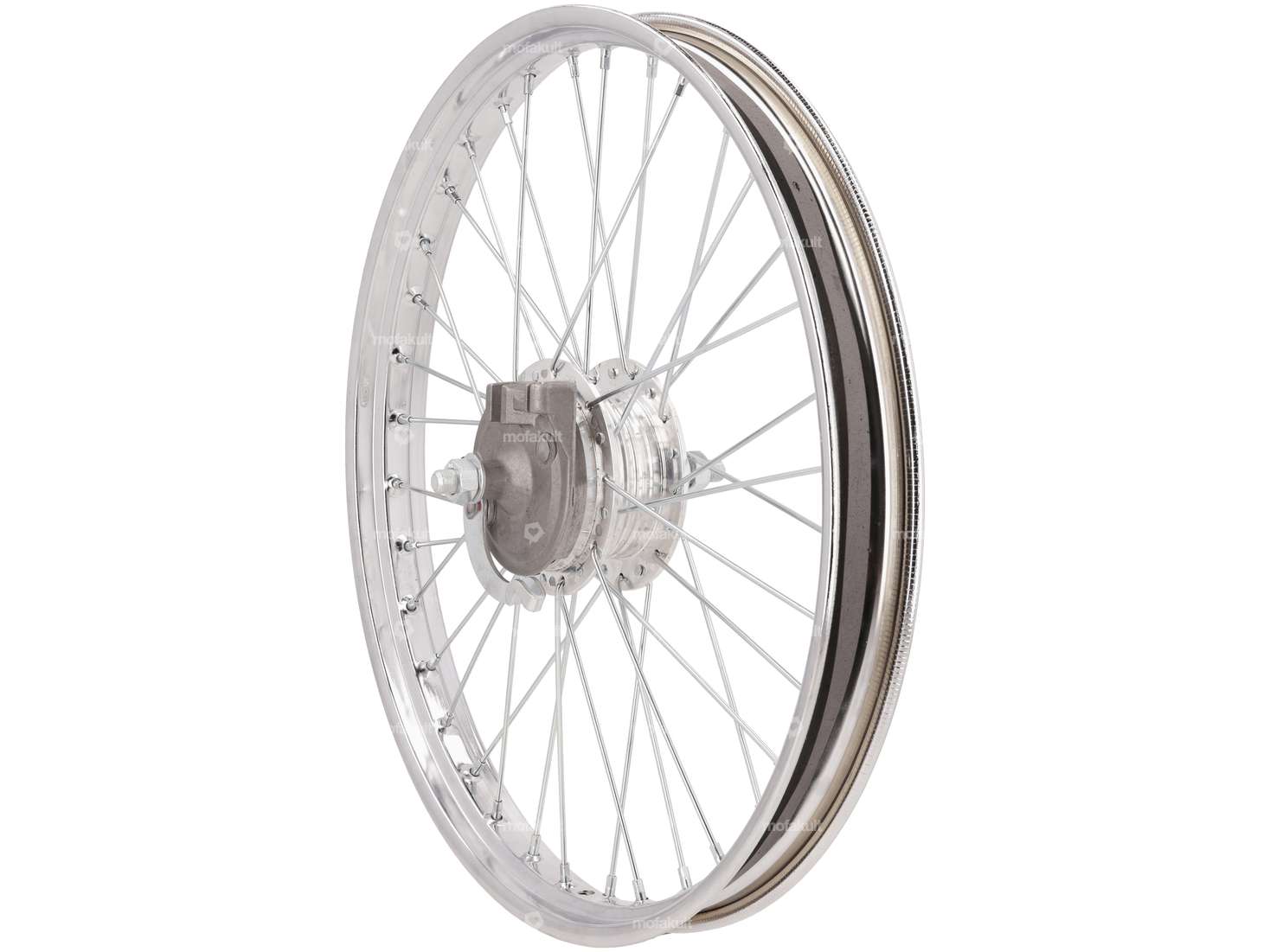

17-inch spoke front wheel with 1.5" rim ring for your Puch Maxi S & N moped / moped.
The aluminum hub is already equipped with wheel bearings, axle, nuts, spacers and brake pads. The rim ring is made of chrome-plated steel. The spokes and nipples are galvanized.
| Nominal diameter | 457 mm |
| Material | Aluminum, Steel |
| Surface | galvanized (blue), chrome-plated |
| Axle length | 170 mm |
| Rim well depth | 9.5 mm |
| Ø axle | 12 mm |
| Overall width outside | 50 mm |
| Ø Brake drum | 80 mm |
| Ø spoke | 2.9 mm |
| Jaw width [inch] | 1.5 " |
| Jaw width [mm] | 37.5 mm |
| Wheel size | 17 " |
| Thread type | MF12x1 (fine pitch thread) |
| Number of spoke holes | 36 pcs |
| Puch |
Ratings
Accessories & related products
Fortune / Merrick 2.00-2.50 x 16" / 17" inner tube
Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve · Wheel size: 16 - 17 " · Wheel size: 17 "
EUR 11.80
Hot
Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall
Inventory-managed: No · Color: black · Color: white · Manufacturer: Mitas · Tire width: 2.25 " · Tire width [mm]: 57.15 · Width: 2 1/4 " · Old designation: 21 x 2.25 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: MC11 · Tire type: Semi-slick · White wall: Yes · Wheel size: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 77.50
Not in stock
Heidenau 2.25 x 17" tires M4 Allround
Inventory-managed: No · Color: black · Manufacturer: Heidenau · Tire width: 2.25 " · Width: 2 1/4 " · Old designation: 21 x 2.25 " · Speed index: B = 50 km/h · Load capacity index: 28 = 100 kg · Profile type: M4 · Tire type: Allround · White wall: No · Wheel size: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 52.40
Michelin 2.25 - 2.50 x 17" tube
Manufacturer: Michelin · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 57.15 - 63.5 · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve · Wheel size: 17 "
EUR 17.80
Mitas 2.25 x 17" tires B4 Allround whitewall
Inventory-managed: No · Manufacturer: Mitas · Tire width: 2.25 " · Color: black · Color: white · Width: 2 1/4 " · Old designation: 21 x 2.25 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: B4 · Tire type: Allround · White wall: Yes · Wheel size: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 89.50
VeeRubber 2.25 x 17" tires VRM094 (V094) Allround
Inventory-managed: No · Manufacturer: Vee Rubber · Tire width: 2.25 " · Color: black · Width: 2 1/4 " · Old designation: 21 x 2.25 " · Speed index: L = 120 km/h · Load capacity index: 39 = 136 kg · Profile type: VRM-094 / V094 · Tire type: Allround · White wall: No · Wheel size: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 42.90

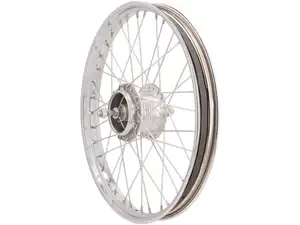

Spoked rim 17" rear 2-crossed | Puch Maxi
