For: Puch

11048

Spare parts catalog | Puch X30 N-2AH, NG-2AH, NG-Racing (CH)

EUR 59.20

Incl. 21% VAT.

Description

Spare parts catalog for the Puch X30 models N-2AH, NG2-AH and NG-Racing.

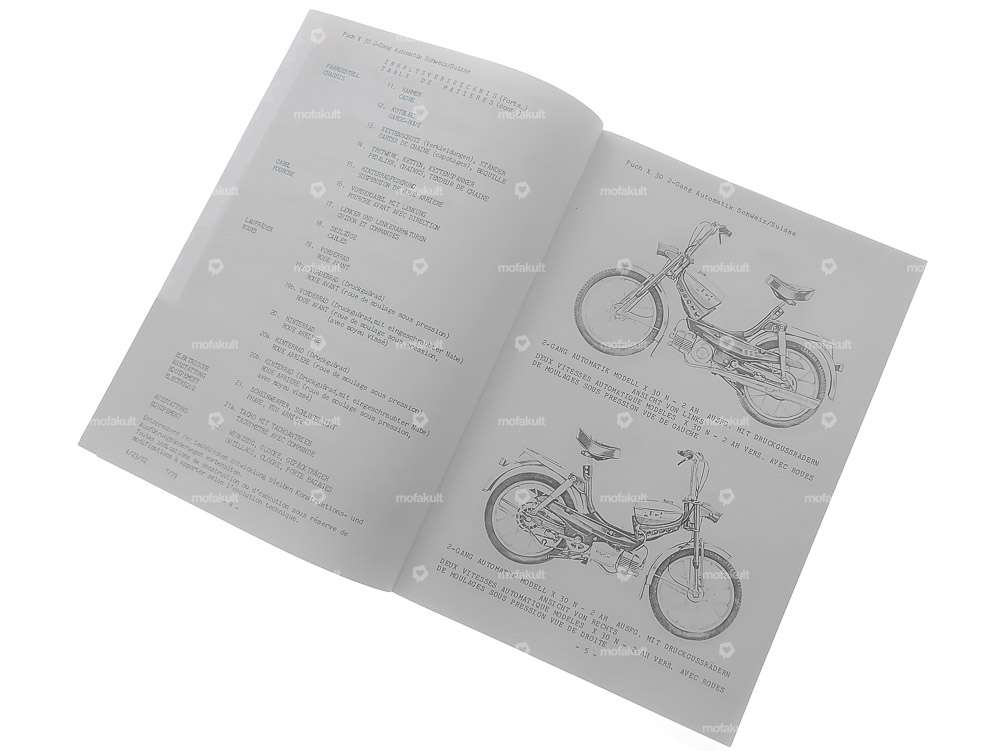

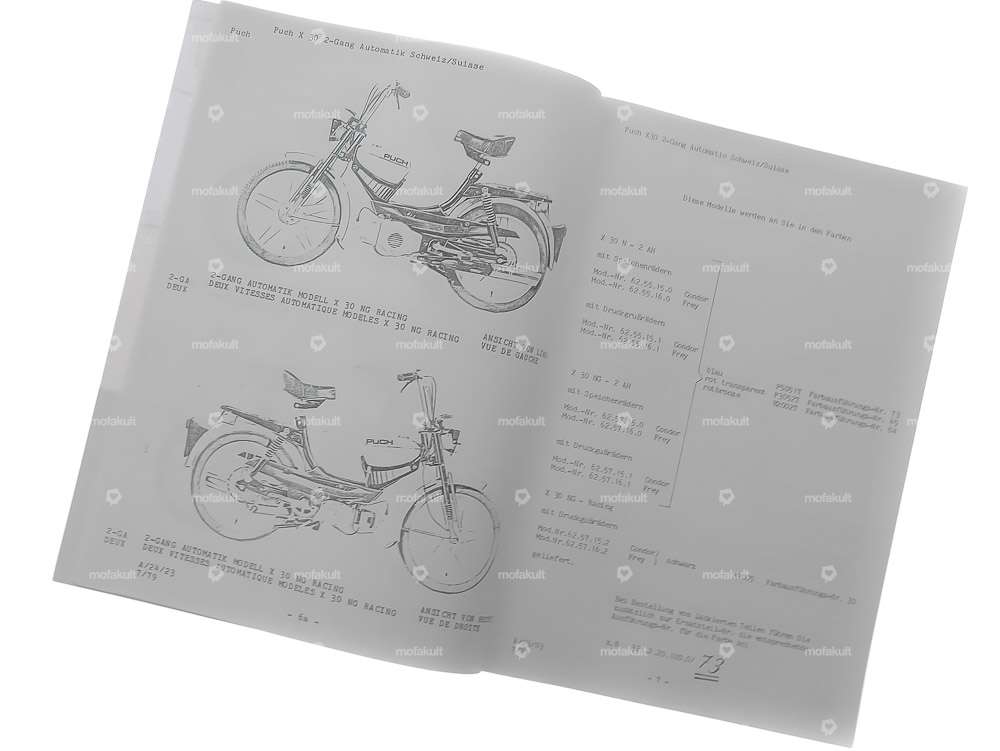

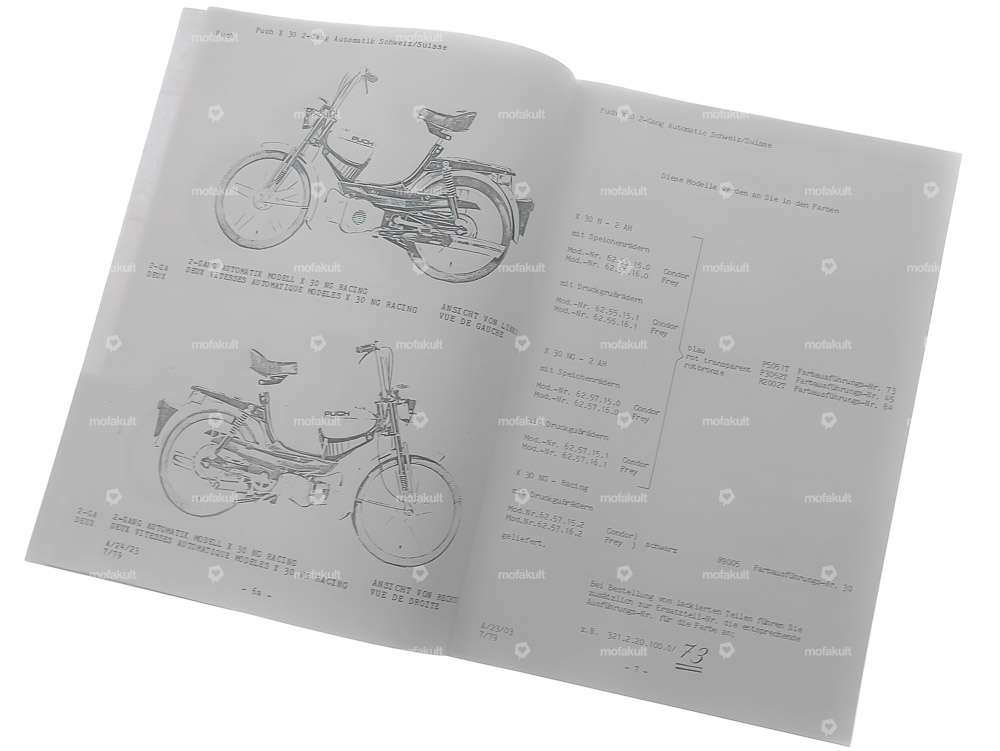

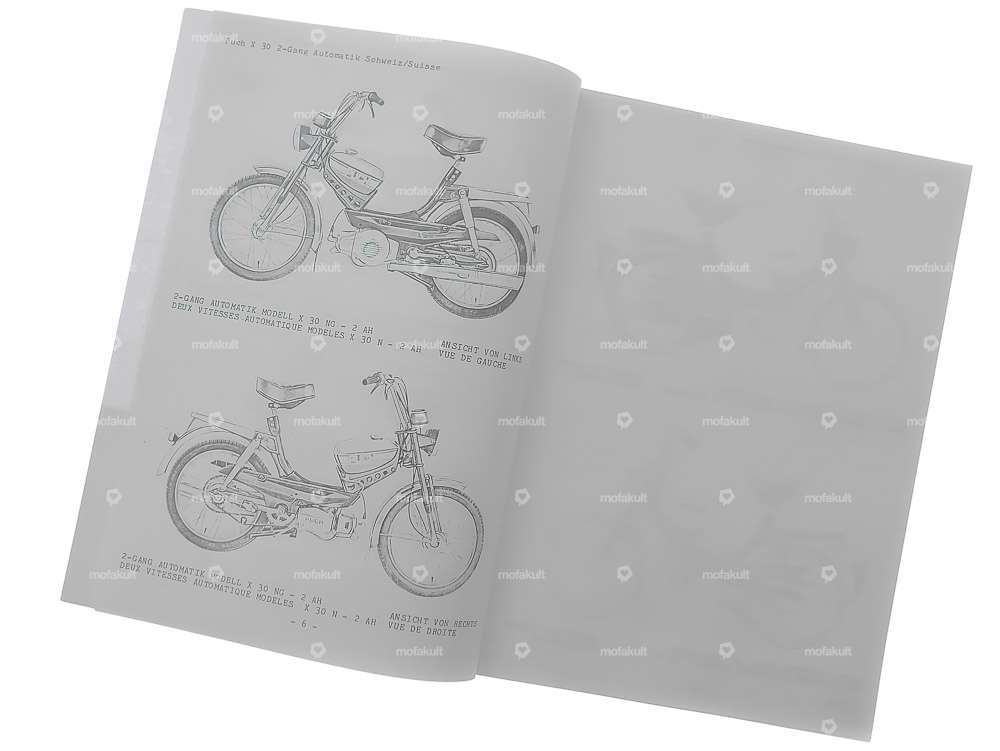

The complete moped was recorded in exploded drawings. Each individual component is labeled with part number, spare part number and assembly location.

Super Swiss catalog from 1979 with 120 interesting pages.

MaterialPaper
Number of pages120 pcs
LanguageGerman
