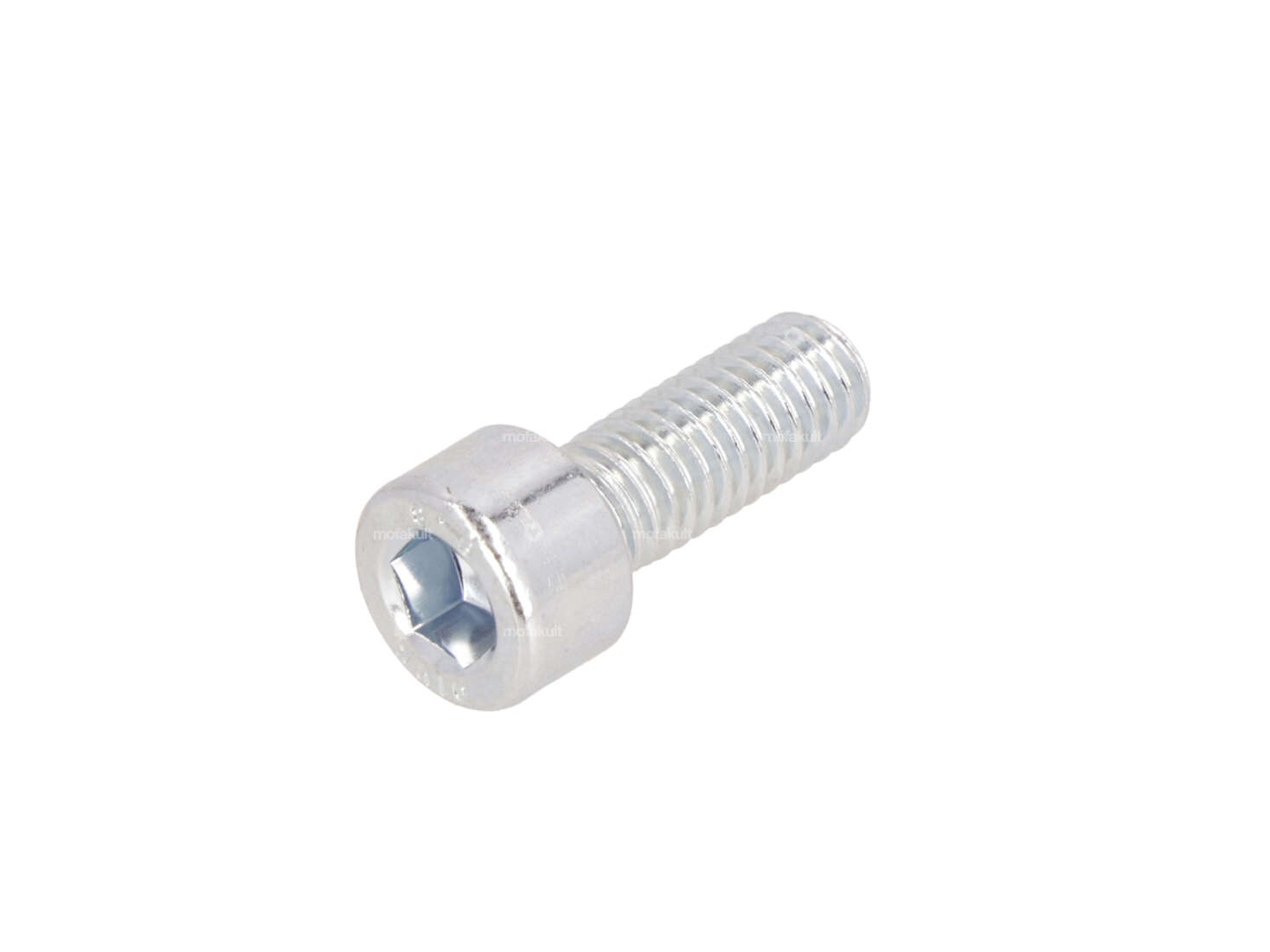

Screw M6x16 cylinder head hexagon socket, galvanized

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Thickness: 2.1 mm

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Diameter: 5.95 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Nipple shape: Cylinder · Number of components: 1 pcs · Nipple length: 5 mm

OMG fuel filter metal 6 mm (removable)

Manufacturer: OMG · Material: Glass · Material: Metal · Filter type: Plastic net · Color: gray · Color: transparent · Color: white · demountable: Yes · Ø outside: 22 mm · Ø inside: 3.45 mm · Total length: 40 mm · Total length: 63 mm · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Exhaust gasket original | Puch

Material: Sealing carton · Place of use: Outlet · Thickness: 1.7 mm · Ø inside: 18 mm · Ø inside: 22 mm · Number of fixing points: 2 pcs · Hole spacing: 42.5 mm · Ø mounting hole: 6.3 mm

Puch intake gasket original

Place of use: Admission · Area of application: Original · Material: Sealing paper · Hole spacing inlet: 32.5 - 38 mm · Thickness: 0.4 mm · Ø inside: 15 mm · Ø screw holder: 6.3 mm

Brass nut M6 3D

Thread type: M6x1 (standard thread) · Material: Brass · Nut type: Neck nut · Ø outside: 9 mm · Nominal diameter (thread): 6 mm · Thread depth: 25 mm · Drive: External hexagon · Shank length: 20 mm · Width across flats: 10 mm · Height: 25 mm · Area of application: Standard

Screw M6x20 cylinder head hexagon socket, galvanized

Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Drive: Hexagon socket · Screw head: Cylinder head · Nominal diameter (thread): 6 mm · Ø External head: 9.9 mm · Shank: No · Total length: 25.9 mm · Width across flats: 5 mm · Thread length: 20 mm · Strength class: 8.8
