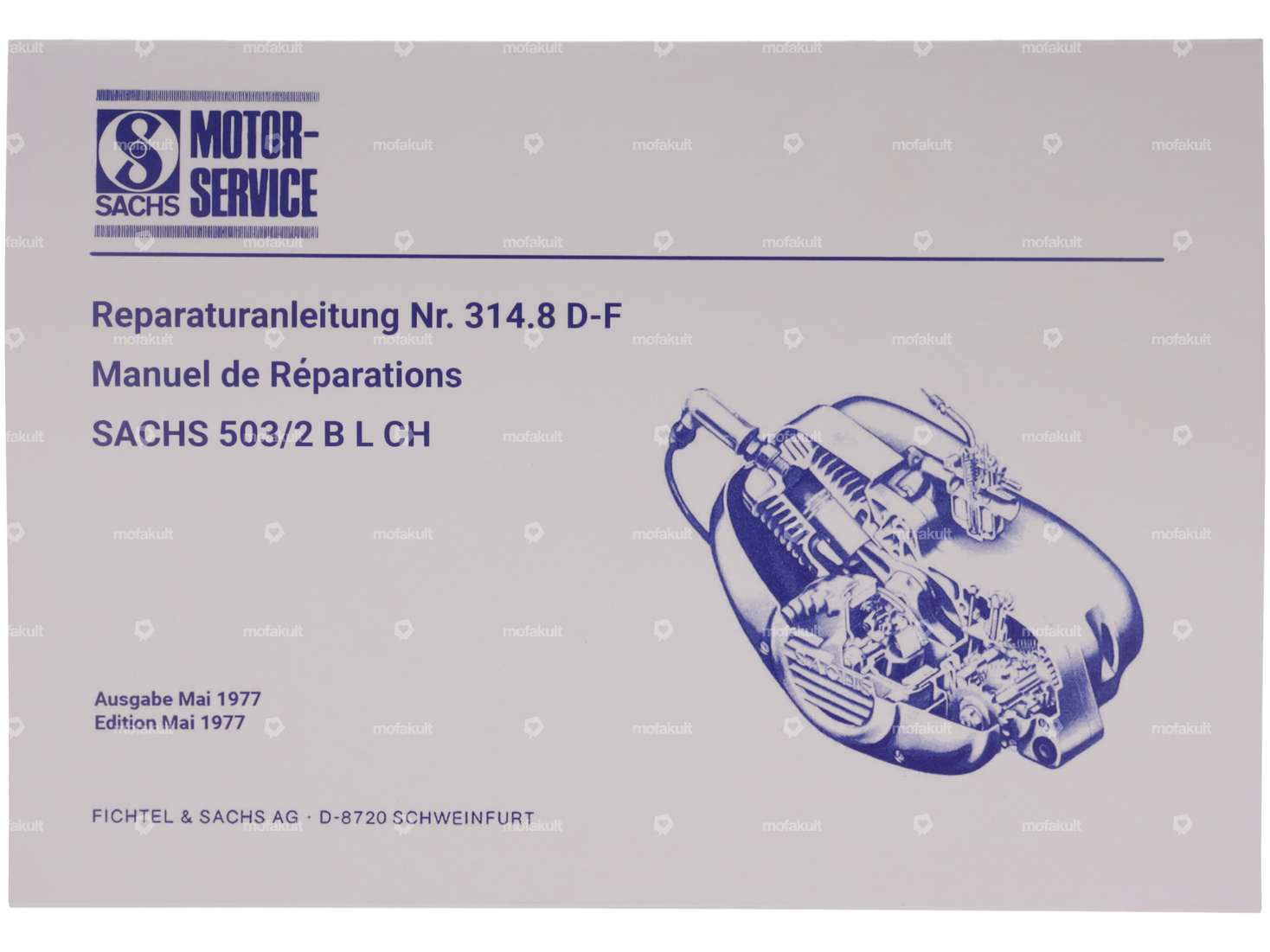

Repair instructions 314.8 D-F | Sachs 503/2 B L CH

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 40.20

Incl. 21% VAT.

Description

Nostalgic repair manual with detailed descriptions for the repair of your Sachs 503/2 B L CH moped / moped engine.

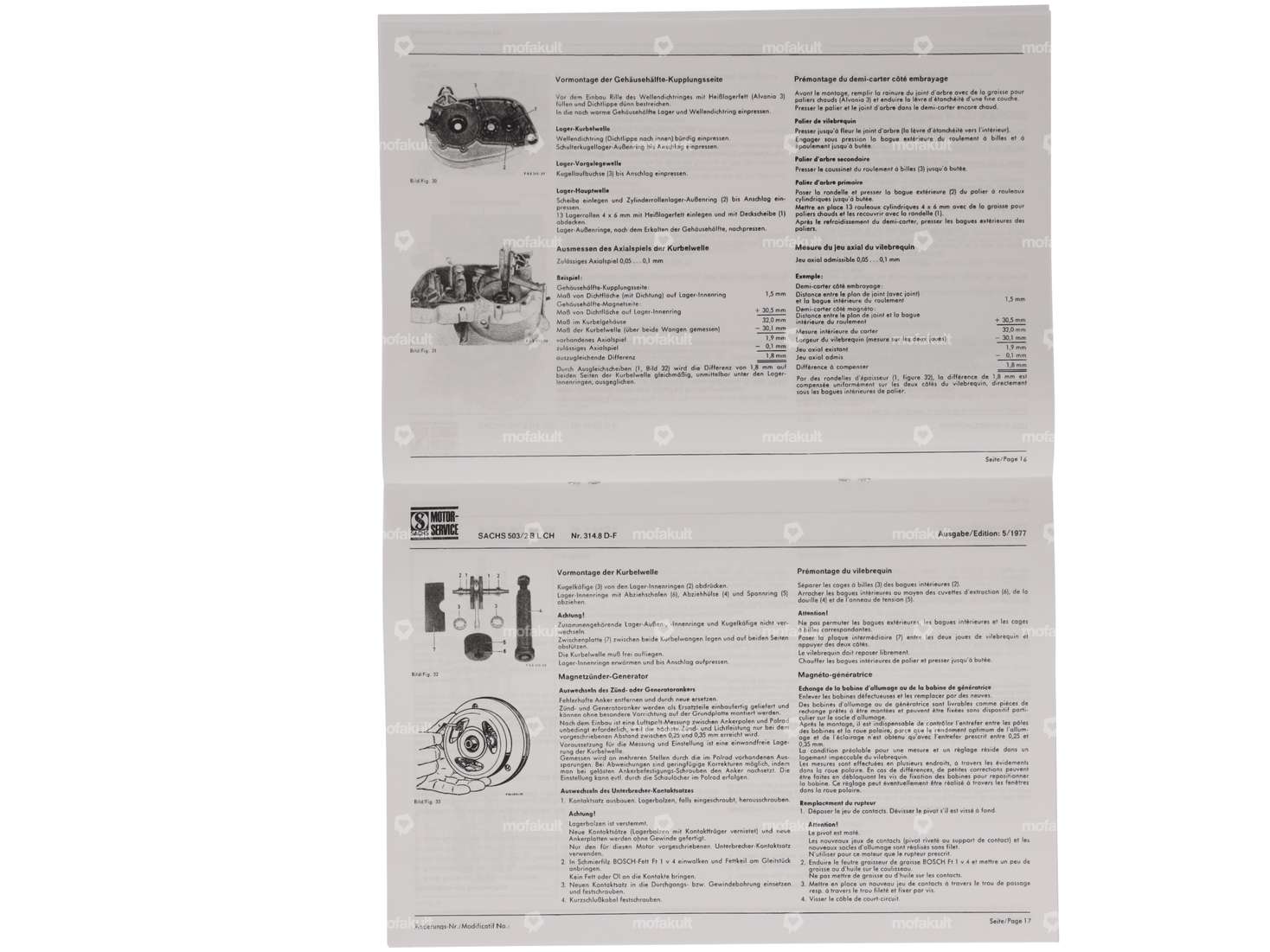

All aspects of the engine are described in detail and are illustrated by comprehensive overhaul instructions, numerous pictures and important facts.

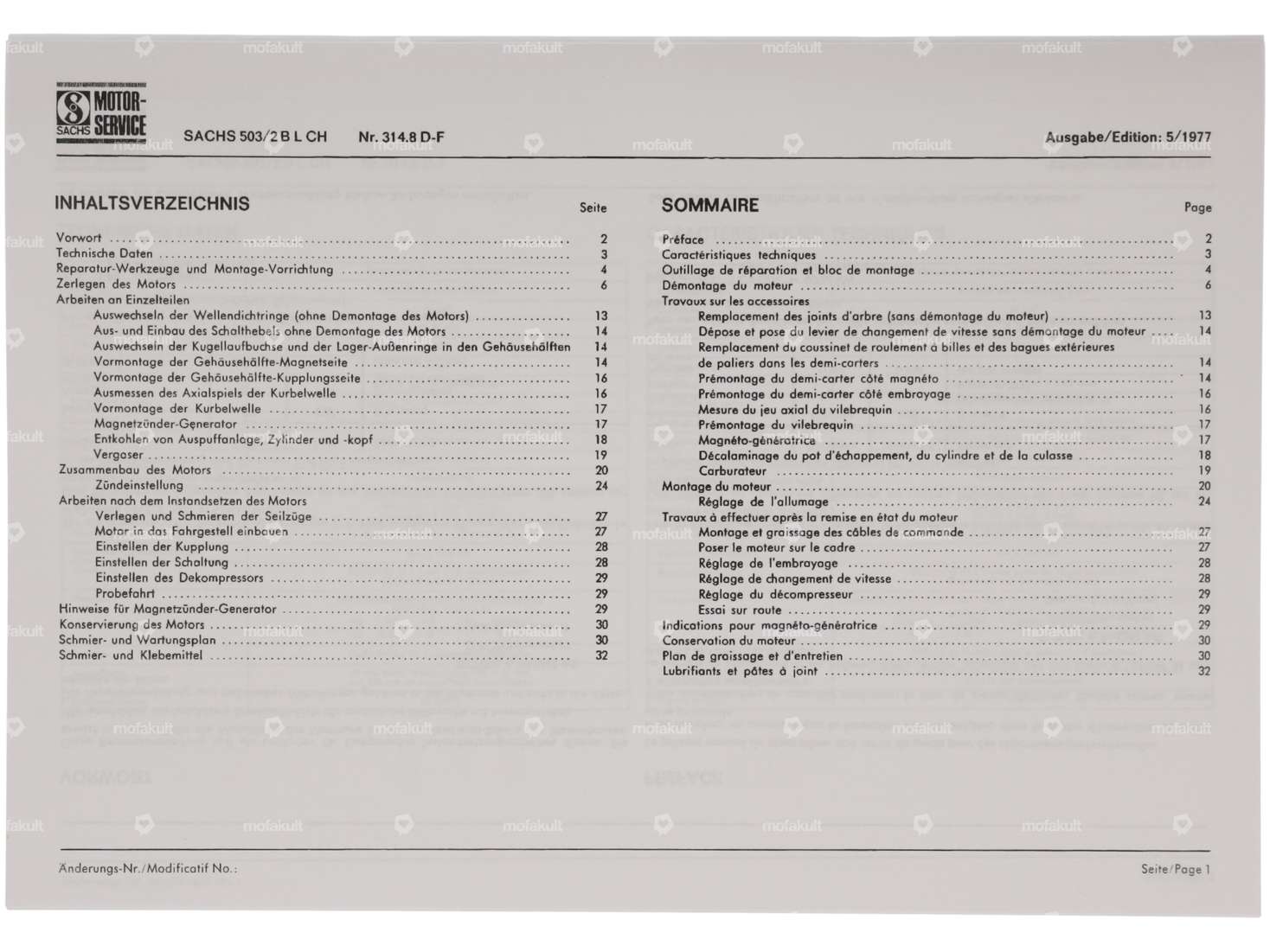

In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.

MaterialPaper
DIN formatA4
Number of pages36 pcs
LanguageGerman, French
Sachs

503 - 2AL / 2BL
