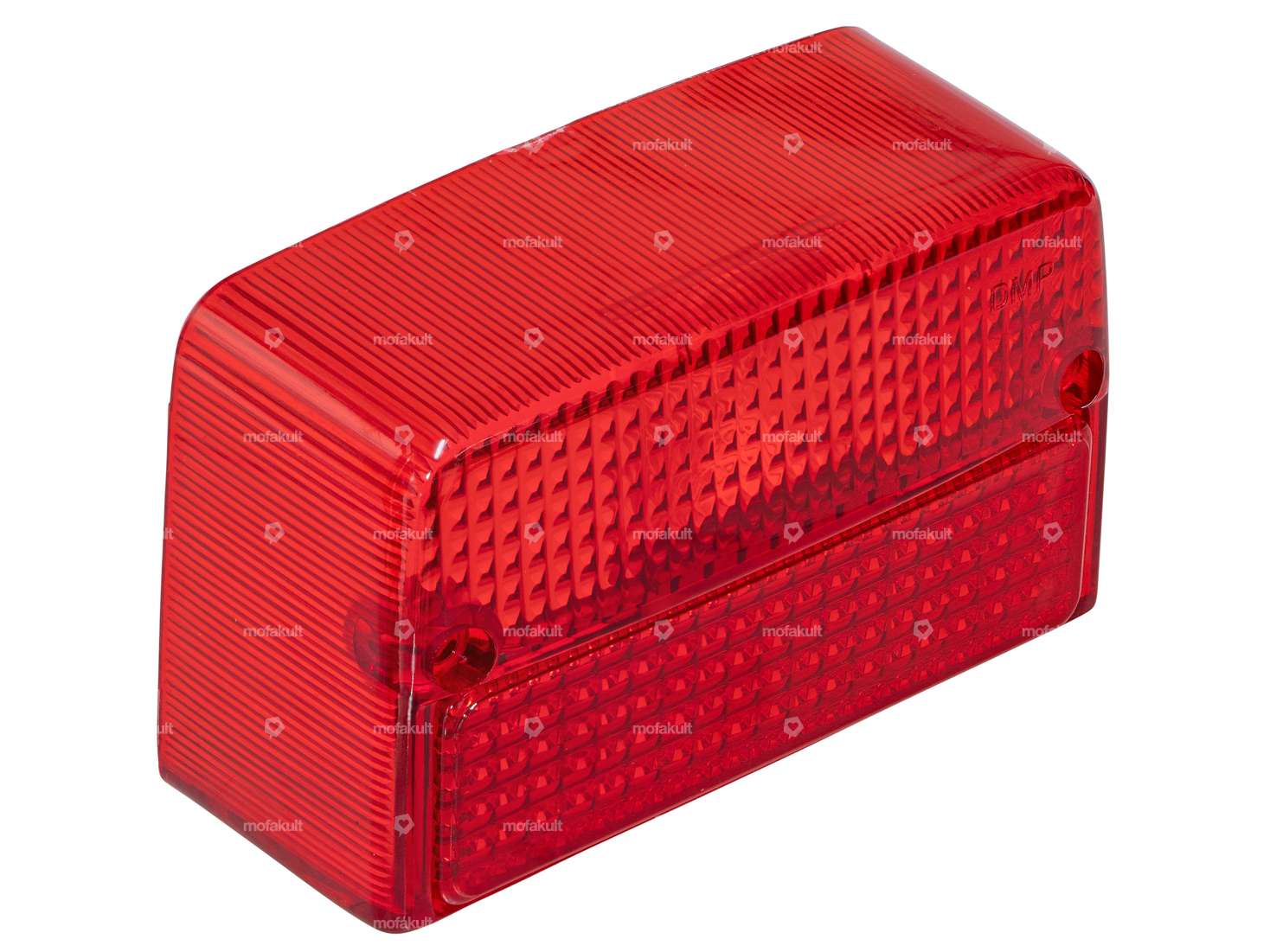

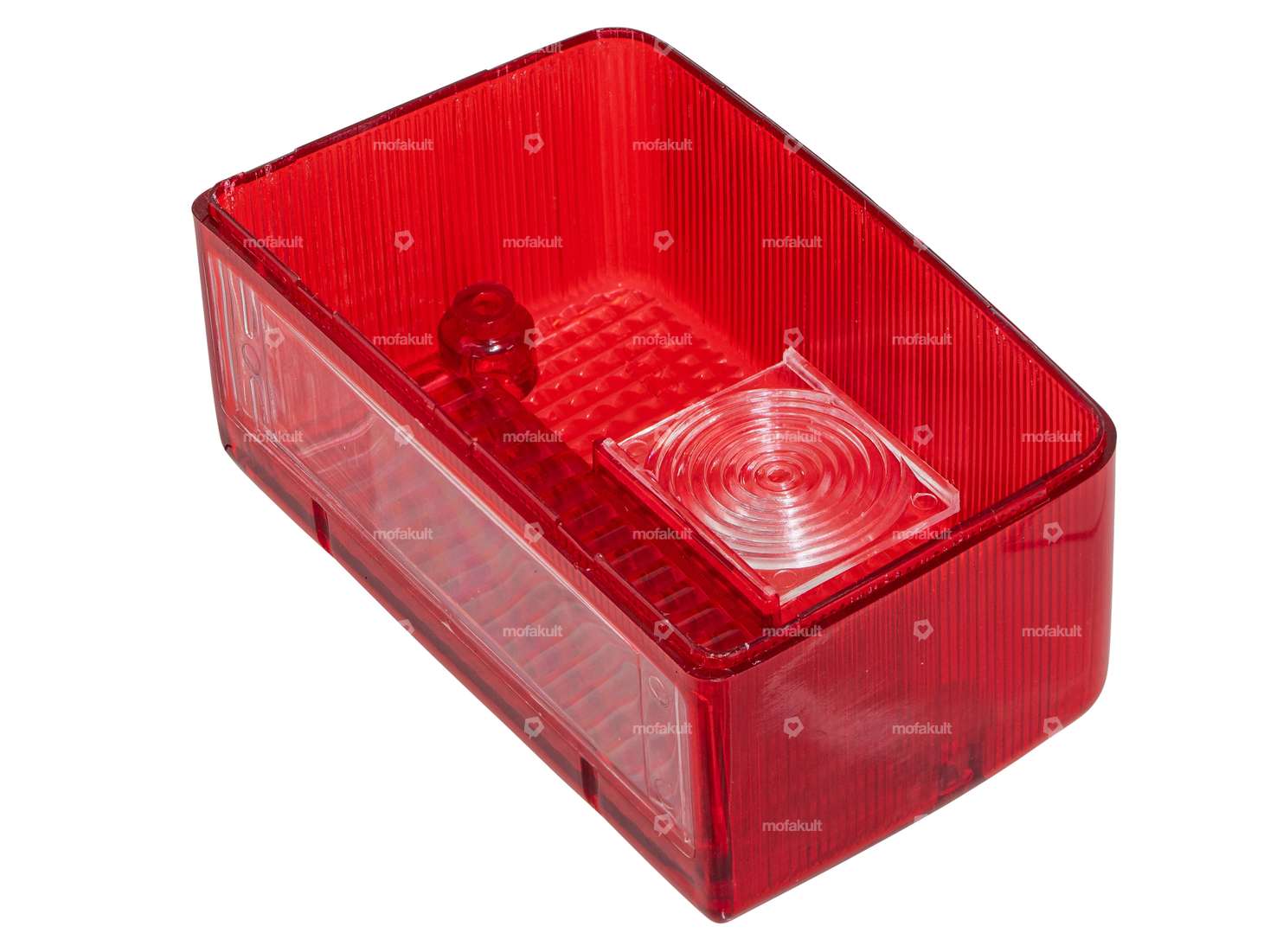

Rear light lens wide | Tomos A3/A35

Rear light | Tomos A3, A35

Material: Plastic · Test mark: none · Bulb holder: BA15s · Color: black · Color: red · Number of fixing points: 2 pcs · Brake light: Yes · Battery operated: No · Reflectors: Yes · Mounting type: Nuts & bolts · Width: 115 mm · Height: 70 mm

Rear light with reflector | Tomos A3/A35

Material: Plastic · Test mark: none · Bulb holder: BA15s · Color: black · Color: orange · Color: red · Width: 85 mm · Height: 160 mm · Battery operated: No · Mounting type: Nuts & bolts · Brake light: Yes · Reflectors: Yes · Number of fixing points: 1 pcs · Tomos OEM number: 223572

Tail light glass high | Tomos A3/A35

Material: Plastic · Test mark: none · Color: red · Width: 83 mm · Height: 98 mm · Mounting type: Screws · Number of fixing points: 2 pcs

Rear light LED with reflector white | Tomos A3/A35

Material: Plastic · Test mark: none · Bulb holder: LED (permanently installed) · Tension: 12 V · Color: black · Color: red · Color: white · Number of fixing points: 2 pcs · Width: 85 mm · Height: 160 mm · Brake light: Yes · Battery operated: No · Mounting type: Nuts & bolts · Reflectors: Yes

Rubber grommet side panel | Tomos

Manufacturer: Tomos · Material: Rubber · Color: black · Clamping diameter: 10 mm · Ø Cable bushing: 6 mm · Height: 7.5 mm

Rear light bracket | Tomos

Manufacturer: Tomos · Material: Plastic · Color: black · Tomos OEM number: 234461

Rubber ring rear light | Tomos

Manufacturer: Tomos · Material: Polyvinyl chloride (PVC-U_hard) · Color: black · Ø Cable bushing: 8 mm · Ø mounting hole: 12 mm · Height: 9.5 mm · Ø outside: 19 mm · Material thickness: 2 mm · Tomos OEM number: 219946

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: vertical / vertical · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø Pin: 3.94 mm · Ø bore: 4 mm

Chrome mirror

Material: Steel · Color: Chrome · Surface: chrome-plated · Clamping diameter: 22 mm · Ø mirror surface: 96 mm · Thread type: M8x1.25 (standard thread) · Ø mirror rod: 7 mm · Mirror rod length: 230 mm · Thread size: M8 · Total length: 285 mm

Rear light black - red

Material: Plastic · Test mark: none · Color: black · Color: red · Width: 65 mm · Bulb holder: BA9s · Ø Receptacle: 3.5 mm · Mounting type: Nuts & bolts · Brake light: No · Battery operated: No · Reflectors: Yes · Number of fixing points: 1 pcs · Depth: 55 mm

GPO sprocket 12 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 12 pcs · Recording type: Interlocking · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Total thickness: 4.6 mm

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [inch]: 2.25 - 2.5 " · Tire width [inch]: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Valve type: TR4 Auto valve · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 "

GPO chain lock drive chain

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 1 pcs · Chain lock type: Spring lock · Ø Pin: 3.98 mm · Ø bore: 4.08 mm

Fortune 2.25 x 16" tires F-879 4.P.R. lugs

Manufacturer: Fortune · Tire width [inch]: 2.25 " · Color: black · Width [inch]: 2 1/4 · Speed index: B = 50 km/h · Load capacity index: 38 = 132 kg · Profile type: F-879 4.P.R. · Tire type: Stollen · Old designation: 20 x 2.25 · White wall: No · Wheel size [inch]: 16 " · Tubeless (yes/no): Tubetype TT (requires hose)

Rear light | Tomos A3, A35

Material: Plastic · Test mark: none · Bulb holder: BA15s · Color: black · Color: red · Number of fixing points: 2 pcs · Brake light: Yes · Battery operated: No · Reflectors: Yes · Mounting type: Nuts & bolts · Width: 115 mm · Height: 70 mm

Main stand 24 cm black | Tomos A3, A35

Material: Steel · Color: black · Stand base - center mount (A): 200 mm · Surface: varnished · Total width of stand base (B): 235 mm · Wide receptacle (C): 51 mm · Ø Receptacle (D): 8.1 mm · Spring nipple distance - center pivot axis (E): 65 mm · Wide upright foot (F): 30 mm · Total height: 240 mm · Tomos OEM number: 237153S91
