For: Piaggio

18933

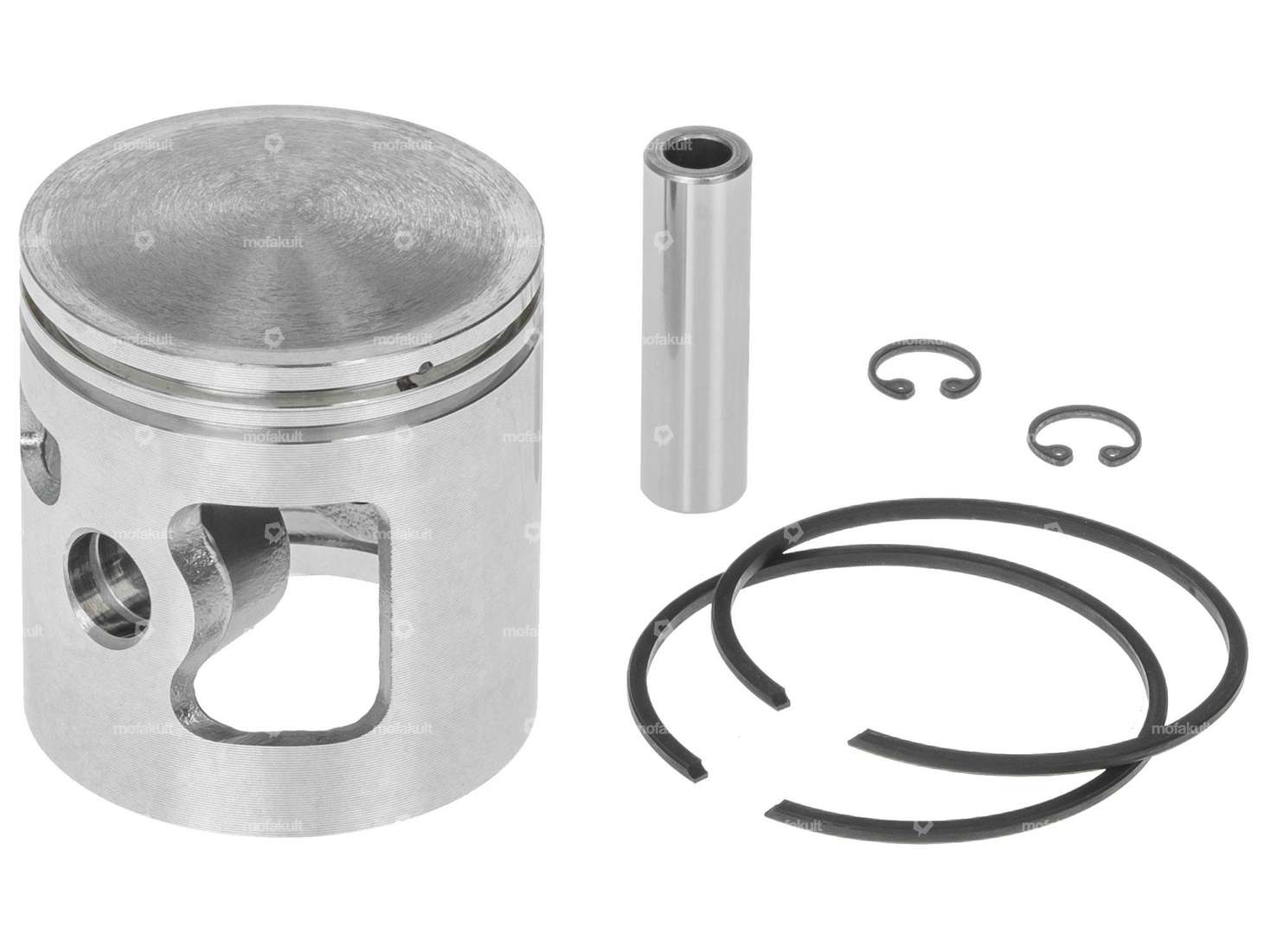

Polini piston 46 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

EUR 94.80

Incl. 21% VAT.

Description

46.0 mm piston kit with two pieces of 1.5 mm rectangular piston ring with flank lock (FS) for the Polini racing kit on your Piaggio moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter46 mm
ManufacturerPolini
Ø outside piston (A)45.94 mm
Compression height (C)26 mm
Curvature (D)2.7 mm
Total piston height (E)50.7 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)10 mm
Weight piston kit93 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
