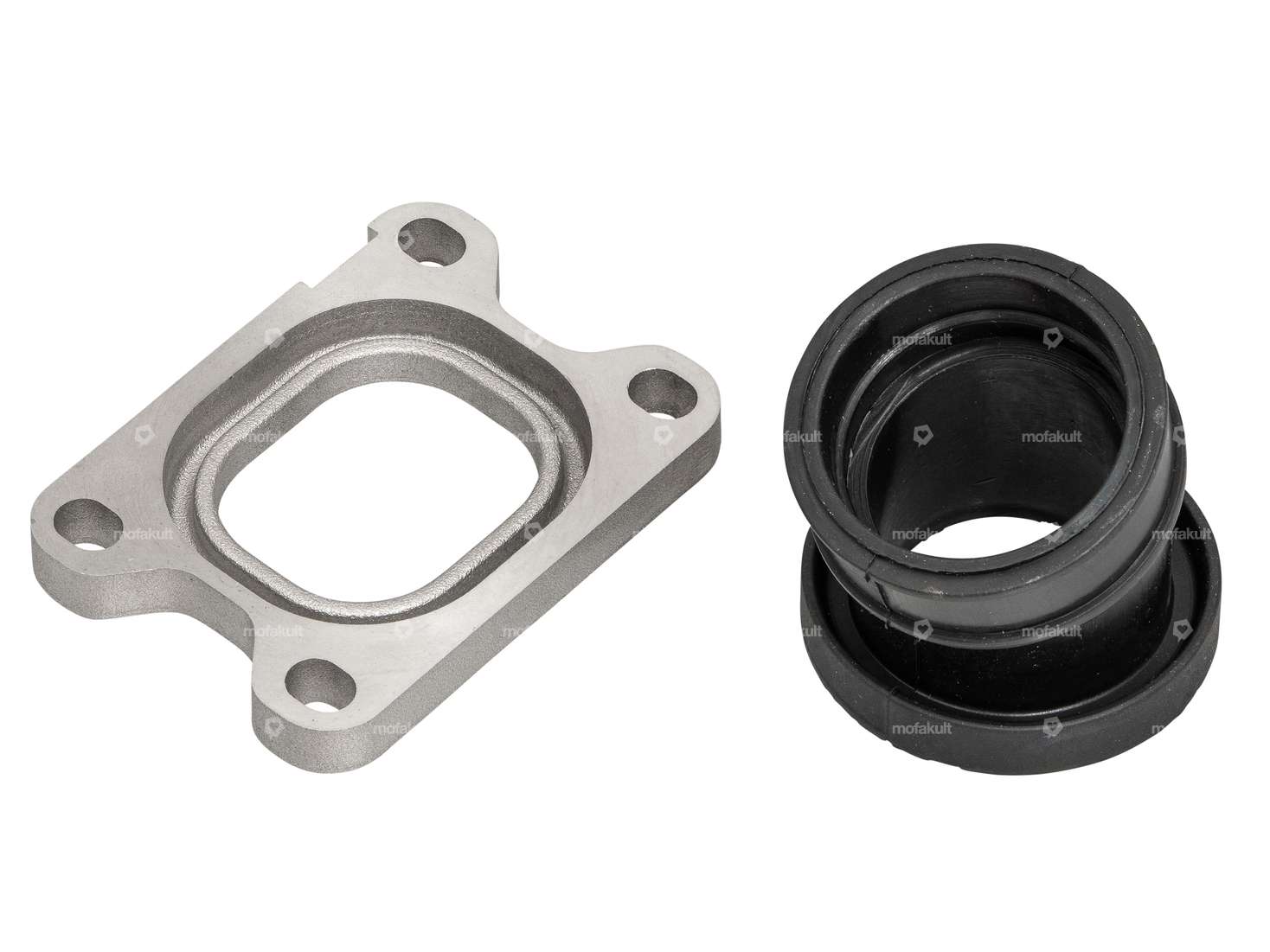

High-quality intake manifold from the Polini quality brand to fit the 47 mm Gilardoni italkit racing kit for various Puch mopeds.
All Dell'Orto PHBG DS carburetors can be fitted to this intake manifold.
The plastic carburetor connection can be rotated 360°. This means that the carburetor can be mounted without any problems even in tight spaces.
Hole pattern: 37 x 60 mm
Inclination angle: 20°
Ø carburetor connection: 35 mm
Passage: 30 mm
Matching attachments can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Material | Aluminum, Rubber |
| Ø External connection | 35 mm |
| Ø inside | 30 mm |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 60 x 35 |
| Area of application | Tuning |
| Puch |
