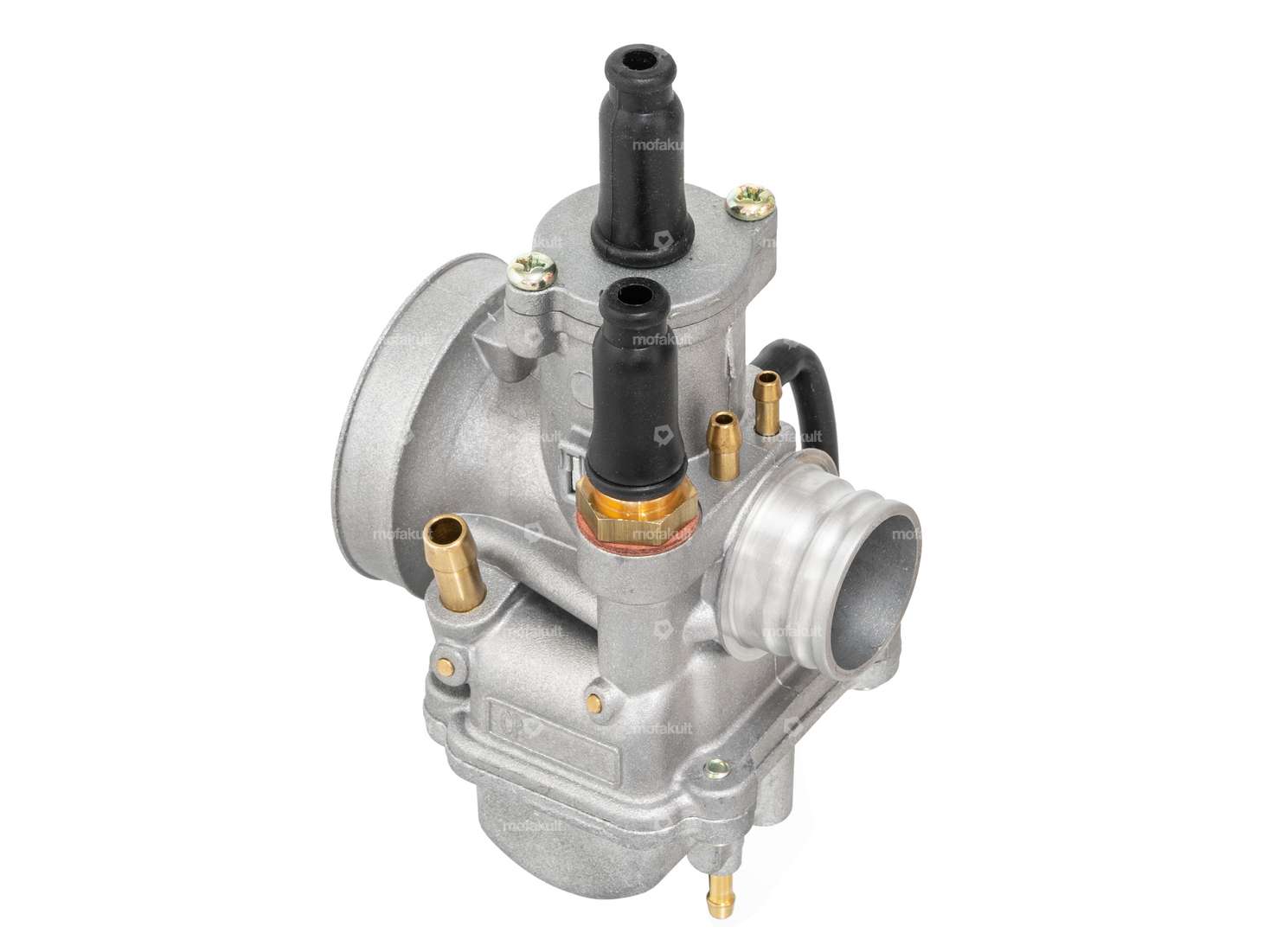

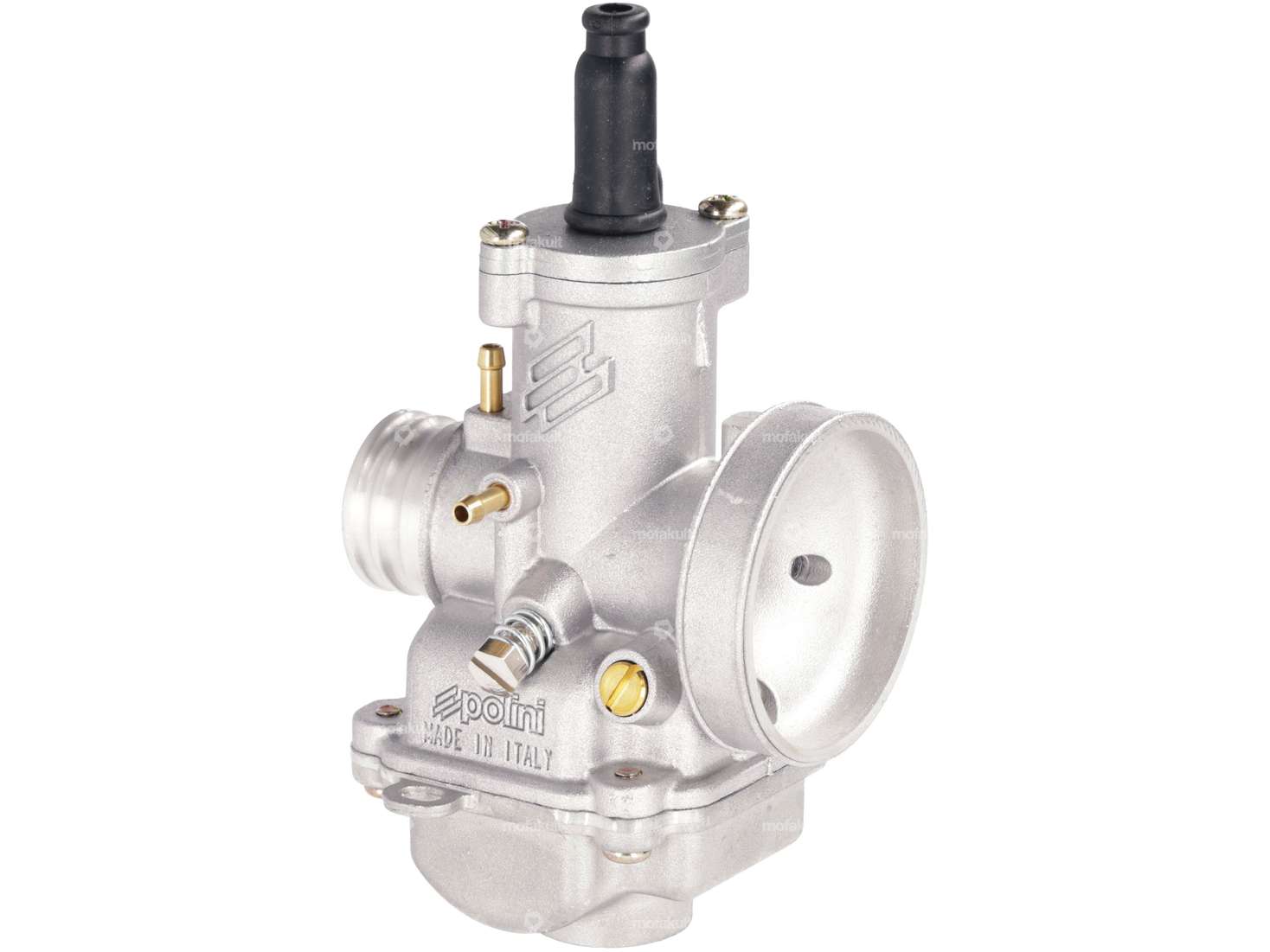

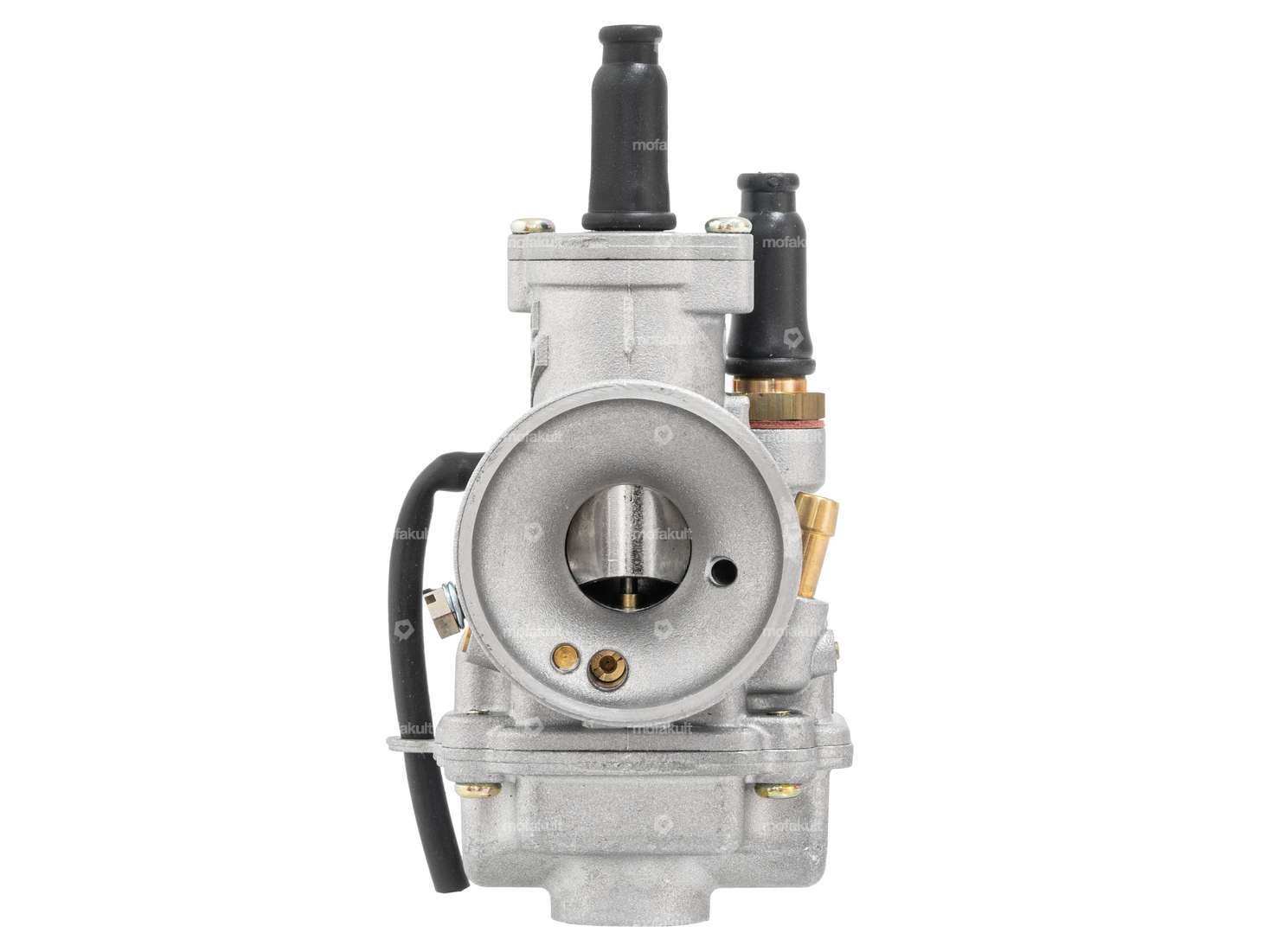

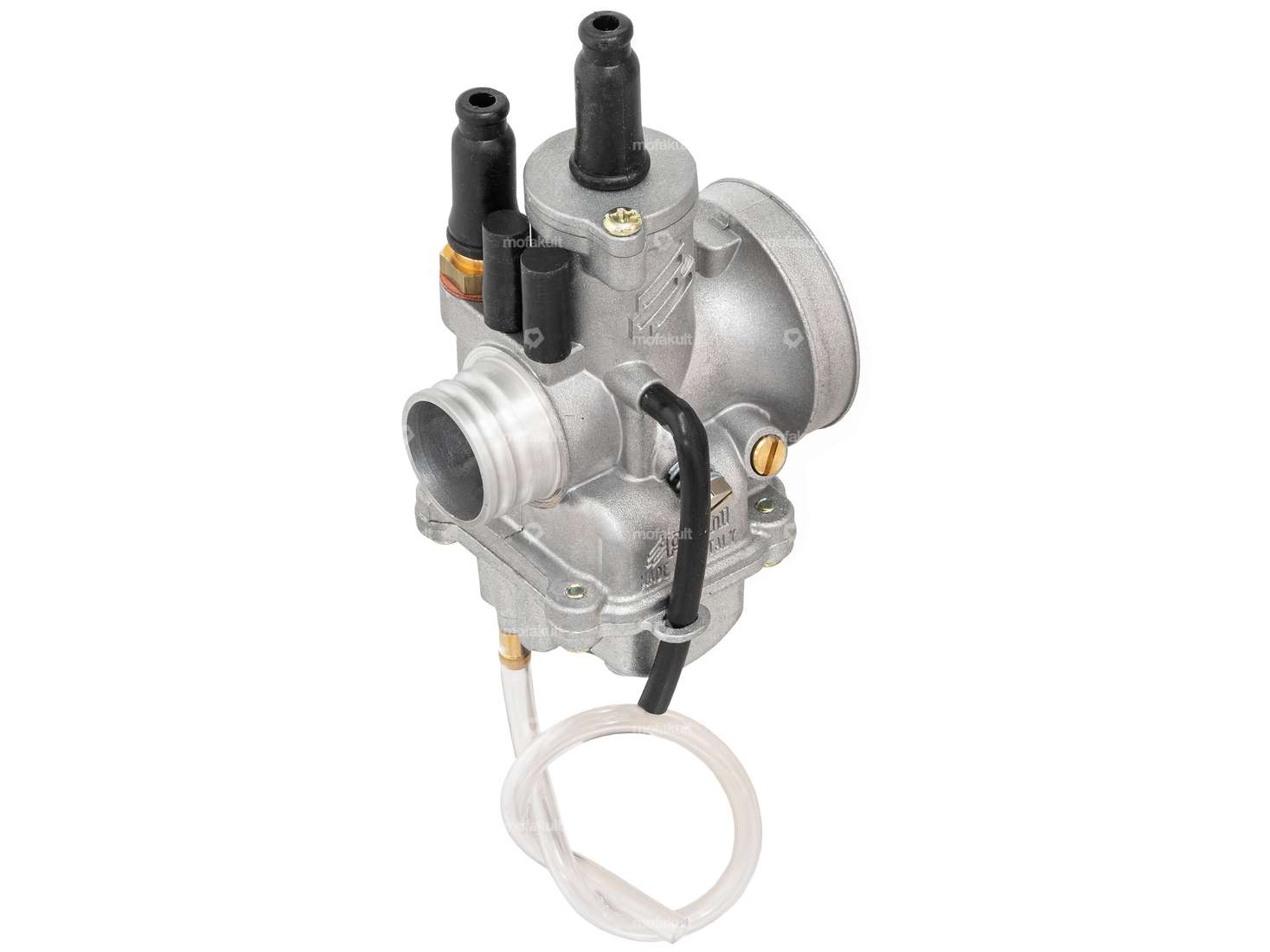

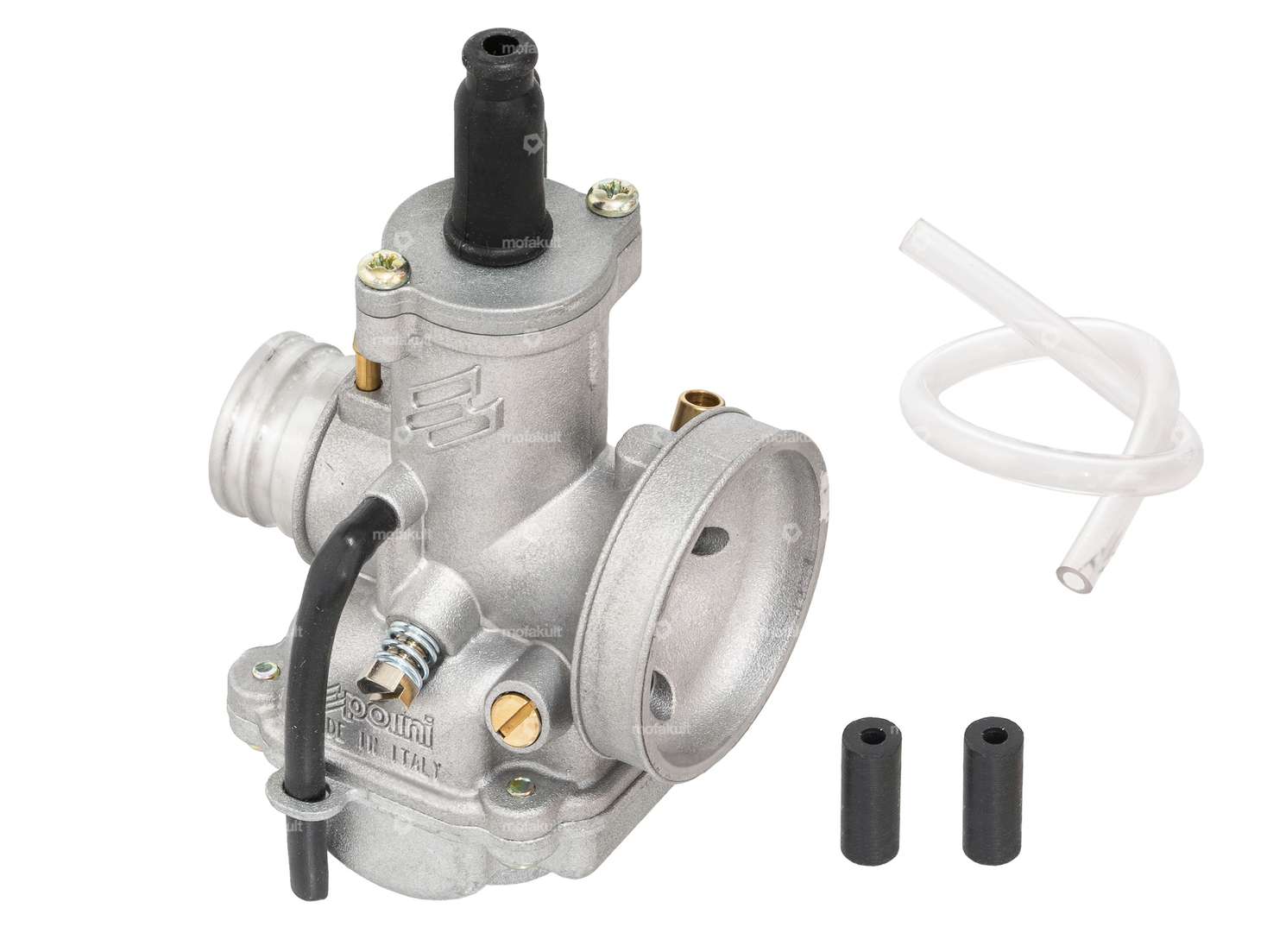

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify carburetor tuning and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
A rubber sleeve (item no. 15414) is used to attach the carburetor to the intake manifold.
Connection diameter of intake manifold: 25 mm
Connection diameter of air filter: 46 mm
Main diameter: 80
Side diameter: 38
Quality product from the Italian manufacturer Polini.
| Nominal diameter | 17.5 mm |
| Manufacturer | Polini |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Carburetor type | CP |
| Choke control | Cable choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 80 |
| Ø Air filter connection | 46 mm |
| Ø fuel hose connection | 6 mm |
| Mixed oil connection | Yes |
| Mounting type | Plug connection |
| Vacuum connection | Yes |
| Size of secondary nozzle | 38 |
Ratings
Moped fans also bought
Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [inch]: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Valve type: TR6 car valve · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Wheel size [inch]: 17 "
EUR 17.70
Airsal intake manifold 46 / 47 mm cylinder | Puch
Manufacturer: Airsal · Camouflaged: No · Material: Aluminum · Ø inside: 19 mm · Ø External connection: 24 mm · Total length: 60 mm · Mounting type: Screws · Total height: 75 mm · Number of fixing points: 2 pcs · Height flange center hole: 65 mm · Area of application: Tuning · Hole spacing inlet: 38 mm
EUR 47.30
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
EUR 47.30
Polini jet set (60 - 78) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74 · Nozzle size: 76 · Nozzle size: 78 · Drive: External hexagon
EUR 47.30
Polini auxiliary jet set 32 - 40 | CP carburetor
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 5 pcs · Carburetor type: CP · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Secondary nozzle · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Drive: Slot
EUR 29.50
Polini CP 15 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Nominal diameter: 15 mm · Carburetor type: CP · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection · Ø fuel hose connection: 6 mm · Nozzle size: 80 · Ø Air filter connection: 46 mm · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Size of secondary nozzle: 38
EUR 159.80

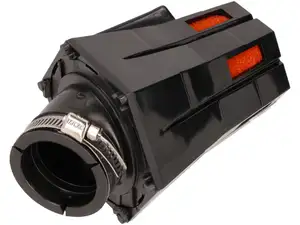

Tun'R air filter foam with splash cap Evo 45° (Ø 28 / 35 mm)
Manufacturer: Tun'R · Color: black · Color: red · Angle: 45 ° · Filter type: Foam · Ø outside: 80 mm · Total length: 100 mm · Ø Internal connection: 28 mm · Ø Internal connection: 35 mm · Mounting type: Plug connection clamped · Camouflaged: No · Area of application: Tuning
EUR 27.10
66HEROES Clamping bridges aluminum black | Puch
Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Color: black-matt · Ø mounting hole: 7.3 mm · Clamping diameter: 22 mm · Total length: 49 mm · Number of fixing points: 2 pcs · Width: 22 mm · Hole spacing: 30 mm · Height: 26 mm
EUR 34.20
Polini intake rubber Ø 28.5 / 25 mm (PHBG, Polini CP)
Manufacturer: Polini · Material: Rubber · Color: black · Ø inside 2: 25 mm · Clamping diameter: 26.5 mm · Ø inside: 28.5 mm · Total length: 37.5 mm · Ø outside: 38.5 mm · Ø Connection 2 external: 37 mm · Ø External connection: 37 mm · Ø Passage: 25 mm
EUR 17.70

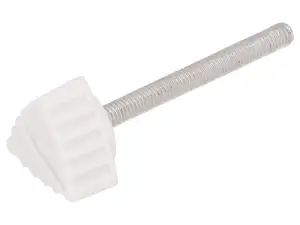

swiing® revival side protection screw 50 mm white | Puch
