For: Sachs

17328

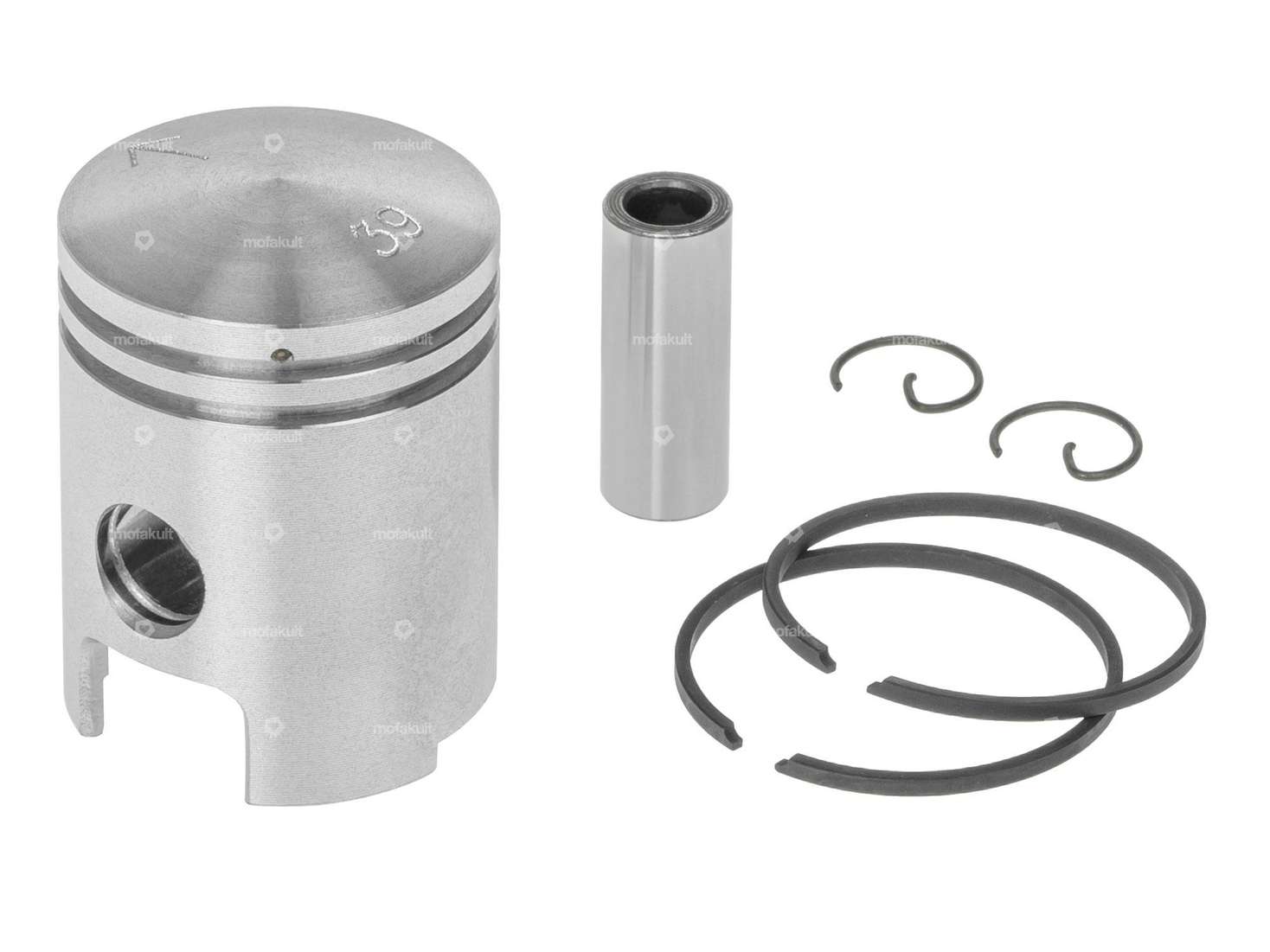

Piston 39 mm | Sachs 50/3, 50/4 fan-cooled

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 52.10

Incl. 21% VAT.

Description

39 mm replacement piston / piston kit with two pieces of 2 mm rectangular piston rings with flank lock (FS) for blown Sachs 50/3, 50/4 reproduction cylinders of various mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter39 mm
Ø outside piston (A)38.96 mm
Compression height (C)27.75 mm
Curvature (D)3.35 mm
Total piston height (E)53.1 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit83 g
Sachs

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)
