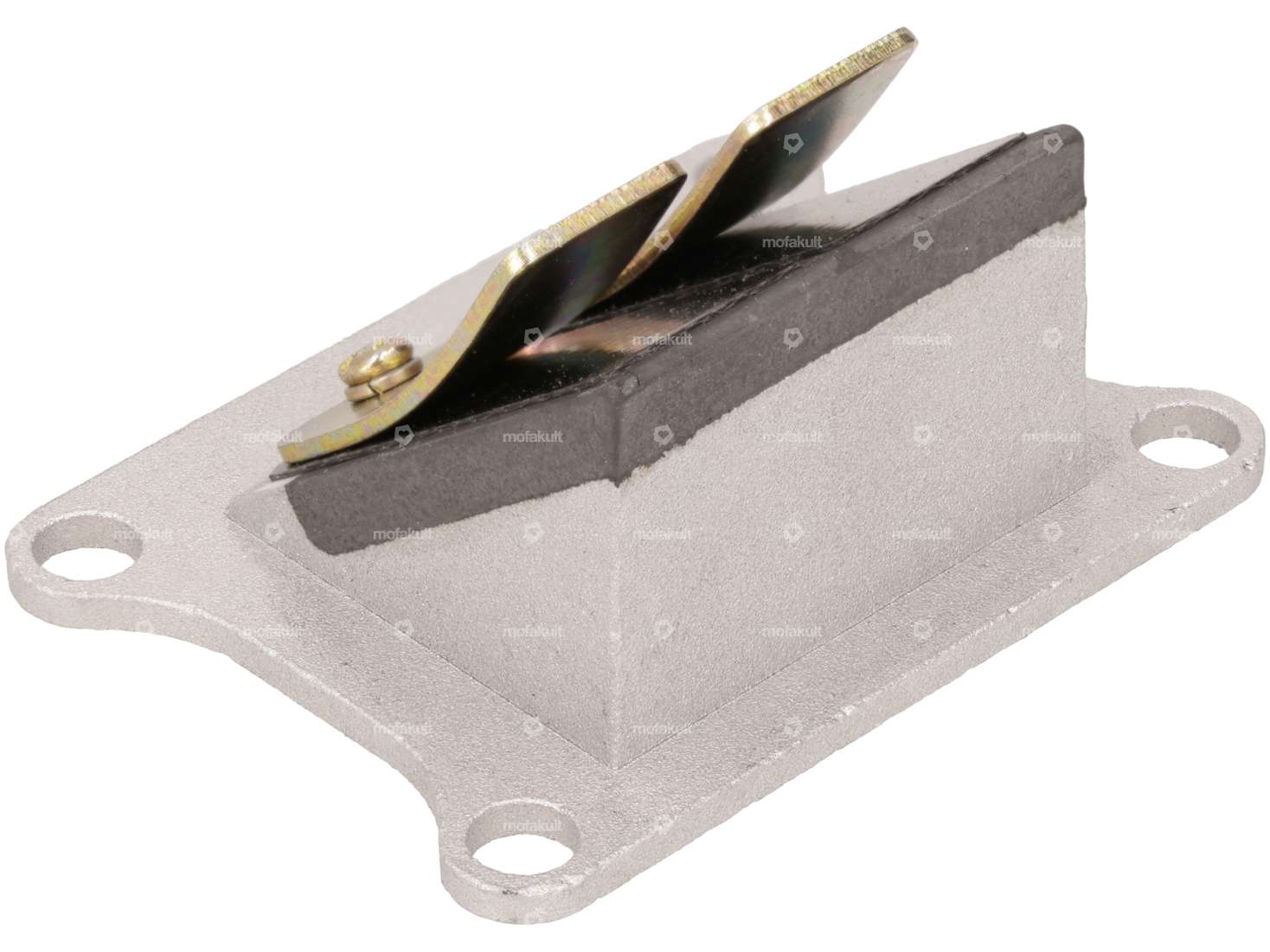

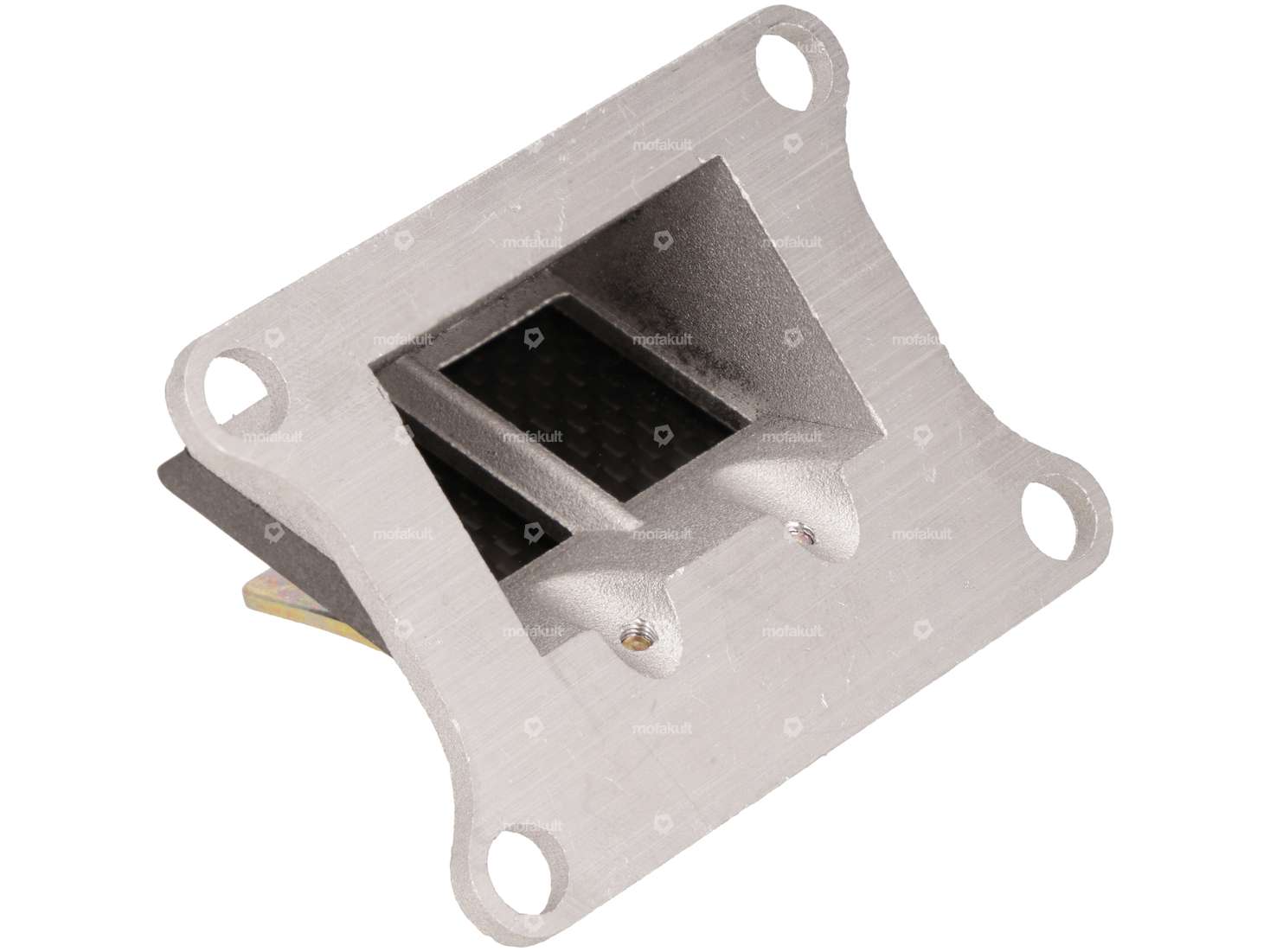

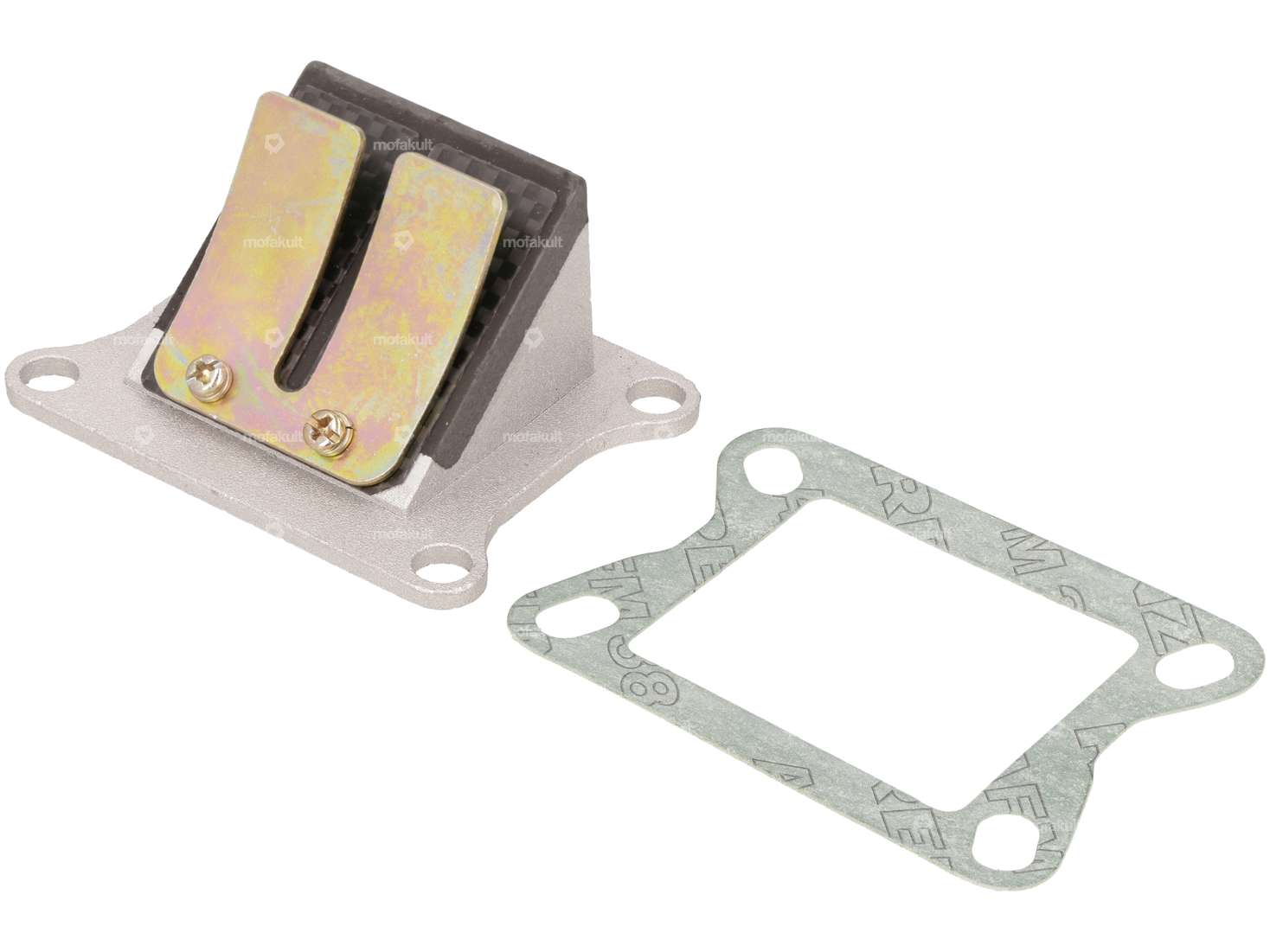

Parmakit 2-folding diaphragm insert carbon

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Ø cylinder: 45 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Hole spacing outlet: 42 mm · Number of components: 5 pcs · Area of application: Tuning

Intermediate flange cylinder Athena AJH Puch

Material: Plastic · Color: black-matt · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 40

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Tuning

Intake manifold Athena AJH Inox

Manufacturer: Made in Netherlands · Material: Chrome steel (known as Nirosta®) · Ø inside: 21 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø External connection: 24 mm · Hole pattern [mm]: 60 x 40 · Total height: 60 mm · Area of application: Tuning

2-folding membrane insert Athena AJH

Area of application: Tuning · Number of flaps: 2 pcs · Membrane material: Spring steel · Hole pattern [mm]: 60 x 40 mm · Number of fixing points: 4 pcs · Mounting type: Screws

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Ø screw holder: 6.7 mm · Place of use: Admission · Hole pattern [mm]: 40 x 62 · Thickness: 0.5 mm · Area of application: Tuning

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Tuning
