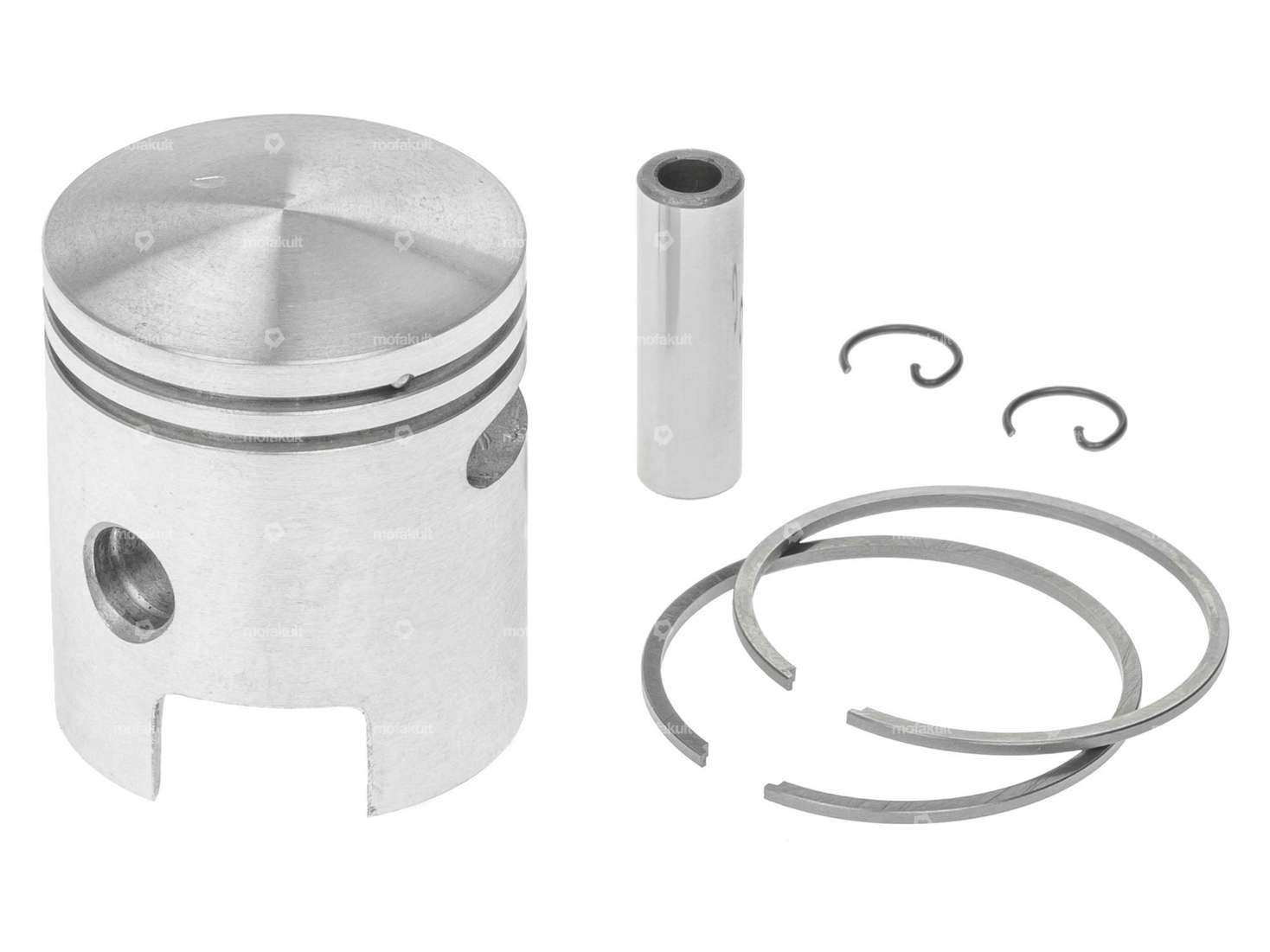

Piston kit with two rectangular piston rings with internal fuse (IS) to fit the 43 mm cylinder kit from Olympia for all Piaggio models.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Made by the Italian brand Olympia.
| Manufacturer | Olympia |
| Nominal diameter | 43 mm |
| Ø outside piston (A) | 42.91 mm |
| Compression height (C) | 26 mm |
| Curvature (D) | 2.7 mm |
| Total piston height (E) | 51.3 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 99 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
