Piston kit with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) to fit the 38.4 mm cylinder kit from Olympia for all Piaggio models.

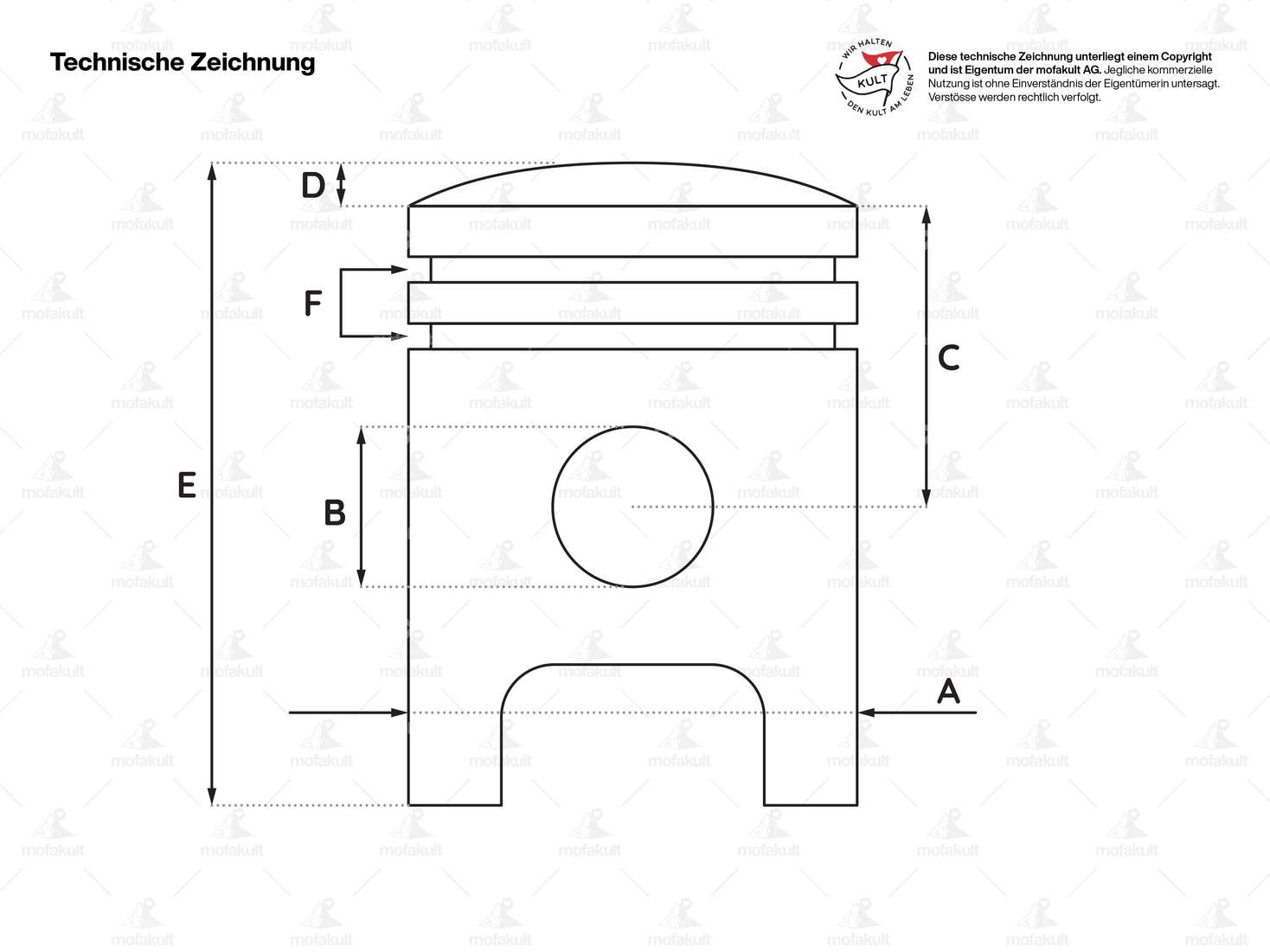

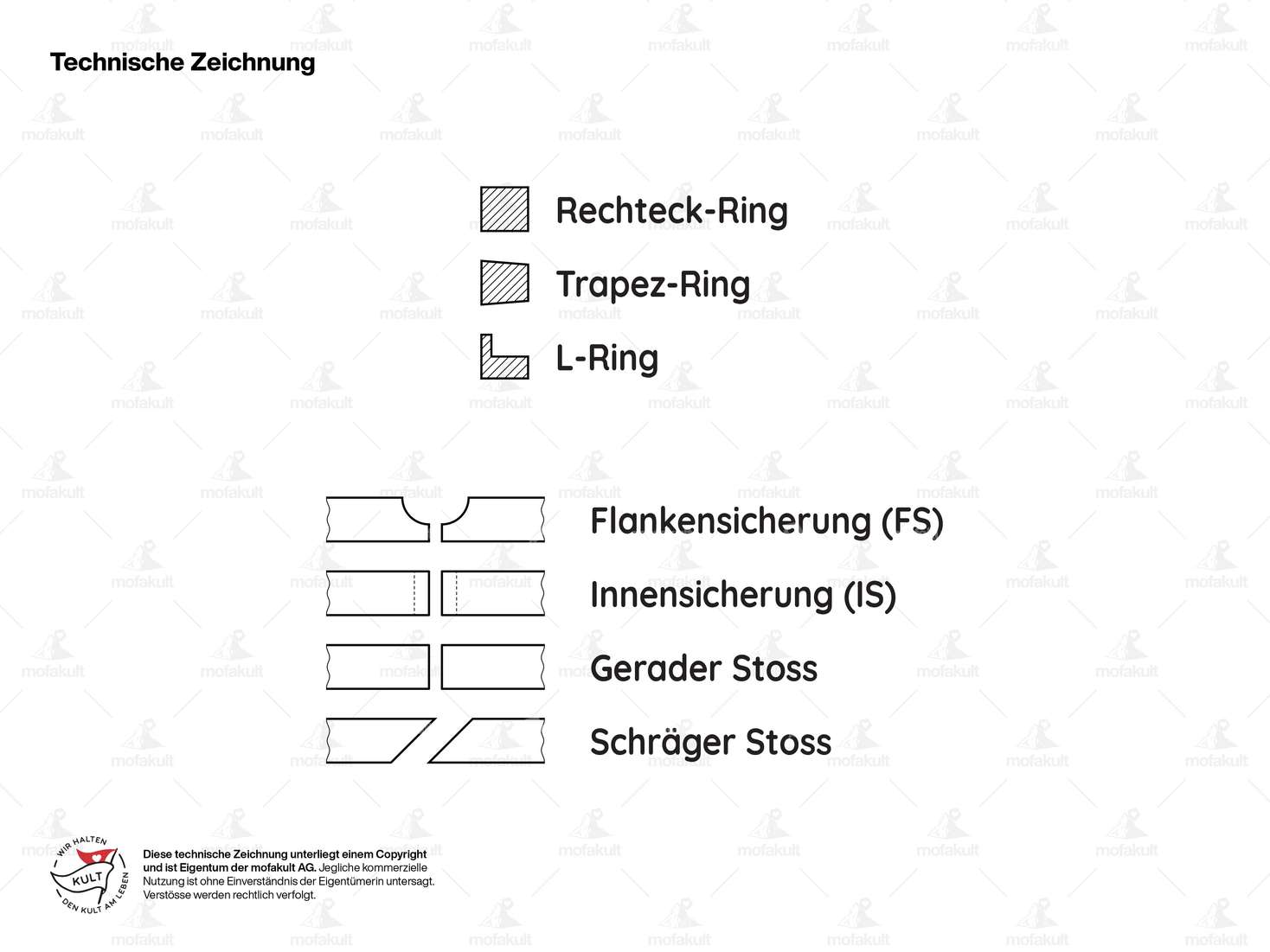

The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

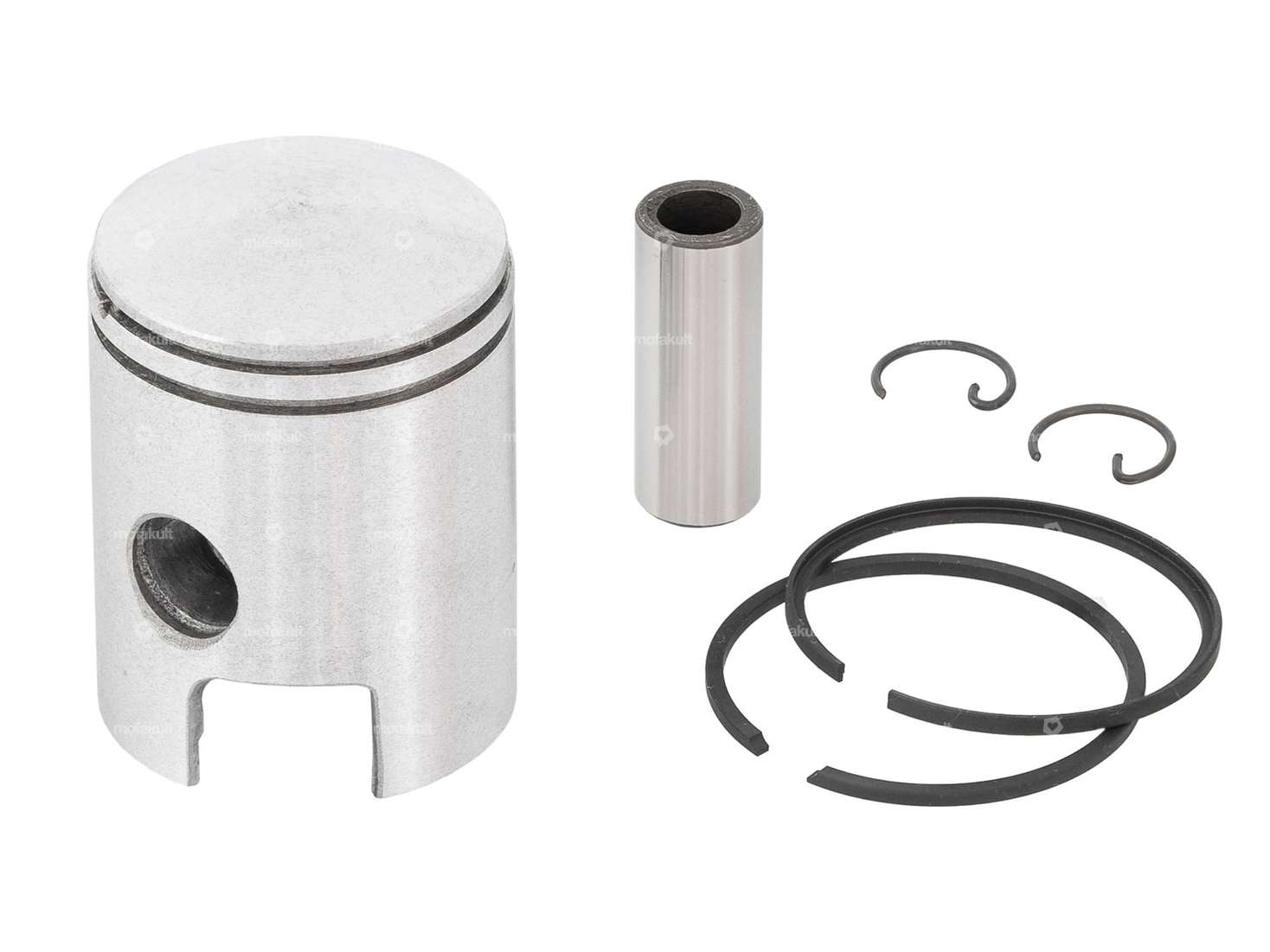

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Made by the Italian brand Olympia.
| Nominal diameter | 38.4 mm |
| Manufacturer | Olympia |
| Ø outside piston (A) | 38.34 mm |
| Compression height (C) | 26.4 mm |
| Curvature (D) | 3.6 mm |
| Total piston height (E) | 51.9 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Ø outside: 15 mm · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 16.00
Not so nice

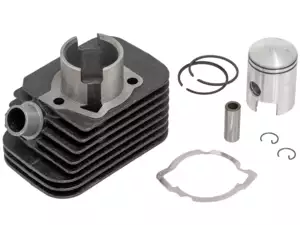

Olympia 38.4 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
