Not so nice

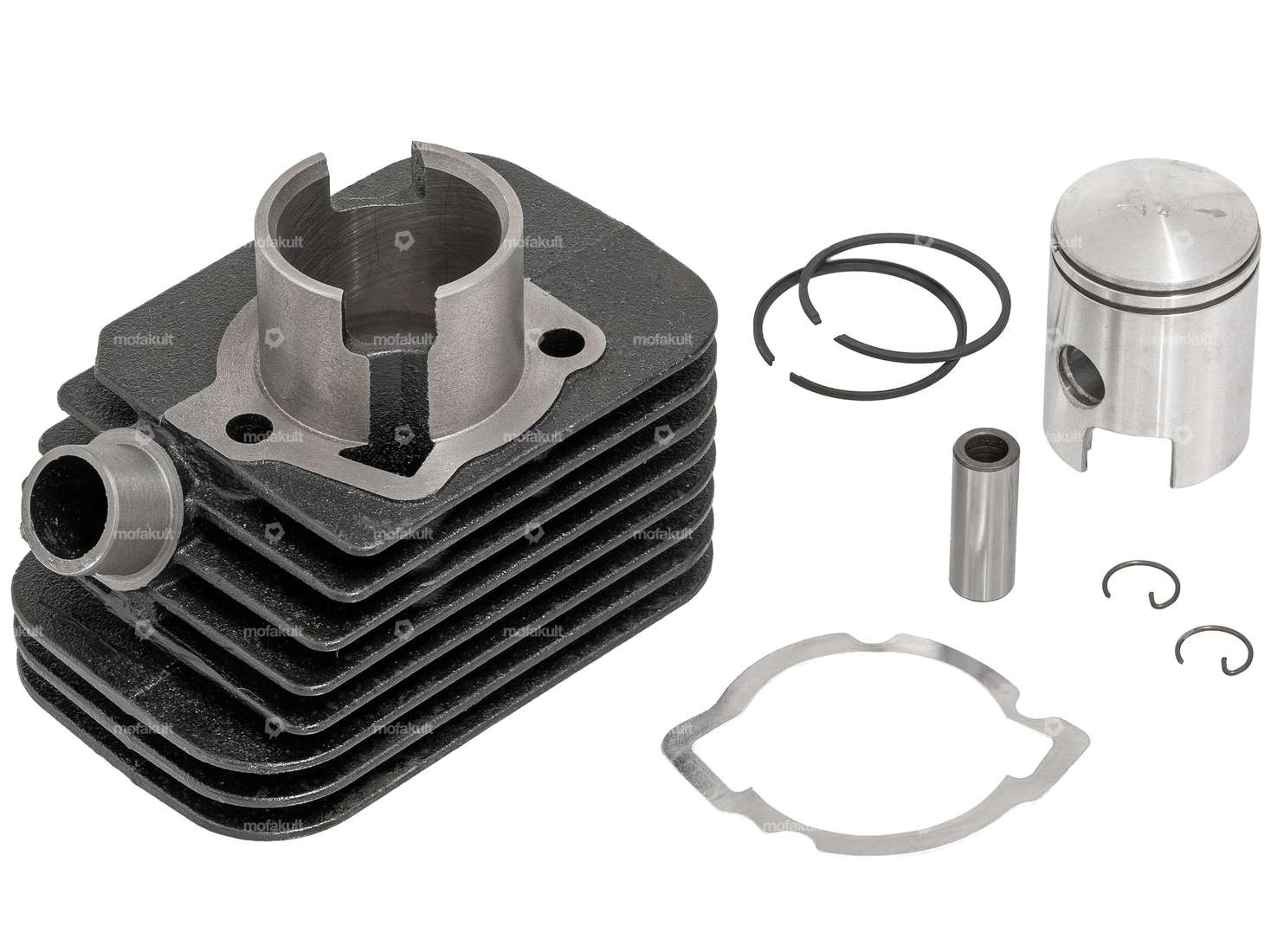

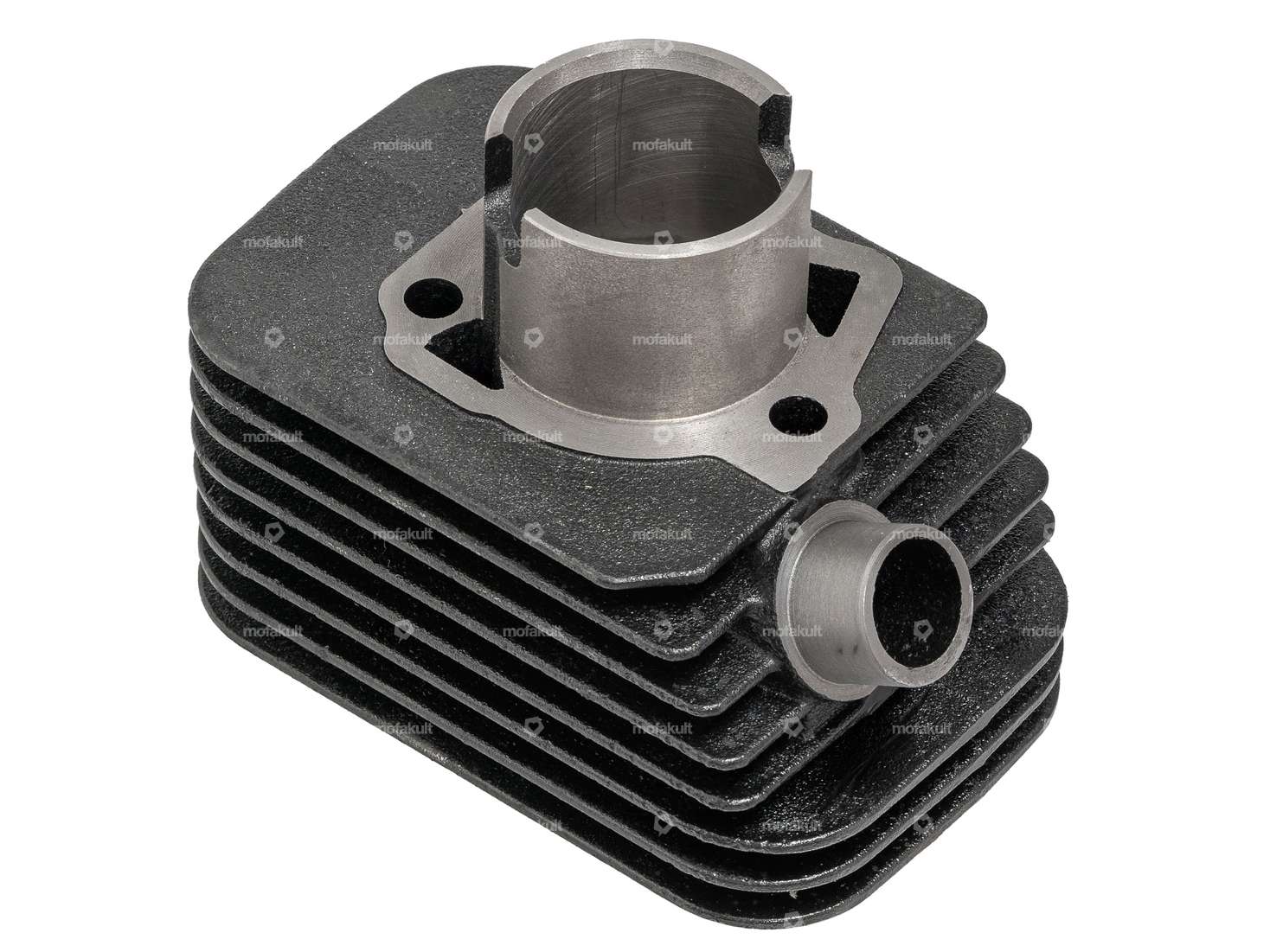

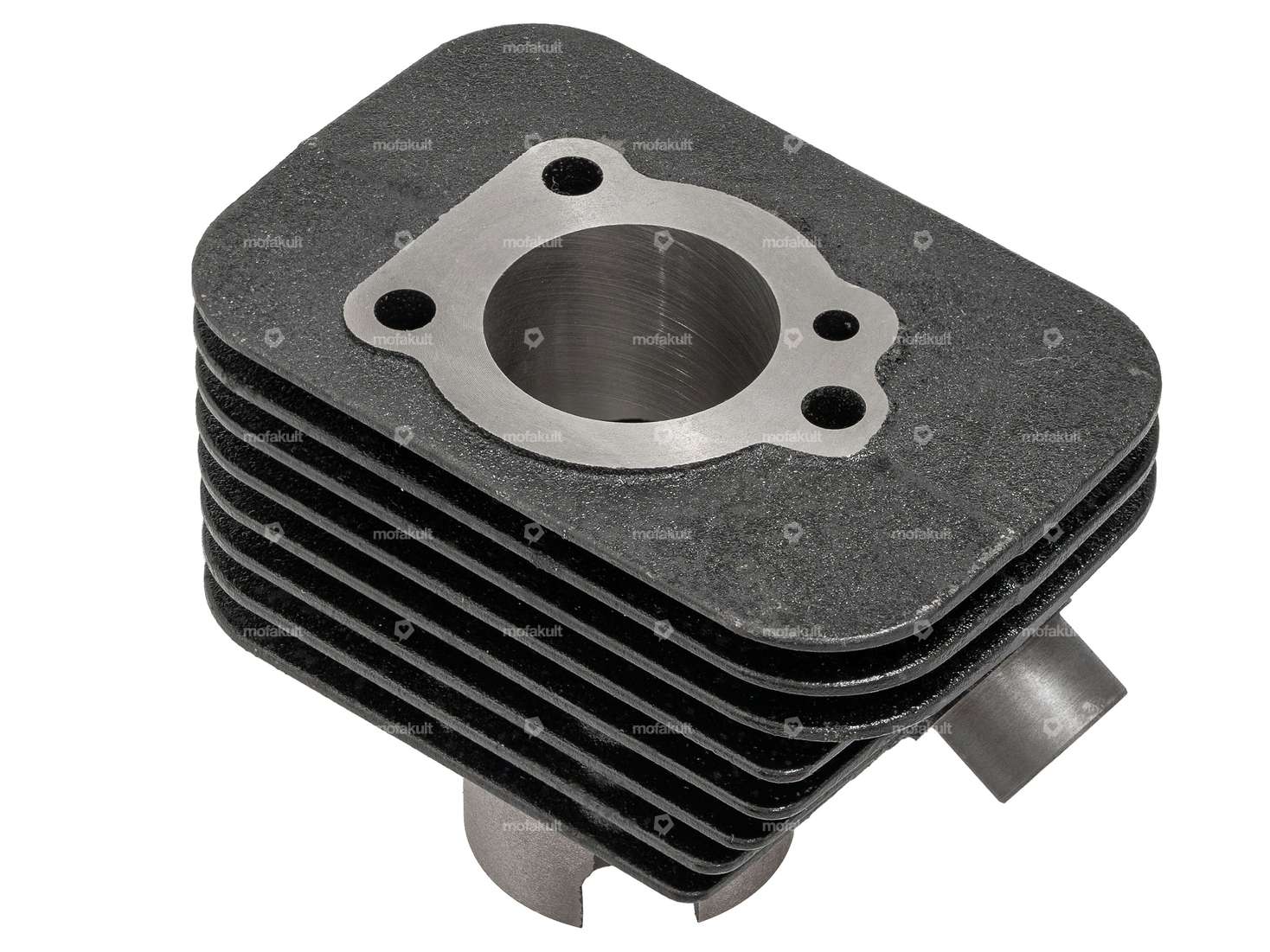

Cast iron cylinder with 50 cc displacement, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with 10 mm piston pin.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.

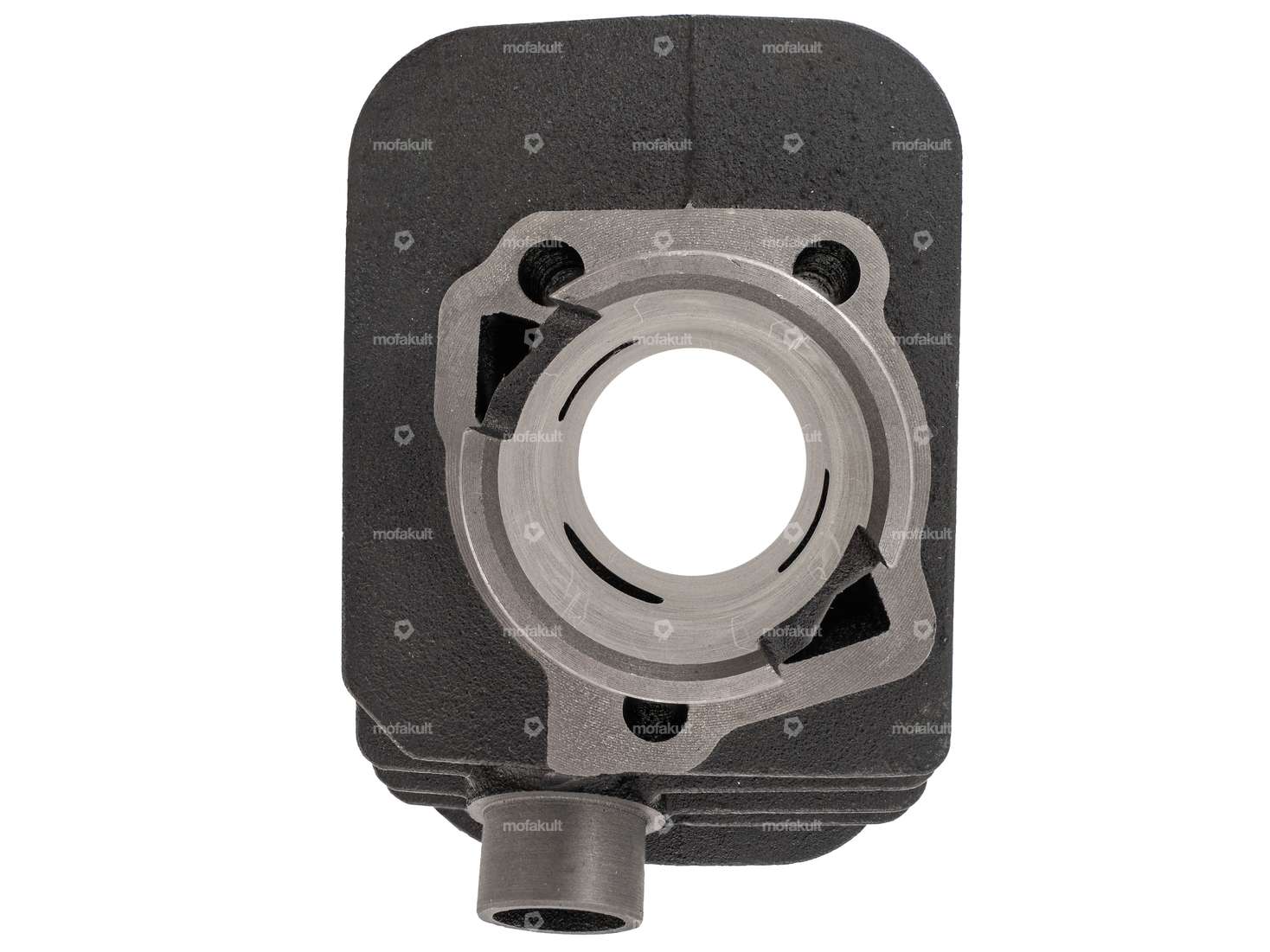

The cylinder is not cleanly finished and has occasional chips and general manufacturing defects. In contrast to the original cylinder and other replicas, the exhaust and the overflow channels are significantly smaller and therefore the power output is correspondingly low.
Note: Check the piston ring joint before installation using a reed gauge. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.
| Nominal diameter | 38.4 mm |
| Material | Gray cast iron |
| Number of fixing points | 3 pcs |
| Manufacturer | Olympia |
| Surface | varnished |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 22.4 mm |
| Ø outlet inside | 17.6 mm |
| Ø piston pin (B) | 10 mm |
| Area of application | Tuning |
| Outlet type | clamped |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
Athena 38.4 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Nominal diameter: 38.4 mm · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø cylinder neck: 45.7 mm · Number of fixing points: 3 pcs · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18 mm · Ø piston pin (B): 10 mm · Area of application: Tuning · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No
EUR 191.00
DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: DR Racing Parts · Material: Gray cast iron · Camouflaged: No · Surface: varnished · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Nominal diameter: 38.4 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Area of application: Tuning · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Ø outlet inside: 17 mm · Hole pattern [mm]: 35 x 55 · Outlet type: clamped · Decompressor: Yes
EUR 155.20

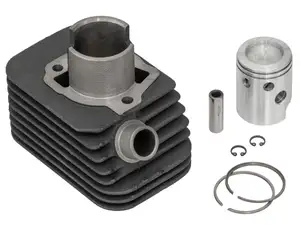

38.4 mm cylinder kit 10 mm KoBo NOS | Piaggio Ciao, SI Cat (IT)
