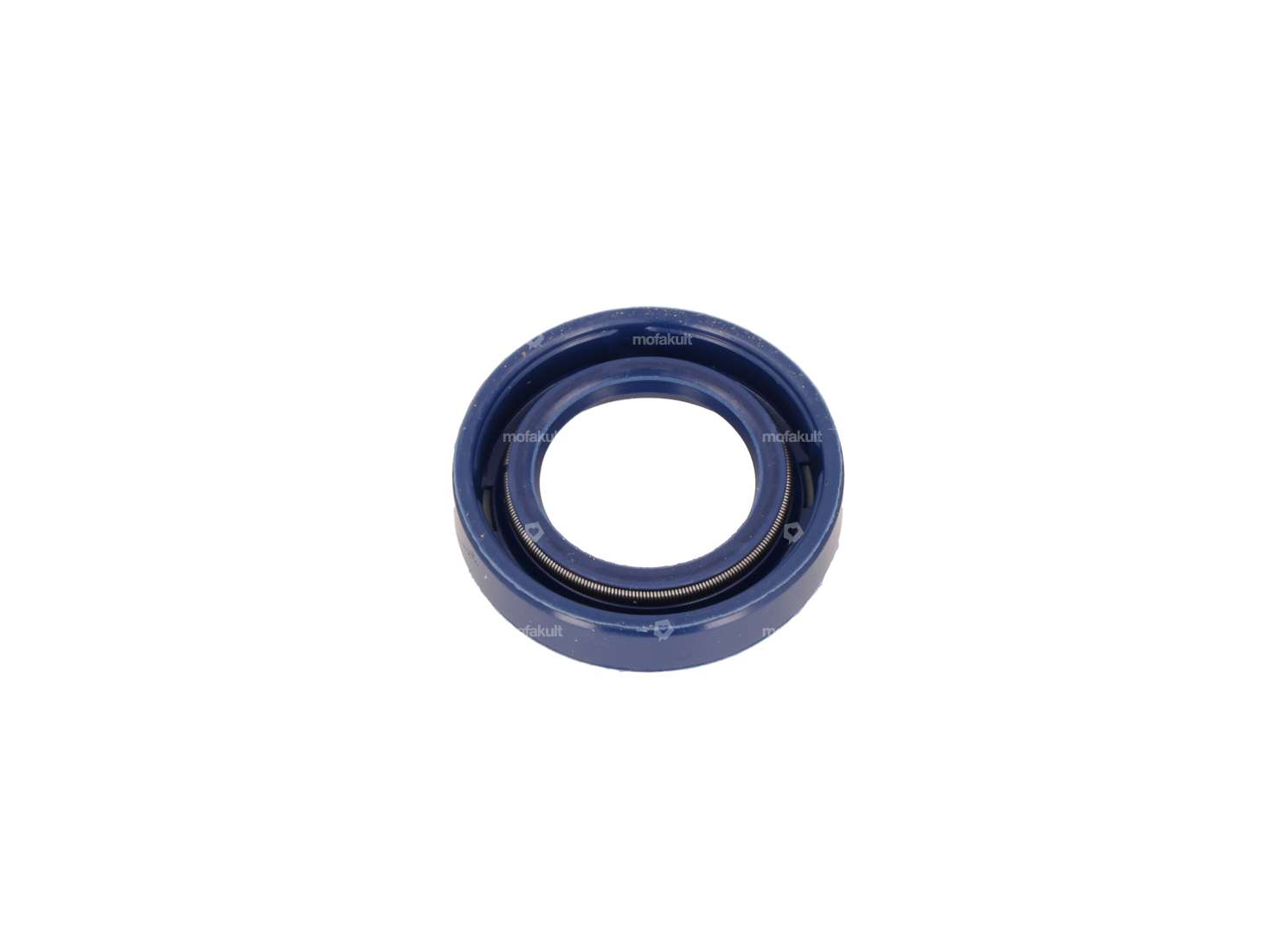

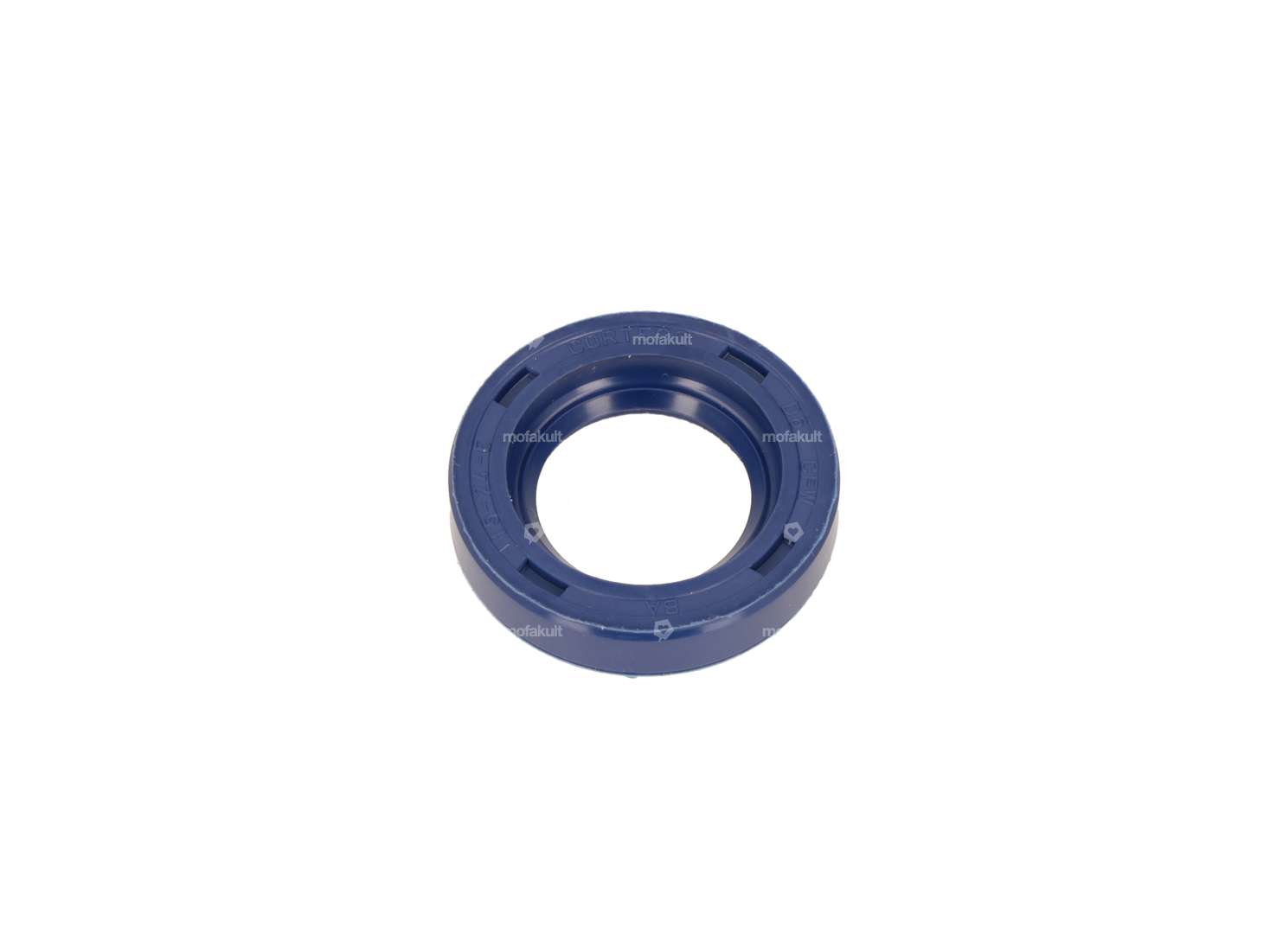

Oil seal NBR 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Area of application: Original · Area of application: Standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Weight: 698 g · Number of gears: 1 pcs

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Weight: 695 g · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Area of application: Original · Area of application: Standard · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Thread length: 16 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Number of gears: 1 pcs

Oil seal NBR 15/24/5 AS

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm

Oil seal 15/24/5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Crankshaft · Manufacturer: Piaggio · Ø outside: 24 mm · Width: 5 mm · Ø inside: 15 mm

Athena crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 85 mm · Total length crankpin ignition side: 91.6 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm · Number of gears: 1 pcs · Area of application: Racing

Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Malossi · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 24 mm · Width: 5 mm

Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer

Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Piaggio · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 15 mm · Place of use: Crankshaft · Width: 5 mm · Temperature resistance (min.): -30 - 200 °C · Ø outside: 24 mm

Polini oil seal FPM / PTFE 15/24/5

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Polini · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Ø inside: 15 mm · Place of use: Universal · Ø outside: 24 mm · Width: 5 mm · Area of application: Racing

Shim 15/21/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 15 mm · Thickness: 0.5 mm · Ø outside: 21 mm · Ø inside: 15 mm

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Ø axle: 5 mm · Material: Steel · Cable available: No · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Height: 26 mm · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Total height: 31 mm · Piaggio OEM number: 102939

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24. Bravo, SUPERbravo

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SHA (Piaggio) · Color: black · Nominal diameter: 13 mm · Total length: 46 mm · Ø Internal connection: 16 mm · Height: 96 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Area of application: Tuning · Width: 60 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Filter type: Foam · Color: black · Ø outside: 53.2 mm · Total length: 31.2 mm · Ø Internal connection: 51 mm · Height: 88.7 mm · Mounting type: Plug connection clamped · Area of application: Tuning · Width: 95 mm

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Material: Spring steel · Surface: blank · Ø inside: 14.7 mm · Ø outside: 20.5 mm · Area of application: Standard · Material thickness: 0.2 mm

Mirror mount M8 aluminum

Material: Aluminum · Thread size: M8 · Clamping diameter: 22 mm · Width: 24 mm · Total length: 28 mm · Height: 62 mm

SKF 6202 C3 ball bearing 15/35/11

Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

Oil seal FPM 15/24/5 AS

Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM - Fluororubber · Surface: rubberized · Ø outside: 24 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 200 °C · Width: 5 mm

swiing® revival gasket engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.3 mm · Piaggio OEM number: 112967
